Product details

Diesel Bucket Chain Dredger for Gold and Gem

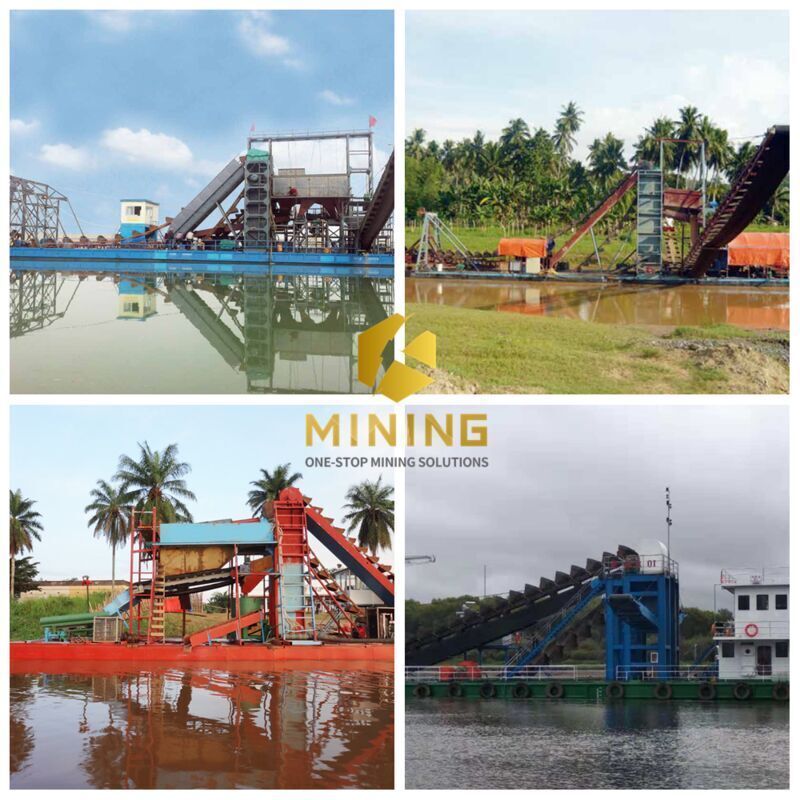

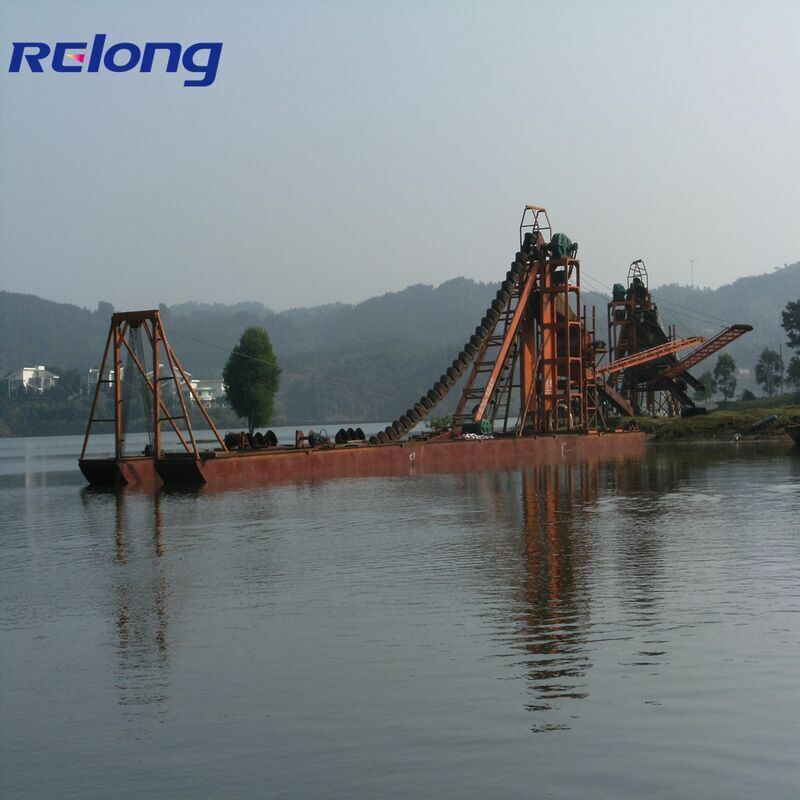

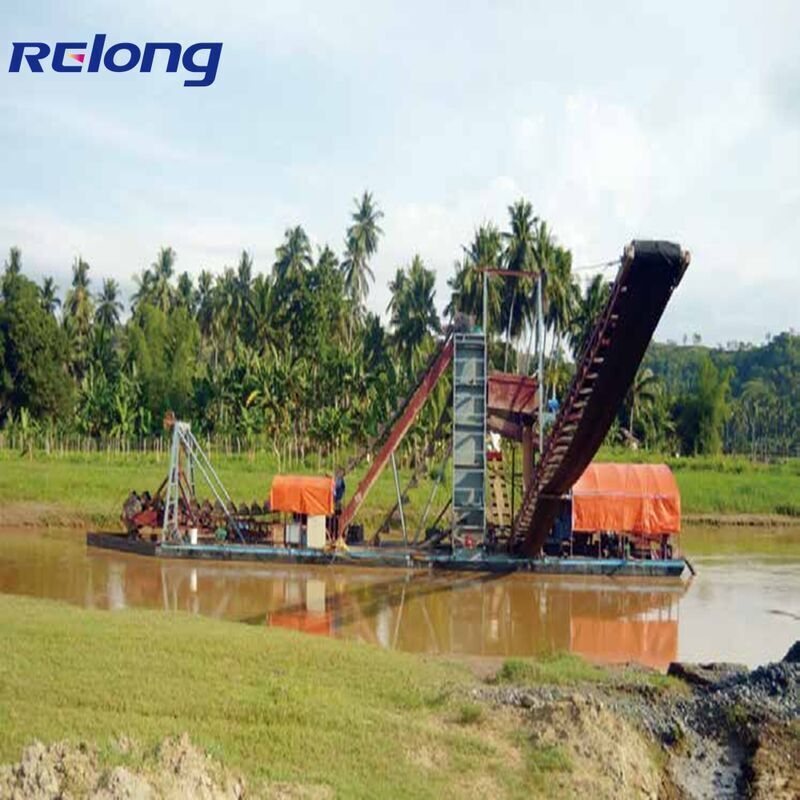

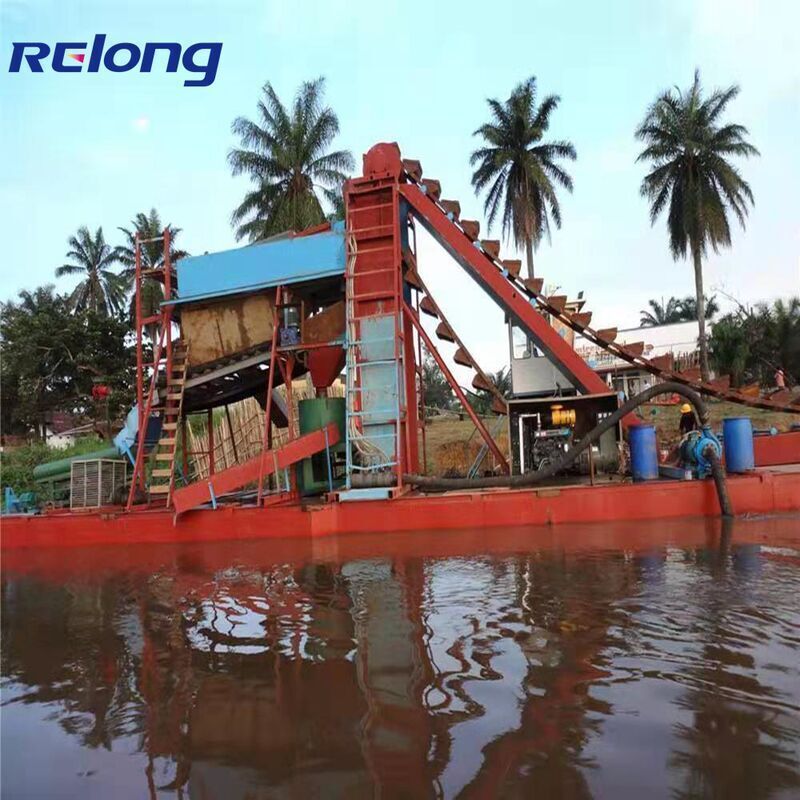

The dredger is non-self-propelled bucket chain type dredger. The dredger body is transverse frame box type pontoons with modular design. The dredger is composed of positioning anchors, driving system, lifting ladder system, conveying device etc. The ladder is lifted up and down by the winches and the buckets will excavate the materials under water and discharged to the bank by conveyors.
The conveyor belts can be towards both left and right sides according to the project need and for higher efficiency.
All the device can be driven by electric motor and the operation can be done in the operation cabin.

Features
1 Processing Capacity: Dredging capacity 200 cubic meters per hour
2 Feeding Size: < 10 cm
3 Dredging depth: > 6 m
4 Overall Dimension: Overall length: 20m Overall width: 6.5m Overall height: 1.2m Displacement: 49 T
5 5 Delivery time: About 4-5 weeks

Bucket Chain Gold Dredger

Model

RL-150

RL-200

RL-300

Parameters

Capacity

150tph

200 tph

300 tph

Power

150 kw

200 kw

300kw

Bucket size/ cubic

0.04

0.04

0.12

Clay Scrubber /mm

φ1000*2000

φ1200*3000

φ1500*3000

Trommel Screen /mm

φ1200*3000

φ1500*3500

φ1800*4000

Sluice Box

2 sets

3 sets

4 sets

Water Supply /m³

120 m³

240 m³

370 m³

Concentrators

1

2

4

Recovery Rate

98%

98%

98%
