Brand Name: | OEM; | Working Frequency: | VHF 40~300MHz | UHF 470~890MHz; |
Name: | Amplified HD Digital Outdoor HDTV Antenna 150 Miles Long Range OD102; | Packaging Detail: | 1 X HDTV Antenna
1 X Motor-with 30ft Coaxial Cable
1 X Remote Control
1 X Power Supply
1 X Adaptor; |
Port: | shenzhen; | Certification: | FCC,CE,Rohs; |
Noise Figure: | < =2.5dB; | Place of Origin: | Guangdong, China; |
Channels: | 1~12,21~69; | Package Preview: | ; |
Type: | Outdoor; | Operation Temperature: | -10° C ~ 50° C; |
Main Voltage: | AC120V±10%/60Hz; | Impedance: | 75Ohm; |
Supply Ability: | 10000 Pieces per Day; | Max Output Level: | 105dB u V; |
Frequency Range: | :VHF 40~300MHz,UHF 470~890MHz; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal; |
Typical Antenna Gain: | VHF 28~32dB | UHF 32~36dB; | Model Number: | OD102; |
Reception Range: | 150 Miles; | | |
Product Description

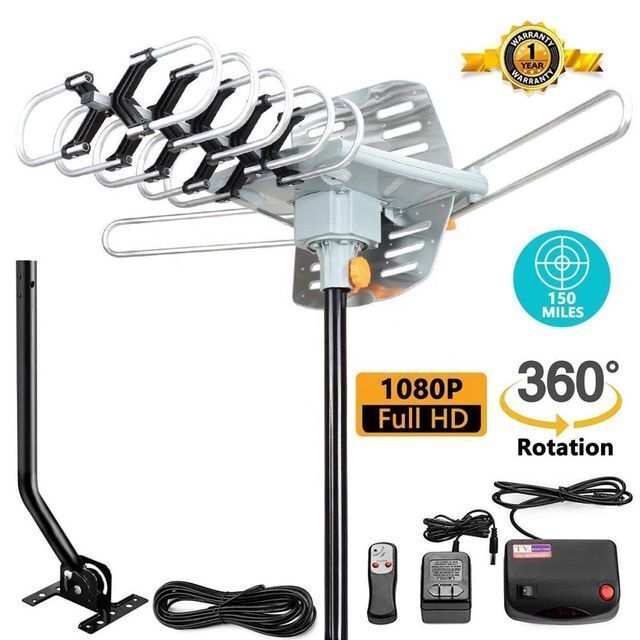

Amplified HD Digital Outdoor HDTV Antenna 150 Miles Long Range OD102
Features:
Easy-to-follow user manual for perfect and Easy Snap-On Installation
Built-in Low-Noise and High Gain Amplifier

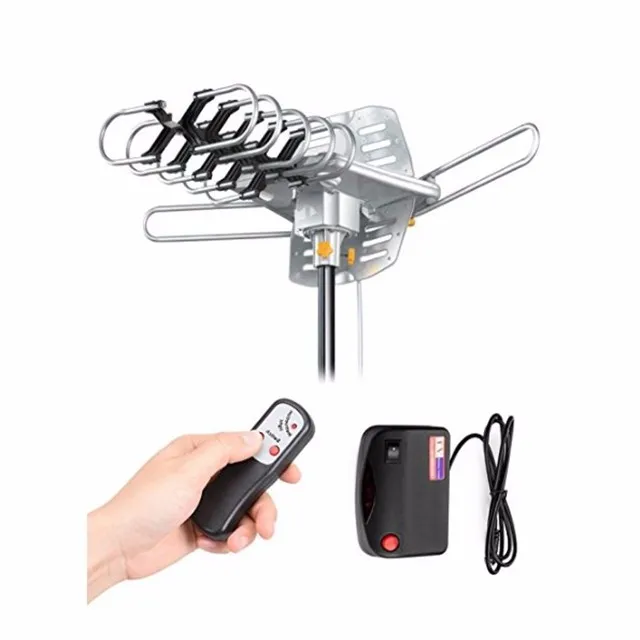

Built-in motor turns the antenna 360 degrees | Motor turns in both directions to avoid tangles
Wireless remote controller
Control Box with Dual TV Outputs is included
Recommended to be mounted 30 feet above ground
Specifications:
Working Frequency: VHF 40~300MHz | UHF 470~890MHz
Noise Figure:< =2.5dB
Typical Antenna Gain: VHF 28~32dB | UHF 32~36dB
Reception Range: 150 Miles
Channels: 1~12,21~69
Impedance: 75Ohm
Max Output Level:105dB u V
Main Voltage: AC120V±10%/60Hz
Operation Temperature: -10° C ~ 50° C
Coaxial Cable Length: 40FT
Package Dimensions: 17.5 x 12.4 x 4 inches with 6.3 Pounds
Detailed Images
Packing & Delivery
Company Introduction:
Found on 2009,Shenzhen Global Electronic Technology CO.,LTD is one of the leading manufactures specialized in Indoor HDTV antenna,Outdoor HDTV antenna and Digital set top box.
