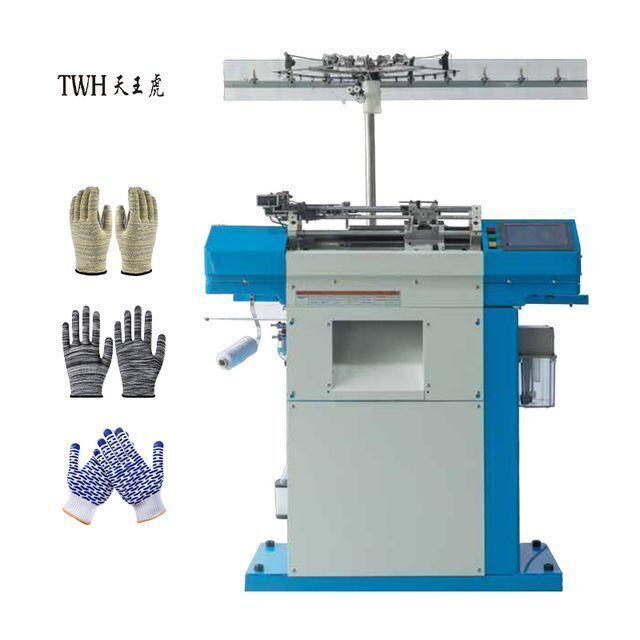

Computerized knitted gloves making machine for knitting gloves gloves machine automatic

Supplier: Changshu Shengxingda Co., Ltd.
Region: Jiangsu, China
Contact: Ms jessica lee
Price: $2500.00 / 1 - 19 sets
$2300.00 / >=20 sets
Min. Order: 1 set

Click here to contact

Product details

Voltage:	220V/50HZ;	Weight:	180KG;
Control system:	PLC+Touch Screen;	Supply Ability:	1000 Sets per Month;
Usage:	Workshop;	Power:	500W;
Warranty of core components:	1 Year;	Dimension(LWH):	10004301125MM;
Function:	Jaquard Knitted Gloves Making Machine;	Package Preview:	;
Video outgoing-inspection:	Provided;	Application:	Automatic Glove Maker;
After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Marketing Type:	New Product 2020;	Showroom Location:	None;
Warranty:	1 Year;	Place of Origin:	China;
Gauge:	7G 10G 13G 15G 18G;	Applicable Industries:	Garment Shops,Manufacturing Plant;
Machinery Test Report:	Provided;	Certification:	CE;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;	Speed:	300 Pairs/day;
Production Capacity:	300 Pairs/day;	Core Components:	PLC,Motor;
Port:	Shanghai Port Or Ningbo Port;	Product Keywords:	High speed Work Glove Machine;
Brand Name:	T.W.H;	Product name:	Work Glove Machine;
Condition:	New;	Color:	Customizable;
Suitable raw material:	Cotton Yarn;	Packaging Detail:	Wooden packing;
Local Service Location:	None;

High-speed automatic Glove Making Machines

Related Products

Product Description

2021 High-speed automatic Glove Making Machines

MAIN FEATURE
* The operation panel adopts large-screen high-definition LCD full-screen touch, U disk copy output,simple
and convenient；
* Servo motor synchronous belt drive, arbitrarily change the head stroke, efficient and stable;
* Stepper motor density control system to achieve different weaving density for each part of each line;
* Stepper motor scissors control system, hook yarn, yarn cutting and yarn laying at any position;
* The needle selection roller adopts the screw linkage to ensure the position of the front and rear syringes;
* Stepper motor elastic thread feeding system, computer control the size of the mouth, evenly feeding the yarn;
* Intelligent oil supply system, implementing lubrication friction parts;
* Broken finger weaving system to reduce raw material loss.

Operating Procedures

Pattern preparation:The pattern edited by the plate-making system is operated on the file management interface and input into the computer memory, and then the required size is switched according to the actual situation. After reading the pattern or changing the size, enter the running interface to reset and take effect.

Parameter setting:System parameters Each glove machine has a customized set of parameters determined by its own machinery, such as needle zero position, needle plate length, etc., which have been debugged before leaving the factory, and users generally do not need to modify them. If they need to be modified, they must be professional Personnel.

Working parameters The parameters used by the computer according to the needs of the work, such as the upper limit of the main motor high speed, the turning distance of the head, etc.

A series of parameters closely related to the knitting pattern.

(Note: The knitting parameters are automatically saved when returning to the main interface, and can be saved to the U disk along with the pattern.)

Work confirmation:The final confirmation of the pattern program, various parameters, and normal operation of the mechanism to be knitted.

Machine operation:After the above work is completed, use the start button to start the glove machine for knitting.

Mechanical details

Gauge :	7G 10G 13G 15G 18G
Head drive system	AC servo electronic motor control, driving the gear belt to drive the head. During the process of knitting gloves, you can edit the speed of the seam, fingertips, falling cloth, and knitting parts of different gloves, so that the machine head can run smoothly and improve efficiency.
Weaving size	M L XL can change the size by changing the needle selection bar on the needle selection barrel and changing the system pattern.
Degree control	The front and back degrees are controlled by an electronic motor, and the degrees can be set from 0-550 for each line of different parts.
Needle selection drive	The needle selection driving device uses a stepping motor to drive the squeegee rod and the squeegee wheel to drive the front and rear needle selection cylinders, which can fine-tune the needle output speed of the front and rear needle cylinders, and can be arbitrarily turned to the designated needle cylinder position under computer control.
Safe shutdown device	During the knitting process, it will automatically stop when the number of pieces reaches the set number for broken threads, servo overloads.
Average capacity	300 pairs/24H
volume	10004301125MM
Rotating speed	300r
Weight	180KG
