Tricycle rear axle or Small rear axle with 24v electric brushless dc motor
- 223.80 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Supply Ability: | 3000 Pieces per Month; | Place of Origin: | Guangdong, China; |
| Car Make: | Tricycle; | Model Number: | LDM01-283; |
| Ratio: | 17.25; | Rated Voltage: | 36VDC; |
| Color: | Black; | Second Name: | transaxle,drive axle; |
| Application: | Electric vehicles,scooter,rickshaw,bicycle; | Port: | Zhuhai Port; |
| OE NO.: | STD; | Payment Terms: | L/C,T/T; |
| Brand Name: | ROTON; | Packaging Detail: | foams,carton,pallet.; |
| Warranty: | 24 Months; |

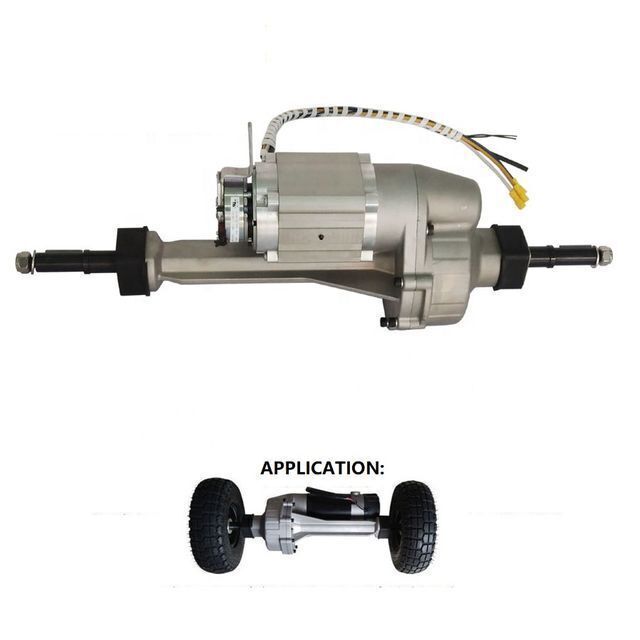

Tricycle rear axle or Small rear axle with 24v electric brushless dc motor.
Products are widely used for mainstream travel trailer, Engineering vehicles,Special vehicles,medical facilities,mobility scooter for old people,cleaning machines, electric wheelchairs, warehouse transport push cart, ECT.

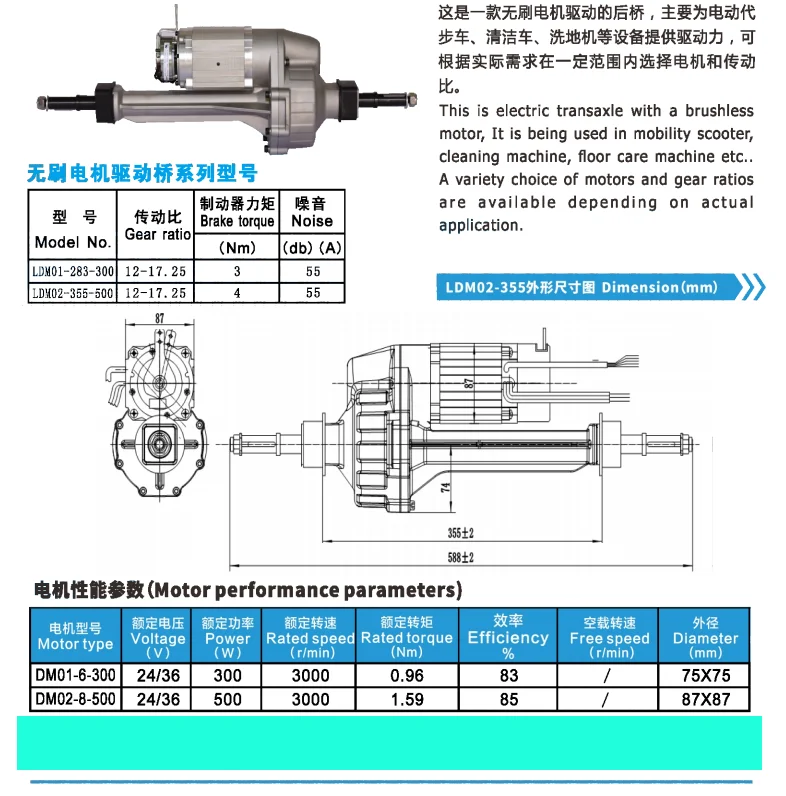

Product parameter
LDM01/M02 Transaxles Seriers
| Model No. | LDM01-283-180 | LDM02-3500-500 | LDM02-355-350 | LDM02-355-600 |
| Rated voltage | DC 24V/36V/48V | DC 24V/36V/48V | DC 24V/36V/48V | DC 24V/36V/48V |
| Rated power | 180W | 250W | 350W | 200W |
| Gear Ratio | 1:17.75 | 1:17.75 | 1:17.75 | 1:17.75 |
| Free output RPM | 200RPM | 240RPM | 225RPM | 150RPM |
| Max output torque | 10NM | 12NM | 18NM | 16NM |
| Motor Efficiency | 65% | 65% | 71% | 65% |
| Motor Diameter | 68mm | 68mm | 75mm | 75mm |
| Brake torque | 3Nm | 3Nm | 3Nm | 3Nm |
| Noise(db)(A) | ≤60 | ≤60 | ≤65 | ≤65 |
