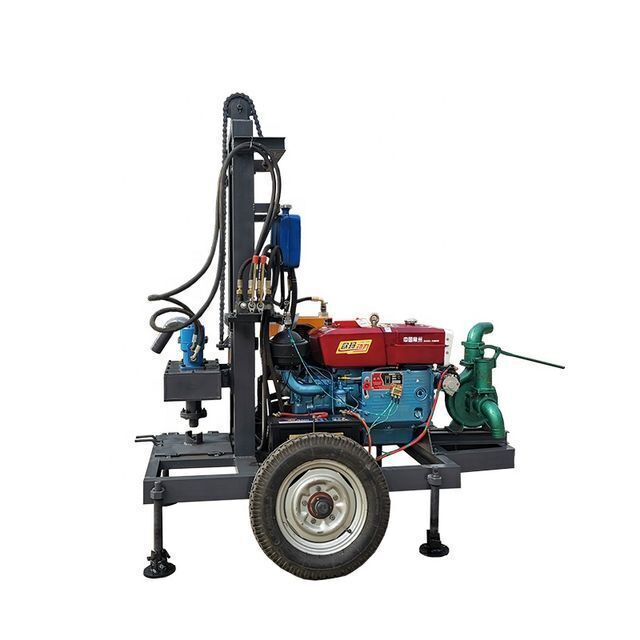

New improved version AKL-150Y water borehole drilling machine

Product details
Warranty of core components:1 Year;Dimension(L*W*H):1.7*0.9*1.8;
Drilling rod:1.5m/pcs;Power Type:Diesel;
Brand Name:AKL;Lifting:Hydraulic;
Packaging Detail:PLYWOOD CASE;Showroom Location:None;
Key Selling Points:Low Maintenance Cost;Applicable Industries:Farms,Construction works ,Energy & Mining;
Place of Origin:CN;HEN,Henan China;Weight:800kg;
Video outgoing-inspection:Provided;Drilling diameter:70-300mm;
Warranty:1 Year;Drilling depth:120m;
Marketing Type:Hot Product 2019;Local Service Location:None;
Type:Rotary Drilling Rig;Diesel engine:22HP;
Payment Terms:L/C,T/T,Western Union,MoneyGram;Rod diameter:51mm;
Package Preview:;Supply Ability:50 Set/Sets per Month;
Core Components:Gearbox;Machinery Test Report:Not Available;
Usage:Water Well;Condition:New;
Mud pump:5.5kw;Certification:ISO;
After-sales Service Provided:Engineers available to service machinery overseas,Video technical support,Free spare parts,Online support;Port:Qingdao, Guangzhou, Shanghai, Tianjin;

  Hot New improved version  AKL-150Y water borehole drilling machine



Product Description

  1.  Drill wells and holes for your urban and rural life;

  2.  Boreholes for agricultural irrigations and geothermal wells;

  3.  Water supply for your house yard, gardens and farms;

  4.  Hydraulic motor and hydraulic lifting run by diesel engine, no need electricty.

  5.  Satisfy your extensive purpose and multiple functions for drilling;

  6.  Assure easily operation and long life span to save more labors and money for you;





Product Detaills

Drilling machine 1 unit, mud pump 1 unit,  diesel engine, drill rods (negotiable), drill bits (negotiable), other accessories and spare parts.







Technical Parameters

Technical Parameters of Water Well Drilling Rig AKL-150Y

Type

AKL-150Y

Max. Drilling Diameter

300mm

Max. Drilling Depth

120m

Engine Power

22HP

Capacity of hoist

2t

Height of tower

2.5m

Measurement

1800*900*1900

Total Weight

800kgs

Drilling Rod Length

1.5m/piece

Diameter of Drilling Rod

51mm



Packaging & Shipping

 All the items will be packaged in one1.7*0.8*1.0m PLYWOOD casse. it is about 800kgs at least







FAQ

1: What is the main application for this portable drill rig?

This portable drill rig AKL-150Y mainly applies to drill wells for urban and rural life, agricultural irrigation and industries. Moreover, welcome in farm irrigation wells, garden irrigation wells, drilling water wells, geothermal wells, geological exploration, and even could take cores and do piling works with special drill accessories.

2: What are the max. depth and the max. diameter of holes allowed for this drill rig?

Theoretically, the max. 300mm of diameter and max. 120m of depth are available for this drill rig AKL-150Y. Here we sincerely inform that the final depth and diameter will be subject to your special local working strata and drilling experience.

3: What kind of working strata is efficient for this AKL-150Y drill rig?

These strata are all allowable with this drill rig, such as, soil, sandy, clay, sediment, soft rocks, etc. Certainly, the special strata need different drill bits during your whole project.

4: What is your main features of this drill?

 Economical and worthy to own by any family or drilling company. Practical and efficient by drilling speed of 40m/h; Easy operate and maintain by only two workers. No need electricty, Hydraulic motor and hydraulic lifting.

Buying Guides



If you have interest, just feel free to send inquiry, talk with us online, or call us directly. +8615137425291  Michael Li, and  If you use whatsap, it will be ncie.  add this No. We will get back to you at first time.
