New arrival!!98inch whiteboard Infrared 10 points touch smart board android dual OS for classroom

Product details
Widescreen:Yes;Processor Main Frequency:1.4GHz;
CPU:intel i3/i5/i7 optional;Operating System:Dual OS(Android);
Memory:4GB RAM 120GB SSD ROM;Single package size:238X143X26 cm;
Packaging Detail:98inch high quality 3mm thickness honecomb box(air shipment standard) Package size:2371*1426*258mm N.W.:121KGS G.W.:146KGS;Speaker:2pcs built-in;
Display Type:LED;Product Name:touch screen whiteboard;
Place of Origin:Guangdong China;Selling Units:Single item;
Brand Name:YCZX;Single gross weight:146.0 KG;
Model Number:YC980-JX;Screen Size:98'';
Products Status:Stock;Optical Drive Type:CD-ROM;
Processor Brand:Intel;Resolution:3840*2160 4K;
WIFI:802.11b/g/n;Type:ALL-IN-ONE;
Memory Capacity:≥ 4GB;Touch points:10 points;
Warranty:12 Months;Graphics Card Type:Integrated Card;
Product Description

 Features And Advantages

  1. All in one:computer, whiteboard, projector, TV, speaker, advertising machine,multifunction in one equipment.
  2. Support 10 points IR touch ( 20 points touch option):Adopt super sensitive touch panel, increase the touch accuracy, and it can stand more than 35 million time secure touch without any uncontrolled space. Touch easily and control perfectly.
  3. 1920*1080 FHD / 3840*2160 UHD resolution: high definition LED screen, LG A+ grade 1.07B colour original panel, AWB TECH, suit for universal application scenarios.
  4. 4mm explosion-proof tempered glass: 4mm Ultra-Thin rating 7 glass can protect screen effectively.
  5. Infrared touch screen with aluminum plate, small heat, fast heat dissipation, which can effectively extend the life of panel.
  6. Dual core processor : windows and android dual system built-in design. Both systems can achieve whiteboard writing and multimedia playing.
  7. Fast response speed: 0.8ms fluent writing and demonstration. More convenient courseware management. Accurate, fast touch, no delay.
  8. Intelligent operation: Freely write, annotate and screen shot. Automatically recognize input channel. Intelligent eye protection. Light sensor with automatic brightness control. Energy save & intelligent awake.
  9. Intelligent writing & Touch control: the writing function interface can realize the functions of writing, magnifying, shrinking, erasing, dragging, and the like.
  10. Screen-mirroring with android phone, iphone, ipad, computer,etc.
  11. Supporting connecting WIFI and sharing hot spots at the same time. Comes with double WIFI, common module and dual frequency. 5G signal high-speed access, while sharing hot spots.

Specification

Screen size

32’’/42’’/50’’/55’’/60’’/65’’/70’’/75’’/86’’/98’’

CPU

intel i3; (intel i5/i7 option)

RAM

4GB RAM; (8GB/16GB option)

Memory

120GB SSD;(240GB SSD/1TB HDD option)

Windows OS

Windows 7/10 without license( license option)

(Android OS option)

MSD 648 Quad core

Android

 Android 6.0

Touch Technology

Infrared touch

Touch points

10/20 points

Input way

finger touch,pen,or any opaque object

Touch life times

Over 60,000,000 times

Touch response speed

8ms

Display Type

LED

Resolution

1920*1080 FHD (3840*2160 UHD option)

Brightness

400(cd/m2)

Ratio of display

16:09

Best viewing angle

up:89 down:89; left:89 right:89

Max. viewing angle

178°

Contrast ratio

5000:1TYP

Glass type

4mm tempered glass

Glass transmittance

95%

Front Buttons:

PC power button*1;Volume up*1;Volume down *1;Memu*1;Power on/off*1

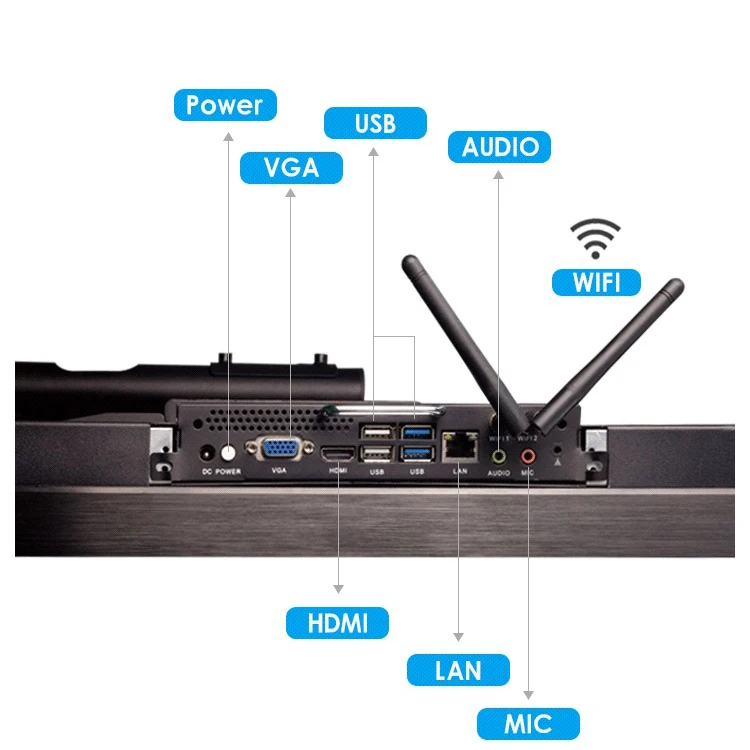

Front ports:

HDMI*1;Touch out*1;MV in*1;USB2.0*3

Back ports(Ⅰ):

USB2.0 type B*1;USB2.0*2;HDMI*1;VGA*1

Back ports(Ⅱ):(Exact ports info. depends on the model of OPS PC)

DC(9V-12V)*1;MIC*1;AUDIO*1;LAN*1;USB3.0*2;USB2.0*2;HDMI*1;VGA*1

Power of display

178W

Colors

16.7M

Life time

60,000h

Working voltage

50-60HZ 100-250V

Standby power

3W

Working temperature

0~45℃

Storage temperature

-20℃~60℃

Working humidity

5%-90%

Power of speaker

8Ω10W*2

Frame material

Alloy

Accessories

Wall bracket/movable floor stand/pen/remote control/WIFI antenna

Warranty

12 months

 Package

30mm thickness Honeycomb box



Send Us Inquiry Now!



Our Company

  • Guangzhou Yi Chuang Technology Co., Ltd.,located 3rd/F,NO.C19 Building,Hua Chuang Animation Industry Park ,JingShan Village, ShiJi Town, PanYu district , Guangzhou city. Specialized in doing 32inch ~ 98inch all in one touch screen smart board for education,conference,home use. In year 2013, We set up our own brand “YCZX”, which selling in domestic China market. Now it's the top 1 brand selling on line. Covered 60% market selling quantity.
  • Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In addition, we have obtained FCC, I S O 9 0 0 1,,R O S H, C E certificates.Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Europe, America, Southeast Asia, Africa.
  • We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can feel free to talk to our customer service center about your sourcing requirements. We are also keeping searching and developing our new products to satisfying new demands from customers.
  • High quality, reasonable price and good services always are our promise to all of our customers. We will try our best to do better.



FAQ



WHY CHOOSE US ?

51 million company registered capital

Grade A raw materials, ensure the quality of the finished product

CCC,CE,ROHS,ISO9001,SGS certified

l Company long-term stock 5000 units, with short lead time

Over 10 years experience on OEM/ODM

Own Assembling factory /metal hardware factory/ package box factory

l Has PCBA develop team, support to do software and APPs customization



FAQ

Q:Can you provide OEM service for the all in one interactive flat panel?

A: Yes,well supported.We can customize it according to your requests.



Q:Do you have stock?

A:We keep 3000-5000 units in Stock every single Month.



Q: Is your company a real manufacturer?

A: Our company is the professional manufacturer in Panyu district,Guangzhou city, you are the mostly welcomed to visit our factory anytime.



Q: How is the quality of the product?

A: Our products have been strictly tested high quality by QC before shipping to customers.And we do own brand selling in domestic China market on line, our brand is “YCZX”.So quality is the first thing for us!



Q: Does the product only use for school?

A: Our products are widely used in Hospital, School, office etc.



Q: How can I trust your product quality?

A: We have more than 10 years export experience.  From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by CE & ROHS etc.



Q: What's your after-sale service?

A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly.
