Narrow tape zipper machine,machinery for making zippers
- 3000.00 set
| Local Service Location: | Turkey,Thailand; | Production Capacity: | 300sets / month; |
| Supply Ability: | 300 Set/Sets per Month; | Place of Origin: | Guangdong China; |
| Power: | 1.1KW; | Weight: | 400kg; |
| Port: | Huangpu Guangzhou; | Warranty: | 1 Year; |
| Export Markets: | Southeast Asia, the Middle East, Europe and America; | Dimension(L*W*H): | 1.5m*0.98m*2.1m,1.5*0.98*2.1m; |
| Commodity name: | shuttleless webbing loom; | Packaging Detail: | each loom : Bubble pack + wellpappe + stretch films+ wood case; |
| Place of origin: | GuangZhou, China; | After Warranty Service: | Video technical support,Online support; |
| Showroom Location: | Turkey,Viet Nam,Indonesia,Thailand,Bangladesh; | Voltage: | 380V; |
| Condition: | New,New; | After-sales Service Provided: | Video technical support,Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Engineers available to service machinery overseas; |
| Payment Terms: | L/C,T/T,Western Union; | Certification: | ISO,3C; |
| Model Number: | YJ-V8/27; | Application: | It can be used To produce jacquard elastic and non-elastic webbing; |
| Applicable Industries: | Garment Shops,Manufacturing Plant,Textile industry; | Brand Name: | YongJin,YongJin; |
Narrow tape zipper machine,machinery for making zippers
We are manufacturer (Quality Guaranteed , Integrity Services, Competitive price )

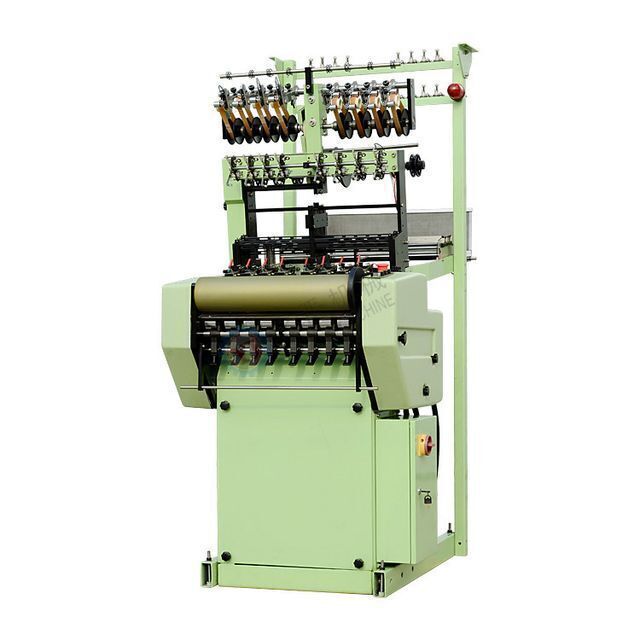

This is the shuttle less loom , this machine is to produce elastic belts, the structure is same as Muller's, over 95% of spare parts can interchange with Muller.
Besides, we installed the inverter system, can control the speed easily stop the machine immediately, also protect the yarn.
We also upgrade the structure of machine, in order to improve the speed, to compare with other brand, the output is 15% higher than others.
Video link
https://youtu.be/80VmuYpsSWg
| Model | 2/110 | 4/65 | 6/50 | 8/30 | 12/15 | 8/30-2 | 12/18-2 |
| Length of frame | 550MM | ||||||
Number of tapes | 2 | 4 | 6 | 8 | 12 | 16 | 24 |
| Width of reed | 110 | 65 | 50 | 30 | 15 | 30 | 18 |
| Maximum of tapes | 100 | 63 | 48 | 28 | 13 | 28 | 16 |
| Number of frame | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Power/Voltage | 1.1KW/380V | ||||||
| Circulation | 1:8/16-48 | ||||||
| Speed | 800-1500rpm | ||||||
| Main Features |
1.It is small in size and good-looking in appearance. |
2.The principal axis is electromagnetic braking. It is easy-to-use and sensitive to start and stop, and not cause to any useless tapes. |
3.The single iron frame being divided on two sides and oriented in the middle, it can change to various flower shape and different kinds of tapes. |
4.It is featured by double weft and double hook and can weave every complex ribbon and double Z-type ribbon. |
5.The advanced automatic weft feeding device ensures fine tuning of weft feeding when non-stop of machine. |
6.The cam is characterized by its novel profile, no making too much noise and its high-quality lockrand. |
7.The number of lines of strips can be changed quickly and efficiently.Motor power is 1.1KW |
8.The coiling setting is small in size and easy-to-use, and the coiling tape setting will stop automatically. |
