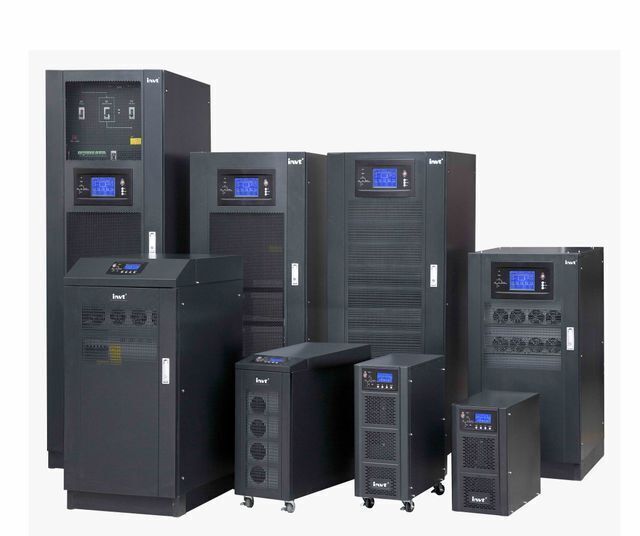

High Frequency Online UPS 1-20KVA

Click here to contact

Product details

Package Preview:	;	Port:	shekou;
Place of Origin:	Guangdong China;	Weight:	depends;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Brand Name:	INVT;
Electricity Generator Type:	Other;	Output Voltage (V):	220;
Type:	Plant;	Model Number:	HT11/HT31;
Supply Ability:	10000 Piece/Pieces per Month;	Packaging Detail:	standard package;

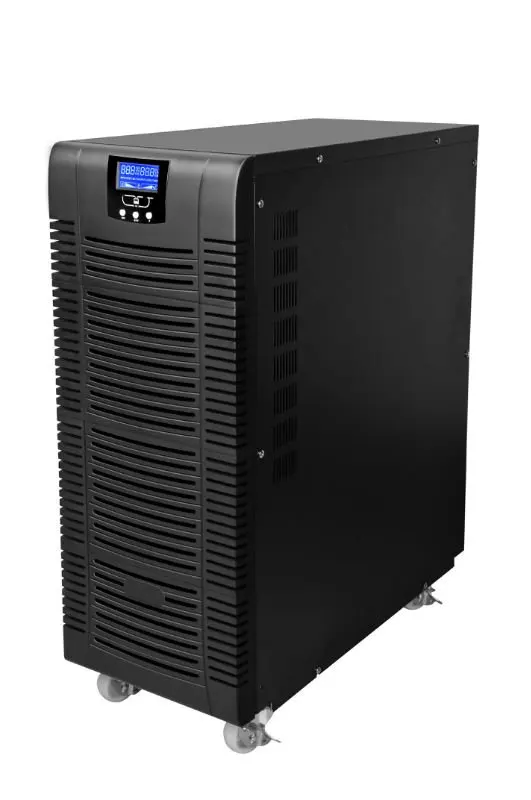

HT series online UPS 6-20KVA characteristics:

1. True online double conversion technology

2. IGBT PFC technology.

3. Wide input range.

4. Zero transfer time.

5. Compete protection function.

Application:

ISP(Internet Service Provider), IDC(Internet Data Center), computing center, bank, server center, precise equipment and etc.

Description:

Model	HT116K HT116KL	HT1110K HT1110KL	HT1115KL	HT1120KL
Rated Power
Power	6kVA/4.2kW	10kVA/7kW	15kVA/10.5kW	20kVA/14kW
Input
Nominal voltage	220VAC		380VAC
Voltage range	176-276VAC		304-478VAC
Frequency range	46-54Hz(default), user adjustable within 40-60Hz
Power factor	0.98
Output
Voltage	220VAC ± 1%
Frequency	50/60Hz± 0.2Hz(line mode), 50/60Hz± 0.2Hz(battery mode)
Waveform	Pure sine wave
Distortion	Less than 2% under linear load
Overload capability	105%-130% for 10 minutes, 130% for 1 minutes
Crest factor	3: 1
Battery
Type	Sealed, maintenance free, lead-acid
Backup time	5 minutes		N/A
Recharge time	8 hours to 90% capacity after full discharging
Bypass
Automatic transfer	Overload time up and UPS failure
Transfer time	0mS
LCD/LED information and audible alarm
Status	Load percentage, battery state, utility state, inverter and bypass state, overload, system fault.
Audible alarm	Bypass mode, battery mode, battery low, overload, fault
Noise
1 meter distance	55dB		60dB
Communications
DB9 port	RS232
Intelligent slot	WebPower, AS400 card and WinPower CMC
Environment
Operating temperature	0-40 0 C
Operating humidity	20-90 non-condensing
Weight
Net(kg)	90/35	93/38	55	55
Dimension
WDH(mm)	260570717
