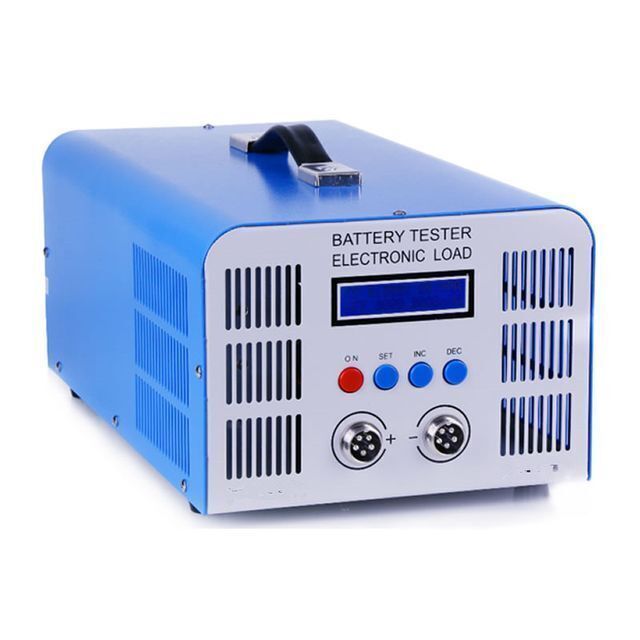

EBC-A40L is a high-current battery charge and discharge capacity tester for 5V battery and performance testing, through the online software with more extensions.
This model default 220V power supply, If need 110V power supply, please contact me. Thank you!
1. a tester
2. a on-line line
3. a test lines
4. a power cord
Voltage range: charge 0-5V, discharge 0-5V
Voltage accuracy: 0.2% ± 0.03V
Current range: charge 0.1-40A, discharge 0.1-40A
Current accuracy: 0.2% ± 0.01A
Discharge mode: CC constant current discharge / CP Constant power
Discharge termination: time / voltage is lower than the set limit / Manual
Discharge power: maximum 200W
Charge mode: CV constant current constant voltage charging
Charge termination: constant current is less than the set limit / Manual
Capacity test: 10Ah, the resolution of 0.001Ah
10Ah-100Ah, the resolution of 0.01Ah
above 100Ah, the resolution 0.1Ah
Cooling method: fan active cooling
Equipment Supply: 220VAC
