Single port 1U rackmount 17.3 inch LED KVM console

Product details
Input:12VDC, 3A power supply;Certificate:CCC, FCC, CE;
Weight:18-26.3KG;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Interface Type:HDMI+DVI;For Cabinet:600x600mm /800-1040mm;
Storage Temperature:-30℃~70℃;Color:Insulated black paint (optional);
Place of Origin:Guangdong China (Mainland);Supply Ability:5000 Carton/Cartons per Month;
Monitor Connections:1 Ports;Delivery Detail:Within 1day after order and samples are confirmed.;
Port:Shekou ,Chiwan;Packaging Detail:Our china lcd kvm switch packaging: Duoble package : 480.4mmx428.8mmx44mm and 658mm*608mm*195mm;
Resolution:1920 x 1080;Model Number:KVM-1701HM;
Computer Connections:1 Ports;Humidity:0%-80%RH;
Products Status:Stock;Work Temperature:-10℃~60℃;
Switching Mode:Hotkey, OSD menu;Brand Name:PONTRON;
Cabinet Material:high-strength and Anti-corrosive steel plate;

                 Single port 1U rackmount 17.3 inch LED KVM console

Product Description

Main  Features:

« 17.3’’ LED KVM switch with touch pad+Mouse

« 104keys keyboard with integrated Digital&E-switch keys.

« Excellent video effects, the best resolution is up to 1920*1080@ 75HZ.
« Supports front USB for keyboard/mouse

« Support USB+PS2 local console

« Supports computer indicator when user switch to another computer.
« Support cascading connection, max up to 512 computer.



Introduction :

• Withdrawing installation design, the length can be adjusted to fit the rack space.

• Humanized design,can be installed and removed by only one person , which improves the efficiency of the administrator.
• To switch the host computer though the hotkey or OSD menu, which can manage up to 512 computers.
• Password security protection, only authorized users can view and manage on-line computer.
• Support a variety of brand industrial computer and the server: EVOC/Lenovo/IBM/DELL/HP/SUN, etc
• Support various operating system: Microsoft, Linux, Unix, etc.



Specification :


Model

KVM-1701HM

KVM-1704HM

KVM-1708HM

KVM-1716HM



Computer connect



   Direct 1

 Direct 4

 Direct 8

 Direct 16

    Max:1

 Max : 128

 Max : 256

 Max: 512

Keyboard

104 Mechanical mute Keyboard

Mouse

Touchpad

Switch Mode

Hotkey , OSD Menu

Switch Scan Time

1-255 second  ( OSD adjustable )





Cable Port





Local console

Keyboard / Mouse/ Display

(2*USB +2*PS/2+1* HDB-15 female  )

Connector port

1/ 4 / 8 /16 * HDB-15 female ( Yellow )

Input IO

HDMI+DVI (optional) for 1 port







Panel





Size

17.3 ’’ TFT LED , 16:9

Resolution

1920 * 1080

Max Color

262K

Brightness

300nit

Contrast ratio

400:1

Pixel Pitch

0.17925mm (H) x 0.17925 mm(V)

Power input

12V DC input ( AC100-240V 47-63Hz, 35W )optional





Work environmen

Operating Temp

-10℃~60℃

Storage Temp

-20℃~70℃

Humidity

0%-95%RH

Cabinet Material

high-strength and Anti-corrosive steel plate

Color

Insulated black(optional)

For Cabinet

600-600mm / 800-1040mm

Net  weight

13KG-17KG

Gross Weight

17KG~20KG

Dimension

480mm*480.4mm*44mm (L x W x H)

Package

708mm*608mm*195mm (L x W x H)

Certificate

CE , FCC , RHOS



Ordering information :

+

KVM - 1701HM

1U Rack mount 17.3" TFT LCD KVM switch, W/ keyboard +touchpad , W/ 1 port VGA , W/ HDMI + DVI,W/ 12V power supply, W/ USB cable.

KVM - 1704HM

1U Rack mount 17.3" TFT LCD KVM switch, W/ keyboard +touchpad , W/ 4 port VGA , W/ 12V power supply, W/ USB cable.

KVM - 1708HM

1U Rack mount 17.3" TFT LCD KVM switch, W/ keyboard +touchpad , W/ 8 port VGA ,W/ 12V power supply, W/ USB cable.

KVM - 1716HM

1U Rack mount 17.3" TFT LCD KVM switch, W/ keyboard +touchpad , W/ 16 port VGA , W/ 12V power supply, W/ USB cable.

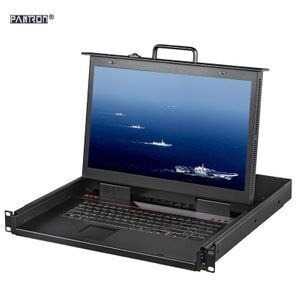

 Product pictures:

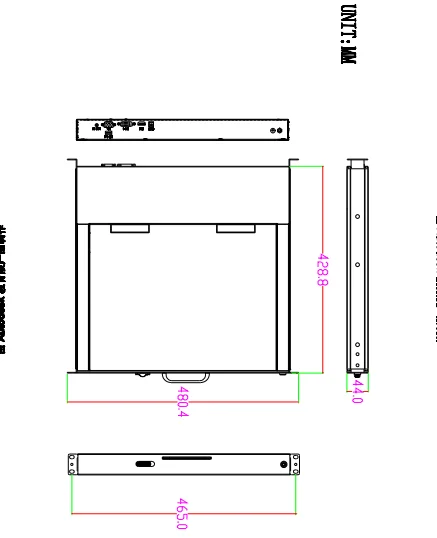

Drawing:

More Products:

Company Information

  Shenzhen Pontron Technology Ltd we have dedicated in Industrial panel pc,Industrial LCD monitor,KVM, Industrial BOX pc,workstation,Mini pc in the worldwide market for 10 years. our products has the CE/EMC/FCC/ROHS certificate and the customers are all over the world.especially in USA, Europe, Australia and Asia.

our dedicated team of engineers, production specialists, and administrative staff provide the best quality products available on the market.


  We pride ourselves on our expertise in producing customized products. Through ODM/OEM production, you are assured of designs which will meet your exact specifications. Our innovative ideas in manufacturing which will make your products a leading seller on the market. this results in short period of develpoment time for projects.


  In PONTRON, we have a qualified working team which includes senior level mechanical and electronic R&D engineers, OEM product/sales manager, ISO 9001 trained manufacturing personel, and an efficient logistics department. we have an average age of 30 years old, and the average working experience in the industrial computer field is more than 7 years.


  PONTRON, is committed in prooviding quality, innovative products and technical support to our customers in a very cost effective manner. we like to grow with our customers.we believe customer satisfaction is the key to our growth and success. we work for your needs and your satisfaction is guaranteed.

Our Services

Packaging & Shipping

Packaging: Duoble package 424mm(L) 348mm(W) 80mm(H) ;570mm(L) 430mm(W) 173mm(H).

Delivery time:  Within 1day after order and samples are confirmed.

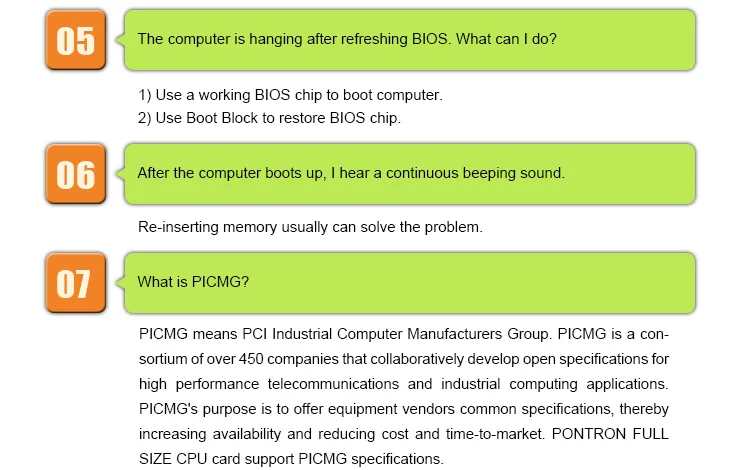

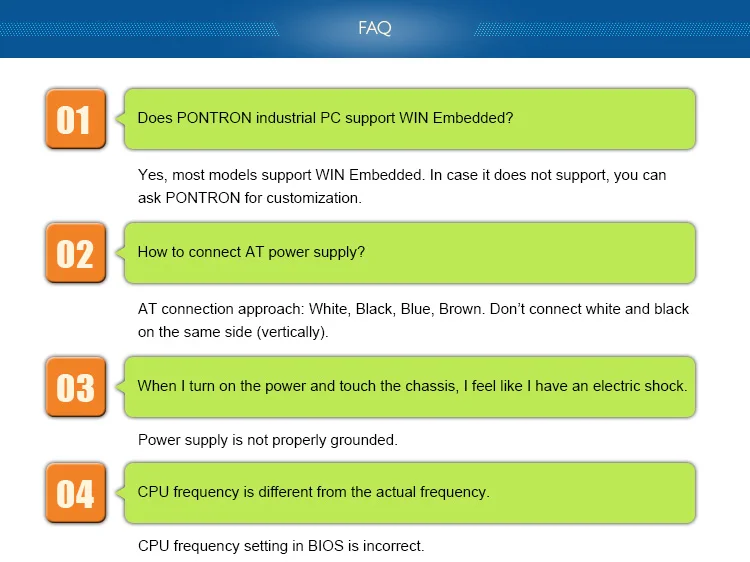

FAQ
