Low voltage tape Rubber Splicing Tape replace 3M 2155

Supplier: Beijing Huaxia Yongle Adhesive Tape Co., Ltd.
Region: Beijing, China
Contact: Mr Youussef Wong
Price: $2.00 /roll
Min. Order: 1 roll

Click here to contact

Product details

color:	Black;	Product name:	The biggest China Manufacturer low Voltage rubber Tape;
Packaging Detail:	6 rolls 1 shrink,with 1 carton total.Package can be customed. Low voltage tape Rubber Splicing Tape;	Single package size:	10X10X3 cm;
Characteristics-3:	Effective moisture seal;	Characteristics-1:	Self-amalgamating;
Single gross weight:	0.1 KG;	Application:	Insulating and jacketing tape for use through 600V;
Brand Name:	yongle;	Model Number:	rubber;
Selling Units:	Single item;	Characteristics-2:	Good electrical properties and conformability;
Place of Origin:	Beijing China;

Product Description

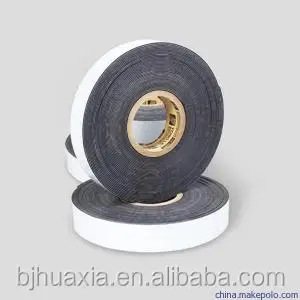

Low Voltage insulation rubber Tape

Low Voltage insulation rubber Tape is a self-amalgamating tape which is UL approved for use as primary insulation at no more than 600V. Low Voltage insulation rubber Tape easily conforms to irregular shapes and surfaces yielding a void free, electrically stable build-up. Low Voltage insulation rubber Tape is compatible with all extruded dielectric cables insulations.

PROPERTY	VALUE	UNIT	TEST METHOD
Physical property
Thickness	0.76	mm	UL510
Tensile Strength	250	Psi	UL510
Elongation at Break	400	%	UL510
Electrical Property
Dielectric Strength	20	KV/mm	UL510

Date in table represent average test results and are not to be used for specification purposes.The product user should make his/her own tests to determine the products suitability for the intended use

Low Voltage insulation rubber Tape

STANDARD SIZES:

Width Length Core

19mm 3.3m 38mm

25mm/51mm 6.7m 38mm

Applications:

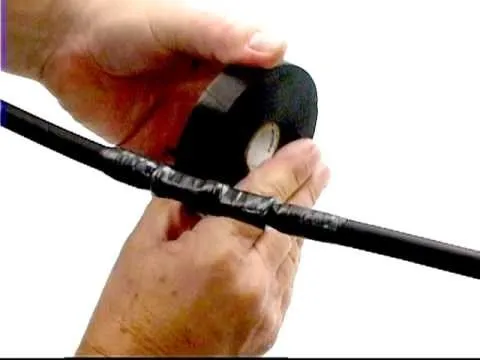

This is an economical low voltage rubber vinyl insulating tape that is self-fusing. Low voltage tape Rubber Splicing Tape HX-122 could replace 3M Temflex 2155 Rubber Splicing Tape, it is used for insulating wire splices, split bolt connections, and motor leads up to 600V.
