Feiyu Furniture Fittings Bolts Screws Nuts Fastener Hardware Samll Parts Counting Weighing Packing Packaging Machines
-
Supplier: Shanghai Feiyu Packaging Machinery Co., Ltd. -
Region: Shanghai, China -
Contact: Mr Peter Zhang -
Price: $17500.00 / 1 - 1 sets
$17450.00 / >=2 sets -
Min. Order: 1 set
Product details
| Control system: | PLC+7 inch Touch Screen; | Packing material: | PET/PE, PA/PE etc laminated film; |
| Driven Type: | Pneumatic; | Key Selling Points: | Automatic; |
| Packaging size: | Width: 30-140mm; Length:30-180mm; | After-sales Service Provided: | Field installation, commissioning and training; |
| Application: | Machinery & Hardware; | Hang Hole: | Yes; |
| Port: | shanghai; | Warranty of core components: | 1 Year; |
| Brand: | Feiyu; | Packaging Type: | Bags,Film; |
| Sealing type: | 3 side back sealing; | Type: | Other; |
| Power: | 2kW; | Video outgoing-inspection: | Provided; |
| Showroom Location: | Russia,Ukraine; | After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; |
| Packaging Material: | Plastic; | Voltage: | AC220V/50-60Hz; |
| Main Function: | Furniture hardware Counting packing; | Item: | furniture hardware counting packing machine; |
| Condition: | New; | Place of Origin: | Shanghai China; |
| Dimension(L*W*H): | 980*680*1650mm; | Core Components: | PLC,Motor; |
| Warranty: | 1 Year,1 Year; | Packaging Detail: | Screw Packing Machine External package:export standard plywood case Size:L3550*W1550*H1650mm; |
| Applicable Industries: | Manufacturing Plant,Furniture; | Local Service Location: | Russia,Ukraine; |
| Certification: | CE-CoC; | Machinery Test Report: | Provided; |
| Brand Name: | FEIYU; | Marketing Type: | New Product 2020; |
| Supply Ability: | 300 Set/Sets per Year; | Weight: | 300; |
| Package Preview: | ; | Payment Terms: | L/C,T/T; |
| Packing speed: | 20-50 Bags/min; | Automatic Grade: | Automatic; |

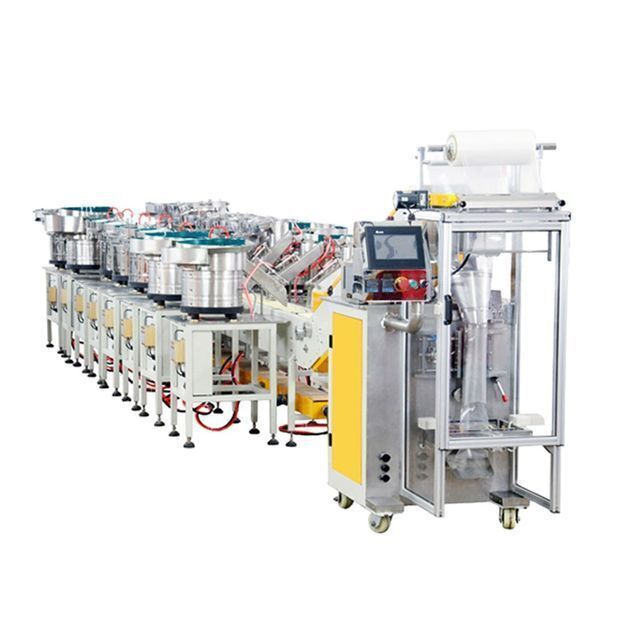

Furniture hardwares bolts screws nuts counting packing machine for hardwares
Products Description
1. Application: Screw, bolt, washer, wood dowel and other kinds of regular shape furniture parts.
2. Adopting spacking counting and fiber optics re-inspection or completed fiber optics counting, suitable to mixing packaging for1~40 varieties of items.
3. Machine owns many patent technology, such as technology of fiber optics counting(patent No. ZL2010 20695240.5), weight checker(patent No. ZL201110083021.0; practical new type patent No. ZL201120094492.7)
4. Solid sealing, smooth and elegant bag shape; high efficiency and durability, can be equipped with exhaust device, printer,labeling machine, transfer conveyor and weight checker.
5. Automatic ordering, counting, packing and printing etc. Easily adjust the quantity of screws in the bag, set the quantity of bags what you need, when meet, the machine will be stop automatically.
2. Adopting spacking counting and fiber optics re-inspection or completed fiber optics counting, suitable to mixing packaging for1~40 varieties of items.
3. Machine owns many patent technology, such as technology of fiber optics counting(patent No. ZL2010 20695240.5), weight checker(patent No. ZL201110083021.0; practical new type patent No. ZL201120094492.7)
4. Solid sealing, smooth and elegant bag shape; high efficiency and durability, can be equipped with exhaust device, printer,labeling machine, transfer conveyor and weight checker.
5. Automatic ordering, counting, packing and printing etc. Easily adjust the quantity of screws in the bag, set the quantity of bags what you need, when meet, the machine will be stop automatically.
Model | FY-240C | FY-420C | |
Packing size | L: 30-180mm, W: 50-140mm | L: 50-300mm, W: 50-200mm | |
Max film width | 300mm | 420mm | |
Packing material | PA/PE, PP/CPP, PET/PE | ||
Counting capacity | 1-20 pcs/bag; 1-40 types/bag | ||
Packing speed | 10-60 bag/min | ||
Power | AC220V/50-60Hz/2kW | ||
Machine size | L*W*H: (n/2*600+2200mm)* 1500* 1650mm, n=the Qty of vibration bowl | ||

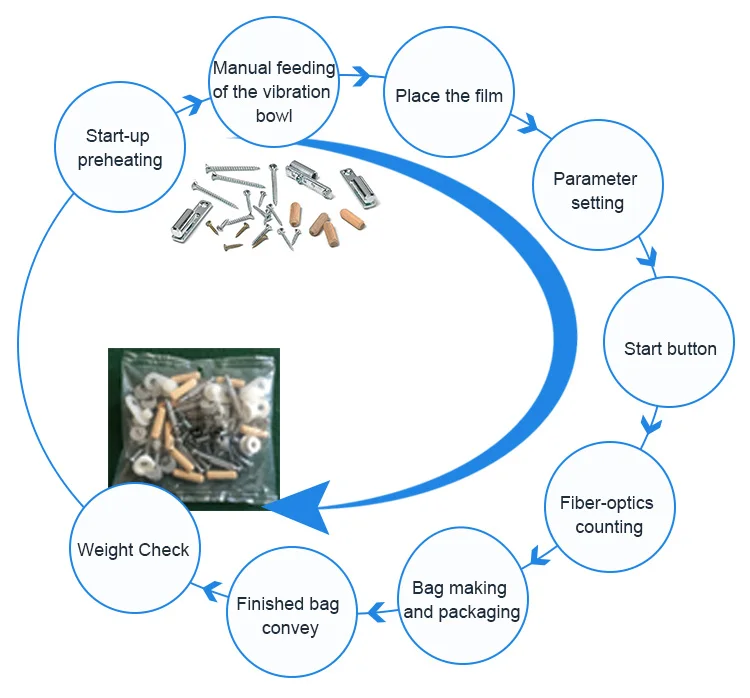

Operation Process
Details Description
Scope of Application
Feiyu Introduction
Company Profile
Shanghai Feiyu Packaging Machinery Co., Ltd. was established in 2008. Our automatic packaging machines used in 30+ countries, to reduce labor cost and increase capacity for industries, such as Furniture, Electronic, Fastener, Pipe, Garment, Toy and Stationery industry.
- Furniture parts (Fittings, Fastener, Hinge, Lock, etc.)
- Electronic machinery and appliance spare parts (Mobile Phone Screw, Cable Clip, etc.)
- Fastener (Screw, Bolt, Nut, Washer, Nail, Small Hardware, O-Rings, etc.)
- Plastic, pipe fittings (Pipe, Joint etc.)
- Clothes parts (Button, Slider etc.)
- Toys (Toy Building Brick, Dice etc.)
- Stationery (Mark, Pen, Clip etc.)
- Other regular shape parts

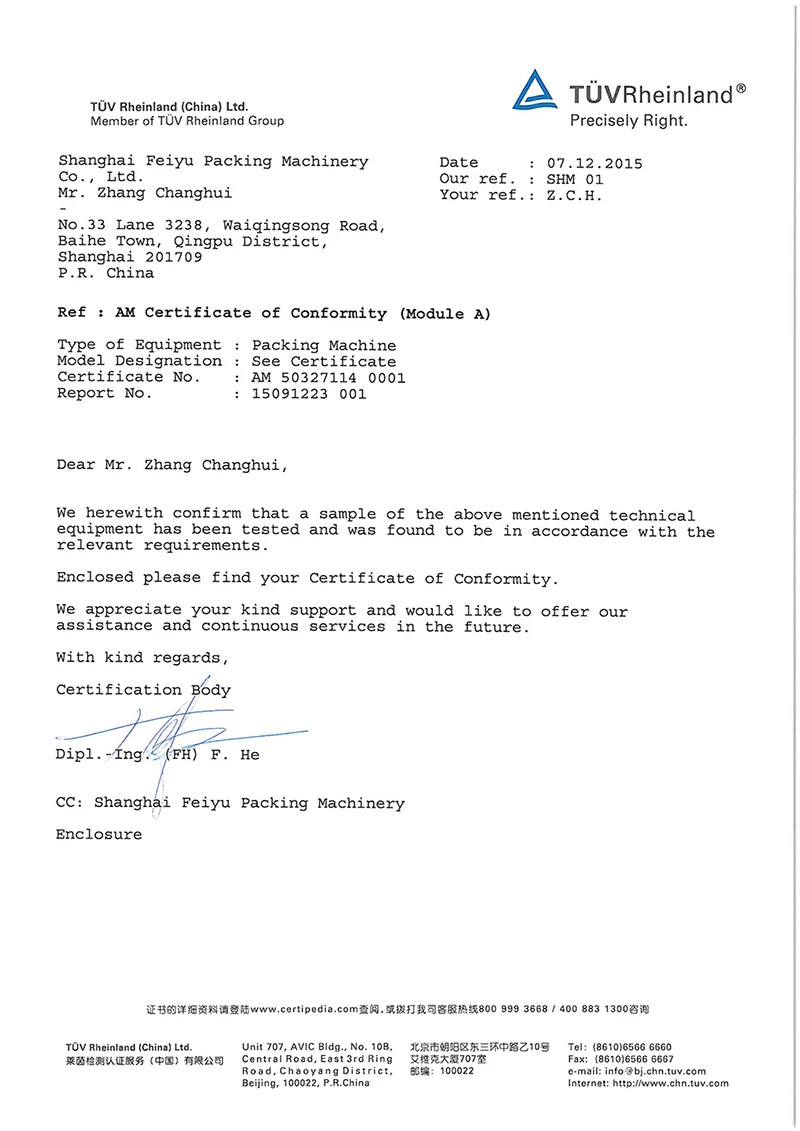

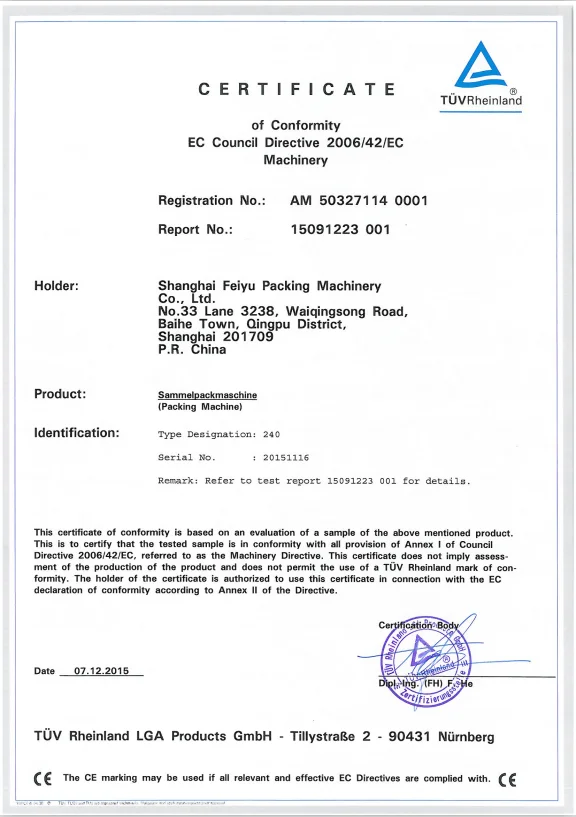

Our automatic packing machines can count and pack the same item or mixed items into the package. We obtain CE-CoC certificate for certain series of our packaging machine (ask our sales team for details).
- Furniture parts (Fittings, Fastener, Hinge, Lock, etc.)
- Electronic machinery and appliance spare parts (Mobile Phone Screw, Cable Clip, etc.)
- Fastener (Screw, Bolt, Nut, Washer, Nail, Small Hardware, O-Rings, etc.)
- Plastic, pipe fittings (Pipe, Joint etc.)
- Clothes parts (Button, Slider etc.)
- Toys (Toy Building Brick, Dice etc.)
- Stationery (Mark, Pen, Clip etc.)
- Other regular shape parts
Our automatic packing machines can count and pack the same item or mixed items into the package. We obtain CE-CoC certificate for certain series of our packaging machine (ask our sales team for details).
Order Process
Why Choose Us
1. Dual inverters control, bag length can be set and cut in one step, to save time and bags.
2. Computer interface operation, convenient and quick parameter setting.
3. PLC controller is stable performance available for upgrade.
4. There are many patented technologies, such as patent of infrared fiber optics counting device (Patent No. ZL2010 20695240.5), patent of weight re-checker (Patent No. Zl201110083021.0).
5. Self failure diagnosis, clear failure display; positioned stop function, avoid knife sticking and film wasting.
6. Using double encoder enables stable performance.
7. Strengthened blade holder makes compact sealing.
8. Can be equipped with exhaust device, code printer, smart printer, labeling machine, transfer conveyor and weight re-checker.
9. Selected code system achieves credible Packaging.
10. Simple and automatic packaging achieves high speed and reduce labor.
11. Optional material-cutting proof device, guarantee for using.
12. Multipurpose packaging, suitable for various packaging to similar type of product.
13. Alternative English and Chinese language display. Other languages are also available to order.
Our Service
Before-sales Services:
1. Many professional packing videos, give you direct feeling about our machines.
2. Free packing solution from our R&D department.
In-sales Services: We have the trained team to follow your orders methodically to guarantee the products can be finished on time with high quality.
After-sales Services:1. Manuals / Videos of machine installation, adjusting, setting, maintenance are available for you.
2. If any problems happened and you can not find out the solutions, Telecom or Online face to face communication available 24/7.
3. Our engineers & technician are available send to your countries for services if you agree pay the expenditure.
4. The machine will have one year warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L.
5. We have an experienced team for after-sales service. Any emergency please call our customer service or after-sales manager. On-site repair or instructions are also available to order.
