CNC Router 1325 4x8 feet woodworking wood carving CNC engraver 3D Engraving machine for engraving and cutting wood and acrylic

Supplier: Shandong Leapion Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Leapion Laser
Price: $2500.00 / 1 - 4 sets
$2000.00 / 5 - 9 sets
$1500.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

Driving system:	Leadshine Drive;	Working area:	1300x2500x200mm;
Product name:	1300*2500mm cnc router;	Control System Brand:	NC Studio,Syntec,Mach3,DSP,RichAuto;
Spindle Motor Power(kW):	3kw;	Certification:	CE ISO9001;
Control system:	Nc-studio/Mach3/DSP Control System;	Payment Terms:	L/C,Western Union,D/P,D/A,MoneyGram;
Working Table Size(mm):	1500×3000;	Showroom Location:	Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Uzbekistan,Tajikistan,Japan,Malaysia,Australia;
Warranty:	1 years;	Range of Spindle Speed(r.p.m):	18000 - 24000 rpm;
Voltage:	220V;	Weight:	GW 950kg;
Supply Ability:	35 Set/Sets per Month;	Machinery Test Report:	Provided;
Port:	Qingdao port/Tianjin/Ningbo/Shanghai/Guangzhou;	Package Preview:	;
Place of Origin:	Shandong China;	Rails:	Hiwin Rails;
Power(W):	3 Kw;	Weight (KG):	900;
Packaging Detail:	All machines are packaged in standard export wooden cases;	Marketing Type:	Ordinary Product;
Repeatability (X/Y/Z) (mm):	200;	Brand Name:	Leapion;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Video outgoing-inspection:	Provided;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;	Condition:	New;
Inverter:	Chinese Brand Inverter;	CNC or Not:	CNC;
Transmission:	Ball Screw Transmission;	Dimension(LWH):	15003000200mm;
Machine Type:	CNC Router;	Local Service Location:	Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Japan,Malaysia,Australia,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Uzbekistan,Tajikistan;
Spindle power:	3kw air cooling system;	Core Components:	Motor,Gear;
Travel (Y Axis)(mm):	3000;	Key Selling Points:	High Rigidity;
No. of Spindles:	Single;	Travel (X Axis)(mm):	1500;
Positioning Accuracy (mm):	0.1;	Warranty of core components:	2 years;

PRODUCT DESCRIPTION

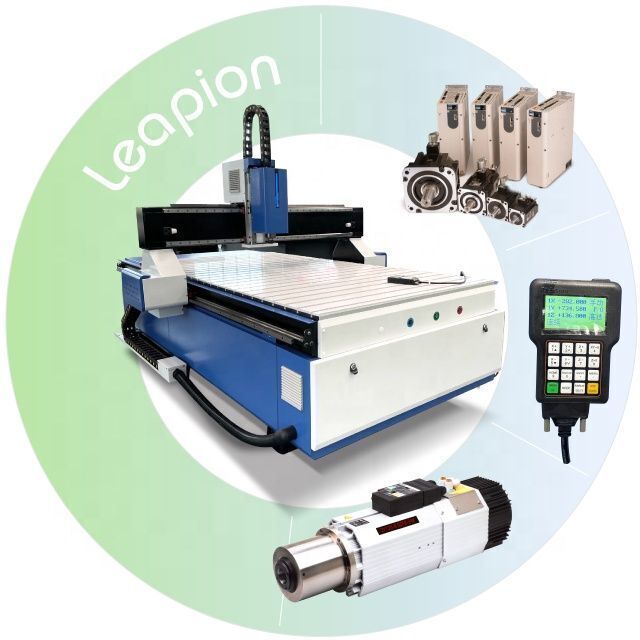

Leapion 1300*2500mm cnc router machine use the world top brand parts,3kw air cooling system spindle, and step 450B motors and Leadshine drives, high precision, high speed, large torque, performance is stable and durable, ensure the high speed operation of the whole machine.

1) Heavy duty thicker and bigger welded steel tube frame — more stronger

2) 4.5kw Italy HSD air cooling spindle--best brand in the world, best quality for cutting and carving. Having a fan in the spindle, with good cooling effect.

3) One 200mm rotary on one side of machine, suitable for making cylinder.

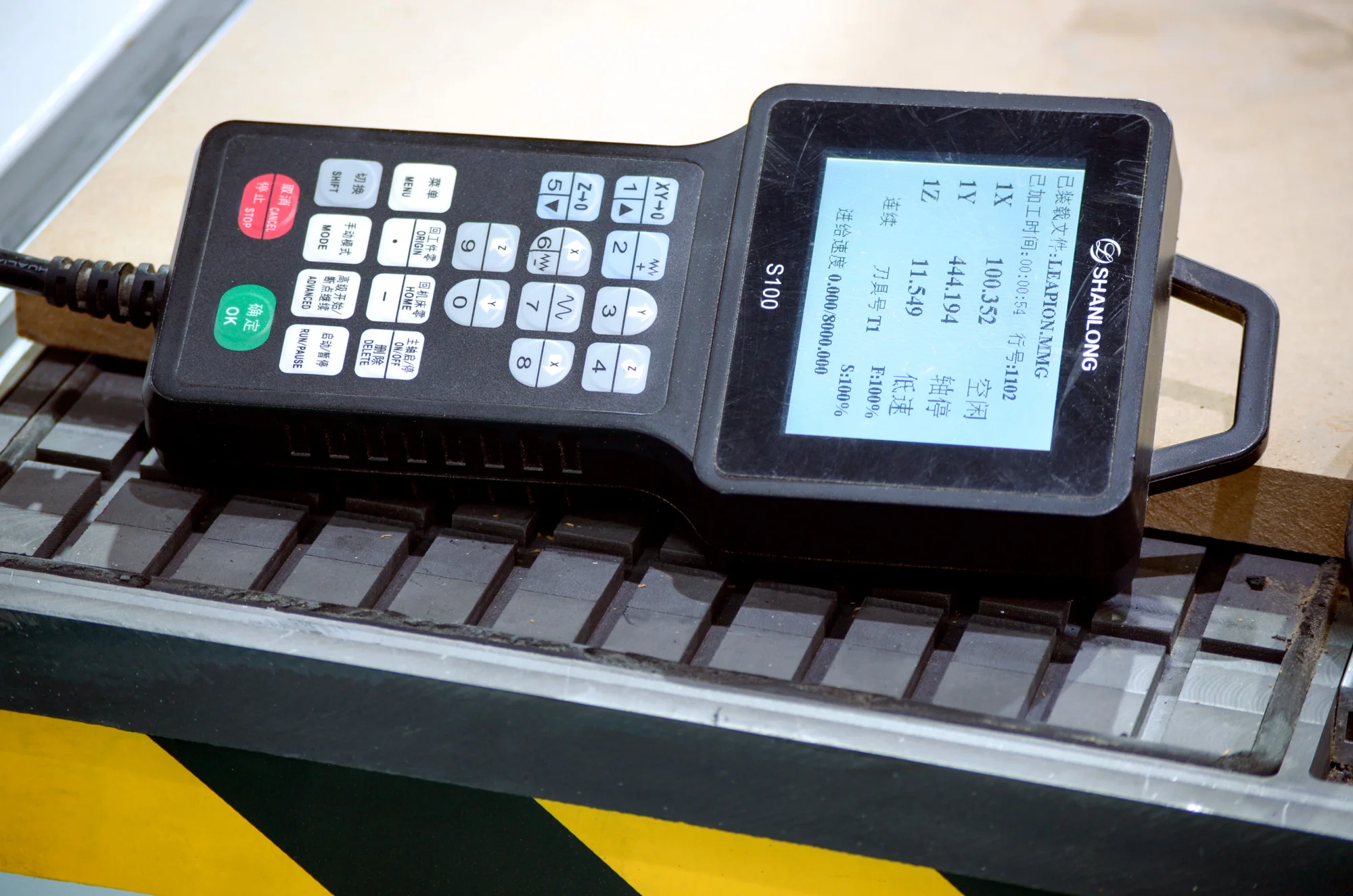

4) DSP A18 control system, can support 4 axis cnc router machine, with one independent handle, very convenient for operation.

5) Vacuum & T-slot working table, match one vacuum pump, can fix the material more stable.

Leapion CNC laser, great laser !

CNC Router 4x8 feet woodworking wood carving CNC engraver 3D Engraving machine for wood and acrylic

Technical Parameters

----------------------------------------------------------------

Moel No.	LR-6015	LR-1325	LR-1530	LR-2030	LR-2040
Working Area	600X1500mm	1300X2500mm	3000X1500mm	2000X3000mm	4000X2000mm
Laser output power	3KW / 5.5KW / 6KW / 7.5KW
Repeat Repositioning Accuracy	±0.1mm
Accuracy of Positioning	±0.1mm
Maximum Speed	60M/Min
Maximum Acceleration	0.8G~1.0G

*All of these models can be customized according to customer requirements.

CERTIFICATIONS

MACHINE ADVANTAGE

Application: Well-suited for processing panel, insulating materials, plastic, epoxy resin, carbon mixed compound, wood panel, three-dimensional wave board processing screen, handicraft fan window processing. Cutting, engraving, routing, drilling on cabinet doors, solid wood door, complex wood door, Paint-free door.

PVC, density board, stone, organic glass, soft metals like aluminum and copper, etc.

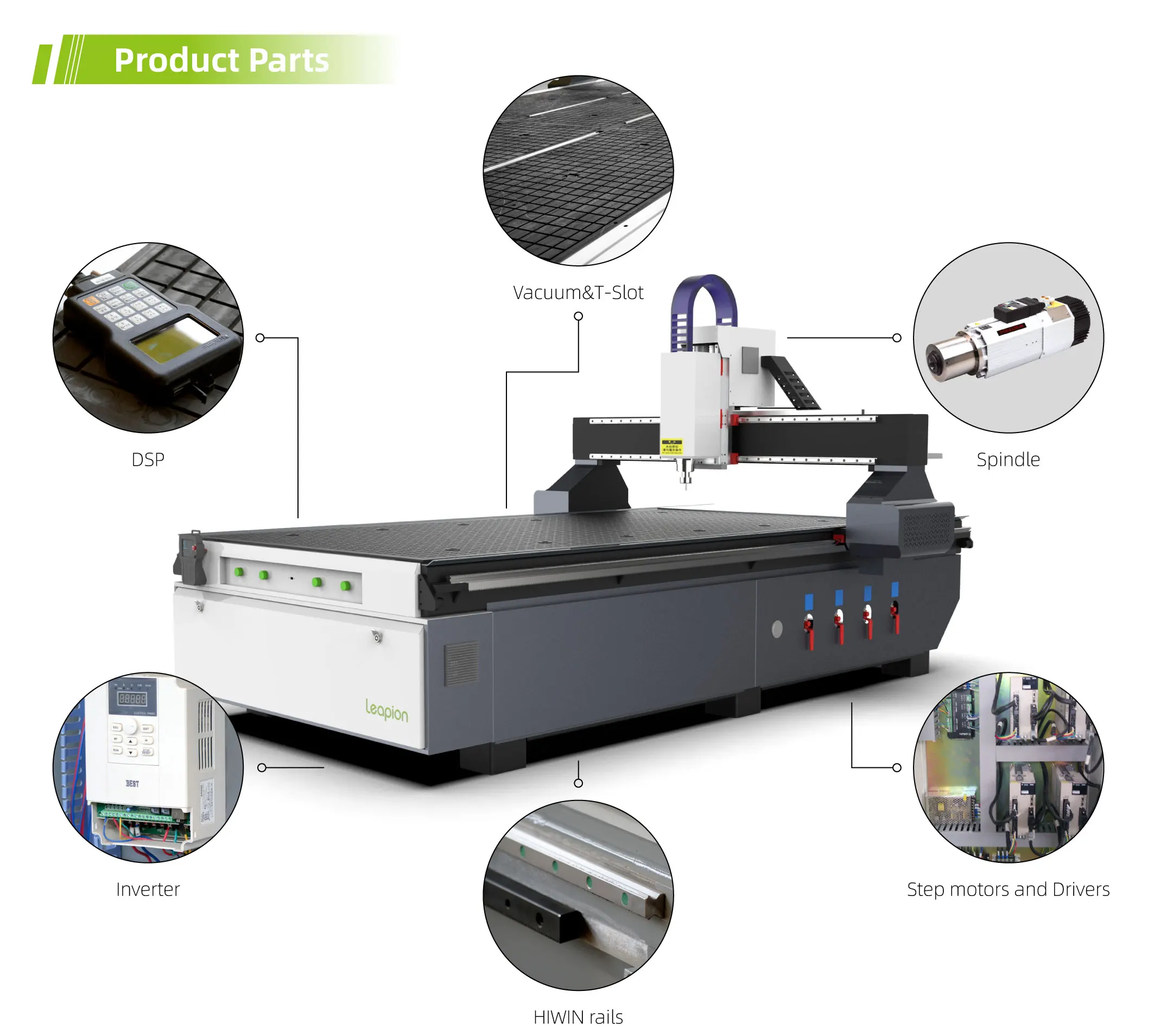

CNC ROUTER adopts HIWIN rail , step motors and leadshine driver . All this parts match well with each other, machine's stability is great. Our this fiber not only can engrave the wood ,stone,foam and some metals

DETAIL IN KIND SHOOTING

1.Tool setting gauge to set Tool position easily and correctly

2.Integrated Z ball screw system make sure high precision in time long run

3.Straight line Auto changing tool moving with Gantry ,make it fastest to change tool ,only need 3seconds.

SUPPORT FORMAT

The format that our software can support on the fiber laser cutting machine.

We will give you 1 years warranty, so you don't have to worry about the after-sales .
We will also send you new parts if there's any parts broken by non-human issues.

SAMPLES

the samples of the 1325 cnc router

SERVICE

CHOOSE US FOR OUR SUPERIOR QUALITY

✦ 1 years guarantee of the whole machine and we give lifetime maintenance free of charge.

✦ Free training to make sure you master the operating of machine at our factory.

✦ 24 hours online services through Whatsapp, Skype, Email or on the phone.

✦ Friendly English version manual and operation video CD disk.

✦ Contact me at any time if you have any questions about the machine.

✦ Engineers available for overseas training and after-sale services.Our technical will come to your workshop if the problems can not be fixed through internet or phone communi-cations.

OUR COMPANY

✦Leapion in laser machine business since 2007, we are a global manufacturing company producing Laser engravers, laser markers,

✦CNC Router, UV inkjet printers for various applications such as signage, advertising, Woodworking furniture.
Leapion Laser is becoming the word's TOP in the laser engraving, cutting and marking industry. We are innovators. We are problem solvers.

✦We are committed to designing and manufacturing the highest-quality laser systems and cnc router machine.
Leapion original concept was to bring CO2 laser engraving systems to both commercial customers, small business owners and the home craftsman.

✦Over the years we developed larger, more powerful CO2 laser systems and fiber laser cutting and marking machine.

The Packages:Wooden Case

FAQ

Q:How to operate the machine ?

A: We will deliver English manual and video with the machine to you. If you still need our help, please contact us.

Q:How can I get the sample to check you quality ?

A: If you want to marking sample to check the quality, we can help you do this. first you need to provide the logo or design to us, free mark samples can be provided.
