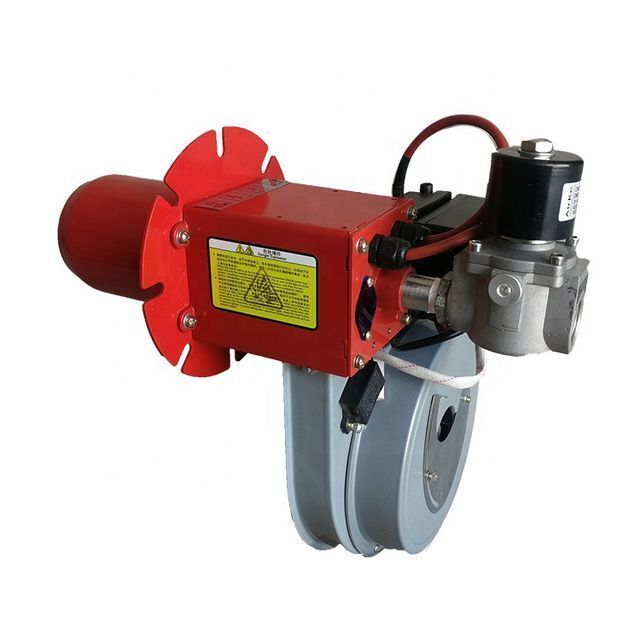

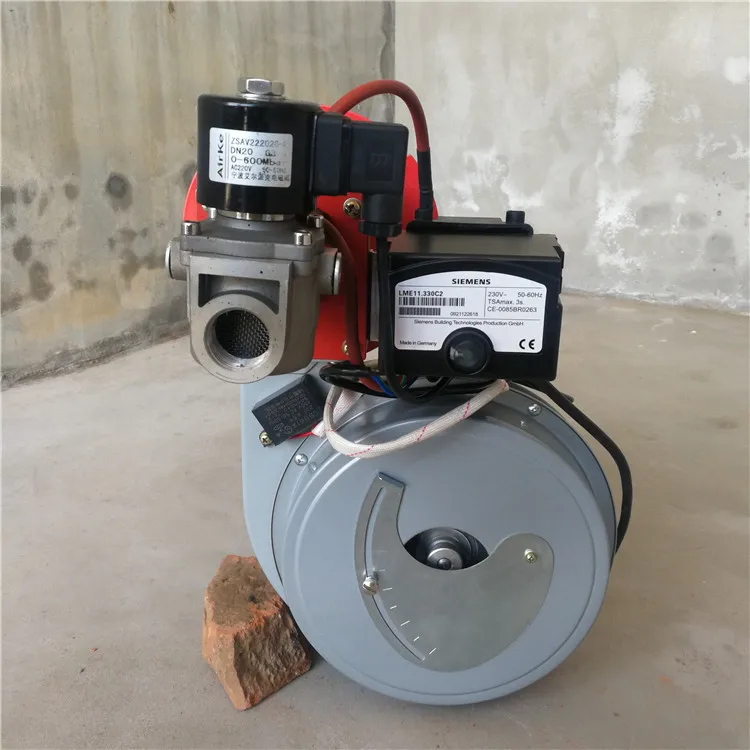

23-70 KW Fully Automatic Single Stage Flame Control Natural Gas Burner Industrial

Supplier: Hebei Yongchun Heating Equipment Co., Ltd.
Region: Hebei, China
Contact: Ms Ren Elissa
Price: $218.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	Jihang;	Local Service Location:	None;
Single gross weight:	9.0 KG;	Marketing Type:	New Product 2020;
Warranty:	6 months;	Motor power:	0.08 KW;
Burner weight:	6.1 kg;	Adaptable pressure range:	30-50 mbar;
Applicable power supply:	AC220V/50Hz/1O;	Output power:	23-70 KW;
Applicable fuel:	Nature gas;	Type:	Gas Burner;
Video outgoing-inspection:	Provided;	Flange Installation Form:	Sliding adjustable flange;
Fuel access port size:	DN15;	Condition:	New;
Applicable Industries:	Steam Boiler;	Place of Origin:	Hebei China;
Showroom Location:	None;	Machinery Test Report:	Provided;
Package Preview:	;	Packaging Detail:	cardon;
After Warranty Service:	Video technical support,Online support;	Main Body Size of Burner:	400350450 mm;
Control mode:	Fully automatic single stage flame control;	Single package size:	50X40X30 cm;
Selling Units:	Single item;

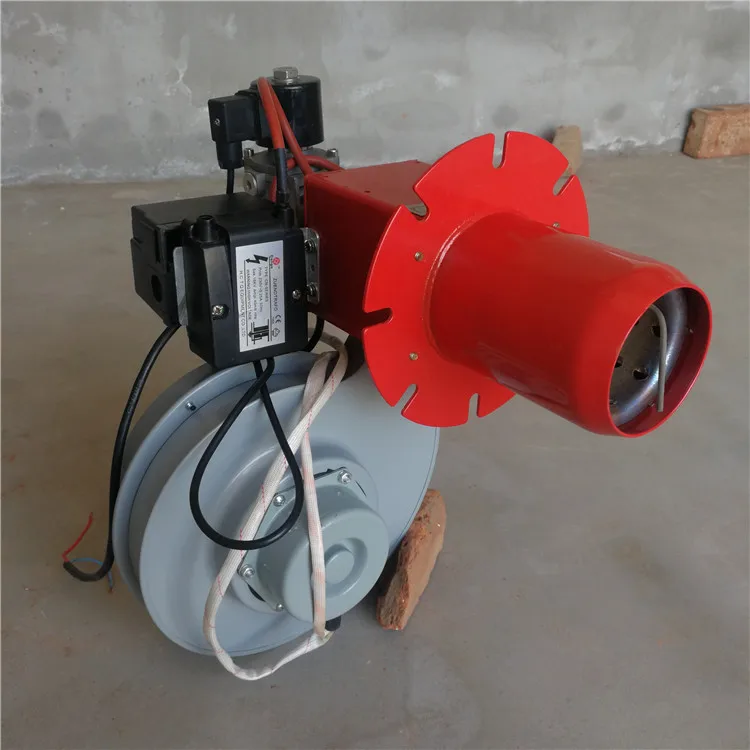

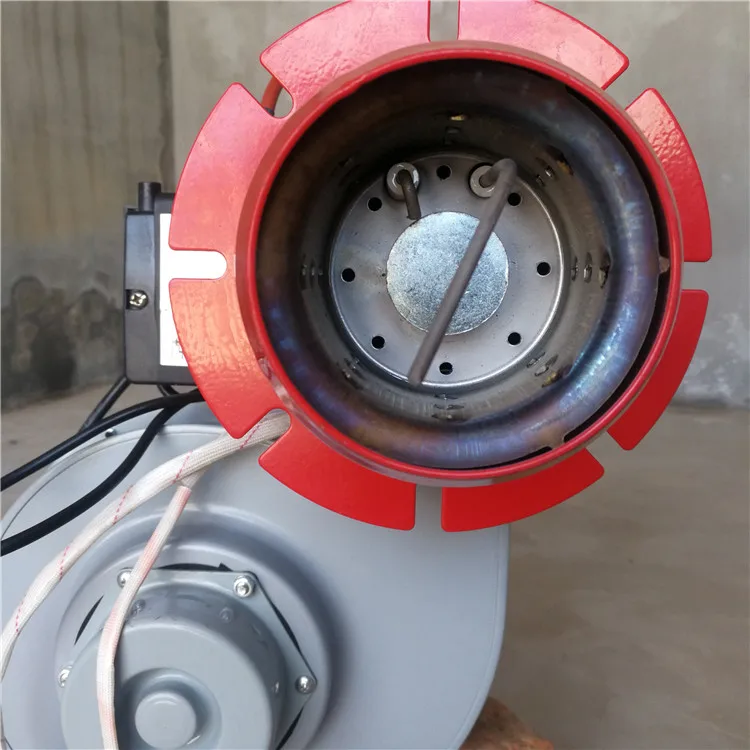

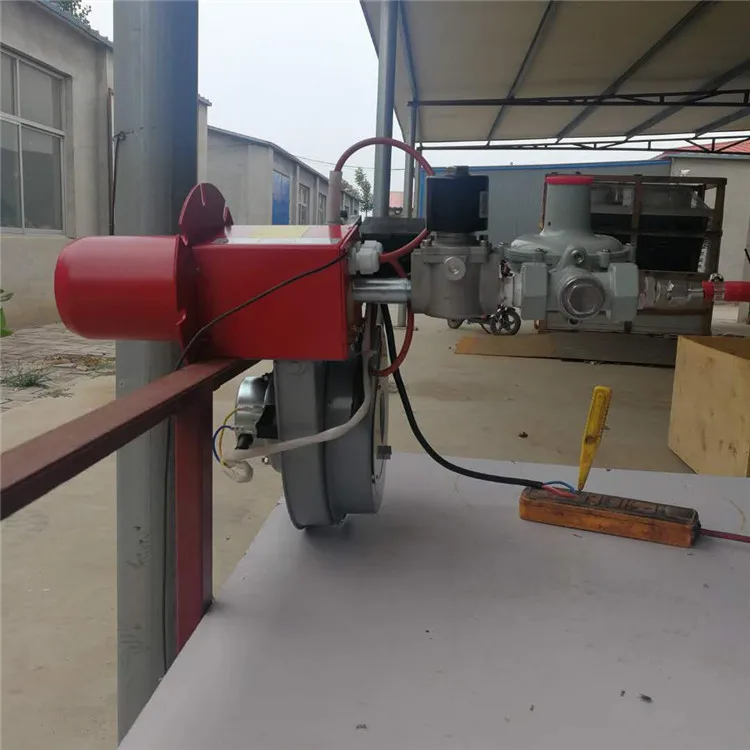

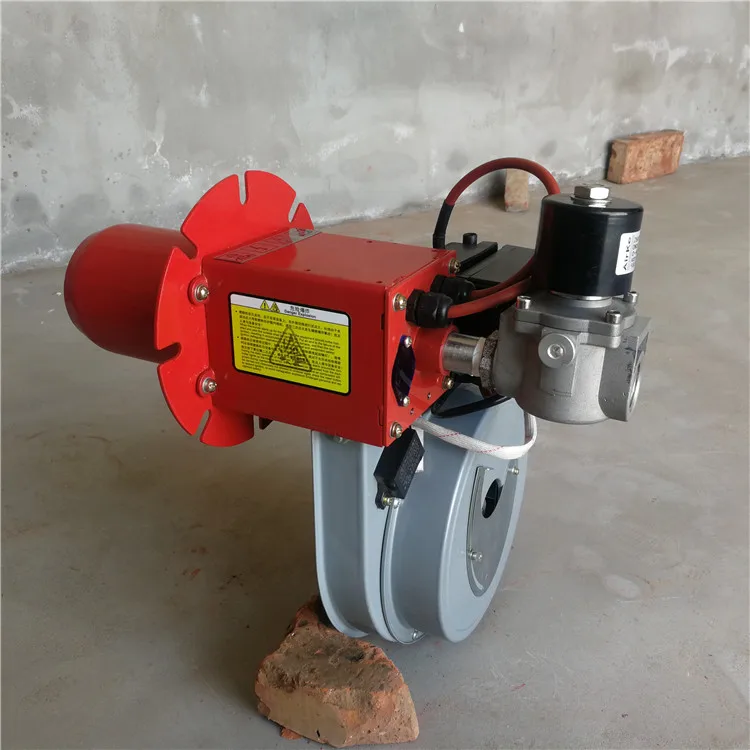

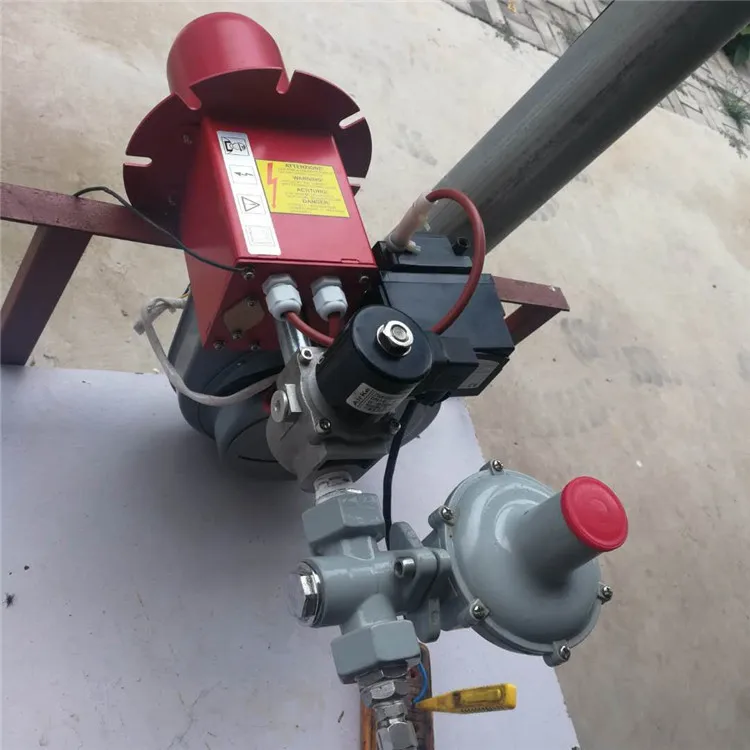

23-70 KW Fully Automatic Single Stage Flame Control Natural Gas Burner Industrial

Product Description

Technical Parameters
Model		JH-5-Q	JH-10-Q	JH-15-Q	JH-30-Q	JH-40-Q	JH-60-Q
Output power	KW	23-70	46-116	81-174	116-302	174-464	232-696
Output power	104Kcal/h	2-6	4-10	7-15	10-30	15-40	20-60
Control mode		Fully automatic single stage flame control				Fully automatic two-stage flame control
Applicable fuel		Nature gas
Fuel consumption	m³	5.9	11.8	17.6	35.3	47.1	70.6
Adaptable pressure range	mbar	30-50				50-150
Design fuel calorific value	Kcal/Nm³	35.53(8500Kcal/Nm³)
Adapt to ambient temperature	℃	-15~60
Applicable power supply		AC220V/50Hz/1O				AC380V/50Hz/3O
Motor power	KW	0.08	0.18	0.18	0.55	0.75	1.1
Safety Protection Level	IP	55(The protection level can be improved according to the order requirement.)
Flange Installation Form		Sliding adjustable flange
Fuel access port size		DN15	DN15	DN20	DN20	DN25	DN40
*Main Body Size of Burner (Length Width * Height)**	mm	400350450	560400350	560400350	750550550	1150760500	1280860500
Burner weight	kg	6.1	15	15.7	21	44.5	64

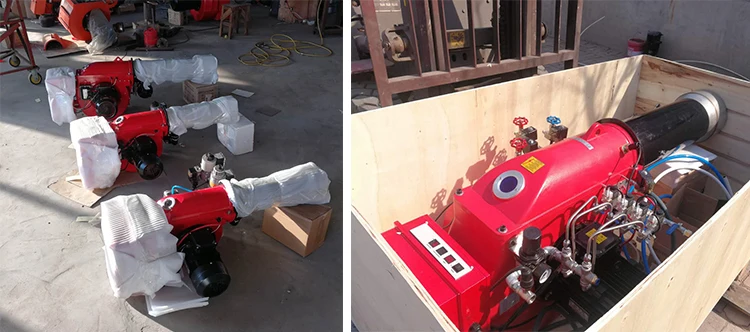

Packaging & Shipping

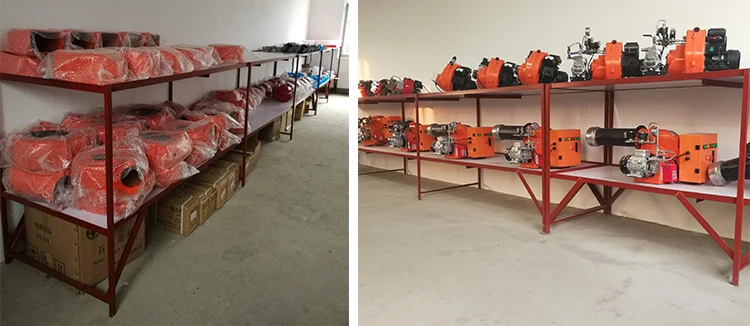

Company Information

Hebei Yongchun Heating Equipment Co., Ltd. is a domestic manufacturer integrating R&D, production and sales. It has been engaged in heating industry for more than 20 years. It mainly produces various kinds of fuel burners, gas burners, atmospheric pressure hot water boilers, etc. Welcome customers from all over the world to negotiate!
