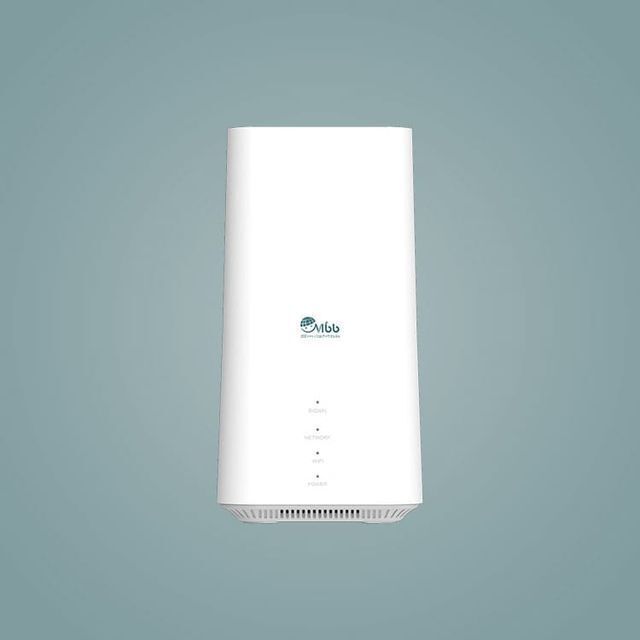

5G CPE Dual Bands Enterprise 100Mbps Wireless Wifi Router XZC5552

Product details
Function:FireWall;Type:Wireless;
User numbers:32 WiFi Users;Wi-Fi Transmission Standard:WiFi 802.11 ax;
Place of Origin:GUA;Products Status:New;
LCD Display:1.44inch LCD;Payment Terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram;
Supports WDS:No;Wired Transfer Rate:10/100/1000Mbps;
Max. LAN Data Rate:1750Mbps;Wireless Speed:2.4GHz 300Mbps;
Supports WPS:Yes;LAN Ports:32;
Application:Multi-service;2.4G Wi-Fi Transmission Rate:1200 Mbps;
Wan port:1 RJ45;Brand Name:Smilembb;
Certification:Other;Support:OEM ODM;
Wi-Fi Supported Frequency:5G;5G Wi-Fi Transmission Rate:None;
Antenna:4* 5dBi Antennas;Encryption Type:WPA;
Network:B1/3/5/7/8/20;Product name:5G Wifi Router;
With Modem Function:Yes;Standards And Protocols:Wi-Fi 802.11b,Wi-Fi 802.11g,Wi-Fi 802.11n;

5G CPE Dual Bands Enterprise 100Mbps Wireless Wifi Router XZC5552

Product Description

Introduction

     5G/4G/Wired Broadband Internet, more stable and faster. 5G/4G Global Communication, supports Qualcomm snapdragon x55, covers the global mainstream frequency band, is stable and does not drop the line, can support 4K video playback without jamming, and has an extraordinary experience.

Highlights

  • Qualcomm Snapdragon™ X55
  • Full compliance to 3GPP Rel15
  • Support 5G NR+ LTE EN-DC
  • Energy-saving Chimney Venting Design
  • Antenna High gain up to 9dBi

Technical parameter

Chip platform

SDX55+QCA6391

Frequency band

NSA/SA

5G NR+LTE EN-DC

- Sub6G FDD: n1/2/3/5/7/8/12/20/28/66/71, TDD: n77/78/79/41

4G LTE Global FDD and TDD, 600MHz~3.8GHz, CAT22

Size

182*124*70mm

Interface

DC, Power, WPS, Reset, 4FF SIM

Led: Power, WiFi, network, Signal*3

RJ45*2 GE port, antenna port

RJ11*1 VoLTE, VOIP

Bandwidth (MHz)

100M

Modulation

DL 256QAM, UL 256QAM

LTE+5G EN-DC Peak data rate

3.8Gbps

             Wi-Fi

2.4G and 5G dual band, 1.775Gbps

Access

Up to 32 users

MIMO

5G+LTE:

-sub6G DL: 4MIMO

-4G DL: 8layers

LTE: 4MIMO on 5CA(4G only)

Wi-Fi Protocol

802.11a/b/g/n/ac/ax

   Antenna Gain

3.5GHz band max gain up to 9dBi(option)

About Smilembb
  • Smilembb Technology Co.,LTD was found in 2021, which is located in Shanghai, China R&D oriented wireless communication data products manufacturer.
  • Focus on the field of 4G and 5G wireless CPE.
  • Customized services provided.
  • Full services of hardware, firmware, software, and manufacturing.
  • Comprehensive product services of design, development, testing, manufacturing, and ongoing support.
  • Grasping key technologies like 5G terminal software protocol, 5G terminal heat dissipation and 5G terminal antenna design.

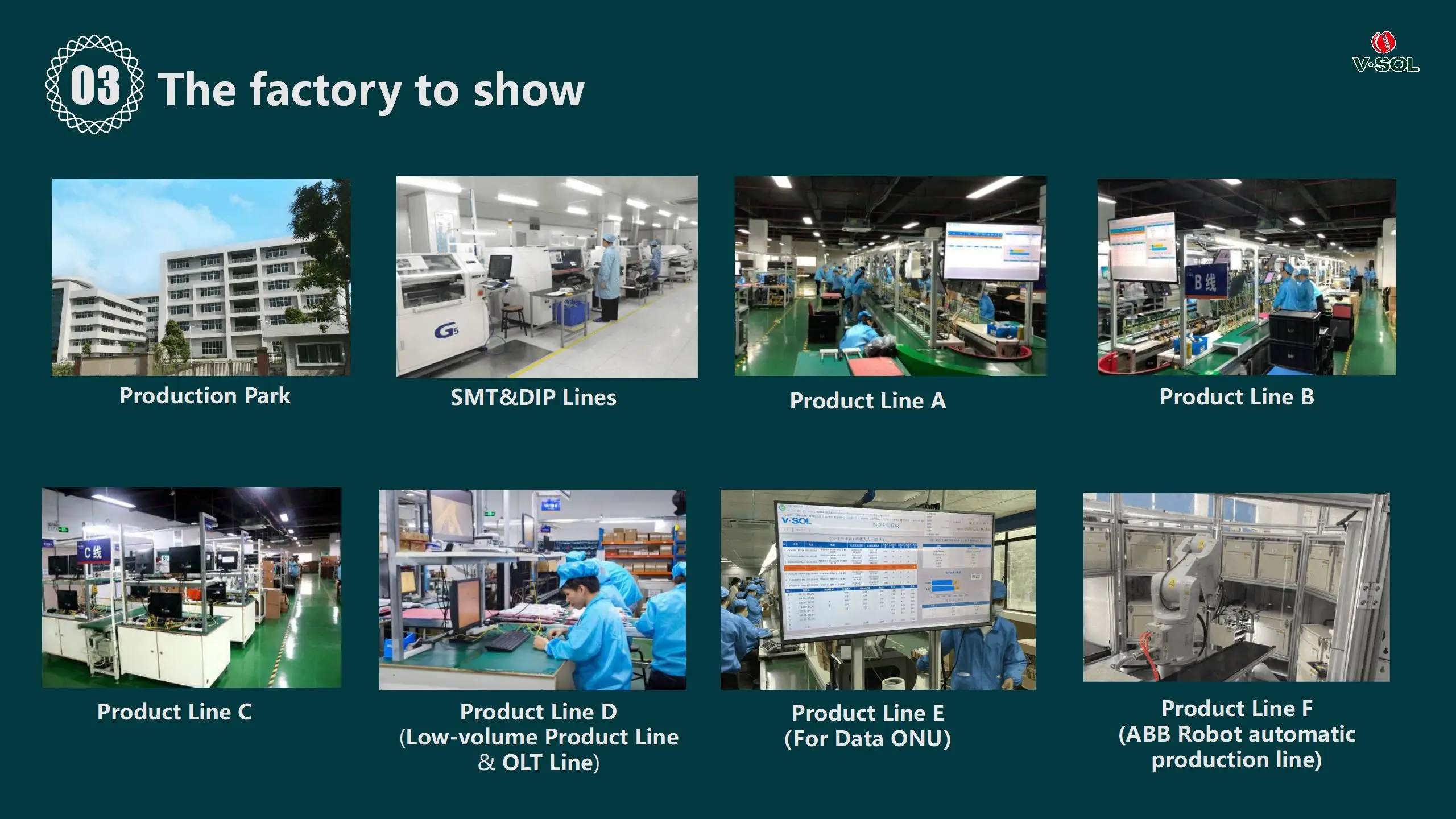

  • Occupy superior and complete Manufacturing equipment and supply chain covering SMT, DIP, assembly and testing line.



FAQ

1.Do you provide customer LOGO?
   Yes, we can provide customer LOGO on firmware and hardware.



2.Do you provide firmware customization?
  Sure thing, we have our own strong firmware development team.



3.Do you....?
Maybe, why don't contact us now! Inquring us to see if we can, or if we do, to see if we can suprise you!
