High Quality Preformed Dead End Guy Grip For ADSS Cable Strain Tension Cable Clamp

Supplier: Hangzhou Runzhou Fiber Technologies Co., Ltd.
Region: Zhejiang, China
Contact: Ms Lisa Wang
Price: $0.10 /piece
Min. Order: 1 piece

Click here to contact

Product details

Type:	tension clamp;	Sample:	Provide Freely cable tension clamp;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,paypal;	Material:	steel or aluminium alloy;
Application:	Overhead Line Accessories;	Model Number:	Tension Clamp,Tension Clamp;
Port:	Any sea port or air port in China;	OEM:	Avaliable for cable tension clamp;
Supply Ability:	10000 Piece/Pieces per Week tension cable clamp;	Brand Name:	RZfiber;
Grip force:	40KN;	Packaging Detail:	standard box or customized for adss suspension clamp.;
Place of Origin:	Zhejiang China;	Cable Clamp Size:	Customize Accept;
Cable Clamp MOQ:	1 pcs;	Delivery Time:	3~5 days;

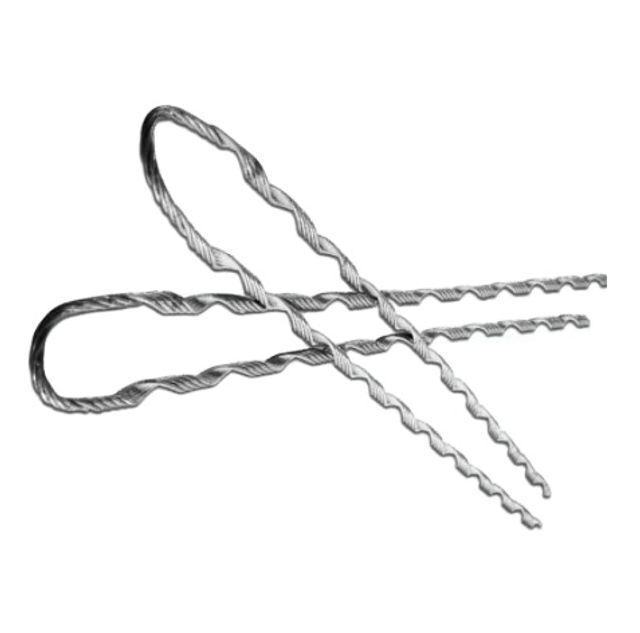

Preformed Dead End Guy Grip For ADSS Cable Strain Tension Cable Clamp

Description

Product name	ADSS Cable Tension Clamp
Size	As Your Request
Feature	Corrosion resistant
Finishing	Hot-dip galvanized,stranded,sand blast,Ending treatment
OEM service	Yes
Standard	ISO9001
MOQ	100PCS
Near Port	Shanghai Or Ningbo port

Application

Tension set for ADSS cable is used to connect cable and pole or tower for ADSS cable line, and clamp can protect cable and help cable to reduce vibration.With preformed rods' special design,it can keep tension clamp not produce the stress concentration which damage ADSS cable and keep cable normal use.

Structure&Materials

♦ Shackle:

Hot galvanized steel shackles play a role in connection with the tower fasteners. Failure load: U-7 to 70kN, U-10 to 100kN, U-12 to 120kN.

♦ Preformed tension rods

Be made of galvanized steel wire or aluminum clad steel and preformed into the process when prefabricated beam, inner wall layer of emery stick, and enhance the friction between clamp and cable.

♦ Tension rods

Galvanized steel precision, the heart-shaped tension ring and shackle connected to avoid strain clamp too close to the exit of cable from the pole, keep the cable bend radius large enough.

♦ Heart-shaped tension ring

Galvanized steel precision, clip embedded in the U-bend Clamp head, the protection Clamp connection with the extension rod. Failure load is 40kN, 70kN, 100kN and 120kN, etc..

♦ Preformed armour rods

Galvanized steel or aluminum clad steel wire, preformed armour rods wall sticky particulate silicon carbide to increase friction and reduce the pressure on the cable side. preformed rods when the pre-processing into several sub-beams, to avoid installation errors and to facilitate rapid installation. Preformed wire toward the end of different specifications according to the radial lateral bending, to avoid vibration in the breeze under the cable clamp at the end of the friction and prevent damage to cable extrusion.

Image Details

Packaging & Shipping

The package: will be packed according to standard export requirements, customer satisfication is our target.
Label printing: Customer logo or Runzhou brand are available

Related Fiber Cable

FAQ

1. Are you trading company or manufacturer?
We are the manufacturer with 7 years' history.

2. About the quality?

After price confirmation, you can require for samples to check our quality.

3. Can you accept small order?Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4. What is your delivery time?

Usually about 2~3 working days, it depends on the quantity. Please be assured that we will arrange goods for you as soon as possible after payment.

5. Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.

6. What is your payment way?

T/T, L/C, D/A, D/P, Moneygram, Western Union and Paypal.
