Cheap 32 Inch Wide Touch Screen Android All-in-one Pc Black USB LCD Ssd Win10 Core I5 UK VGA JP

Supplier: Shenzhen Chuangli Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr David TAN
Price: $793.00 / 1 - 49 sets
$606.00 / >=50 sets
Min. Order: 1 set

Click here to contact

Product details

Hard Drive Type:	SSD;	Products Status:	New;
Model:	AIO320A-01;	Contrast Ratio (typical):	1400:1;
Single package size:	92.4X19.8X60.9 cm;	Video Memory:	2 GB;
Place of Origin:	China;	Widescreen:	Yes;
Video Card:	NVIDIA GeForce;	Packaging Detail:	Packed with strong EPE,carton box and wooden box (Each two sets packed into one carton) Various shipping method optional such as DHL, UPS, FEDEX, TNT, by air or by ship.;
Graphics Card Type:	Integrated Card;	Use:	Industrial;
Active Area:	704 mm*97mm;	Processor Type:	Intel Core I5;
Model Number:	AIO320A-01;	Display Ratio:	16:9;
Optical Drive Type:	No CD ROM;	Warranty(Year):	1-Year;
Touch Screen Type:	32 " capacitive touch screen;	After-sales Service:	Call Center and on-line Technical Support,Others;
Operating System:	Windows 10;	Graphics Card Chipset:	Integrated Card;
Single gross weight:	16.0 KG;	UART Extension Port:	6 (2 RS232, 1 RS485, 2 TTL, 1 TTL+ fluid control);
Interface Type:	HDMI,VGA,usb;	Selling Units:	Single item;
Processor Series:	Intel Core I5;	Display Type:	LCD;
Processor Main Frequency:	1.2G;	Color:	Black;
Certification:	FCC,RECH,RoHS;	Plugs Type:	US,JP,CN,AU,UK,EU;
Response Time (typical):	8ms;	Display Resolution:	1920*1080@ 60Hz;
Brand Name:	Creately;	Network:	3G,Ethernet, WiFi, wireless peripheral expansion;
CPU:	Allwinner A20, Cortex-A7 Structure, 1.2GHz;	Processor Brand:	Intel;

Product Description

Specifications

Model Name		AIO320A-01 Touch All in One PC
Touch Display Parameters
Display Ratio		16:9
Effective Display Size		704 mm*397mm
Best Resolution		1920*1080 @ 60Hz
Supported Color		16.7M
Brightness(Typ.)		LCD Panel	400cd/m²
		LCD Panel+Capacitive Screen	380cd/m²
Reaction Time (Typ.)		8ms

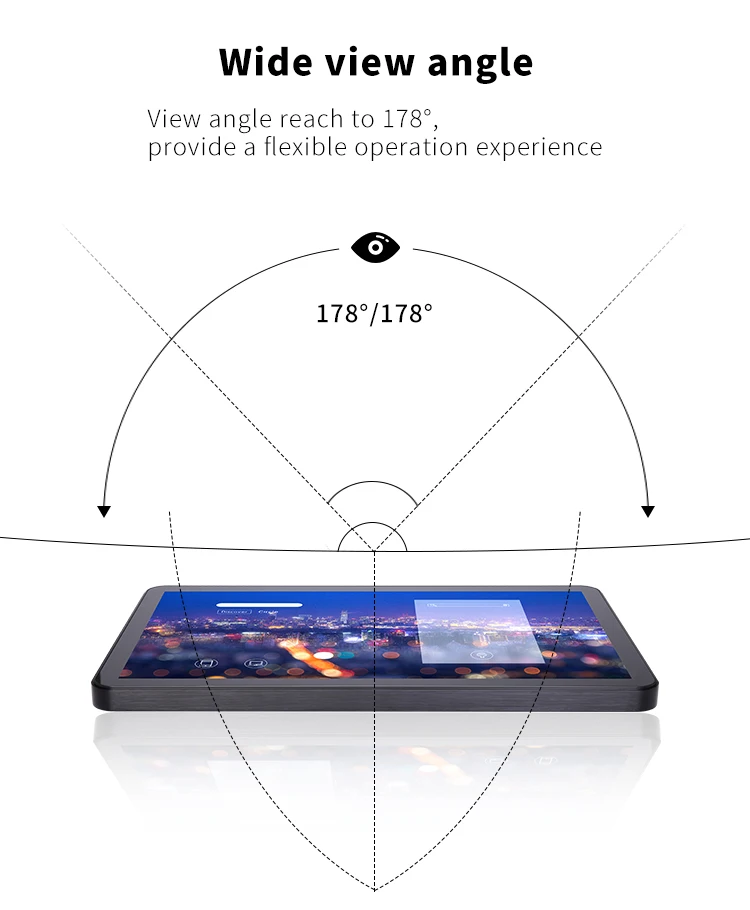

Perspective (Typ.at CR>10))		Horizontal(L/R)	89°/89°
		Vertical(U/D)	89°/89°
Contrast Ratio (Typ.)		1400:1
Frequency (H/V)		30~80KHz / 60Hz
Power Supply		Input Voltage:100-240 V, 50-60 Hz
Environmental		Operating Temperature		0~50°C
		Storage Temperature		-20~60°C
		Operating Humidity		5%~90%RH
		Storage Humidity		5%~90%RH
MTBF		50,000 Hours
LED Backlight Life (Typ.)		30,000 Hours
Touch Screen Type		32" capacitive touch screen
Touch Interface		USB
Response Time		<10ms
Android Mainboard Parameters
CPU	Allwinner A20, Cortex-A7 Structure, 1.2GHz
RAM	DDR3 1G (Maximum support 2G)
Memory	Internal Memory TSD FLASH 4G (Maximum support 32G); Memory Expansion: up to 32GB SD/TF Card extension and support SATA Hard disk expansion
Coded Resolution	1080P
OS	Android 4.2
Play Mode	Circulation, Timing, inter cut, etc.
Network	3G,Ethernet, WiFi, wireless peripheral expansion
USB Connection		3 USB HOST(2 for peripheral, 1 for internal),1 USB OTG, 2 optional internal USB HOST
UART Extension Port		6 (2 RS232, 1 RS485, 2 TTL, 1 TTL+ fluid control)
WIFI		Internal USB WIFI, optional WIFI/BT module, 802.11b/g/n
HD-MI Output		One for 1080P
RTC Clock		Support
Language		Simplified Chinese, traditional Chinese, English, French, German, Italian, Japanese, Korean, Russian, Spanish, Polish, Czech, etc.

Application

Certifications

Packaging & Shipping

Packed with strong EPE,carton box and wooden box
(Each two sets packed into one carton)
Various shipping method optional such as DHL, UPS, FEDEX, TNT, by air or by ship.

Our Services

1. Good quality with cost effective price

2. MOQ is 1 set
3. Product leading time is 7- 15 working days according to the quantity
4. Provide OEM service and can customize products according to the drawing
5. Strictly control every detail of production, and each product will be inspected by our QC team before delivery.

6. ISO Certified Standards

7. Safety Agency Certifications

8. Complete Deployment Services

Company Information

FAQ

Q1: Are you a factory or a trading company?

A: We are a OEM/ODM factory.

Q2: What payment methods your company accept?
A: We accept most of the payment methods,but mainly accept T/T,L/C, and Western Union.

Q3: How long is the warranty time for your products?
A: Our officially promised warranty time is 3 years after delivery.

Q4: What will you do if the product be nature damange within warranty time and how about out that time?
A: Well, we will give some quite simple questions to help us confirm the damaged part. Once it confirmed, the free replacement will be send. Also, we will just request a very low price for replacement part, if the product out of warranty time.

Q5: What kind of delivery method you always choose?
A: DHL/FedEx/UPS/EMS is accepted, Air freight also supported,For mass order, we will choose ship by sea.

Q6: Can I customize the product I ordered?
A: Abusolutely yes, customizatiion offer from customers are most welcome in our company.

Q7 : What's the MOQ of your products
A: We have no limit for MOQ, so you can even buy only 1 piece.
