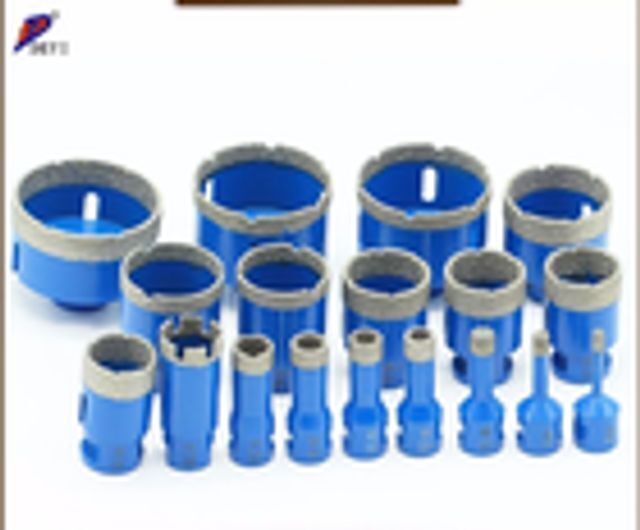

5MM -130MM cuum Brazed Diamond Drilling Core Bits Drills hole saw hole cutter Diamond drill bit for Porcelain Marble Granite

Supplier: Beijing Deyi Diamond Products Co., Ltd.
Region: Beijing, China
Contact: Ms Vicky Wang
Price: $6.03 / 1 - 5 pieces
$2.62 / 6 - 99 pieces
$2.00 / 100 - 9999 pieces
$1.50 / >=10000 pieces
Min. Order: 1 piece

Click here to contact

Product details

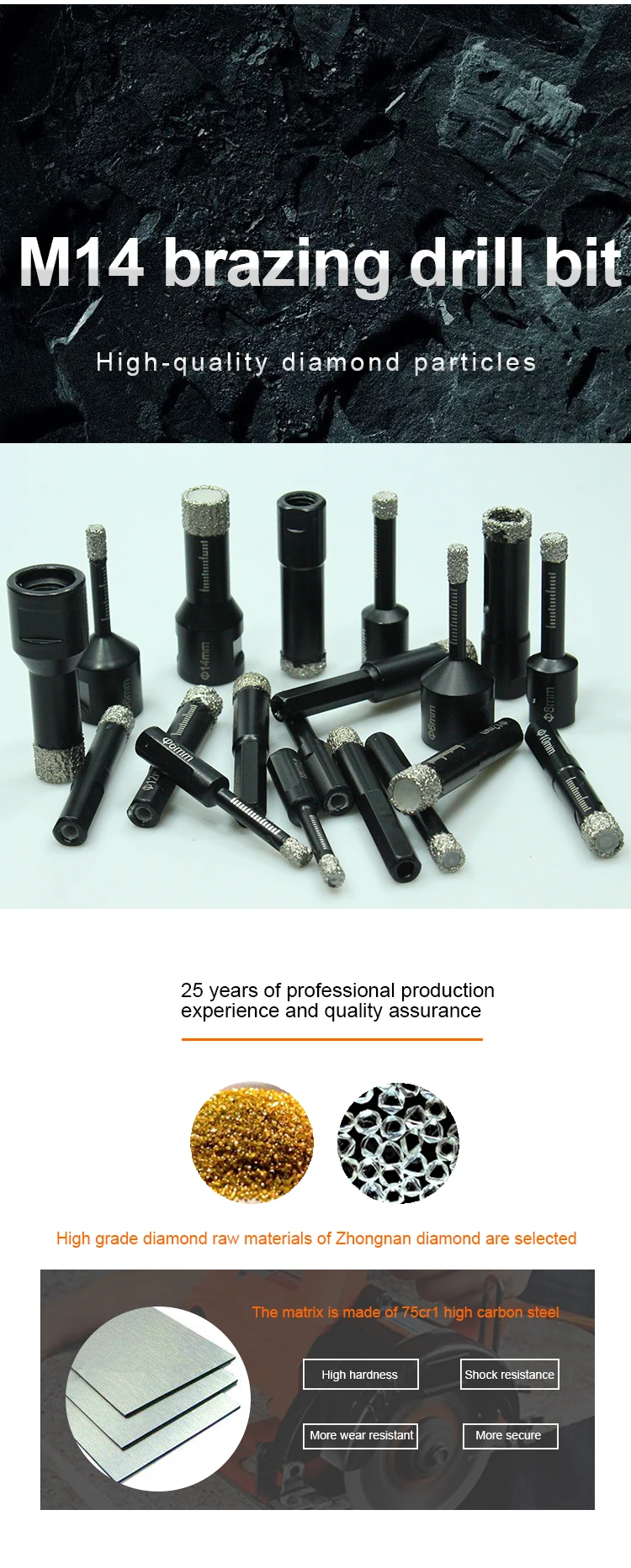

Brand Name:	DeYi;	Process:	Vacuum brazed technology;
Customized support:	OEM;	Grit:	40/45#;
Machine:	angle grinder;	Finish:	diamond+45Mn steel;
Diameter:	5mm-130mm;	Port:	Tianjin;
MOQ:	1 piece;	Usage:	For Marble, ceramic ,granite,porcelain drilling holes;
Supply Ability:	50000 Piece/Pieces per Month;	Model Number:	1;
Package Preview:	;	Diamond Height:	10mm;
Type:	Core Drill Bit;	Packaging Detail:	inner box and outer box , and support customize packing details;
Warranty:	1 month;	Shank:	M14;
Working Length (mm):	130MM;	Advantage:	dry using ,longer working life;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;	Use:	Masonry Drilling;
Suitable for:	Concrete Stone Granite Marble;	Certification:	ISO9001-2015;
Place of Origin:	Beijing China;

Product description

product name	specification (unit: mm)								cold candle	recommended revolutions
product name		opening diameter	working depth	sand width	total length	stem diameter			cold candle	recommended revolutions

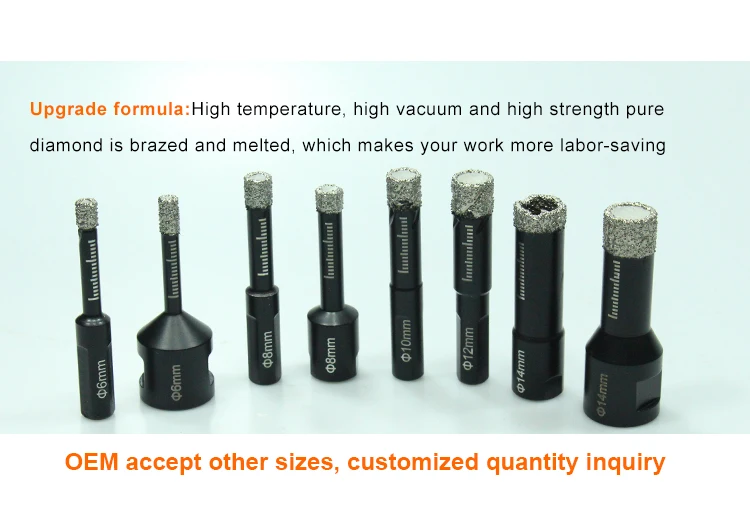

Vacuum brazed diamond drill bit	Φ6	≤35	10	62	22	yes	over 11000
		Φ8	≤35	10	62	22	yes	over 11000
		Φ10	≤35	10	62	22	yes	over 11000
		Φ12	≤35	10	62	22	yes	over 11000
		Φ15	≤35	10	62	22	yes	over 11000
		Φ16	≤35	10	62	22	yes	over 11000
		Φ18	≤35	10	62	22	yes	over 11000
Vacuum brazed diamond drill bit	Φ20	≤35	10	60	27	no	over 11000
		Φ25	≤35	10	60	27	no	over 11000
		Φ30	≤35	10	60	27	no	over 11000
		Φ35	≤35	10	60	27	no	over 11000
		Φ38	≤35	10	60	27	no	over 11000
		Φ40	≤35	10	60	27	no	over 11000
		Φ43	≤35	10	60	27	no	over 11000
		Φ45	≤35	10	60	30	no	over 11000
		Φ50	≤35	10	60	27	no	over 11000
		Φ55	≤35	10	60	28	no	over 11000
		Φ60	≤35	10	60	30	no	over 11000
Vacuum brazed diamond drill bit	Φ65	≤35	10	60	27	no	over 8000
		Φ68	≤35	10	60	30	no	over 8000
		Φ70	≤35	10	60	30	no	over 8000
		Φ75	≤35	10	60	30	no	over 8000
		Φ80	≤35	10	60	30	no	over 8000
		Φ85	≤35	10	60	30	no	over 8000
		Φ90	≤35	10	60	30	no	over 8000
		Φ100	≤35	10	60	30	no	over 8000
		Φ110	≤35	10	60	30	no	over 6000
		Φ115	≤35	10	60	30	no	over 6000

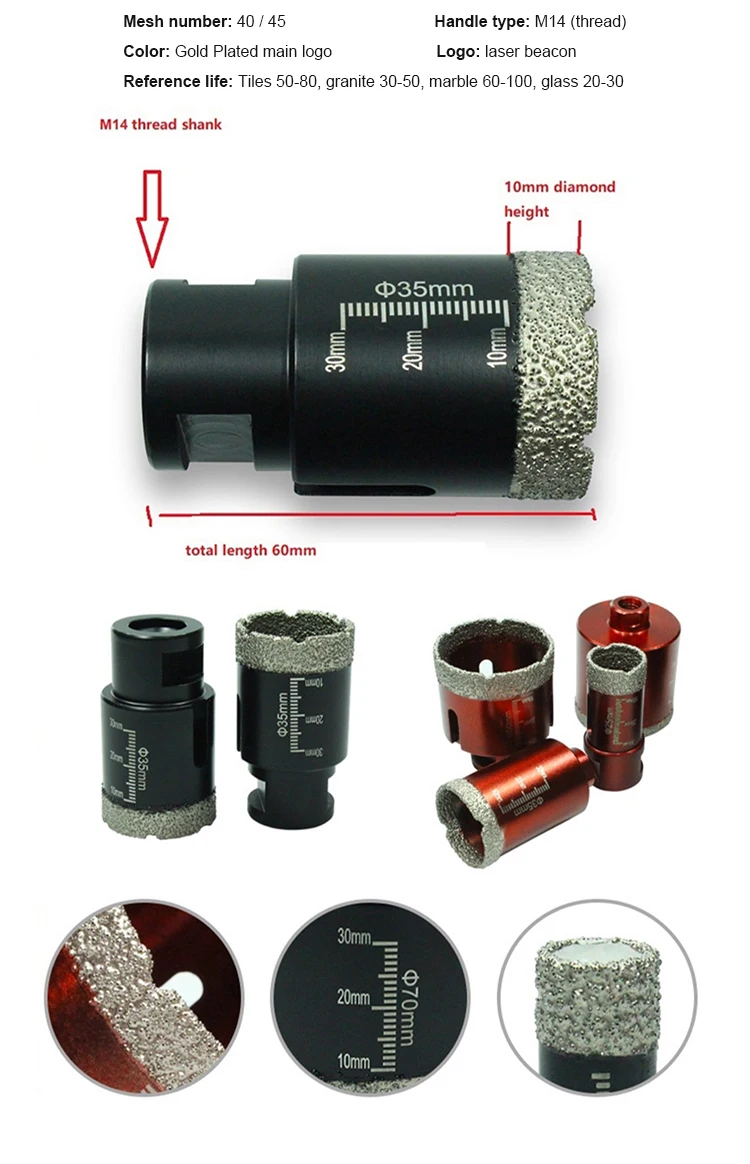

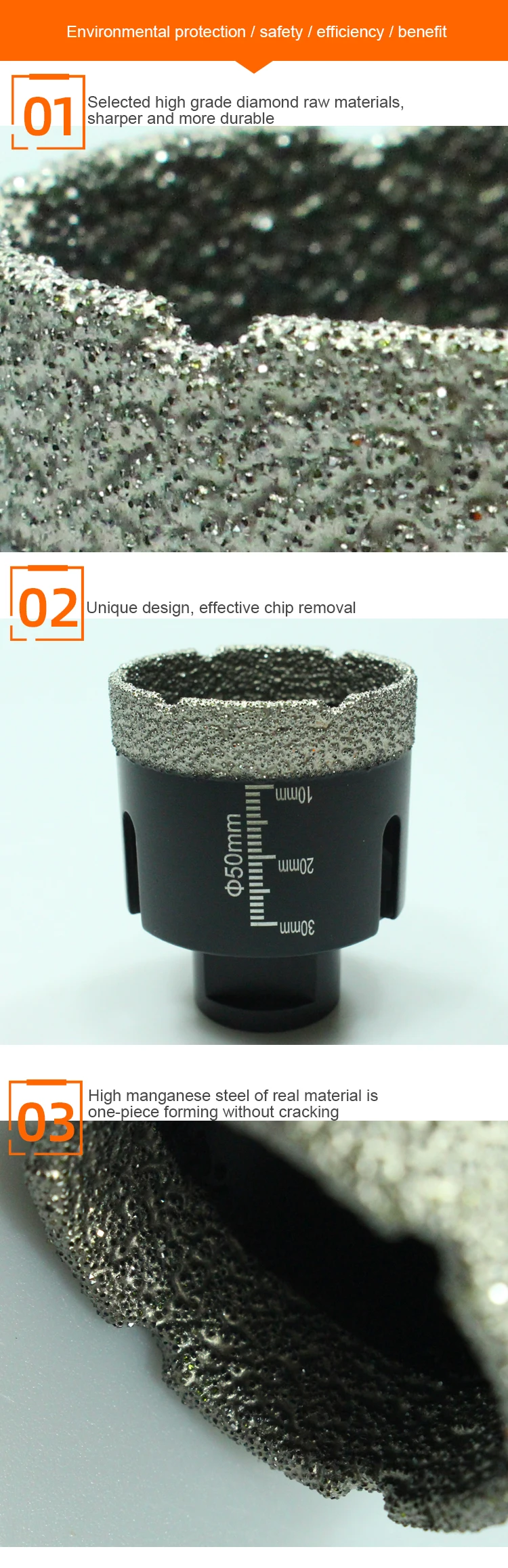

Product Details

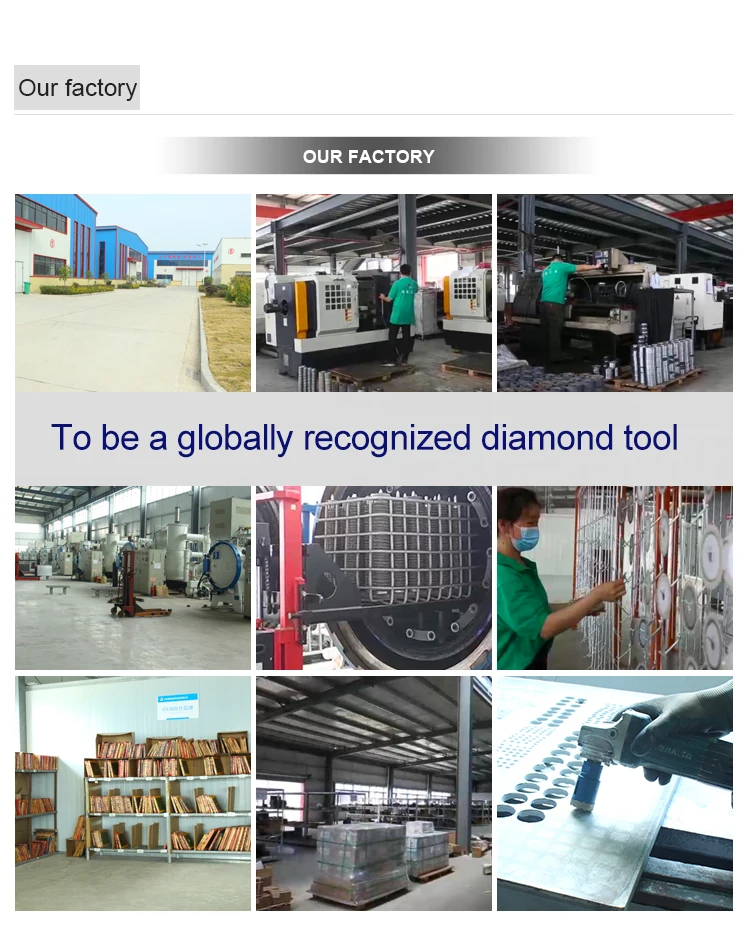

Company Profile

Certifications

Product packaging

FAQ

1.What material is your product ?

Our products are made from diamond , we have sintering, electroplating , and brazing technology.

2.What is your production capacity ?

We have 5 large sets producing machines in our factory , and we are going to extend our production again. Now we can produce 10000pcs per day , and if your order quantity is big , we can arrange it at first.

3.May I get some pieces samples from you ?

Yes, we are glad to provide sample for testing , we have confidence about our quality , Deyi is the lead brand in Diamond industry, I believe you will satisfied with us.

4.Shall we go to visit your factory ?

Of course yes , welcome to visit our factory , we will try our best to show you our sincerity and factory , you will see our stock, production machines , enthusiastic colleagues .

5.How will you guarantee the quality is eligible ?

We have 3 times to examine the quality of products , first : pre-production , second : post-production , third : before
delivery.So you needn’t to worry about it.

6.How could I complete an order ?

1) Sending your inquiry/requirements about products.
2) We confirm your inquiry.
3) Discuss with the details of products.
4) Produce some pieces samples or send sample to you for testing from our stock .
5) After your confirmation , you pay us down payment , then we begin to produce stuff .
6) Before delivery, we can send you some pieces bulk samples for testing , if no question , then you pay us the balance payment,wedelivery all the goods to you as our documents.
7) When you receive all the goods , you can check it first, if no question , then the order is finished , if there are some
questions about quality , then we can deal with it together , we are responsible for the after sales.
