INNOVACERA High Temperature Alumina Pellet Ceramic Igniter 300w 230v for Biomass Burner

Product details
Working Temperature Range:-50 - 1000 ℃;Applicable Industries:Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Other,Advertising Company;
Feature:Heat, wear and corrosion resistance;Dimension:As request;
Density:3.75;Form:Plate, tube, stick...;
Material:Ceramic;Supply Ability:100000 Piece/Pieces per Month;
Thermal Conductivity:Good;Port:Any port of China;
Free sample:Available;Core Components:Ceramic Heater;
Weight:0.5;Condition:New;
Alumina Content:96%;Machinery Test Report:Provided;
Function:Automotive, mechanical industry, textile, etc;Video outgoing-inspection:Provided;
Brand Name:INNOVACERA;Warranty:1 Year;
Power Source:Electric;Packaging Detail:Standard Safety Cartons with Plastic Foams;
Certification:ROHS, REACH;Color:White;
Local Service Location:None;Max. Use Temperature:1600℃;
After-sales Service Provided:Free spare parts,Video technical support;Marketing Type:Hot Product 2019;
Key Selling Points:Easy to Operate;Warranty of core components:1 Year;
Payment Terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram;Showroom Location:None;
Type:Air Heater;After Warranty Service:Video technical support,Online support;
Place of Origin:Fujian China;Dimension(L*W*H):OD10.5*ID6.5*90mm;
Voltage:110V /220V;

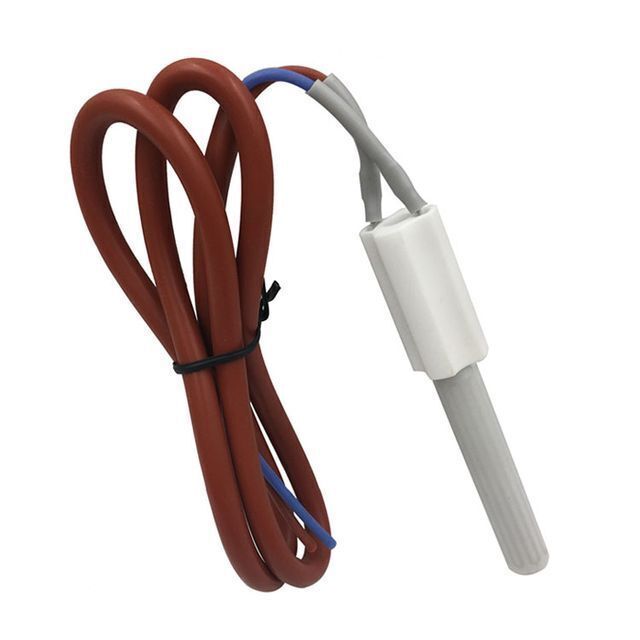

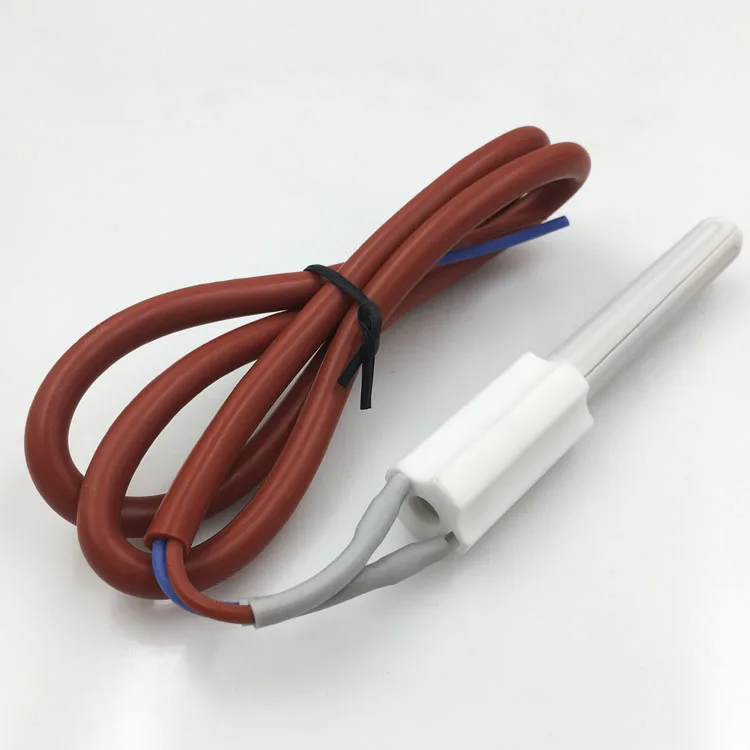

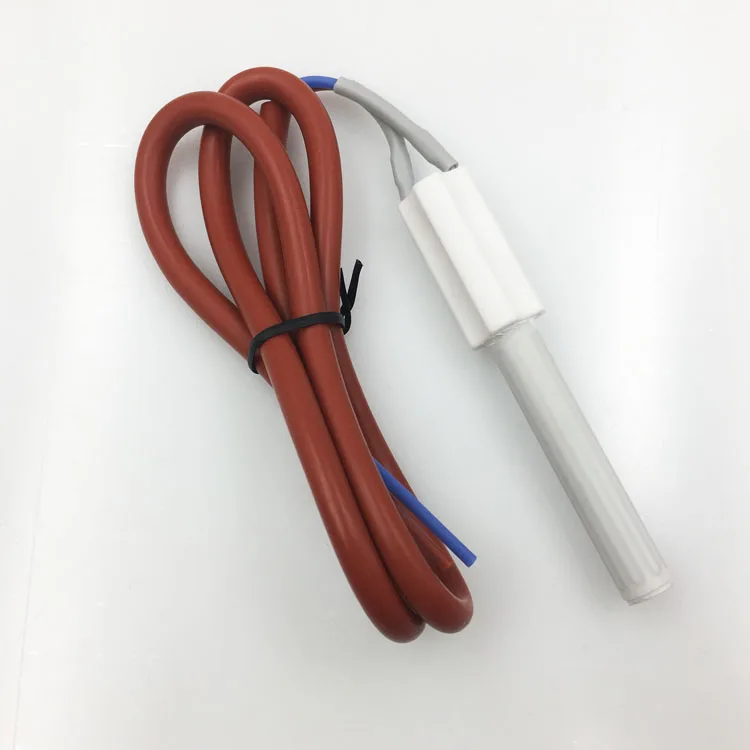

Ceramic Pellet Igniter consist of Al2O3 insulation ceramics with an integrated W conductor, and reach a permanent

operation temperature of between 900°C and 1100°C.

Part No.
INC108115
Usage
ignition
Working Voltage
120 VAC/ 230VAC
Power
160 W / 180 W / 210 W / 225 W / 230 W / 240 W / 255 W
Dimension of product
Existing Sample: OD11.5*ID6.5*108MM,
Holder Size: D17.5*35MM
Customized sample is acceptable
Lead wire:
300mm / 400mm / 500mm / 900mm (Customized is accept)
Electrode
Welding leads on the electrode
Advantages
■Ready to fit solution: High temperature heating element in temperature-resistant ceramic socket
■Air can flow through and around inside and outside of heater
■Element temperature: over 1000 °C in permanent and alternating operation, for a short time up to 1200 °C
■Lifetime up to 100,000 heating cycles, depending on operating conditions
■Oxidation and corrosion-resistant
■Ignition through air heating: Due to extremely high heater temperature and ideal     geometric conditions, air is heated in a very short time to very high temperatures
 – the ideal ignition blower!
■Igniting wood chips, firewood, coal bricks or other biomass (corn, etc.) is possible.


Pellet Igniter Supplier Advantages:
1.Higher temperature, about twice of traditional metal sheathed heater;
2.Shorter ignition:time, about 60~90 seconds
3.Electrically insulated with no exposed electric contacts
4.Wear and corrosion resistance
5.Long life time
6.Easy to install and replace

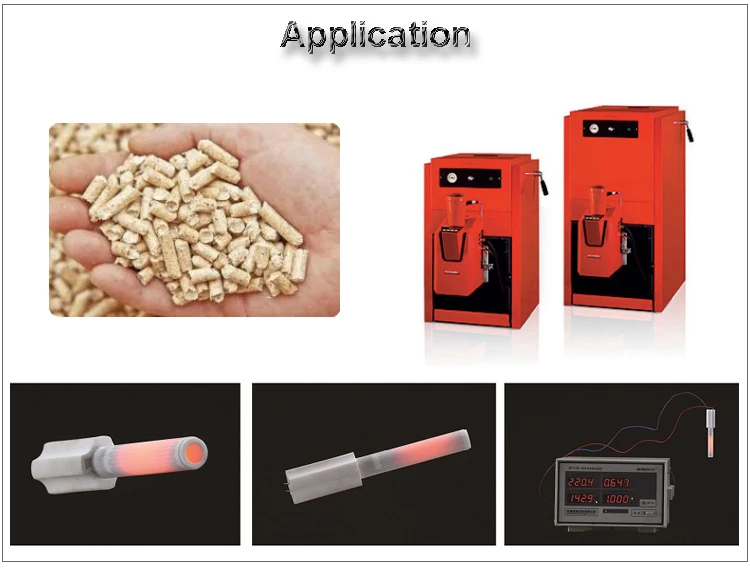

Ceramic Igniter Concrete applications:
* Hot surface igniters (ignition of gas, oil, biomass, pellets)
* Hot air generation
* Tool heating
* Melting/Welting/Soldering/Hot air soldering
* Heaters for chemical analysis and laboratory equipment (eg: min-furnaces, reactors)
* Customer-specific heating solutions

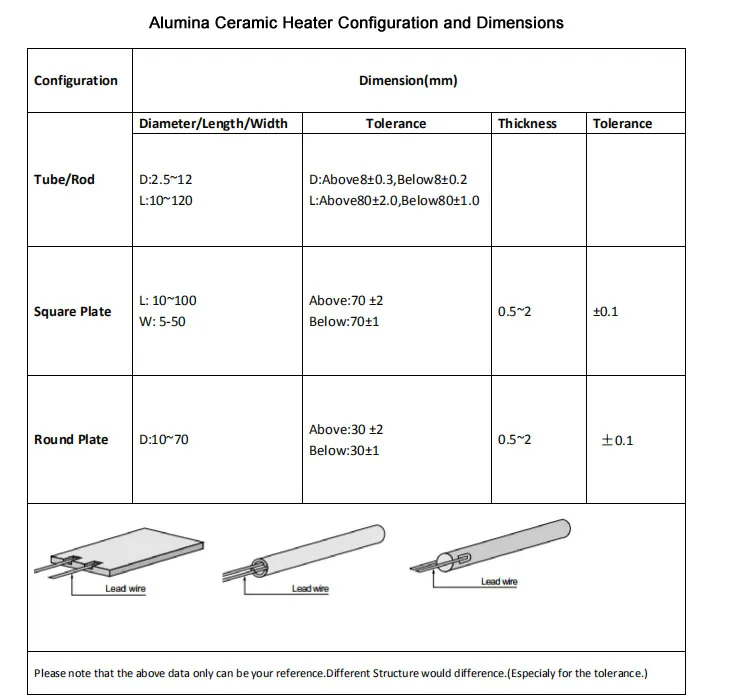

Alumina Ceramic Heater Design Structure

Ceramic Heaters are manufactured by printing resistors on alumina shees,being laminated and sintered into
one pieces.
* Types:
■ Rectangular alumina ceramic heating element
■ Round shape alumina ceramic heating element
■ Rod shape alumina ceramic heating element
■Tube shape alumina ceramic heating element

Thermal Properties for Alumina Heater
Item
Unit
Value
Vickers Hardness
Gpa
11.5
Flexural Strength
Mpa
300
Compressive Strength
Mpa
2000
Modulus of Elasticity
Gpa
300
Poisson's Ratio
---
0.22-0.23
Fracture Toughness
Mpam1/2
3.5-4.0
Thermal Conductivity
W/(m·k)
25
Thermal Expansion Coefficient
10-6/℃
6.5-7.5
Thermal Shock Resistance
△T℃
200
Maximum Use Temperature
1600
Dielectric Strength
KV/mm
>12
Dielectric Constant
εr
9-10
Dielectric Loss Angle (1MHz)
---
0.0002
Volume Resistivity
Ω.m
>1015
Specific Heat
J/(kg·k)
0.78x103
Not without reason, the high temperature heating elements pellet igniter is the reliable standard ignition system for pellet heating systems in Europe-hundreds of satisfied customers speak for themselves.

RFQ

1.What's the max using temperature ?
Max 1700degree

2.Which composition suitable for metallized ceramics?
95%, 96% alumina

3.What's the 99 alumina's major applications?
Pump Shaft,Drive Shaft,Sealing Ring

4.Can you do OEM?
We are mostly doing by drawing

5.What's the delivery time?
About 20days
