mini truck crane small crane lifting hoist lifting motor
- 200.00 1 - 49 units
- 170.00 >=50 units
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Supply Ability: | 300 Unit/Units per Quarter; | Product name: | mini crane; |
| height: | 1940mm; | Customized support: | OEM; |
| Package Preview: | ; | voltage: | 12v 24v; |
| Packaging Detail: | packed in wooden case; | Payment Terms: | T/T; |
| Port: | Tianjin port; | Place of Origin: | China; |
Product Description
mini crane mini truck crane small crane mini crane 500kg truck mounted crane lifting hoist lifting motor

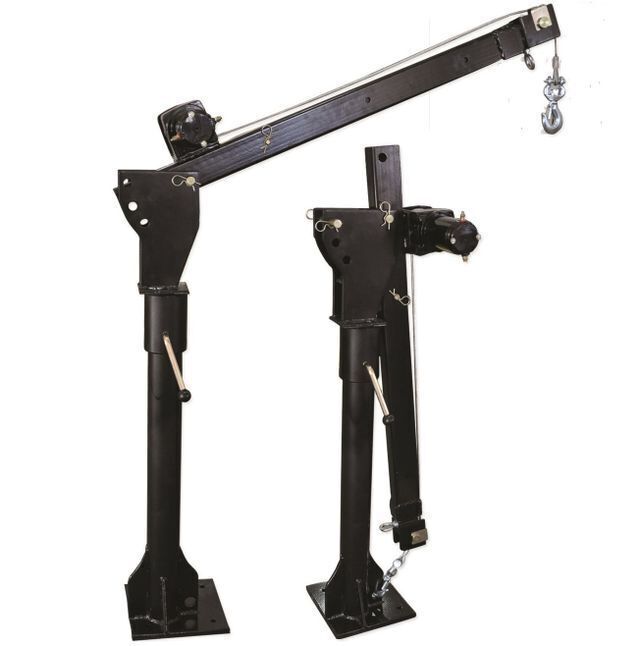

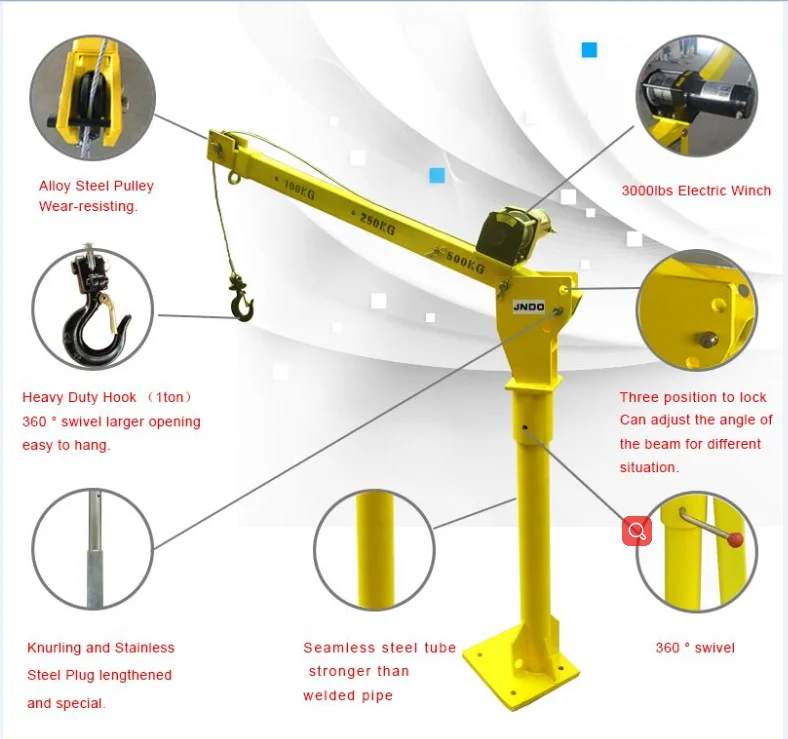

Mini truck crane is also called mini crane or small crane,truck mounted crane.Besides durable steel frame,the other important part is electric lifting hoist or lifting motor.
1 Seamless steel column of mini truck crane.More durable.
2 360 degree swivel.lock and release by a steel handle.
3 Beam is telescopic and relevant capacity is 100kg,250kg and 500kg and Max beam reach is 1490mm
4 Lifting hoist or lifting motor of mini truck crane is DC 12v or 24v 3000lbs electric winch.
5 Three positions to adjust beam angles.Angles are fixed by stainless steel pin.The pin surface is with pattern for friction
6 Alloy steel pulley for smooth wire rope running
7 Heavy duty black forged hook of mini truck crane.Hook can swivel 360 degree.
Specification
Model | HP800 |
Capacity | 300-500kg |
Wire rope | Ф4.8mm×6.6m |
Max height | 1940mm |
Reach | 1490mm |
Voltage | DC 12/24V 125amps |
Mounting base | 250×250mm× 18mm |
Weight | 68kg |
Package size | 140*39*39cm |
Configurations of mini truck crane
1 | Mini truck crane |
2 | 3000lbs electric winch |
3 | forged black swivel hook |
4 | pulley block |
5 | control switch |
6 | Spare wire rope |

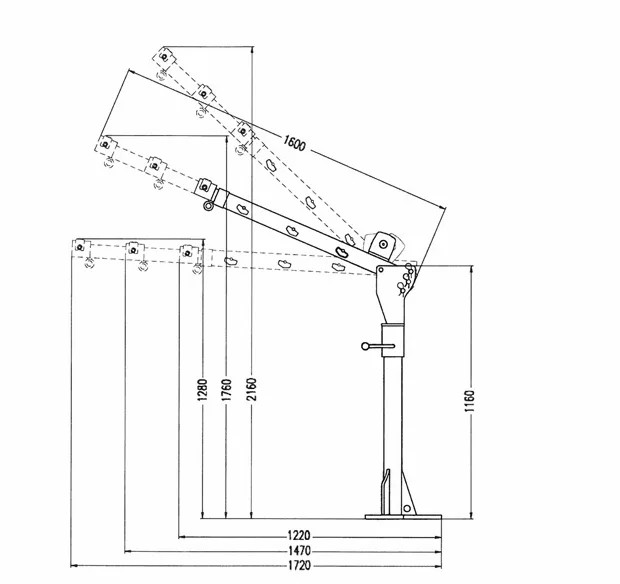

Size of mini truck crane
Sizes of mini truck crane

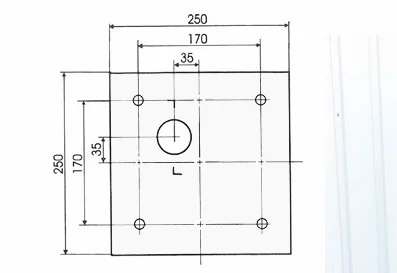

Mounting base size of mini truck crane
Detailed pictures of mini truck crane

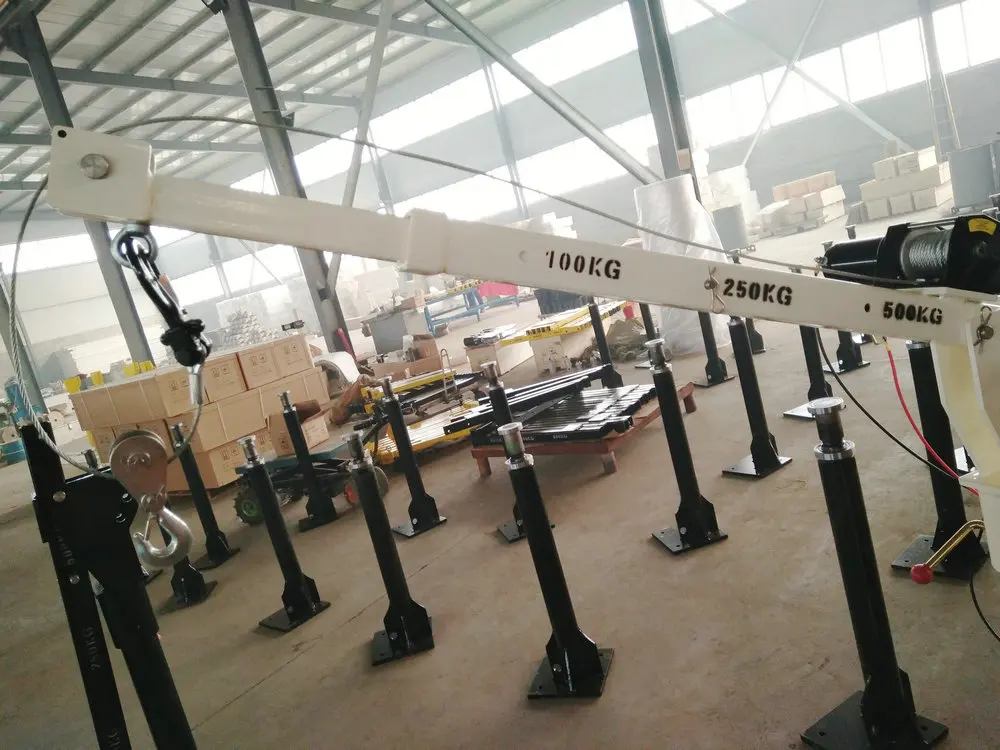

Telescopic beam of mini truck crane
beam of mini truck crane is telescopic.max beach is 1490mm.Capacities range from 100kg to 500kg.

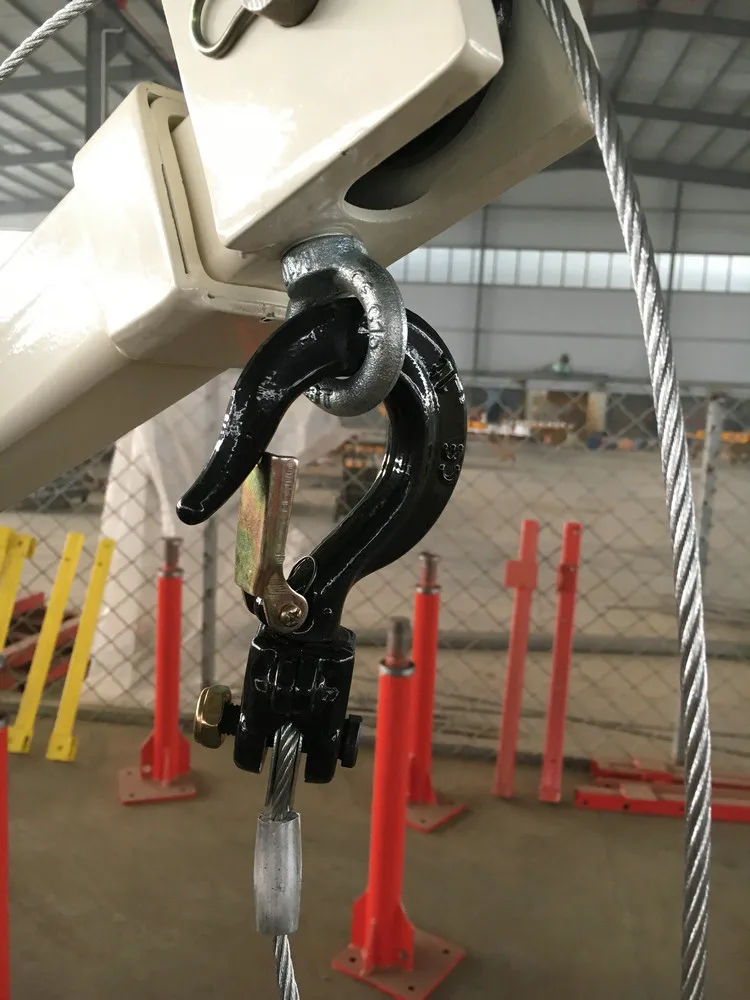

Forged black swivel hook
Forged hook of mini truck crane can swivel 360 degree.Forged hook is with safety latch.

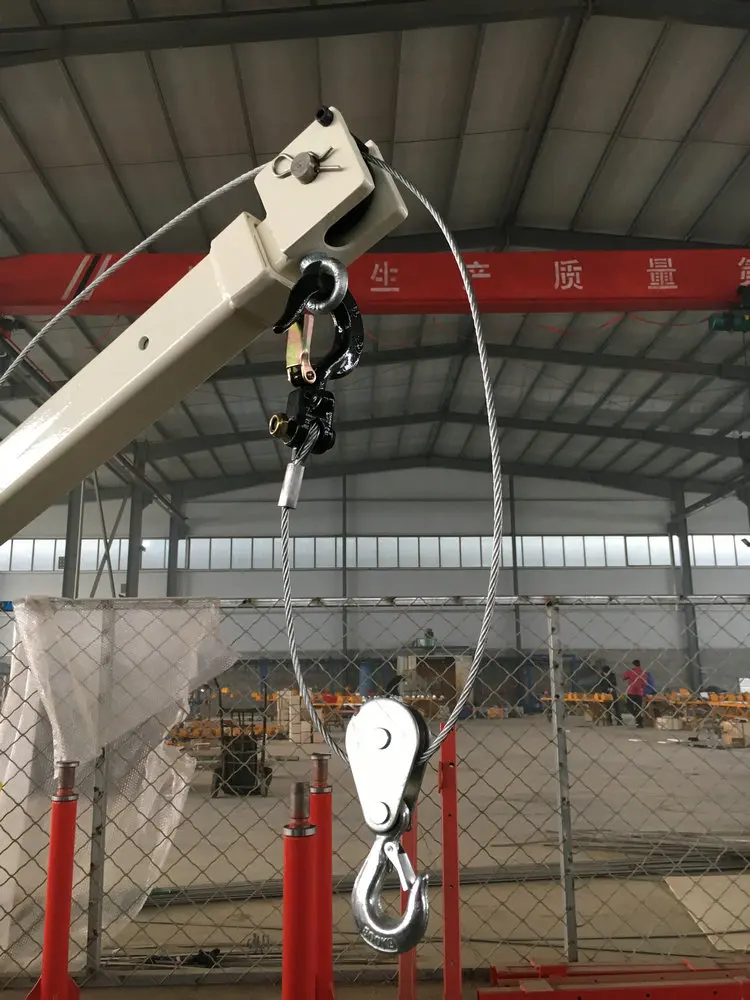

Pulley block of mini truck crane
Pulley block is for double lines at double rated capacity.

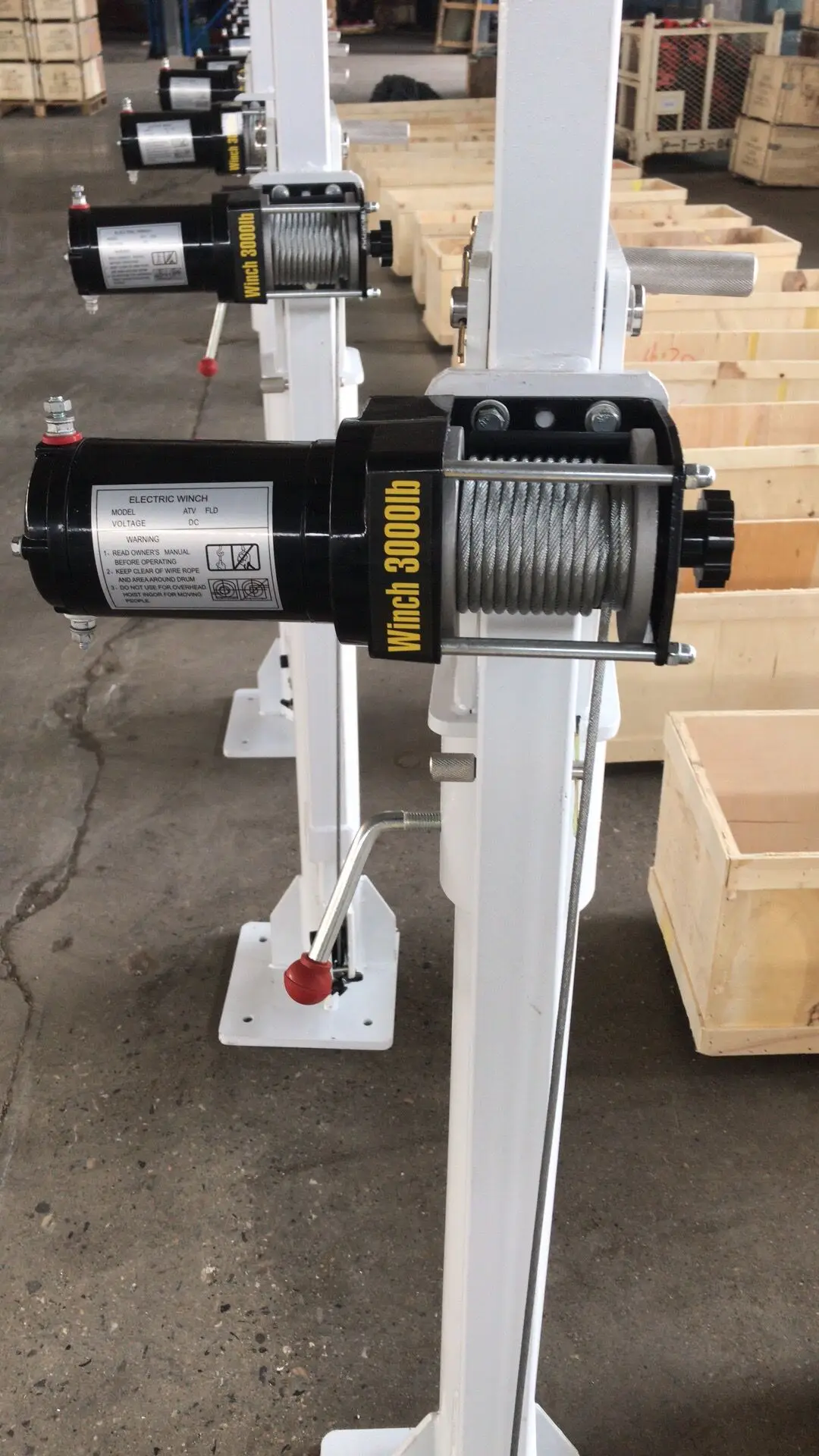

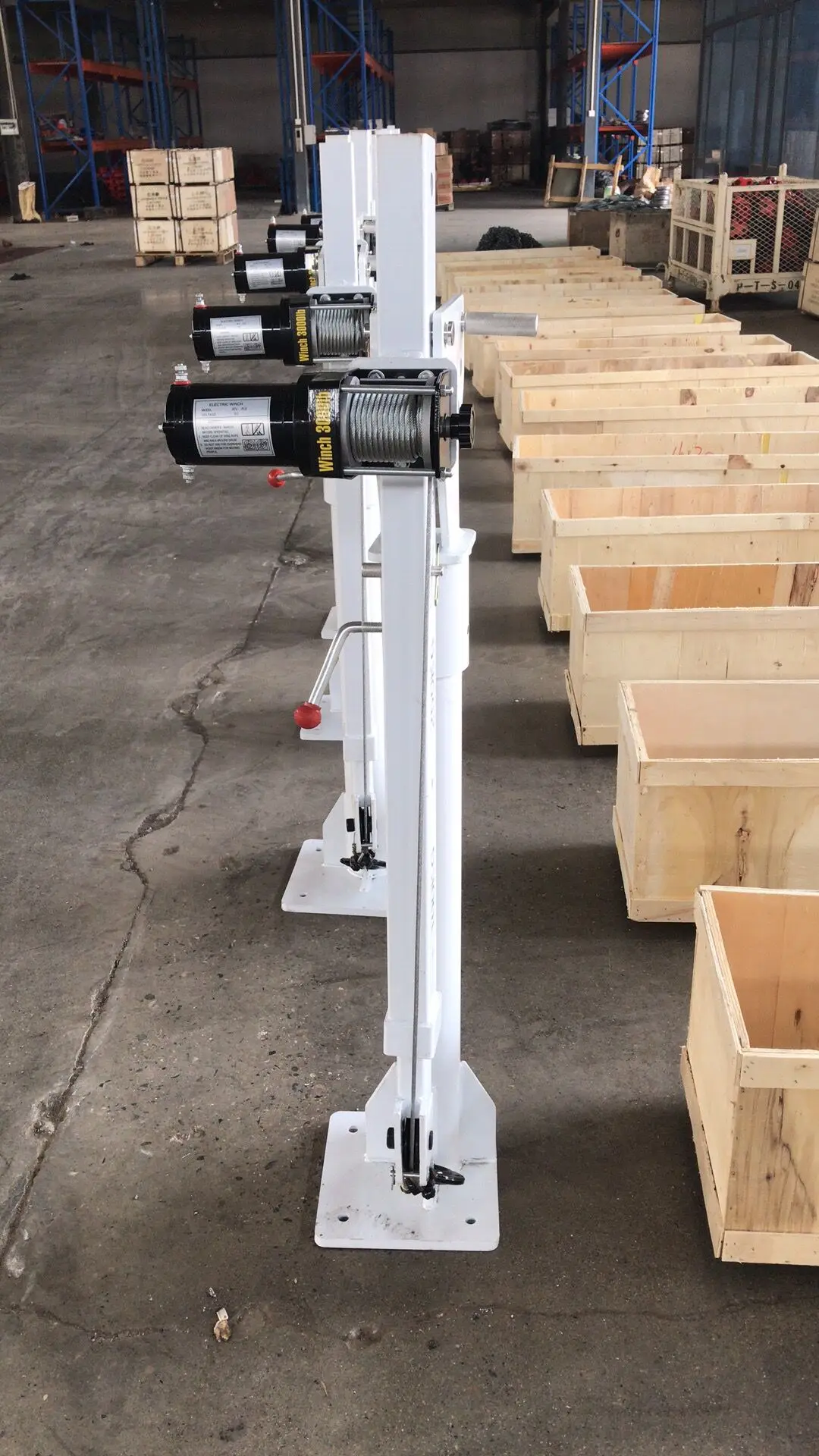

3000 lbs electric winch of mini truck crane
DC 12v or 24v electric winch plays the role of lifting motor.
Packing & Delivery
Packed in exporting standard wooden case.
contact us
Whatsapp:0086-13002780522
Wechat:13002780522
Wechat:jndohoisting
Email:jimmy@jndo.cn
