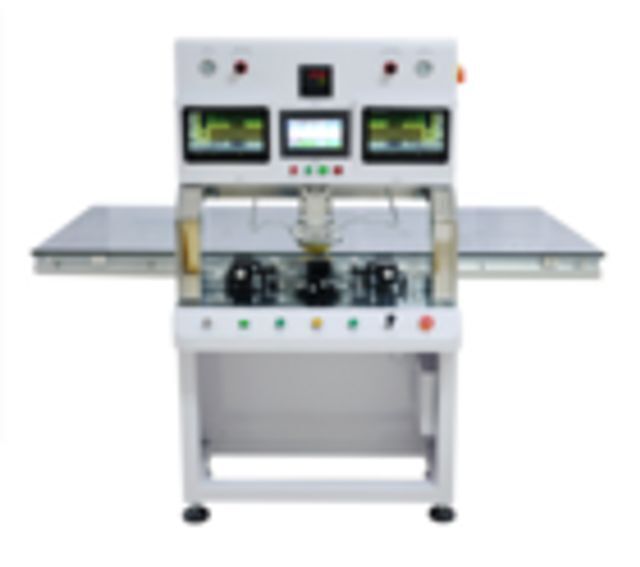

ST-100SS TAB COF COG FPC FOG ic bonding machine ACF bonding machine for LCD LED TV panel opencell repair

Product details
Color:White;Weight:400kG;
Packaging Detail:Export Wooden box packing;Supply Ability:300 Set/Sets per Month COF/TAB BONDING MACHINE;
Type:Double head;Heating:Pulse heating;
Condition:New,New;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,PAYPAL;
Place of Origin:Guangdong;Machinery Test Report:Provided;
Certification:CE;Power:500W;
After-sales Service Provided:Engineers available to service machinery overseas;Warranty of core components:1 Year;
After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;Core Components:PLC;
Showroom Location:Turkey;Package Preview:;
Warranty:1 Year warranty;Suitable LCD size:7-100 inch;
Material:Metal;Marketing Type:New Product 2020;
Dimension(L*W*H):110*96*150;Local Service Location:Turkey,Malaysia;
After sales:On-site support;Product name:ACF Bonding Machine;
Video outgoing-inspection:Provided;Port:Shenzhen;
Voltage:220V;Brand Name:Silman;
Applicable Industries:Machinery Repair Shops,ACF Bonding Machine;Usage:COF/ACF Repairing;
Product Description

ACF Bonding Machine Product Application

The ACF bonding machine is suitable for variety of FPC / COF / TAB and LCD or PCB board combination bonding. It is a professional high precision repair equipment for repairing 2K, 4K and curved screen different sizes of LCD screen cable damage or natural fell off.

ACF Bonding Machine SPECIFICATIONS FOR ST-100SS

Power comsumption
Double head
AC220V±10%, 50-60 Hz
Machine Power
1100W
Temperature error range
±0.5°C

Main performance parameters
Operation mode
7inch touch screen control
Alignment system
HD CCD camera
Programming control device
PLC controller

Machine details
 Machine size
1800mm (L) ×1260mm (W) ×1450mm(H)
Work pressure
0.4-0.8Mpa
Support Max LCD size
7 to 100 inch

Main Features

The equipment is suitable for variety of FPC / COF / TAB and LCD or PCB board combination bonding. It is a professional high precision repair equipment for repairing 2K, 4K and curved screen different sizes of LCD screen cable damage or natural fall off.

What Problem it Can Repair :
A variety of LCD problems, such as vertical, horizontal, black belt, the black line, the color line, ribbons, multi line, flower screen, black screen, white show, horizontal, vertical half and half fault, and so on.

Detailed Images

Machine Overview

Name: MINI Single Head Tab/ACF Bonding Machine

Brand: Silman

The machine used for repairing vertical, horizontal, black belt, the black line, the color line, ribbons, multi line, flower screen, black screen, white show, horizontal, vertical half and half fault, and so on.

Easy to use and operate.

Emergency Stop

Name: Emergency Stop
Original: Germany
Equipped with Emergency Stop button to preventing

machine damage with wrong operate.

Machine Parts

Name: Digital Programmer
Original: Japan
Precision temperature controller

Machine Error Accurancy:±0.5°C

Main Features

Name: Heating head
Brand: Omeron
Original: Japan

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Machine Delivery
Shipping way
1 set By air Or Express, 2 or above By Sea


Shipping terms
We work with EXW, FOB, CIF, DDU, DDP etc
Packaging
Size
92 (L) * 92 (W) * 166 (D)
Weight
430KGS



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
