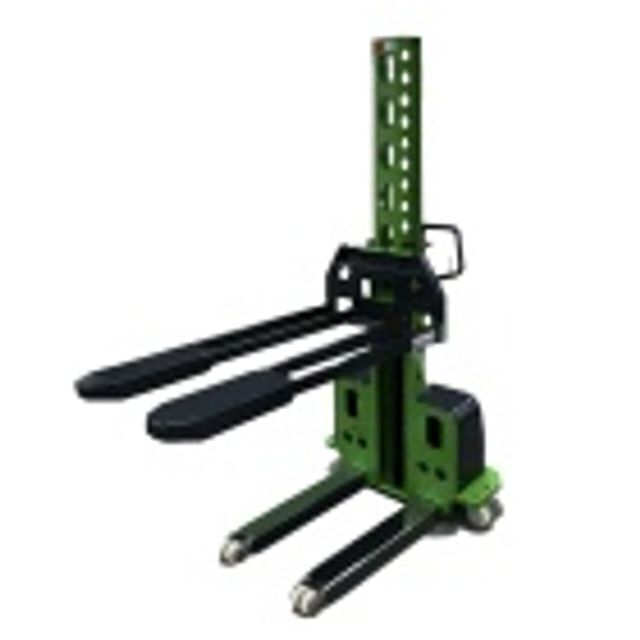

500kg 700kg 1000kg Electric Portable Self Loading Stacker Pallet Lifter WELIFTRICH

Supplier: Welift Machinery (Changhzou) Co., Ltd.
Region: Jiangsu, China
Contact: Mr Sam Meng
Price: $1280.00 / 1 - 1 units
$1250.00 / 2 - 4 units
$1200.00 / 5 - 9 units
$1050.00 / >=10 units
Min. Order: 1 unit

Click here to contact

Product details

Showroom Location:	United States;	Brand Name:	WELIFTRICH;
Single gross weight:	250.0 KG;	Core Components:	PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump;
Battery:	12V 45Ah;	After Warranty Service:	Video technical support,Online support;
Key word:	self loading/lifting pallet stacker;	Machinery Test Report:	Provided;
Warranty of core components:	1 Year;	Local Service Location:	United States;
Single package size:	165X85X180 cm;	Usage:	Container Loading;
Load Center:	400~500mm;	Warranty:	1 Year;
Applicable Industries:	Retail;	Selling Units:	Single item;
Packing:	pallet;	Marketing Type:	New Product;
Feature:	Loading or unloading goods on the vehicles,...;	After-sales Service Provided:	Online support;
Loading Capacity:	500kg/700kg,1000kg;	Product Name:	500kg Semi Electric Portable self loading pallet lift Stacker;
Type:	Semi Electric Portable self loading pallet lift Stacker;	Customized service:	loading capacity/lifting height/color/package...;
Packaging Detail:	Available package for electric stacker: Plywood pallet, air bubble film inside, linen outside, fit for long-term transportation;	Package Preview:	;
Place of Origin:	Jiangsu China;	Video outgoing-inspection:	Provided;

Product Description

500kg Semi Electric Portable self loading pallet Stacker

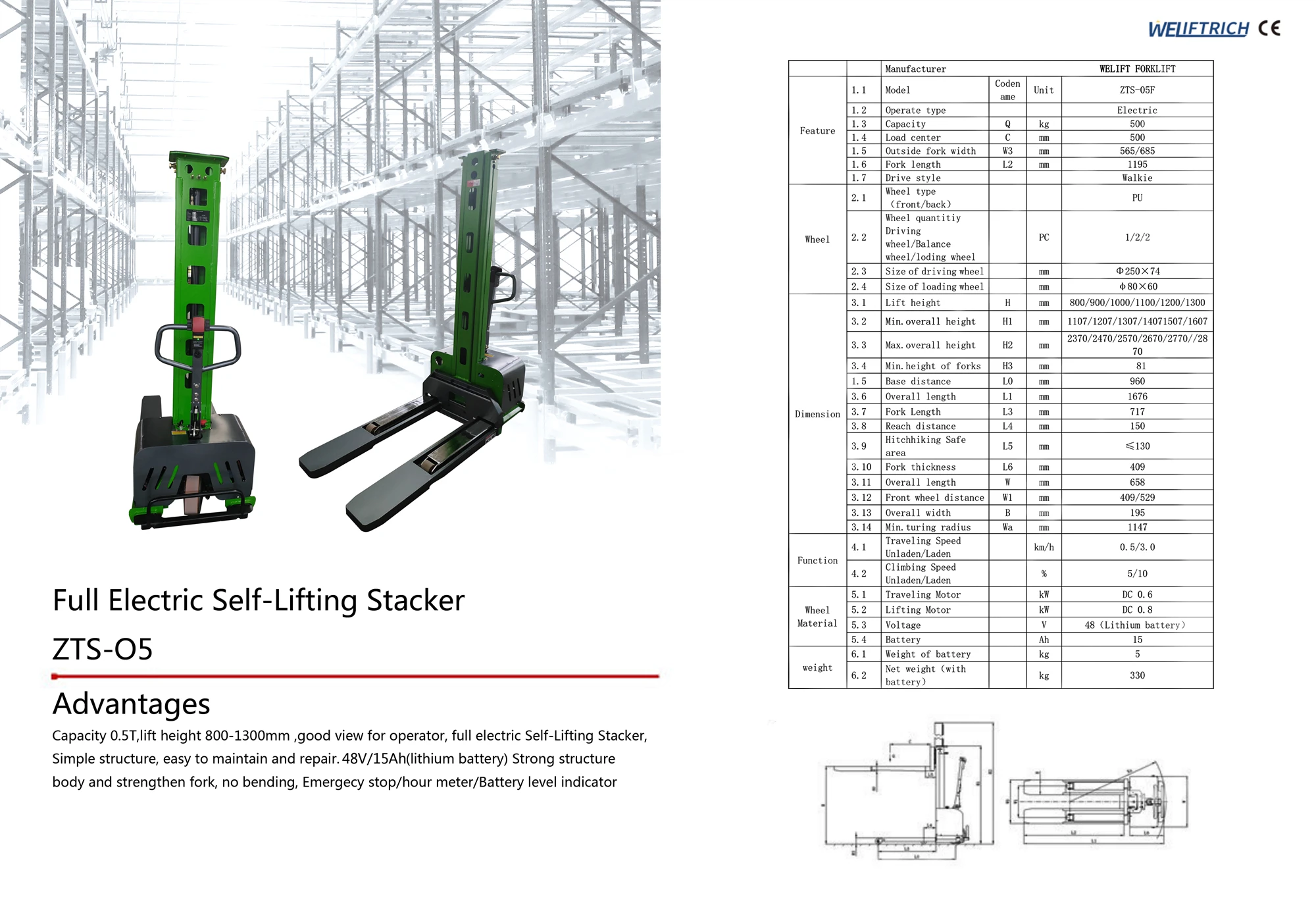

Self stacker Specification

Features	1.1	Model			ZTS-05/07/10
	1.2	Type of Power			Battery
	1.3	Max. Load	Q	kg	500/700/1000
		Load Center	c	mm	400
	1.5	Wheelbase	L0	mm	815
	1.6	Wheel Distance: FR	W1	mm	380
	1.7	Wheel Distance: RR	W2	mm	665
	1.8	Type of Operation			Walk
Size	2.1	Front Wheel		mm	φ70×60
	2.2	Universal Wheel		mm	φ100×45
	2.3	Middle Wheel		mm	φ40×25
	2.4	Length of Outriggers		mm	1000
	2.5	Max. Fork Height	H	mm	800/900/1000/1100/1200/1300
	2.6	External Distance Between Forks	W3	mm	535
	2.7	Length of Fork	L2	mm	1250
	2.8	Thickness of Fork	B1	mm	60
	2.9	Width of Fork	B2	mm	155
	2.1	Overall Length	L1	mm	1570
	2.11	Overall Width	W	mm	786
	2.12	Overall Height (Mast Closed)	H1	mm	1150/1197/1297/1397/1497/1597

Self stacker Introduction

1. Self stacker’s Model No. And Specification

Model. No.		ZTS-05
Max. Load	kg	500
Total Weight	kg	240
Lift Motor Power	KW	DC0.8
Battery Voltage/Capacity	V/Ah	12/45
Max Lift Speed (Full-load / No-load)	mm/s	45/60
Max Descent Speed (Full-load)	mm/s	70
Load Center	mm	400
Type of Operation		Walk
Type of Wheel		Nylon
