1/4 bsp pneumatic cylinder accessories fittings one touch tube Air Connector

Supplier: Ningbo Vpc Pneumatic Co., Ltd.
Region: Zhejiang, China
Price: $0.34 / 100 - 999 pieces
$0.20 / 1000 - 4999 pieces
$0.10 / >=5000 pieces
Min. Order: 100 pieces

Click here to contact

Product details

tube material:	nylon, pu tube;	Showroom Location:	None;
Condition:	New;	working pressure:	0~8 Bar;
Warranty:	1 Year;	Material:	PP, box, carton;
Port:	NINGBO/SHANGHAI;	Brand Name:	VPC;
Packaging Detail:	Plastic bag Carton box with kraft paper Pallet;	Applicable Industries:	Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Retail,Construction works ,Energy & Mining;
Package Preview:	;	Marketing Type:	Hot Product 2020;
Place of Origin:	Zhejiang China;	Machinery Test Report:	Not Available;
Supply Ability:	200000 Piece/Pieces per Day;	material:	plastic;
Payment Terms:	L/C,Western Union,T/T,MoneyGram,Paypal;	Type:	Fittings;
Application:	Industry;	working medium:	air, vacuum;
After Warranty Service:	Online support;	Certificate:	CE / ROHS/ ISO9001;
Local Service Location:	None;	Video outgoing-inspection:	Not Available;
guaranteed pressure:	12 Bar;	working temperature:	0~60℃;

1/4 bsp pneumatic cylinder accessories fittings one touch tube Air Connector

Working Medium	Air
Working Pressure	0~1.0Mpa
Max Pressure	1.2Mpa
Working Temperature	0~60°C
Applicant	Nylon, PU

Perfect Sealing

Once be inserted,the tube would not easily loose

With Hex type,convenient to installation even the narrow place

All the taper pipe threads are Pre-coated sealant, nice sealing performance

Fast Installationg

Elliptical release ring design easy to dismantle

Even after installation,the direction of the tube can be changed freey
Variety of models,suitable for any tubes,simple and smart,space-saving

Detailed Description

Ordering Code One Touch-In Fitting

VPC 08 - 02

VPC→Series Code

08→Tube Outside

04:4mm 5/32":5/32"

06:6mm 3/16":3/16"

08:8mm 1/4":1/4"
10:10mm 5/16":5/16"

12:12mm 3/8":3/8"
14:14mm 1/2":1/2"
16:16mm

02→Thread

M5:M5x0.8 G01:1/8"BSP 1/8"N:1/8"NPT

M6:M6x1.0 G02:1/4"BSP 1/4"N:1/4"NPT 01:1/8"PT G03:3/8"BSP 3/8"N:3/8"NPT 02:1/4"PT G04:1/2"BSP 1/2"N:1/2"NPT

03:3/8"PT 04:1/2"PT

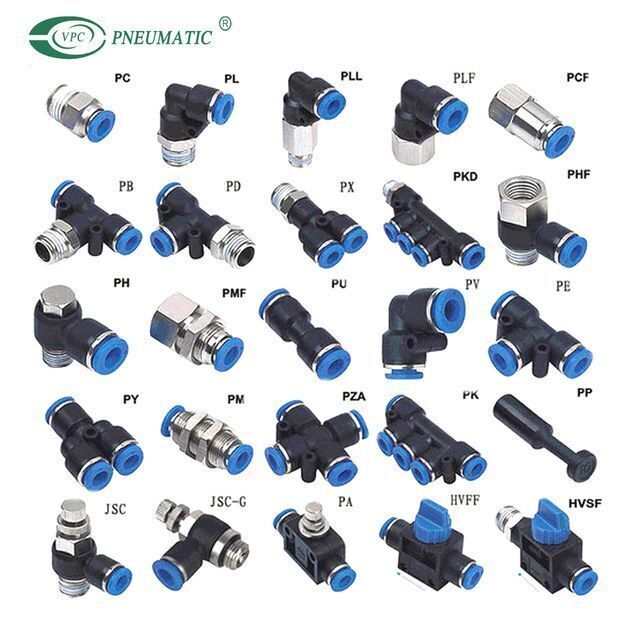

PC04-M5 PCF04-01 POC04-M5 PM04 PMF04-01 PL04-M5 PLF04-M5 PLL04-M5

PC04-M6 PCF04-02 POC04-M6 PM06 PMF04-02 PL04-M6 PLF04-M6 PLL04-M6

PC04-01 PCF06-01 POC04-01 PM08 PMF06-01 PL04-01 PLF04-01 PLL04-0

PC04-02 PCF06-02 POC04-02 PM10 PMF06-02 PL04-02 PLF04-02 PLL04-02

PC06-01 PCF06-03 POC06-01 PM12 PMF06-03 PL06-01 PLF06-01 PLL06-01

PC06-02 PCF08-01 POC06-02 PM14 PMF08-01 PL06-02 PLF06-02 PLL06-02

PC06-03 PCF08-02 POC06-03 PM16 PMF08-02 PL06-03 PLF06-03 PLL06-03

PC08-01 PCF08-03 POC08-01 PM5/32 PMF08-03 PL08-01 PLF08-01 PLL08-01

PC08-02 PCF08-04 POC08-02 PM3/16 PMF08-04 PL08-02 PLF08-02 PLL08-02

PC08-03 PCF10-01 POC08-03 PM1/4 PMF10-01 PL08-03 PLF08-03 PLL08-03

PC08-04 PCF10-02 POC08-04 PM5/16 PMF10-02 PL08-04 PLF08-04 PLL08-04

PC10-01 PCF10-03 POC10-01 PM3/8 PMF10-03 PL10-01 PLF10-01 PLL10-01

PC10-02 PCF10-04 POC10-02 PM1/2 PMF10-04 PL10-02 PLF10-02 PLL10-02

PC10-03 PCF12-01 POC10-03 PM1/2 PMF12-02 PL10-03 PLF10-03 PLL10-03

PC10-04 PCF12-02 POC10-04 PU04 PMF12-03 PL10-04 PLF10-04 PLL10-04

PC12-02 PCF12-03 POC12-02 PU06 PMF12-04 PL12-02 PLF12-02 PLL12-02

PC12-03 PCF12-04 POC12-03 PU08 PMF14-04 PL12-03 PLF12-03 PLL12-03

PC12-04 PCF16-03 POC12-04 PU10 PMF16-04 PL12-04 PLF12-04 PLL12-04

PC14-03 PCF16-04 POC14-03 PU12 PL14-03 PLF14-03 PLL14-03 PLL14-04

PC14-04 PL14-04 PLF14-04 PLL16-03 PLL16-04

PC16-03 PL16-03 PLF16-03

PC16-04 PL16-04 PLF16-04

PRODUCTING

PNEUMATIC CYLIDER

DIRECTIONAL SOLENOID VALVE

BRASS SOLENOID VALVE

AIR TREATMENT UNITS

AIR RIDE SUSPENSION VU4 VALVE

PLASTIC STAINLESS STEEL FITTINGS

PU HOSE

PNEUMATIC ACTUATOR

AIR SUSPENSION AIR COMPRESSOR

OUR CERTIFICATE

FAQ

Q1:What is your quality assurance？ A:We will inspect one by one before delivery.If the product is damaged in transit or has quality problems, you can choose to refund or resend the product, and the freight will be borne by us.

Q2:What is your terms of payment? A: TT 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. B: Paypal payment, Alibaba Trade Assurance order also available.

Q3: How about the lead time?

A: It depends on your order quantity. Normally it will take 10-15 days for our routine products.

Q4:What is your sample policy? A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q5:How about the warranty?

A: 1 year
