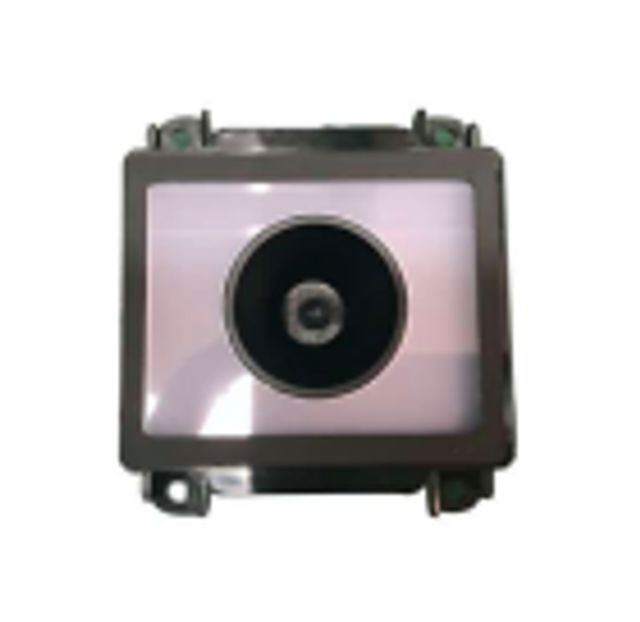

Embedded in Parking Lot Equipment 80cm-130cm Long Range Barcode Scanner Module
- 65.00 set
| Type: | Barcode Scanner; | Size: | 65*61*28(L*W*H); |
| Scan Angle: | Roll 360°,Pitch ± 55°,Skew ± 55°; | Scan Element Type: | CMOS; |
| Depth of Field: | 80cm-130cm; | Optical Resolution: | 5mil; |
| Packaging Detail: | 1.Pack each scanner with PVC bag 2.Put each PVC bag into a white box, and then put into carton which is up to the standard of export package.; | After-sales Service: | Return and Replacement,Repair,Free spare parts,Onsite Training and Inspection,Call Center and on-line Technical Support; |
| Selling Units: | Single item; | Warranty(Year): | 1-Year; |
| Scan Speed: | 1/72 fps; | Light source: | With Highlight LED Instruction; |
| Products Status: | Stock; | Certification: | ce; |
| Single package size: | 15X15X5 cm; | Max Paper Size: | A4 Size; |
| Support Code: | Payment Codes of QR Code, Code 128, 2D barcode etc; | Place of Origin: | Fujian China; |
| Weight: | <30g; | Functions: | Turnstile/Access Control/Smart Parking lot; |
| Single gross weight: | 0.2 KG; | Brand Name: | TOTINFO; |
| Sensor: | Image CMOS Sensor; | Product name: | Parking Lot Equipment Long Distance 2D Barcode Scanner; |
|
Acquisition Performance |
||
|
Sensor |
Image Type,CMOS Sensor |
|
|
Acquisition Speed |
1/72 fps |
|
|
FOV |
Diagonal 56°,Level 50°,Vertical 30° |
|
|
Reading Performance |
||
|
Reading Mode |
Barcode close to the scanner carema |
|
|
Depth of field |
Test conditions |
Depth of field |
|
WeChat,Alipay payment codes |
20cm - 130 cm |
|
|
Scan Angle |
Roll 360°,Pitch ± 55°,Skew ± 55° |
|
|
Support code |
Payment codes of QR Code, Code128,etc. |
|
|
LED |
||
|
Fill light |
White |
|
|
Physical Parameter |
||
|
Size(mm) |
65×61×28(L×W×H) |
|
|
Weight |
<30g |
|
|
Interface |
||
|
Socket Interface |
12PIN cable socket, 1.25mm Pitch 12PIN 0.5mm Pitch FPC socket,up and down compatible. Power supply all 3-3.6V or 3.6-16V USB/RS232/3V TTL/5V TTL/RS485 |
|
|
Scanning Mode |
Command Mode/Sense Mode/Trigger Mode |
|
|
LED light prompt |
Blue: standby condition; Red:Waiting to read condition; Green:successful read condition |
|
|
Buzzer prompt |
Yes |
|
|
Cable(optional) |
USB 2m cable,RS232 2m cable |
|
|
Extensible interfaces |
Buzzer,Successful Prompt light,Trigger signal |
|
|
Environmental Parameter |
||
|
Operating Temperature |
-20℃ ~ 55℃ |
|
|
Storage Temperature |
-40℃ ~ 80℃ |
|
|
Humidity |
5% ~ 95% RH (non-condensing) |
|
|
Ambient Light |
Max.100,000 Lux |
|
|
Electrical Parameter |
||
|
Input voltage |
3-3.6V or 3.6-16V |
|
|
Operating Current
|
<200mA(3.3V input),<150mA(5V input) |
|
|
|
||
|
Low Power Current |
< 5mA |
|
|
Installation |
||
|
Fixed hole |
4 directly 3.3mm fixed holes |
|
|
Screw hole |
2 M3*5mm copper nut |
|
Size Chart
Relevant graphics can provide CAD drawings, this article does not indicate tolerance: +0.2 mm
Interface
12 pin 1.25mm cable interface
|
No. |
Pin |
Signal type |
description |
|
1 |
VIN |
Power |
3.6~16V(contain 5V) Power supply |
|
2 |
VD33 |
Power |
3.0~3.6V(contain 3.3V)Power supply |
|
3 |
GND |
GND |
GND |
|
4 |
RXD |
Input |
TTL serial port to receive,3.3Vor 5V Determined by the external pull-up |
|
5 |
TXD |
Output |
TTL serial port to send,3.3V or 5V Determined by the external pull-up |
|
6 |
D- |
double directed difference |
USB cable negative |
|
7 |
D+ |
double directed difference |
USB cable positive |
|
8 |
A |
Bidirectional |
RS485 A signal |
|
9 |
B |
Bidirectional |
RS485 B signal |
|
10 |
TXD-232 |
Output |
RS232 serial port to send |
|
11 |
nTRIG |
Input |
Trigger signal input, low level effective level (3.3 V) |
|
12 |
RXD-232 |
Input |
RS232 serial port to receive |
