Wenlin Full Auto Credit Card Laminator Time Saving ID Card Making Machine
- 260000.00 set
| Cooling Method Water Cooling: | Water Cooling; | Output: | About 28000 cards / hour; |
| Brand Name: | WENLIN; | Key Selling Points: | Full Automatic; |
| Core Components: | PLC,Engine,Motor,Pump; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| Condition: | New; | Laminating Plate Size: | 700mm*850m; |
| Port: | SHANGHAI; | Weight: | 12T; |
| Power: | 100KW; | Voltage: | 380v; |
| Warranty of core components: | 1 Year; | Warranty: | 12 months; |
| After Warranty Service: | Video technical support,Online support; | Machinery Test Report: | Provided; |
| Applicable Industries: | Manufacturing Plant,Machinery Repair Shops,Printing Shops,Advertising Company; | Place of Origin: | Hubei China; |
| Laminating Plate: | Aluminum Alloy; | Certification: | CE ISO; |
| Supply Ability: | 20 Set/Sets per Year; | Local Service Location: | None; |
| Opening: | 8-10; | Hydraulic Cylinder: | 4 for each tower; |
| Packaging Detail: | Standard wooden box; | Video outgoing-inspection: | Provided; |
| Temperature Precision: | 0-200℃; | Dimension(L*W*H): | L4900* W 3980* H2550mm; |
| Marketing Type: | New Product 2020; | Showroom Location: | None; |
| Payment Terms: | L/C,T/T; | Heating Method: | Electric Heating; |
| Pressure Stages: | Heating 12 stages/cooling 5 stages; | Package Preview: | ; |

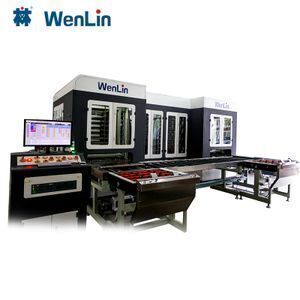

WENLIN-Smartlam8500 Easy Operate Full Auto Card Fusing Machine Lamination Equipments
Brand:WENLIN
Specifications:700mm×850mm
Features
1.Heating tower Auto Feeding System
Auto-feeding materials, trays with laminated materials be conveyed to cooling tower automatically.
Feeding device goes up and down, automatic feeding and discharging transmission.
For convenient machine maintenance, feeding transmission system can be chosen to semi-automatic operation method.
2.Heating System
Electric heating, hot pressure 0-16Mpa, pressure precision ±0.1Mpa.
Operation temperature can be adjusted in the range of 0-200 ºC, temperature precision ±2ºC.
Thermal platens flatness:0.05mm, parallelism: 0.05mm.
Each opening can work independently.
3.Cooling System
Pressure range:0-16Mpa, pressure precision:±0.1Mpa, can be adjusted in the range.
Cooling platens flatness:0.05mm, parallelism: 0.05mm.
Platens adopt stainless steel and aluminum materials to avoid any rustiness.
4.Auto unloading System
To receive the trays with materials from cooling tower automatically.
Lifting platform conveys trays with materials from discharge shelf to roller transmission belt.
Discharge shelf is on the right of the cooling tower, each opening is equipped with cross-feed convey roller for conveying.
Auto convey system
Roller transmission belt is used for conveying of trays with non-laminated or laminated material.
5.Lay and take out material System
Convenient for taking out the materials manually.
Suitable for different size of steel plates and laminating materials.
Tilt table makes it easier for worker to lay the materials onto the trays.
Application range:
The lamination equipment suitable for making contact cards, contactless cards,Id cards,double interface cards and bank cards.
Parameter:
| Model | WENLIN-Smartlam8500 |
| Cooling Method | Water Cooling |
| Heating Method | Electric Heating |
| Pressure Stages | Heating 12 stages/cooling 5 stages |
| Pressure Precision | 0-0.313KN/cm² ±0.02KN/cm² |
| Temperature Precision | 0-200ºC ±2(ºC) |
| Plate Smoothness | ±0.05mm |
| Laminating Plate | Aluminum Alloy |
| Hydraulic Cylinder | 4 for each tower |
| Pressure | 0-20Mpa |
| Platen Size | 700mm×850mm |
| Opening | 8-10 |
| Opening Space | 60mm |
| Plate thickness | 48mm |
| Electric | 380V ,50/60HZ, 100 KW |
| Dimension | L4900mm*W3980mm*H2550mm |
| Weight | 12000 KGS |
| Output | Around 28,000 cards/hour |
Product View
Packing and Delivery
Factory View
Certificate
Company Profile
Wuhan Wenlin Technology Co., Ltd. was founded in 2001, which is a smart card making equipment R & D, production and materials supply enterprise. The laminator and punching machine for IC, ID&RFID smart card is well-known in the world. There are more than 1000 customers in nearly more than 50 countries and regions around the world, including the world-famous card making enterprises.The machines are widely used in the production fields of Union Pay, VISA, MasterCard, second generation ID card, residence card,social security card, double interface card and IC, ID smart card and so on.
Wenlin is a high-tech and national Torch Program project enterprise identified by the Chinese government, as well as a demonstration enterprise of scientific & technological innovation and patent transformation.
The trademark "WENLIN" have been evaluated as famous trademarks of Hubei province and Wuhan city for more than 10 years.
Wenlin passed CE and ISO9001 certificates, and obtained 12 national invention patents, nearly 100 patent for utility models and software copyright.
Founding century name brand, Creating hundred-years-old Wenlin. To provide the best card making solution and service for all the customers is the eternal aim of Wenlin. We'd like to cooperate with agents all over the world.
