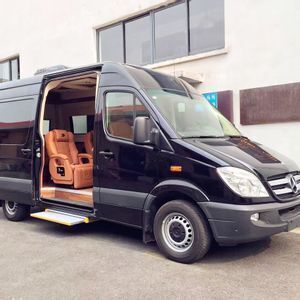

CE Aluminium Electric Side Step for Bens Mercedes Van and Motorhomes details
Type:Flooring;Model:ES-S-1000;
Model Number:ES-S-1000;Stowing time:1-2s;
Extending time:1-2s;Operation:electric;
Platform size:1000*300mm;Test weight:500 kg/1100 lbs;
Warranty:1 year;Payment Terms:T/T,Western Union;
Certification:ce;Supply Ability:120 Set/Sets per Month;
Packaging Detail:carton box, packing size:1300*600*300mm;Place of Origin:Jiangsu China;
Safety loading capacity:250 kgs/550 lbs;Size:1000*300mm;
Brand Name:xinder;Waterproof:yes;
Material:mainly aluminum,mainly aluminum;Port:SHANGHAI;
Bus Model:China;OE NO.:Supplied;
ES-S

ES-S series siliding step:

ES series electric step is kinds of equipment which can help passengers get into vehicles, such as cars, public bus, taxi, ambulance and so on. This step, with loading capacity of 250 kg, can work steadily, reliably and safely.

We have different steps with several specifications, which can meet different requirements.

This step has a frame with thickness of only 65mm, and it is also suitable for the low-floor vehicle. The operation can be electric or manual. Electric operation is done by remote control.

ES is a kind of electric steps. It is designed to fit a vast range of accessible vehicles, cars, minibuses, taxis and ambulances.

Description:


Small frames, downy line, smooth platform and easy operation
Reduce the floor height to make entrance easy
Operated by the driver or attendant.
Rated voltage is 12V-24V
Waterproof connectors
If door is closed, this step will stow automatically
If there is an obstruction when extending, the step will stop automatically.
Can be operated fully automatically, that is to say, when door is open, this step extends; when door is closed, this step will retract;
There is sound and light for warning during working
There is interlock function, which can interlock with vehicle brake
Equipped with LED and LED cover as standard
Can be stowed for emergency
Has been tested 100000 cycles
Test weight is 500kg

Accessory:

Fully auto operation: simply swap the switch to change to a fully automatic operation on door.
Sensitive edge: It will stow automatically if there is an obstruction. The operator should press the switch again to extend the step.
Buzzer: an equipment for auto alarm

models for choose:



Model
Drive Mode
Platform Size (L*W)
Installation
ES-S-450
Electric
450*300 mm
Installed under vehicle floor to reduce the floor height and make entrance easy
ES-S-600
Electric
600*300 mm
ES-S -750
Electric
750*300 mm
ES-S -1000
Electric
1000*300 mm
ES-S-1200
Electric
1200*300 mm
Voltage
12V-24V
Max current during extending or stowing under normal situation
8-10 A
Extending time
1-2 s
Stowing time
1-2 s
Test weight
500 kg/1100 lbs
Safety loading capacity
250 kgs/550 lbs

Safety Function:

1.The platform surface is the aluminum board with the function of anti-skid

2.There are sound signal for warning during step working

3.If the platform touches an obstruction when extending out, it will stop. Then the operator should press the switch again to extend the platform. That function is still available.

4.This step and the vehicle door are interlocked.

5.If the motor doesn't work, this step can be operated manually to stow the platform under.

6.LED and LED cover are equipped as standard.

INSTALLATION

The mounting points on the side of step frame are flexible.

This step can be installed at different place such as door, chassis, or other place of vehicle.

It is suitable for many kinds of vehicle.

Every step has its own series number which is easy to track

APPLICATION

Vehicle with sliding door, hinge door, electric door or plug door

Cars, mini public bus or taxi

Disabled cars

Ambulance

Minivans and Camping car

WARRANTY

12 months warranty support.

Why choose Xinder

Xinder-Tech Electronics Co., Ltd was established in 2001.
Xinder-Tech specializes in designing, manufacturing and selling vehicle mobility products, including wheelchair ramps, wheelchair lifts, electric steps, wheelchair tie down systems, swivel seat, hand driving system, car roof box and other mobility products.
Xinder-Tech is a leader company in specialist vehicle conversions and equipment for disabled people in China, and our products have taken up 95% of Chinese market. Meanwhile, our products have been exported to over 50 countries.
Our service includes R&D of products, manufacture, system debugging, on-site field visit to customer.
Our goal is to provide the best solutions for customer's requirements.
Xinder-Tech is an IATF16949:2016 compliant company.

Team

we are family

Research&development

research, developemnt

Factory

Production

Test

product test

Training

we get training from our partners and also train our agents

Exhibitions.

we promote our products via exhibitions.

XINDER Certification
Packing & Shipping

Packaging Details:

1) Internal packaging:be packed air bubble film inside first
2) External packaging:be packed in wooden cases or carton box
Delivery and shipping Details:
1)Usually be shipped by maritime transport or air transport
2)if it is landlocked countries, generally land and sea transport.
3)15-30 days after confirmation of the purchase order

Usually we use wooden case pack for wheelchair lift,wheelchair ramp and swivel seat

                           Carbox for Electric step,wheelchair restraint system


XINDER Products
MINI-UVL

Wheelchair lift for side door of van

WL-D-880

Wheelchair lift for rear door of van

BMWR-3

manual wheelchair ramp for van

S-LIFT Pro

Swivel lifting seat for cars

ES-S-600

Electric sliding step

X-801-1

Wheelchair tie down system

XINDER service

 if you are interested in our products, we will provide satisfactory service for you!

1)- One year warranty for whole machines.
2)- Providing free quick-wear part.
3)- Low charge for continue maintenance when warranty is expired.
4)- Exclusive engineer support at any time.
5)- We can provide free training to end-users
6)- 24hours online services
