high precision 520nm narrow bandpass filter

Supplier: Nantong Yinxing Optical Products Co., Ltd.
Region: Jiangsu, China
Contact: Mr Eric Lyu
Price: $1.79 /piece
Min. Order: 1 piece

Click here to contact

Product details

FLATNESS:	10BANDS PER INCH;	Brand Name:	insun;
Model Number:	NBP520;	Place of Origin:	Jiangsu China;
Packaging Detail:	we use anti-static films or copy paper to package the filter glasses, then we put the packaged filter glasses into the cartons with foamed plastic around to keep the glasses safety.;	Payment Terms:	L/C,D/A,D/P,T/T;
color:	blue;	Port:	shanghai;
Package Preview:	;	SURFACE QUAILITY:	20/10;
Use:	Optical Instruments;

Process	(IAD Hard Coating)
Wavelength Range	200~2300nm

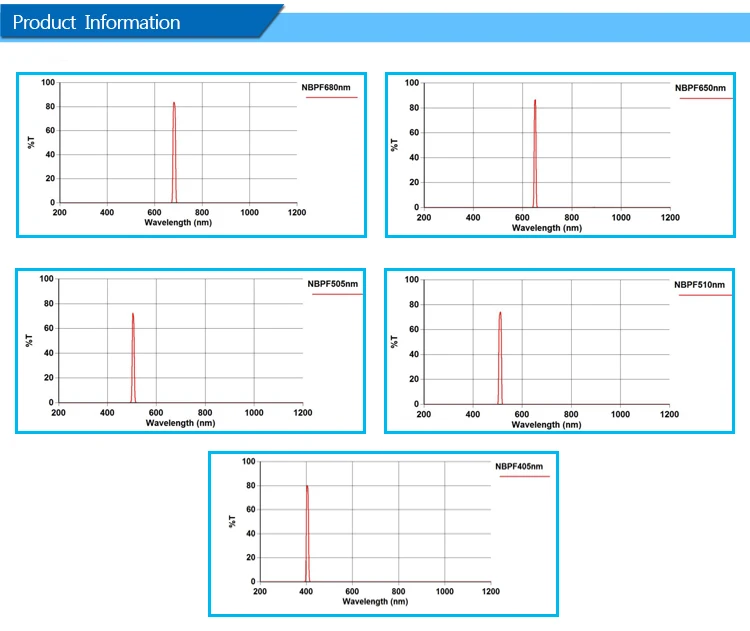

CWL(nm)	405+/-2nm; 505+/-2nm;510+/-2nm; 532+/-2nm;650+/-2nm;660+/-2nm;680+/-2nm;
FWHM(nm)	10+/-2nm
T peak	>75%
Blocking	OD4~OD7@200~1200nm
Dimension(mm)	Φ10, Φ12, Φ12,7, Φ15,Φ25, Φ50, etc.The size can be customized according to the customer's needs
Application	Enzyme marker, cable TV upgrade equipment, wireless transmission equipment, mobile phone barcode scanning, infrared whiteboard, infrared camera, infrared touch screen, iris recognition, infrared medical equipment, infrared ink recognition, red film recognition, face recognition sensor system. Hand held infrared laser rangefinder, laser rangefinder, optical instrument, medical and health equipment and detection instrument

Q1: Are you a factory or trading company ?
A: We are a factory.We have been in optics field for 20 years.

Q2: Where is your factory located ? How can i visit there ?
A:Our factory is located in Haian county,Nantong City ,Jiangsu Province,China ,about 3 hours bus ride from Shanghai . All our clients,from

home or abroad ,are warmly welcome to visit us !

Welcome to visit our factory anytime.

Q3: Can I customize the products based on my need?
A: Yes, we can customize the material, specifications and optical coating for your optical components based on your needs.

Q4: What's your MOQ?
A: (1) For inventory, the MOQ is 1pcs.
B: (2) For customized products, the MOQ is 10pcs-20pcs.

Q5: Can i get the sample to test before the mass production ?
A:Sure ,we would like to offer the sample for you to test our quality before large order.

Q6: How to pay?
A: T/T, Western Union, Secure payment, Credit card and Trade Assurance payment on Alibaba and etc..

Q7: What's the delivery time?
A: For inventory: the delivery is 2 workdays after you place the order.
B: For customized products: the delivery is 1 or 2 workweeks after you place the order.
