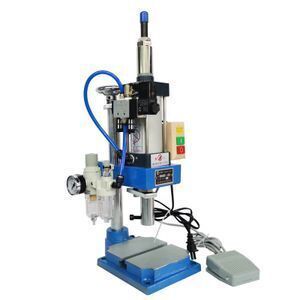

200kg 63 Type Controller Double Button Clinch Mini Pneumatic Punching Foot Press Machine

Supplier: Chongqing Qibiao Technology Co., Ltd.
Region: Chongqing, China
Contact: Ms Tina Zhang
Price: $100.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Package Preview:	;	Model:	DT-63-200KG;
Model Number:	DT-63-200KG;	Power type:	Pneumatic;
Packaging Detail:	Packed with Wooden box;	Layout form:	vertical;
Control form:	Artificial;	Single package size:	55X32X30 cm;
After-sales Service Provided:	Online support,Free spare parts;	Place of Origin:	China;
Local Service Location:	None;	Punch inner hole:	16mm;
Main motor power:	0.1(kw);	Weight (T):	0.017;
Warranty of core components:	1 Year;	After Warranty Service:	Online support;
Core Components:	Pneumatic cylinder;	Air intake:	8x5;
Warranty:	1 Year;	Voltage:	AC220V;
Slide Stroke (mm):	75;	Key Selling Points:	Competitive Price;
Single gross weight:	17.0 KG;	Condition:	New;
Nominal pressure:	200KG(2KN);	Slider stroke:	75(mm);
Video outgoing-inspection:	Not Available;	Machinery Test Report:	Not Available;
working desk size:	150x135mm;	Motor Power (kW):	0.1(kw);
Machine Type:	Punching Machine;	Showroom Location:	None;
Applicable Industries:	Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;	Marketing Type:	Hot Product 2019;
Power Source:	Pneumatic;	Selling Units:	Single item;
CNC or Not:	Normal;

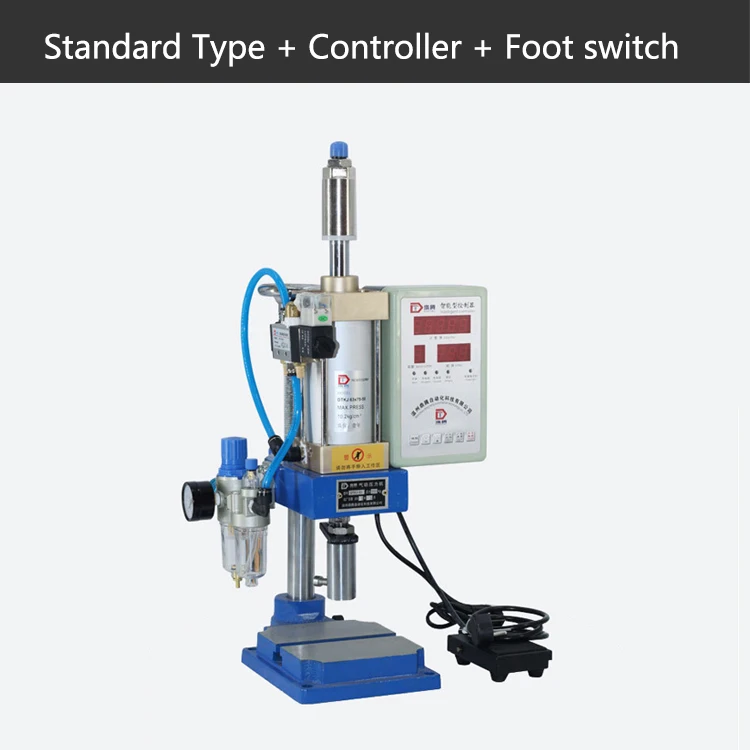

Standard Type + Controller + Foot switch:

Optional Manual, Semi-automatic, Fully Automatic. Can Be Debugged, Counted, Set The Stamping Time. Pressure Holding Time Adjustable (0.1-99s), The Food Switch Is Pressed To Work, It Can Be Repeated, It Is Suitable For Assembly Line Operations.

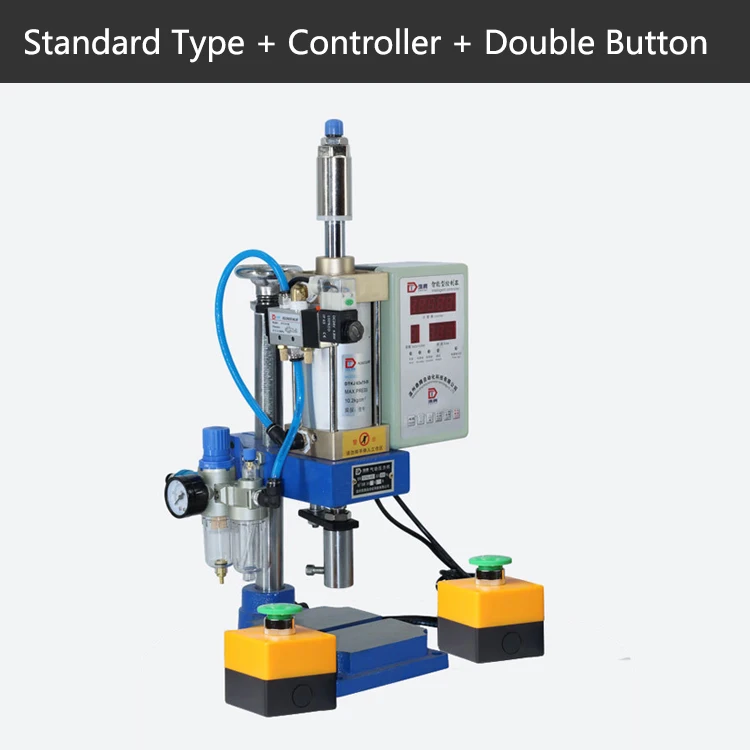

Standard Type + Controller + Double Button:
Add Two-Button Control Switch On The Basis Of Controller, Press Both Hands At The Same Time To Start Work, Safety Protection, Use Assured.

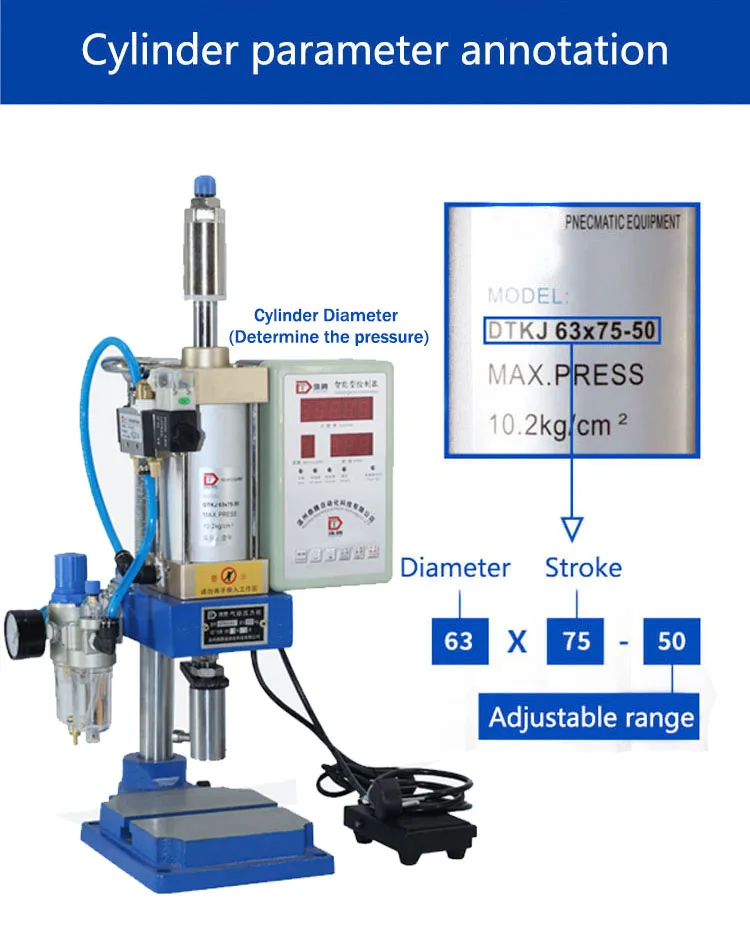

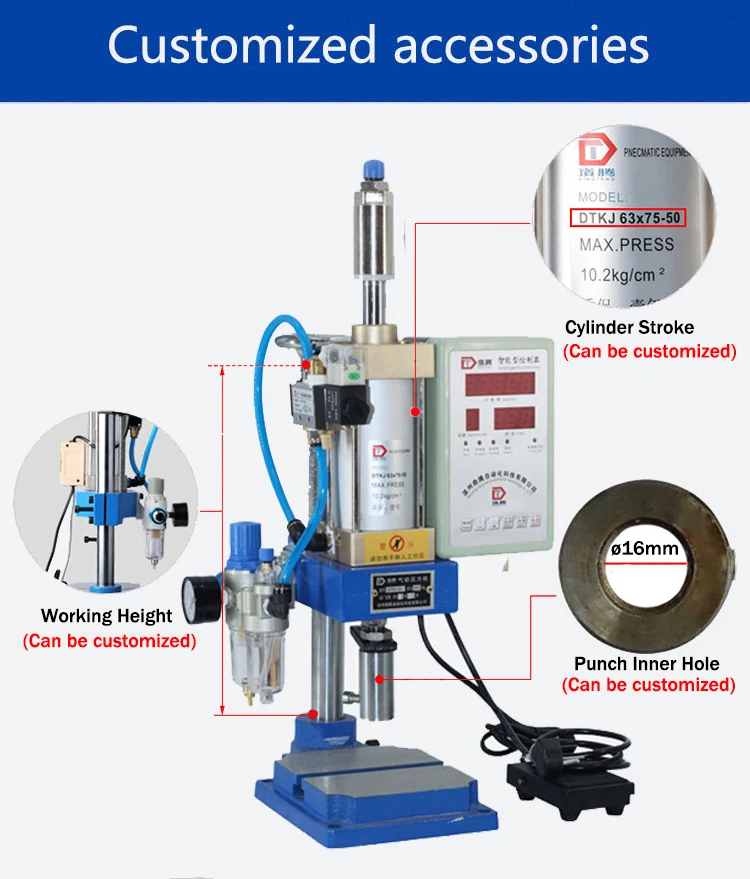

Product number	Pressure	Cylinder Specification	Working Desk Size	Working Height	Punch Inner Hole	Intake Pipe	Total Weight	Control Method
DT-63A	200 kg	63X75-50	150X150mm	230mm	ø16mm	8x5	28kg	Air / electronic

Model	Output pressure	Table area	Weight
DT63-200KG	200KG(2KN)	150x135mm	17kg

Company Information

Chongqing Qibiao Technology Co., Ltd. founded in 2013, specialized in manufacturing F.R.L combination, Solenoid valve, directional valve, pneumaitc cylinder,fitting,silencer,PU tube and air gun etc 100 kinds of series, approximate to 1000 various different pneumatic products.
Our Quality Assurance:Focus on quality and conformity to international standards has helped us deliver superior quality Pneumatic equipments that fulfill the requirements of the customers. All the equipments will be under testing before send out.
Our Service: Professional team work and quick response.If you have any questions or would like more information of our products, please feel free to contact us.

FAQ

Q: How long is your delivery time?

A: Generally it is 2-7 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.

Q:Can you customize the product according to our requirements?

We can be customized according to customer requirements

Q:What's your main product?

A: Pneumatic Cylinder,Pneumatic Fittings,Pneumatic Cylinder Tube,Pneumatic Filters,Throttle,Check Valve,Pneumatic Solenoid etc.
Thanks for your reading. If any product meets your need, Welcome to send us an email. We are sure your any information can be attention without any delay.
