Topwell pulse soldadura mig PROMIG-200SYN PULSE mig welder 200a welding machine 3 IN 1 ture pulse Job List synergy

Click here to contact

Product details

Wire:	0.8-1.2mm;	Package Preview:	;
Key Words:	MIG Pulse;	Wire Feeding Speed:	0;
Input voltage:	230V;	Duty cycle:	35% 220A;
Wire Melting Type:	Spray Transfer;	Dimensions:	9604201100mm(LxWxH);
Package Type:	carton box;	Weight (KG):	20;
Function:	MIG Welding;	Machinery Test Report:	Provided;
Technology:	IGBT Technology;	Condition:	New;
Selling Units:	Single item;	Single package size:	63X33X59 cm;
Rated Output Voltage (MIG):	24;	Color:	Black;
Voltage:	430VDC;	Welding Current/Voltage Range:	30A/340V-200A/460V;
After-sales Service Provided:	Field maintenance and repair service,Online support,Video technical support;	Warranty:	1 Year;
Rated Output Current (MIG):	200 A;	Local Service Location:	None;
Certification:	CE CCC;	Video outgoing-inspection:	Provided;
Rated Input Voltage:	220;	Single gross weight:	26.0 KG;
Marketing Type:	Hot Product 2019;	Year:	2019;
Showroom Location:	None;	Applicable Industries:	Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Home Use,Retail,Construction works ,Energy & Mining,Advertising Company;
Max. Load Power Capacity:	8.75KVA;	Place of Origin:	China;
Material / Metal Processed:	Aluminium Alloy;	Brand:	Topwell;
Usage:	Welding;	After Warranty Service:	Video technical support,Online support;
Key Selling Points:	Easy to Operate;	Packaging Detail:	carton box;
Power(W):	40KVA;	Rated Duty Cycle @40°C (MIG):	100%;
Brand Name:	Topwell;

Product Features

professional tig mig mma mag GMAW welder welding machine PROMIG-200SYN

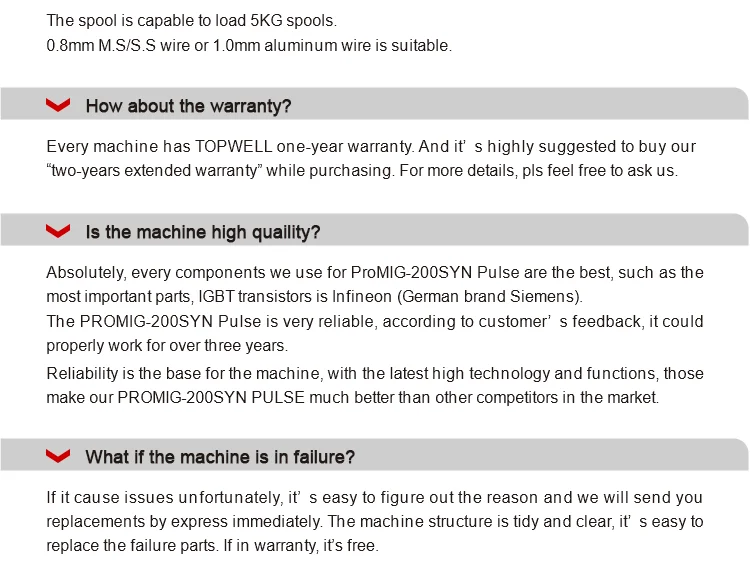

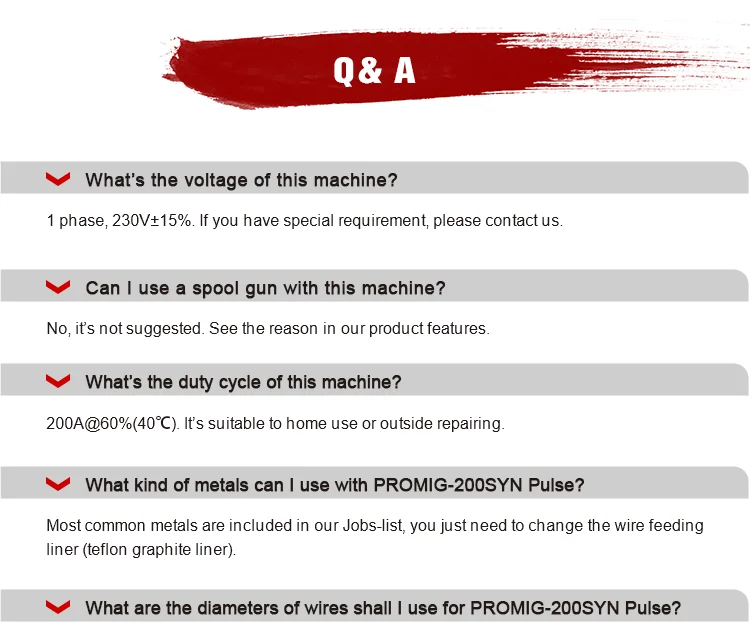

Q&A

Customer Review

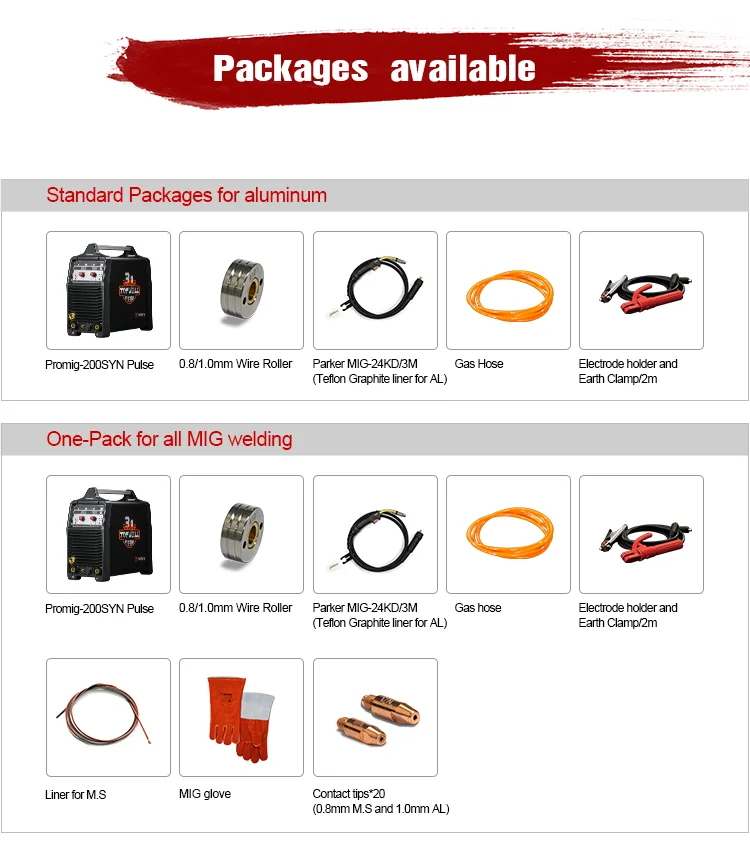

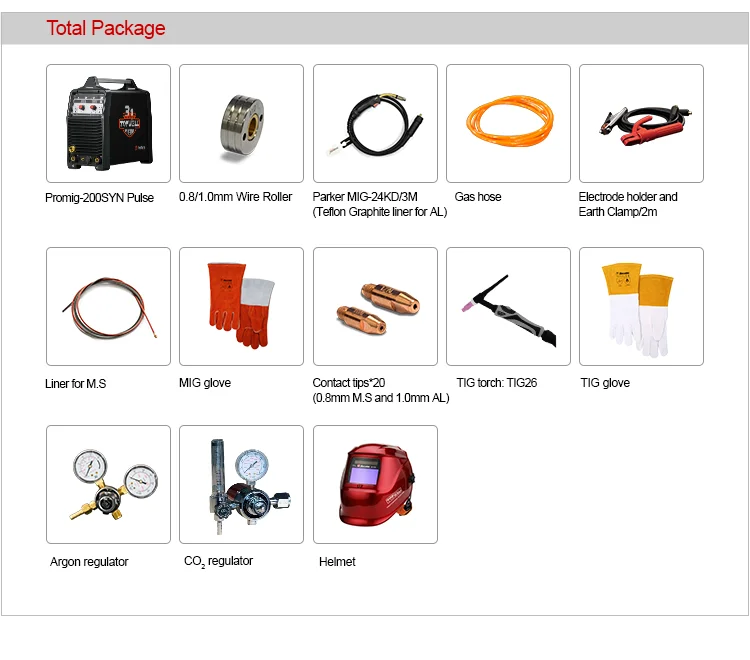

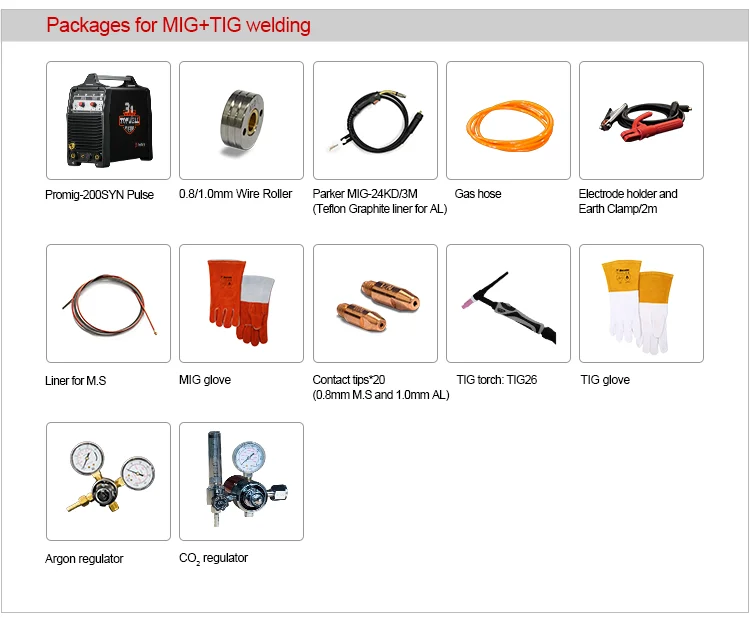

Packages available

Technical Data

Item No	PROMIG-200SYN PULSE
Rated Input Voltage	1PH ~ 230V ±15%
Max. Load Power Capacity	8.75KVA
Rated Duty Cycle(40℃) 35%	MIG: 200A/24V
	MMA: 200A/28V
	TIG: 200A/18V
100%	MIG: 160A/22V
	MMA: 160A/26.4V
	TIG: 160A/16.4V
Welding Current/Voltage Range	MIG: 10A/14.5V ~200A/24V
	MMA: 20A/20.8V~200A/28V
	TIG: 5A/10.2V~200A/18V
Open Circuit Voltage	70V~80V
Power Factor	0.8
Efficiency	80%
Wire-feed Mechanism	2 Rollers
Wire-feed Speed Range	2-18m/min
Wire Spool Capacity	200mm (5kg)
Filler Wires Ø (mm) Fe, Ss	0.6~1.0 mm
Dimension:	490x230x385mm
Weight	20KG
