China production line transfer flat railway freight wagon for sale

Supplier: Xinxiang Hundred Percent Electrical And Mechanical Co., Ltd.
Region: Henan, China
Contact: Ms Anny zhang
Price: $4500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	Henan China;	Application:	Cross trench transportation;
Package Preview:	;	Type:	Platform Wagon;
Capacity:	1-500T for rail traverse;	color:	Customized;
Material:	steel;	Dimensions (L x W x H) (mm):	customized;
Key Words:	flat railway freight wagon for sale;	Supply Ability:	600 Set/Sets per Year rail traverse can be customized !;
Usage:	cross rail transfer;	Brand Name:	BEFANBY;
Certificates:	SASO,CE, SGS;	Operation Type:	Hand Pendant+remote Control;
Product Name:	China production line transfer flat railway freight wagon for sale;	Payment Terms:	L/C,T/T,Western Union,Trade Assuarnce;
Warranty:	12 Months for rail traverse;	Preload:	> 50T;
Packaging Detail:	The whole transfer flat railway freight wagon will be packed by the tarp, the parts will be packed by plywood case.;	Port:	QINGDAO,TIANJIN, SHANGHAI;
Power supply:	busbar powered;

Product Description

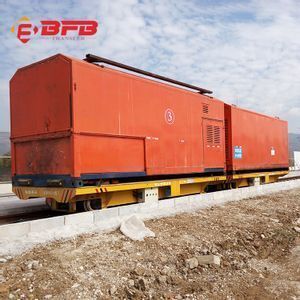

China production line transfer flat railway freight wagon for sale

BEFANBY designed and manufactured the material transfer wagon and provide innovative handling solution with more than 16 years' experience.The transfer wagon can be used in industry plant, port, workshop, production line and so on to transport ladle, coil, mold, steel products, work piece and so on.All the solution are designed as per customers true demand.China production line transfer flat railway freight wagon for sale
China production line transfer flat railway freight wagon for sale
The sliding line powered transfer wangon is a good choice if meeting the following features:
1. Higher using frequency
2. The transfer wagon is required to run on the rails
3. The whole working route needn't turn
4. The sliding line need to be installed under the wagon or along the wall
5. The transfer wagon is required easy operation with low cost
6. The whole wagon's height is lower

China production line transfer flat railway freight wagon for sale
Remark: Dimensions,capacity, loading platform superstructure, speed and many others features can be customized as per client request

Parts Showing with strict quality control

Get competitive price, please kindly click China production line transfer flat railway freight wagon for sale

Detailed Image

Advantage

1.   High level automation(self propelled/steerable)
2.   The largest capacity can reach to 500t
3.   Safe parts are installed in the transfer wagon(warning light, e-stop, buffer...)
4.   Robust sturdy car frame
5.   AC/DC electric engine , diesel engine or pneumatic engine
6.   Excellent gear reducer and motor with high quality, assemblied together perfectly
7. Remote control&hand pendant control make the opration more convenient.
8.   The speed can be adjusted
9.   Easy operation and maintenance
10. Famous brand parts, guarantee the quality and prolong the using lifetime
11. Low noise and do not pollute the environment

Product Parameter

Modle	KPC-10T	KPC-30T	KPC-50T	KPC-80T	KPC-100T	KPC-150T
Table Size (m)	3.62.00.5	4.52.20.6	5.52.50.65	6.02.60.8	6.52.80.85	103.01.2
Power	Busbar Power
Rail inner Gauge	1435mm	1435mm	1435mm	1800mm	2000mm	2000mm
Wheel Dia.	300mm	400mm	500mm	600mm	600mm	600mm
Running Speed	0-20m/min	0-20m/min	0-20m/min	0-20m/min	0-20m/min	0-20m/min
Motor Power	1.5kw	4kw	5.5kw	7.5kw	11kw	15kw
Max Wheel Load	42.6Kn	110.4Kn	174Kn	278.4Kn	343.8Kn	265.2Kn
Reference weight	3.8t	6.4t	7.5t	12.1t	13.9t	26t
Recommend Rail	P18	P38	P43	P50	QU100	QU100

Remark:The technical parameter of the transfer wagon only can be make reference above.All can be customized manufacturing as per your true demand. Please contact us if any doubt. Our professional engineer will help you solve the transfer problems in any time.China production line transfer flat railway freight wagon for sale

Get competitive price, please kindly click China production line transfer flat railway freight wagon for sale

Attend Trade Fair

Attend The China Import and Export Fair In 2016

Attend The China-Dubai Trade Fair In 2018

Our Company

Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling wagon ,metal sheet rail wagons as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our products gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 50 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.

Give us a inquiry or click here for more information for a free quote on any size transfer wagon.
If you can think it then we can manufacture it; transfer wagons for any application.
China production line transfer flat railway freight wagon for sale
Contact us to learn more about how we can help you achieve your economic and safety goals.
China production line transfer flat railway freight wagon for sale
Glad to listen to your voice, my friend!

These points we need to learn:

1.The load capacity of the transfer wagon is        ton.

2.The table size is      mm (L) *     mm (W)*   mm (H).

3.The voltage is       V,        HZ, 3 phase.

4.The running time is   hours per day.

5.The running distance is   m per time.

6.The transfer wagon runs on the rails or common floor?

7.Whether exist turning?

8.Whether has other special requirement?

You can copy the above options and click here to select your specific requirement for the transfer wagon to send us.And then the proper solution and price will be sent to you.
