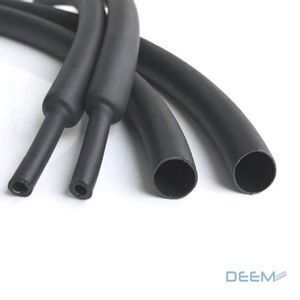

DEEM Free sample and best quality black Adhesive polyolefin raychem heat shrink tube with glue for wire insulation

Supplier: Deem Electronic&Electric Material Co., Ltd.
Region: Liaoning, China
Contact: Mr Jason Li
Price: $0.02 / >=10 meters
Min. Order: 10 meters

Click here to contact

Product details

Type:	Insulation Sheet;	Package Preview:	;
Operating temperature:	-45 ~125℃;	Elongation at break:	300%;
shrink ratio:	3:1 4:1;	Place of Origin:	Liaoning China;
Supply Ability:	10000 Meter/Meters per Week;	Brand Name:	DEEM;
MOQ:	10 Meters;	Flammability:	Flame retardent;
Application:	High Temperature;	Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,Paypal;
Feature:	High Thermal Performance;	Rated Voltage:	1KV;
Tensile Strength:	10.4MPA;	Model Number:	DM-D31BP;
Tensile strength:	10.4 Mpa min;	Material:	PE;
Product name:	Heat shrink flexible dual wall tubing with adhesive;	Usage:	Electrical Insulation Protection;
Port:	Dalian China;	Certification:	UL RoHS Reach Approval;
Packaging Detail:	According to customer requirement.;

Technical Data

Property	Test Method	Typical Data
Tensile strength	ASTM D 2671	>10.4 MPa
Tensile strength after aging(158°C/168 hrs.)	ASTM D 2671	Remains 70%
Elongation at break	ASTM D 2671	>300% (min)
Elongation at break after aging(158°C/168 hrs.)	ASTM D 2671	100% (min)
Longitudinal shrinkage	UL 224	0 to -10%
Heat shock 250°C/4 hrs	No cracking,	no dropping
Cold bend (-30°C/1 hr.)	ASTM D 2671	No cracking
Voltage withstand (AC 2500V/60 seconds)	ASTM D 2671	No breakdown
Volume resistance	ASTM D 876	≥10 14 Ω.cm
Flammability	SAE-AMS-DTL-23053/4	Self-extinguish in 30 sec
Copper corrosion(158°C/168 hrs.)	UL 224	Pass
Water absorption	ASTM D 570	<0,5%

Dimensions

Size	As Supplied (mm)	After Recovery (mm)			Standard length
mm. (D)	Inside Diameter Min. (D)	Inside Diameter Max. (d)	Total Wall Thickness Min. (t)	Adhesive Thickness	m/piece	m/spool
DM-D31 Shrink Ratio 3:1 Adhesive-lined tubing
3/1	3	1	1	0.5	1.22	200
4.8/1.5	4.8	1.5	1	0.5	1.22	100
6/2	6	2	1	0.5	1.22	100
9/3	9	3	1.4	0.6	1.22	50
12/4	12	4	1.6	0.7	1.22	25
19/6	19	6	2.15	0.8	1.22	25
24/8	24	8	2.4	1	1.22	25
30/10	30	10	2.4	1	1.22	25
40/13	40	13	2.4	1	1.22	25
50/19	50	19	2.4	1	1.22	25
DM-D41 Shrink Ratio 4:1 Adhesive-lined tubing
4/1	4	1	1	0.5	1.22	100
6/1.5	6	1.5	1	0.5	1.22	100
8/2	8	2	1	0.5	1.22	50
12/3	12	3	1.4	0.6	1.22	25
16/4	16	4	1.6	0.8	1.22	25
24/6	24	6	2.15	0.8	1.22	25
32/8	32	8	2.4	1	1.22	25
52/13	52	13	2.4	1	1.22	-

DEEM Electronic&Electric Material Co Ltd is a joint venture manufacturer between Chinese sourcing company with a professional heat shrink backgroud specialist in Europe more than 20 years.We are specialized in research,develop,manufacturer and sales of radiation cross linked heat shrinkable material in worldwide.Such as thin wall,dual wall,medium wall,heavy wall tubing and other specialty products like PTFE,PVDF,silicon rubber,crimp seal connectors,Fiber optic protectors,Braiding Sleeve and other kits in plastic box or small mini box etc related products.Meanwhile OEM and ODM service are available

DEEM is also able to provide any kind of added value jobs.Such as what we already did for the customer packing,cutting,loading,labeling,any kinds of kitting etc.Meanwhile we are also having the capacity to do the trading work as customer request in related fields.

Delivery.Efficiency.Economic.Material.Reliable service and products are servicing the customers more than 20 countries in worldwide.Welcome to join it.

FAQ

How and how long can I get a sample to check your quality? Can I expect to get the sample?
After product and price confirmation, you can require for samples to check our quality. the samples are free and will be ready for delivery in 3-5 days. The samples will be sent to you via express and arrive in 3-5 workdays. You can use your own express account or prepay us if you do not have an account.

Can you do the design for us?
Yes. we are a perfessional manufacturer who can provide you OEM service.

What about the lead time for mass production?
It depends on the order quantity and the season you place the order. Generally speaking, We suggest that you start inquiry two months before the date you would like to get the products at your country.

What kind of payment do you accept ?
We accept T/T(Wire transfer), Please be sure that we can receive the same amount of the Invoice.

Why choose us?
1. We have more than 10 years of experience in this industry and export!
2. Technical support- We have one group of technical team which can develop and design the product according to the requirements of customers!
3. We have a professional sales team can provide excellent service for you!
