New Energy 1kw 3kw 5kw 10KW 20KW50KW 100KW wind turbine generator home wind turbine system
-
Supplier: Guangzhou Henda Power Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Sany Chen -
Price: $200.00 / >=5 pieces -
Min. Order: 5 pieces
| Brand Name: | ESG; | Product name: | 20KW on-grid wind system; |
| Application: | Wind Power System; | Package Preview: | ; |
| Place of Origin: | Guangdong China; | Rated power: | 20KW; |
| Warranty: | 1 Year,10YEARS; | Certification: | CE; |
| Certificate: | CE/ROHS/ISO9001:2008; | Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; |
| Model Number: | G 20KW; | Supply Ability: | 1000 Piece/Pieces per Year; |
| Rated Voltage: | 12V - 480V; | Rated wind speed: | 10m/s; |
| Start-up wind speed: | 2m/s; | Blade Material: | Carbon Fiber Composite; |
| Generator type: | 3Phase Permanent Magnent Generator; | Packaging Detail: | Packing in wooden cases-10KW /20KW/30KW/50KW /100KW wind turbine generator /home wind turbine system /220v wind turbine 360v; |
| Port: | Shenzhen; |
New energy power 1kw 3kw 5kw 10KW 20KW50KW 100KW wind turbine generator home wind turbine system
Why Choose us?
Advantagment
ESG New energy power 1kw 3kw 5kw 10KW 20KW50KW 100KW wind turbine generator home wind turbine system

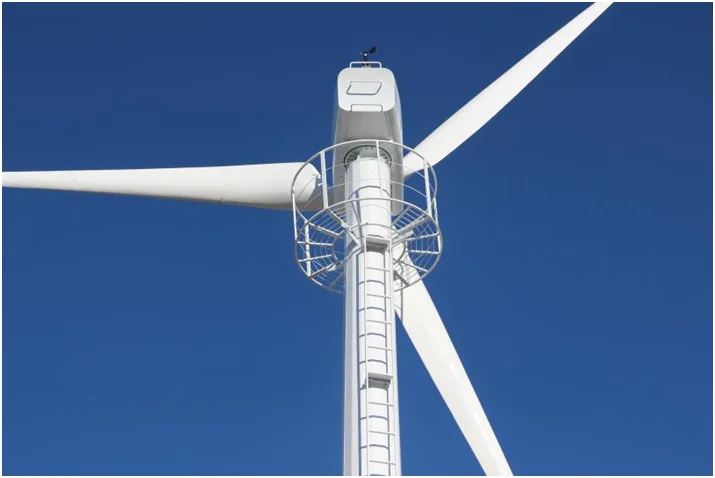

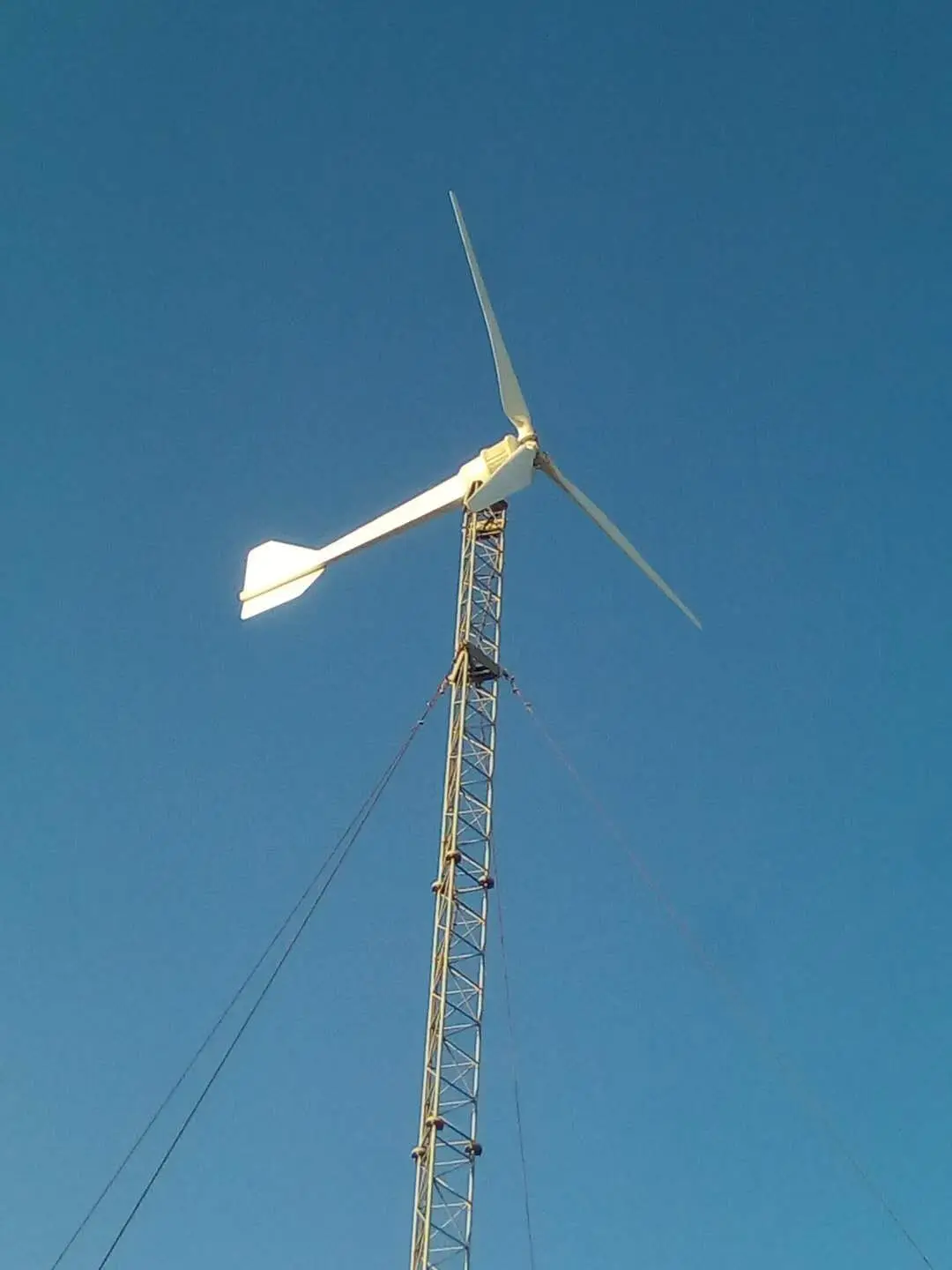

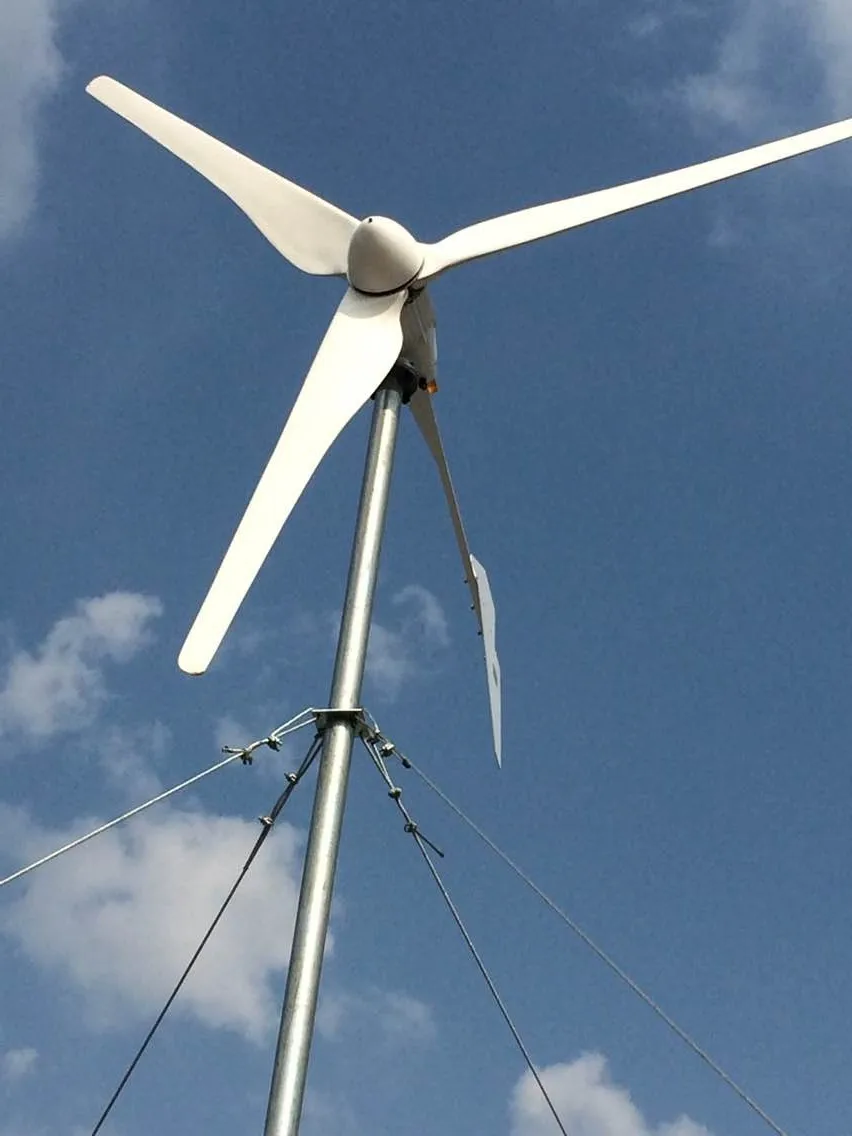

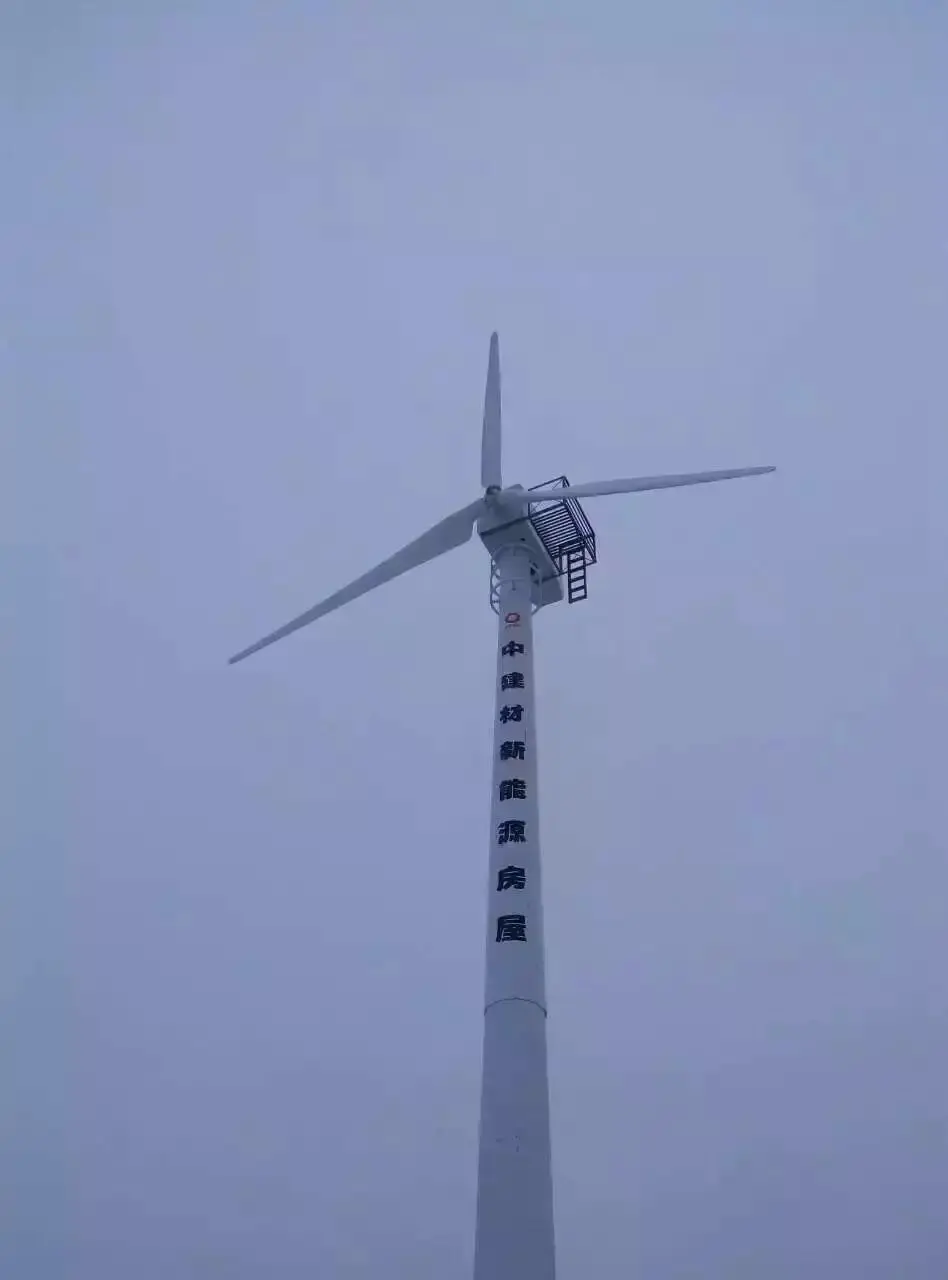

Wind turbine
1. System Drawing
2. Product kits
| Products Name | Specification | QTY |
| Wind turbine | 230v 20kw electronic Controller horizontal axis wind turbine | 1 |
| Grid tied Controller | 20kw high quality on-grid wind turbine | 1 |
| Grid tied Inverter | 230v 60hz 20kw on-grid three phase | 1 |
3.Product Details
ESG New energy power 1kw 3kw 5kw 10KW 20KW50KW 100KW wind turbine generator home wind turbine system
Want to start order?
ESG New energy power 1kw 3kw 5kw 10KW 20KW50KW 100KW wind turbine generator home wind turbine system

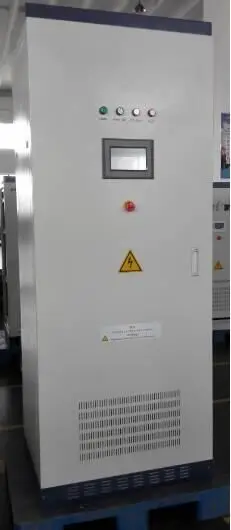

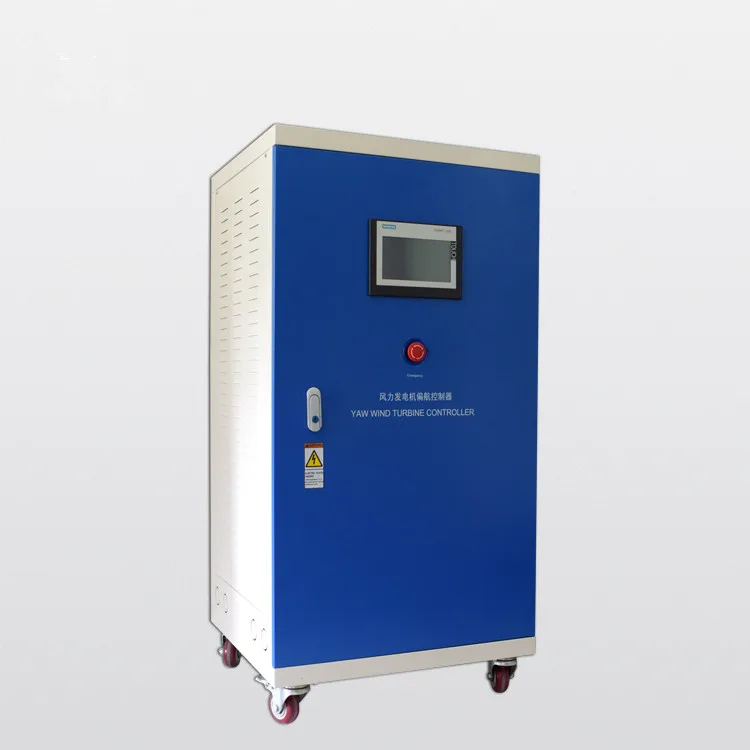

On-grid conroller and dump load box
ESG New energy power 1kw 3kw 5kw 10KW 20KW50KW 100KW wind turbine generator home wind turbine system
ESG New energy power 1kw 3kw 5kw 10KW 20KW50KW 100KW wind turbine generator home wind turbine system

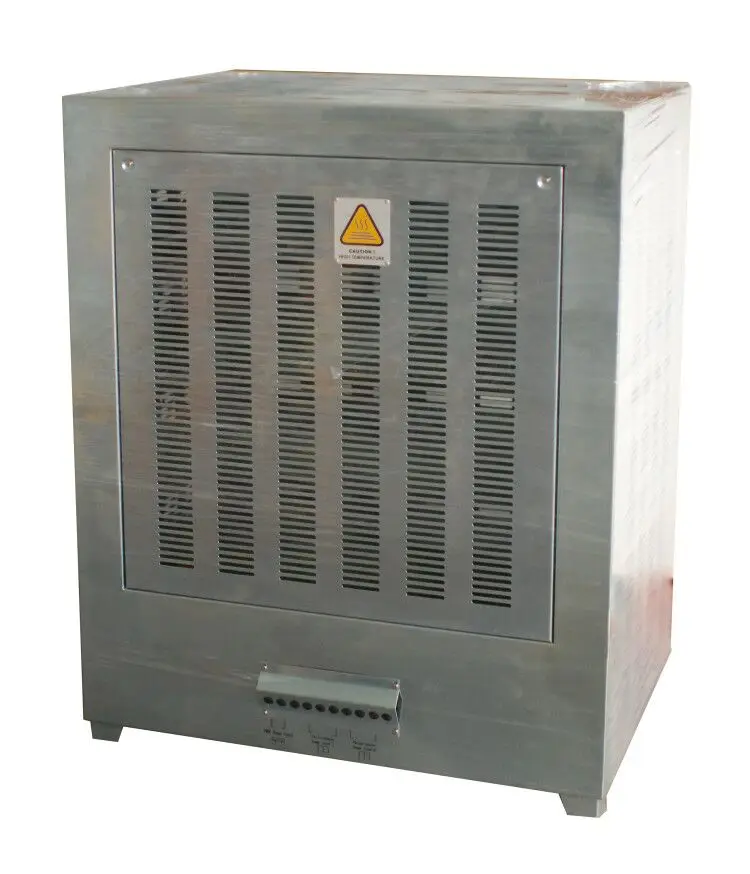

3.Wind Controller dump load box
4. Technical Parameters
Technical parameters for electric control wind turbine:
|
Model |
NE-10k |
NE-20k |
NE-30k |
NE-50k |
NE-100k |
|
Rated power |
10kW |
20kW |
30kW |
50kW |
100kW |
|
Maximum power |
12kW |
23kW |
33kW |
55kW |
110kW |
|
Rated voltage |
220V/240V |
220V/240V/360V |
360V |
360V |
360V |
|
Start-up wind speed |
2.5m/s |
2.5m/s |
2.5m/s |
2.5m/s |
2.5m/s |
|
Rated wind speed |
10m/s |
10m/s |
10m/s |
10m/s |
10m/s |
|
Survival wind speed |
45m/s |
45m/s |
45m/s |
45m/s |
45m/s |
|
tower height (m) |
10m |
15m |
18m |
18m |
24m |
|
Wheel diameter |
7.8m |
10m |
12m |
18m |
22m |
|
Number of blades |
3 blades |
||||
|
Blades material |
reinforced glass fiber |
||||
|
Generator type |
Three phase permanent magnet ac synchronous generator |
||||
|
Magnetic materials |
NdFeB |
||||
|
Generator shell material |
High quality alloy steel |
||||
|
Braking mode |
Electronically controlled yaw protection |
||||
|
Speed regulation |
Electronically controlled yaw |
||||
|
Working temperature |
-40℃~80℃ |
||||
|
Lubrication way |
Lubrication grease |
||||
ESG New energy power 1kw 3kw 5kw 10KW 20KW50KW 100KW wind turbine generator home wind turbine system
Technical parameters for on-grid inverter 20KW:
|
Model |
BNWG-20KS |
|
Isolation |
Low frequency transformer isolation |
|
Maximum DC input power |
22KW |
|
Max DC input voltage |
700Vdc |
|
Maximum power point tracking range (MPPT) |
280Vdc-700Vdc |
|
Rated AC output power |
20KW |
|
Maximum AC output power |
22KW |
|
THD of AC current |
<3%(Rated power) |
|
Power factor |
>0.99 |
|
Max. efficiency |
95% |
|
Output rating voltage |
3 phase 230Vac,60Hz |
|
Allowed Grid Voltage Range |
180~260Vac |
|
Allowed Grid Frequency Range |
58.5~61.5Hz |
|
Internal power consumption an night |
<10W |
|
Automatically put into operation conditions |
DC input and power to meet the requirements, the inverter automatically run |
|
Automatic restart after power failure time |
2min |
|
Protection |
Reverse polarity, short circuit, island, overheating and overload etc |
|
Comm. Interfaces |
RS485 |
|
Operating Temp. |
-25℃~+50℃ |
|
Relative humidity |
0~90%,Non-condensing |
|
Altitude(m) |
6000 meters (over 2000 m with derating required) |
|
Cooling method |
Forced air cooling |
|
Noise |
≤60dB |
|
Protection degree |
IP20(indoor) |
|
Size(W*L*H) |
650*610*1560mm |
|
weight |
300KG |
Technical parameters for on-grid wind controller 20KW
ESG New energy power 1kw 3kw 5kw 10KW 20KW50KW 100KW wind turbine generator home wind turbine system
|
Type |
GT20KW |
|
Wind turbine rated power |
20KW |
|
Wind turbine Max. power |
40KW |
|
Wind turbine rated voltage |
AC 380V |
|
Function |
Rectifier, Voltage control, yawing control, DC output |
|
Automatic protection function |
Over voltage protection, network electric cut off protection, regulated supply output, arrester, |
|
Manual Function |
Manual brake, reset, emergency switch |
|
Display mode |
LCD+LED |
|
Display content |
Wind turbine voltage, current, power, DC output voltage, DC output current, DC output power, total power, Wind Direction Angle, Wind Speed, Wind Turbine Frequen |
|
PWM constant voltage |
>= 550Vdc |
|
Wind Turbine yaw 40 degrees (settable) |
>= 550Vdc |
|
Wind turbine three-phase unloading action voltage |
580+-5Vdc |
|
Wind Turbine yaw 90 degrees (settable) |
580+-5Vdc |
|
Wind turbine three-phase unloading delay |
12-20 Min |
|
Wind speed (m/s) (settable) |
>=2 m/s |
|
Wind direction (settable) |
0-360 degree |
|
PWM dump load fuse |
50 A |
|
DC output fuse |
63 A |
|
Working temperature |
-30-60℃ |
|
Relative humidity |
<90% No condensation |
|
Noise (1m) |
<40 dB |
|
Degree of protection |
IP20 (indoor) IP65 (outdoor) |
|
Cooling method |
Forced air cooling |
|
Communication interface (optional) |
RS485/USB/GPRS/WIFI/Ethernet |
|
Temperature compensation (optional) |
-4mv/℃/2v,-35℃~+80℃ |
|
Controller size (mm) |
650*600*240 |
|
Controller weight |
36kg |
|
Dump load size (mm) |
720*500*1300 |
|
Dump load weight |
70kg |
ESG New energy power 1kw 3kw 5kw 10KW 20KW50KW 100KW wind turbine generator home wind turbine system

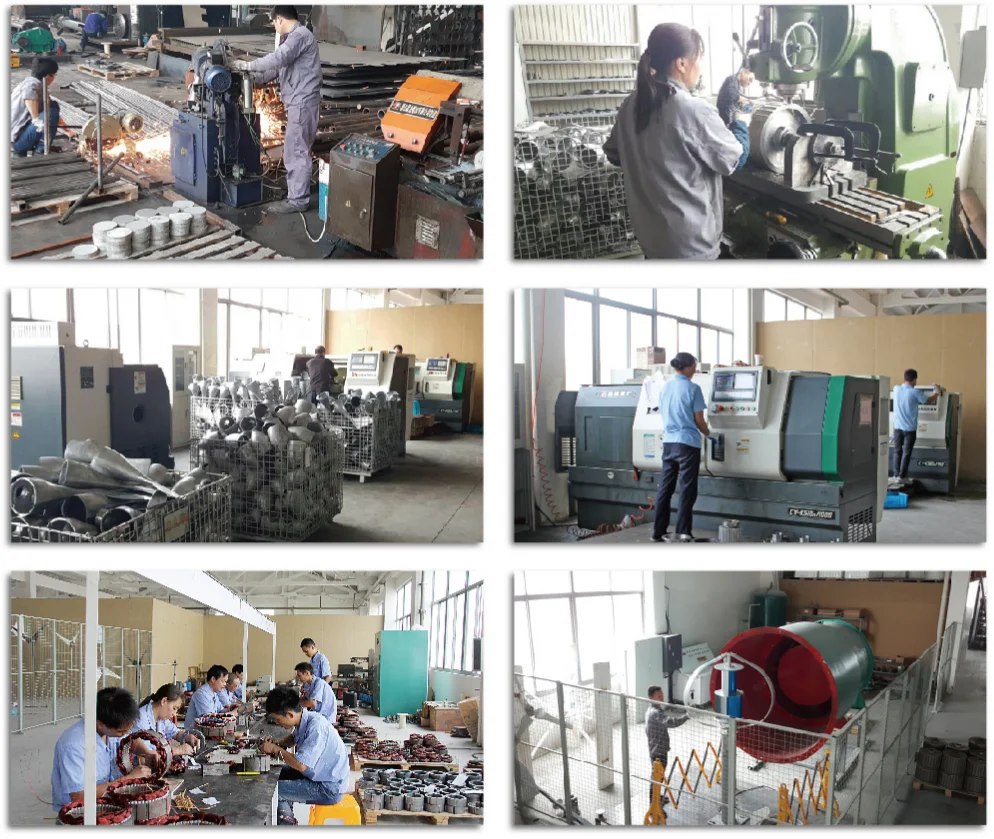

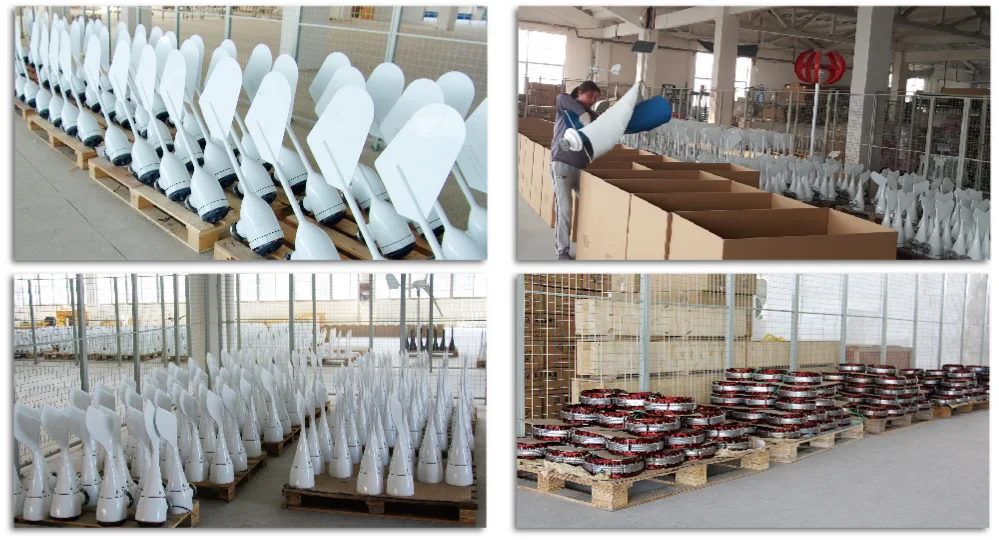

5. workshop view

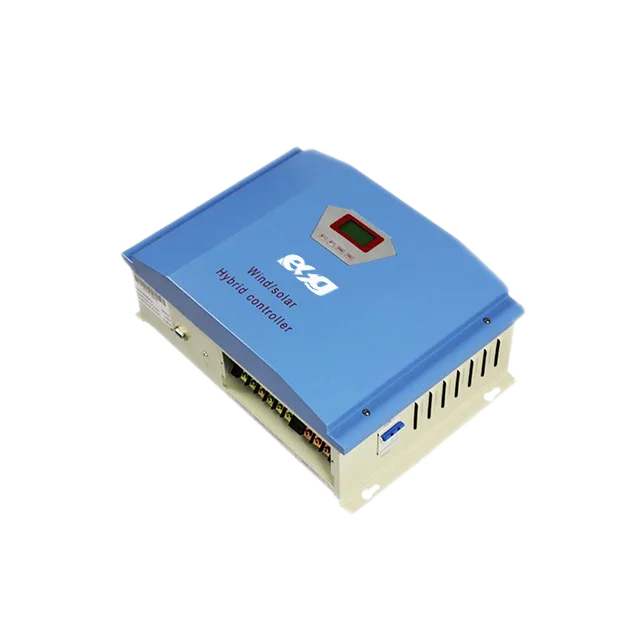

Other kind controller
7. More products for your review
 |
 |
 |
 |

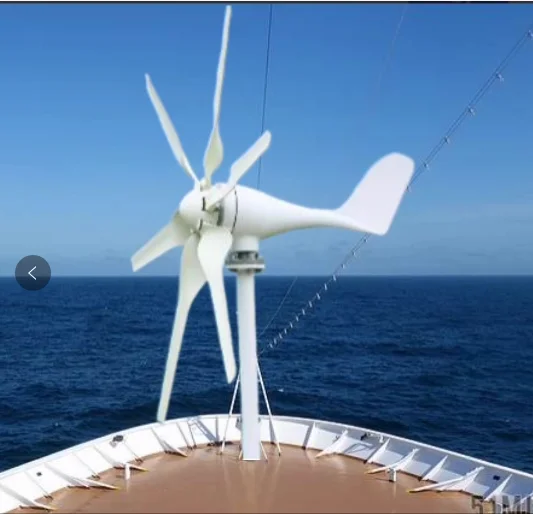

| 100W~800W 5Blade Wind Turbine | 1000W~3KW Horizontal Axis Wind Turbine | 5KW~20KW Horizontal Axis Wind Turbine | 20KW~200KW Electric Control Wind Turbine |
 |
 |
 |

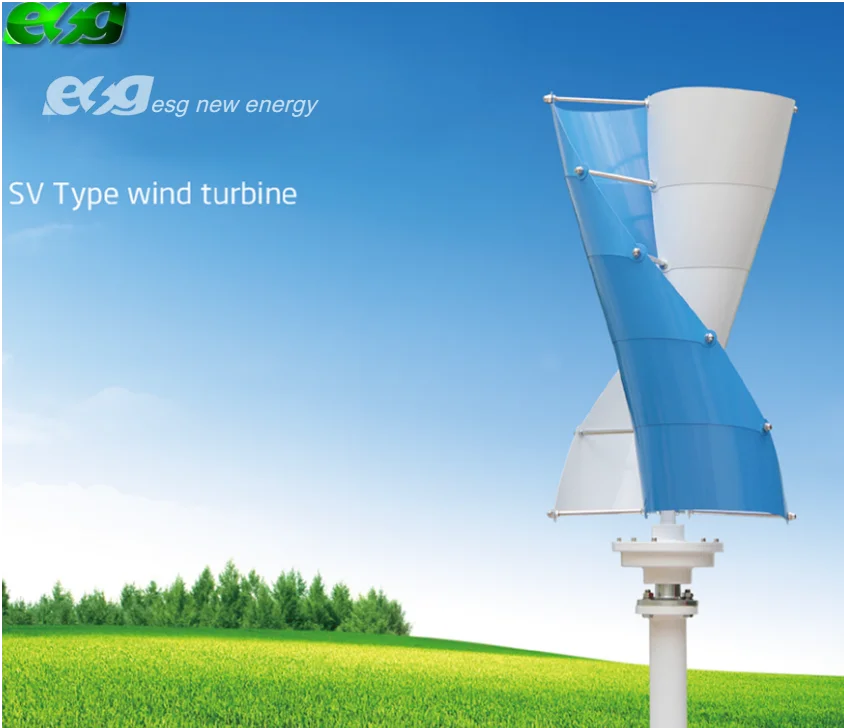

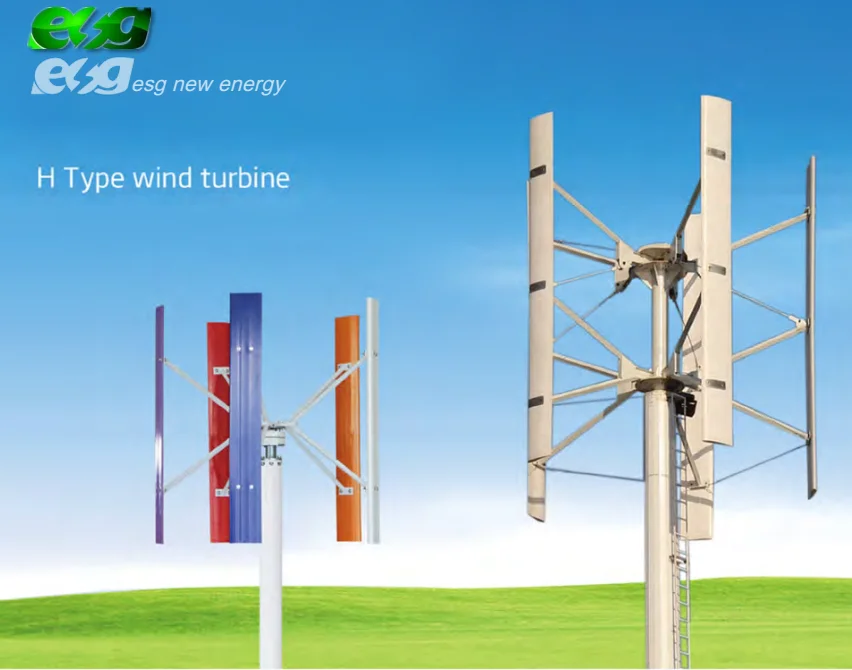

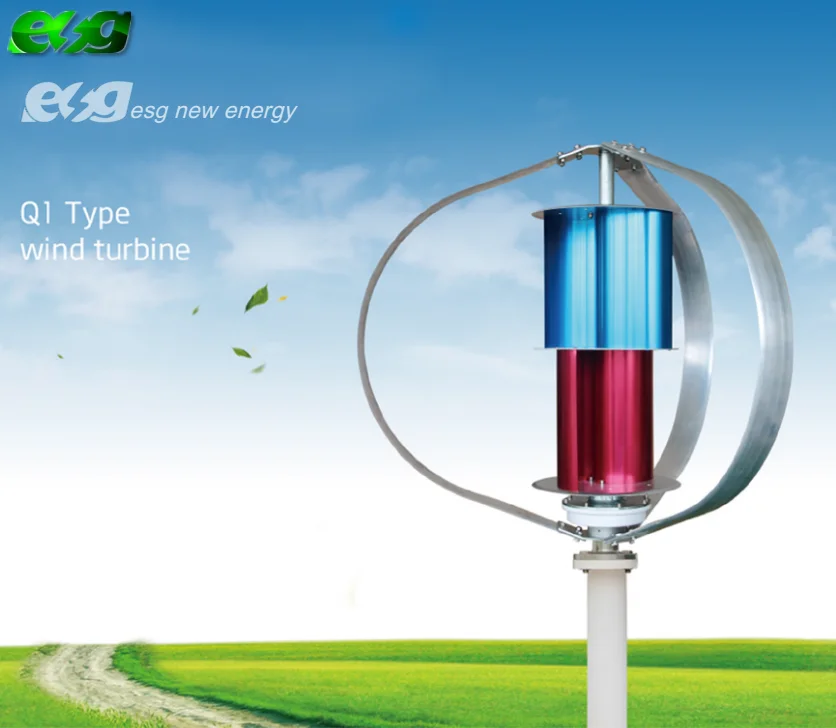

| SV Vertical Axis Wind Turbine | Q Vertical Axis Wind Turbine | H Vertical Axis Wind Turbine |
https://chinatoyo.en.alibaba.com/product/62184763334-805436519/ESG_UPS_solar_storage_with_monitor_5U_case_48V_51_2v100Ah_telecom_Lifepo4_lithium_iron_phosphate_battery.html?spm=a2700.shop_index.82.21.2ff07cb425XmTj

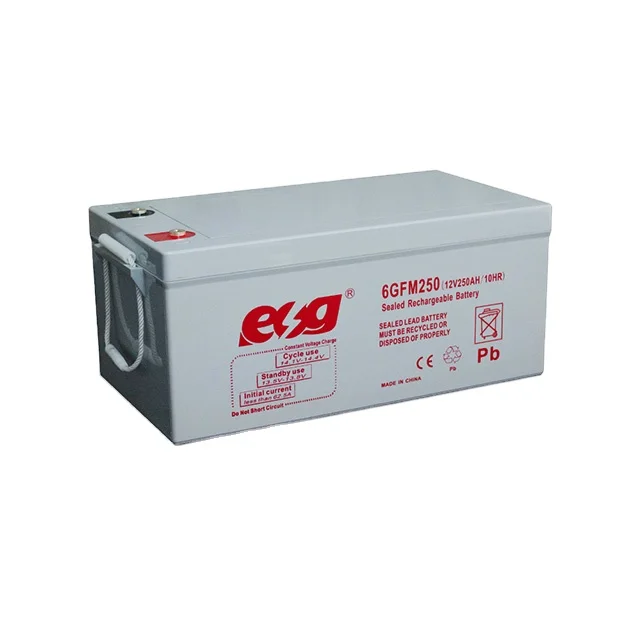

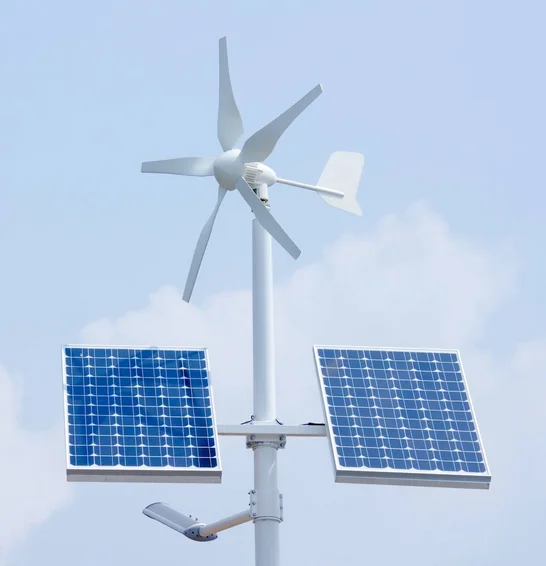

Components for hybrid solar wind systems
 |
 |
 |
 |
|

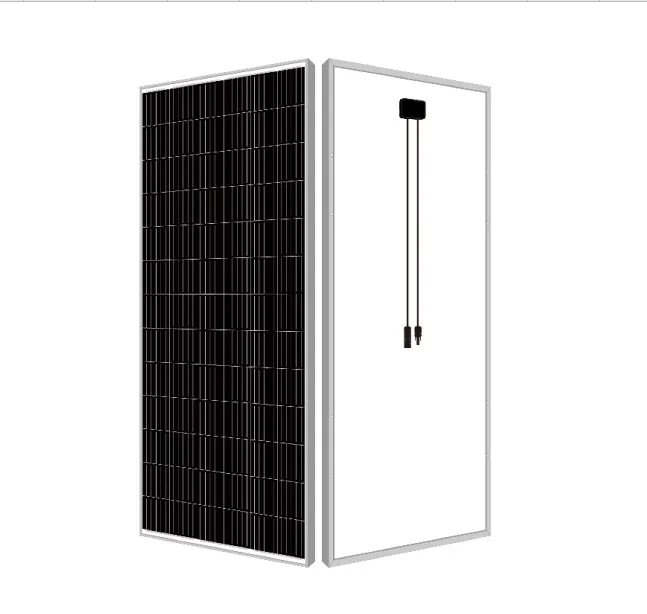

| Wind controllers | Solar gelBattery | Solar mono Panel | MPPT Inverter |
 |
 |
 |

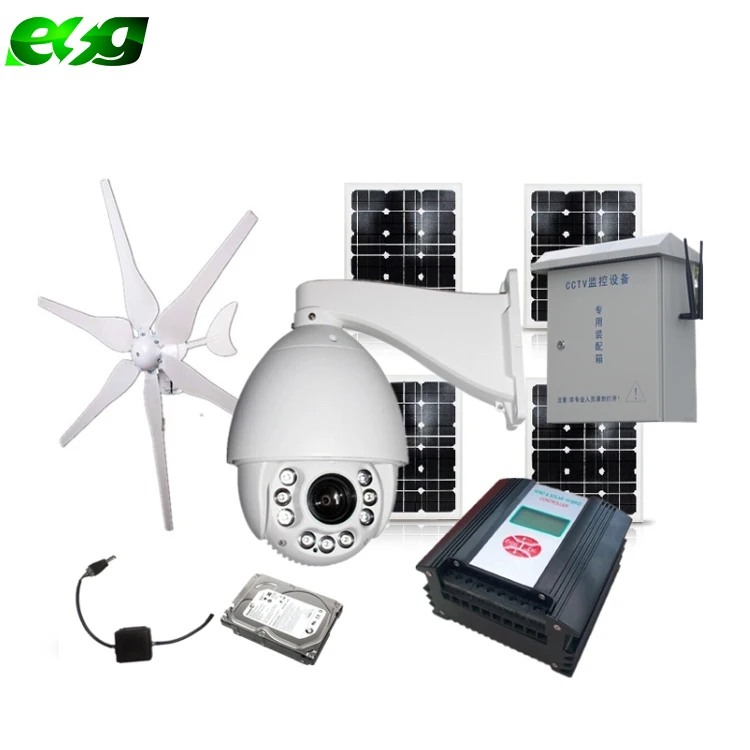

| wind solar lighting system | wind solar CCTV system | Home Solar System |
Wind system
6. Production Line
ESG New energy power 1kw 3kw 5kw 10KW 20KW50KW 100KW wind turbine generator home wind turbine systemESG New energy power 1kw 3kw 5kw 10KW 20KW50KW 100KW wind turbine generator home wind turbine system
7. Certification
ESG New energy power 1kw 3kw 5kw 10KW 20KW50KW 100KW wind turbine generator home wind turbine system
8. Company file
ESG New energy power 1kw 3kw 5kw 10KW 20KW50KW 100KW wind turbine generator home wind turbine system
ESG New Energy Technology Co. Ltd Committed to engage in off-grid system, We are producing batteries, pure sine wave inverter,solar controller ,
wind and solar power generation system production, We have a production line and scientific quality management system. Development and sales of high-tech enterprises.
Our factory has 33years history, we have 3 brand in China. ESG was established in 2013, a newest brand are specialized in solve green energy project.
high-quality, high efficiency, Adapt to market demand, the research management team,and with the domestic institutions of higher learning, scientificresearch institutions to establish a broad and close relations of cooperation,
thus ensuring the company sustainable development and product development of advanced technology.
ESG New energy power 1kw 3kw 5kw 10KW 20KW50KW 100KW wind turbine generator home wind turbine system
9. Exhibition Review
10. Customer Feedback
FAQ:
Q1: What components needed for complete wind/solar generator system?
A1: The wind generator system has two kinds, one is off-grid system and another is on-grid system. Generally,
A2: Soft iron through high-speed rotation and cutting magnetic lines among in the magnetic field generated electrical
Q3: How to measure the wind speed?
A3: One thing you should do is actually measure your wind speed with an anemometer, which simply measures the wind speed. When this is connected however to a data logger,
Q4: How much space do I need to install wind turbine?
A4: This depends upon what size of turbine is installed.ESG New energy power 1kw 3kw 5kw 10K
