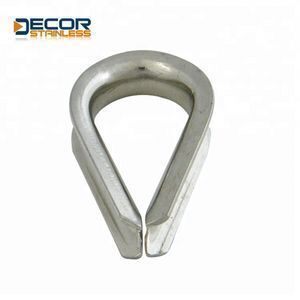

Stainless steel wire rope thimble
- 0.29 >=10 pieces
| Design: | OEM services provided; | Size: | from 2mm to 36mm; |
| Advantage: | Fast delivery; | Package Type: | Clean poly bags plus strong cartons plus pallets or as per your detailed requests.; |
| Brand Name: | DECOR; | Selling Units: | Single item; |
| Surface Treatment: | Polished; | Single gross weight: | 25 KG; |
| Material: | Stainless Steel; | Delivery Detail: | 0 days after payment; |
| Drawing: | CAD drawings available; | Package Preview: | https://sc01.alicdn.com/kf/HTB1vcnNXyHrK1Rjy0Flq6AsaFXa4.jpg_640x640.jpg; |
| Certification: | SGS&TUV; | colour: | silver; |
| Single package size: | 35X25X20 cm; | Rigging hardware: | Thimble; |
| Application: | Wire Rope Terminal Fittings; | Surface treatment: | highly polished; |
| Material: | stainless steel 316 or 304; | Place of Origin: | Shandong China (Mainland); |
Product Description | |||||||
Product Name | Stainless steel wire rope thimble | ||||||
Material | stainless steel 316 or 304 or carbon | ||||||
Surface finish | Highly polish or hot dip galvanized or electro galvanized | ||||||
Color | Nickel White | ||||||
Type | Heavy duty thimble G414, standard thimble G411, European type thimble, Italian type thimble, DIN6899A thimble, tube thimble | ||||||
Advantage | Type 316 stainless steel has the best corrosion resistance among standard stainless steels. It resists pitting and corrosion by most chemicals, and is particular resistant to saltwater corrosion. | ||||||
Thread | coarse, fine | ||||||
Used | These can be used for a variety of applications.Sail boats and yachts, cable railing, and for shade sails. | ||||||
| Dimension | A | B | C | D |
| (mm) | (mm) | (mm) | (mm) | (mm) |
| 2 | 5 | 9 | 22.5 | 1 |
| 3 | 5.5 | 10 | 25 | 1 |
| 4 | 7.5 | 11 | 28 | 1.2 |
| 5 | 8.5 | 13 | 32 | 1.2 |
| 6 | 10 | 15 | 39 | 1.5 |
| 7 | 11 | 19 | 45 | 1.5 |
| 8 | 13 | 22 | 51 | 2 |
| 9 | 14 | 24 | 58 | 2 |
| 10 | 15.5 | 27 | 65 | 2.5 |
| 12 | 17 | 29 | 70 | 2.5 |
| 14 | 19 | 32 | 79 | 3 |
| 16 | 22 | 40 | 90 | 3 |
| 18 | 25 | 45 | 102 | 4 |
| 20 | 27 | 52 | 115 | 4 |
| 22 | 30 | 56 | 125 | 5 |
| 26 | 33 | 65 | 150 | 6 |
| 28 | 36 | 76 | 175 | 6 |
| 32 | 41 | 88 | 200 | 6 |
Q: What is material you can supply?
A: Stainless steel 316 or stainless steel 304
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 30-35 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance upon copy of B/L.
If you have another question, pls feel free to contact us.
