High speed PE plastic t-shirt flat cloth bag carry Bag nylon bag making Machine

Supplier: Wenzhou Haixin Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms Emma Yu
Price: $6000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Condition:	New;	Weight:	750kg;
Model Number:	DZLQ-600/700/800/1000;	Place of Origin:	China (Mainland);
Selling Units:	Single item;	Bag Type:	Fruit Bag;
Certification:	CE/ISO9001;	After-sales Service Provided:	Engineers available to service machinery overseas;
Dimension(LWH):	2800x1200x1900mm;	Computerized:	Yes;
Material:	Non Woven Bag;	Warranty:	12 Months;
Machine Type:	Bag Forming Machine;	Single gross weight:	750 KG;
Brand Name:	haixin;	Single package size:	2800X1600X1800 cm;
Voltage:	220V 50Hz;	After-sales Service Provided:	Field installation, commissioning and training;
Delivery Detail:	0 days after payment;

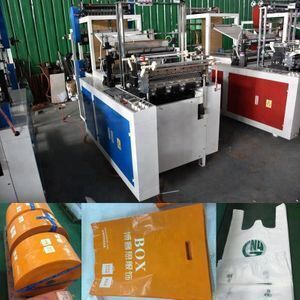

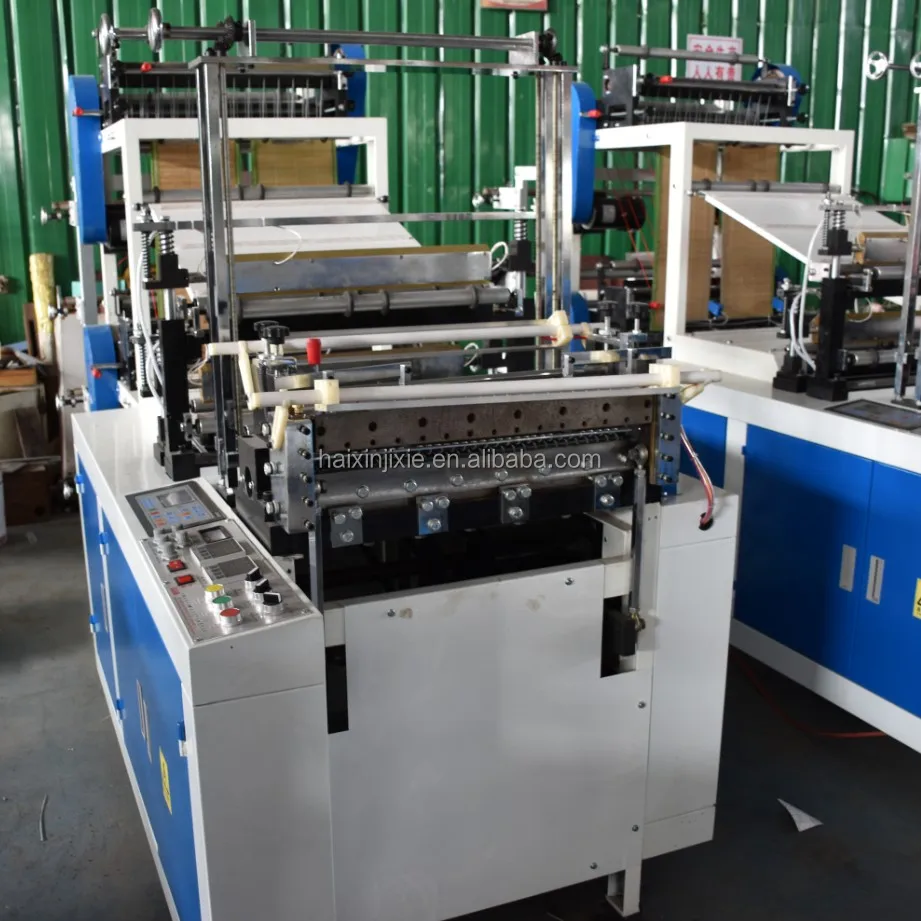

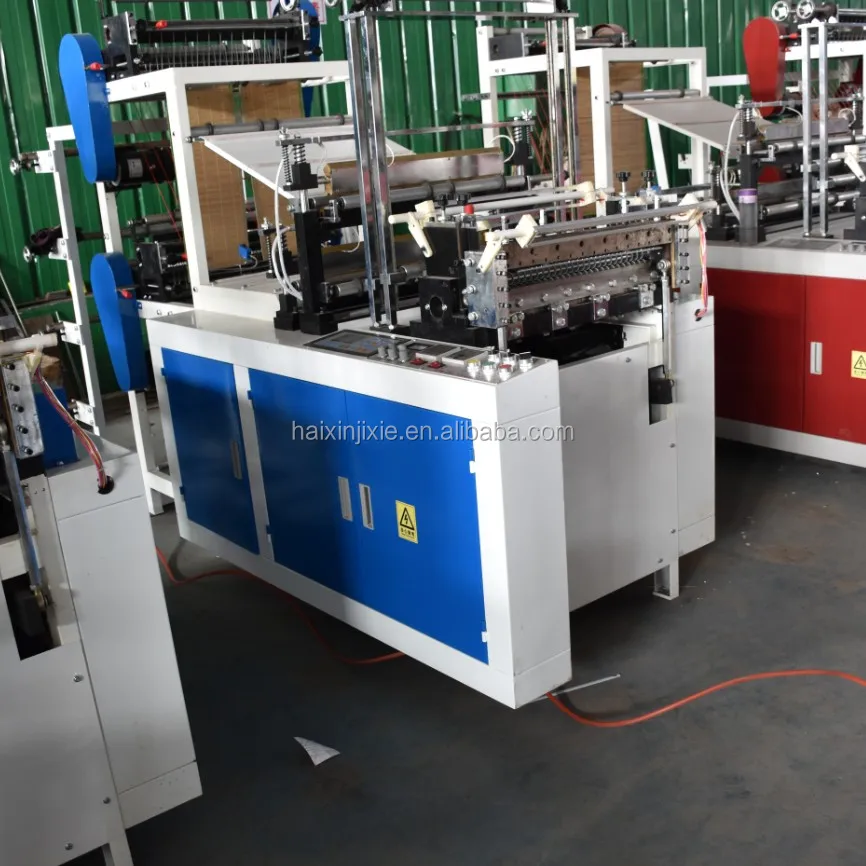

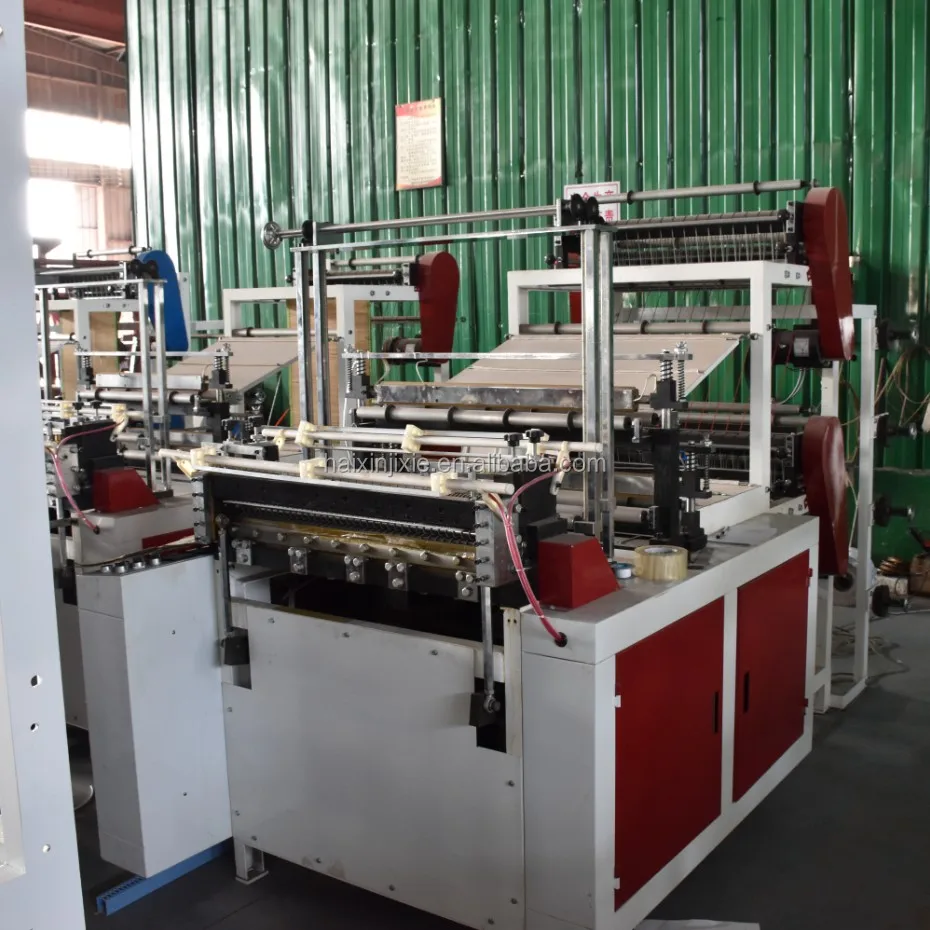

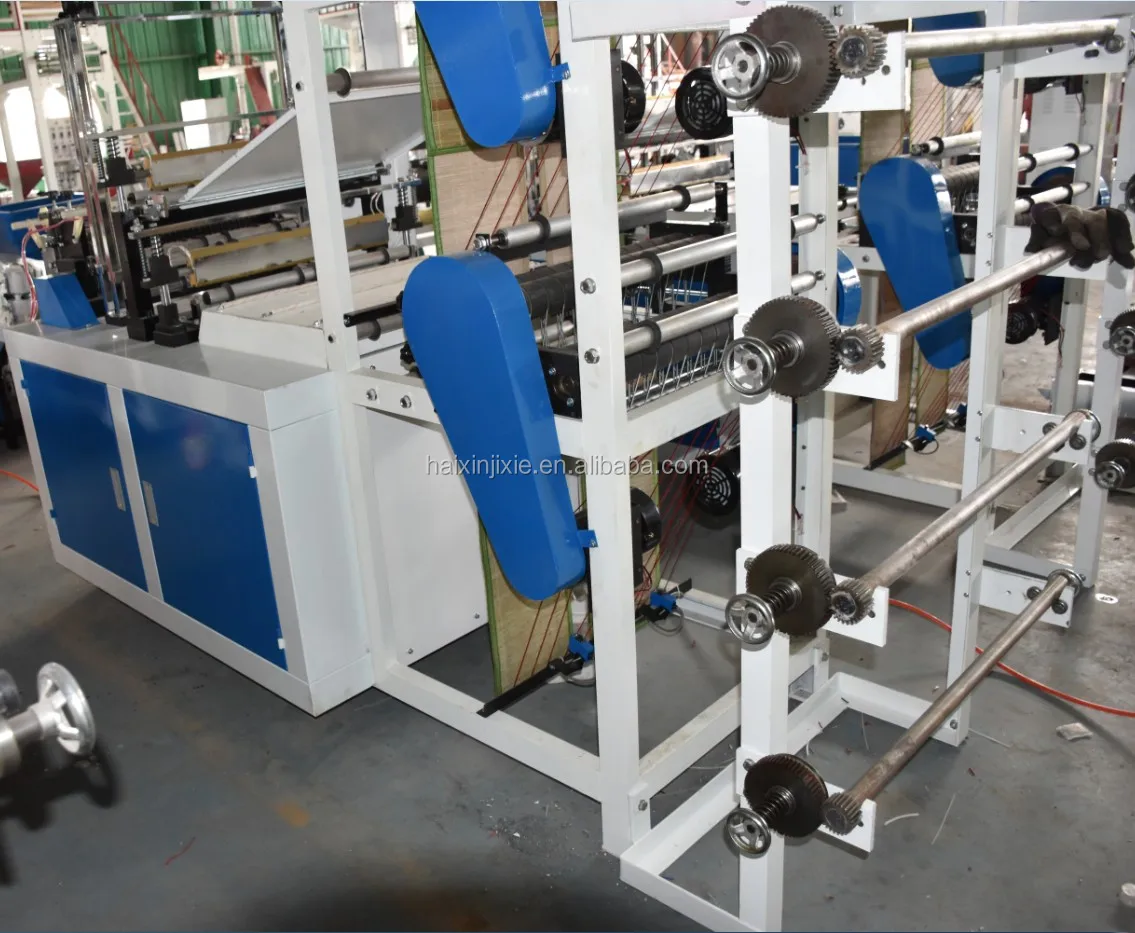

High speed PE plastic t-shirt flat cloth bag carry Bag nylon bag making Machine

This machine is applied to make the printed and uncolored vest bags made of HDPE, LDPE roll film. It adopts PLC control, double step motor fixed length and the liquid crystal screen actual display to finish the feeding, sealing, cutting, punching holes and transporting only in one process. It is of high degree of automation and good economic result.It's traced by 2 photocells to make the printing very exactly.

Feature:

1.The whole machine adopts microcomputer control and material-pulling by stepping motor(Servomotor control system can also be selected and equipped).

2.Arbitrary fixed-length,accurate and stable step photoelectric tracking stopping automatically when the label is lost,photoelectriccontrol feeding

3.Automatic counting and set able counting alarm.

4.Automatic constant temperature makes the sealing of bag opening firm and smooth.

5.Non-printing material can make bags in duoble lines by 4rolls feeding,making 4bas in one time.

Material processed:

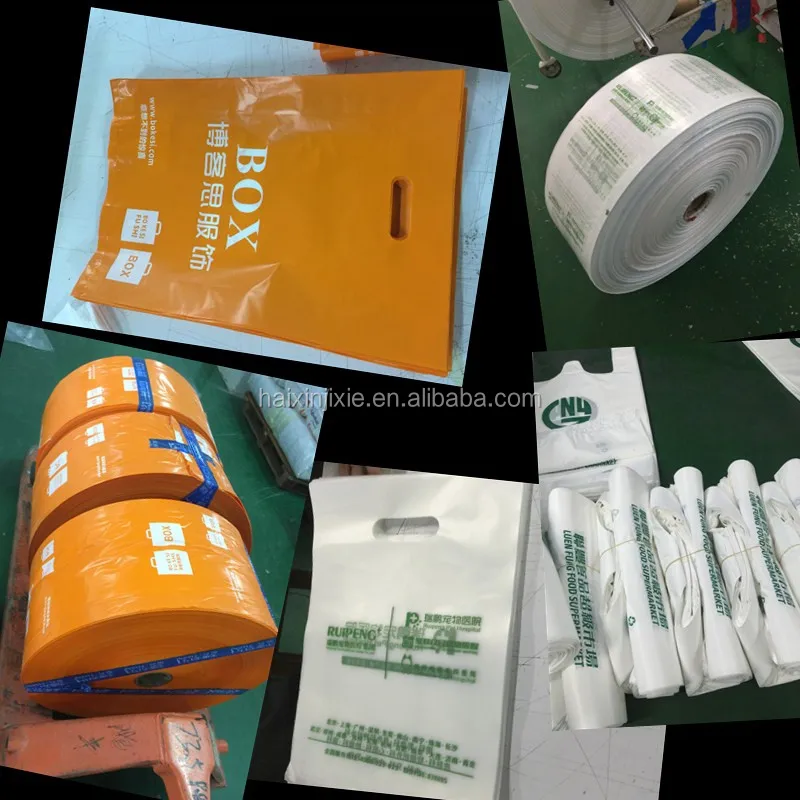

HDPE/LDPE/LLDPE (as per the quality and usage of the film)

Main Technical Parameter

MODEL	DZLQ-600	DZLQ-700	DZLQ-800
Bag Width (Max)	550MM	650MM	750MM
Bag Length	100-1200MM	100-1500MM	100-1600MM
Converting Thickness	0.01-0.10mm	0.01-0.10mm	0.01-0.10mm
Accuracy Length	±1	±1	±1
Speed Cut/Min	30-140	30-140	30-140
Motor	1.1kw/1.5HP	1.1kw/1.5HP	1.1kw/1.5HP
Heater	2kw	2.2kw	2.3kw
Power Required	4.3KW	4.5KW	4.6KW
Dimension (L×W×H)	2800×1180×1900MM	2800×1280×1900MM	2900×1380×1900MM
Gross Weight	600kg	700kg	800kg
