China Supplier Mini Line Interactive computer UPS 450VA 650VA 850VA 1000VA details
Battery Type:Lead Acid Battery;Packaging Detail:one pcs put in one poly bag, together with power line put into one color box.;
Wave Form:Simulated Sine Wave;Type:Line Interactive;
Brand Name:OEM;Port:Shenzhen port;
Display:LCD/LED;Warranty:13 months;
Phase:Single Phase;Transfer Time:Typical 2-6ms;
Application:Security / Monitoring / Alarm;Capacity:450va 650va 850va 1000va;
Battery:4.5AH\7AH\9AH;Certificate:CE/ROSH/MSDS/UN38.3;
Model Number:BK450 BK650 BK850;Payment Terms:L/C,T/T,Western Union,MoneyGram,Paypal;
Protection:Overcurrent;Output Frequency:60HZ/50hz+/_1hz;
Supply Ability:50000 Piece/Pieces per Month China Supplier Mini Line Interactive UPS 450VA 650VA 850VA 1000V;Weight:3.8kg-5kg,4.2KG;
Color:Black;Place of Origin:Guangdong China;

China Supplier Mini Line Interactive computer UPS 450VA 650VA 850VA 1000VA









Main features:

•Excellent microprocessor control optimizes reliability

•Wide range of power input

•boost and buck AVR for voltage stabilization

•Auto restart while AC is recovering

•Off mode charging function

•Simulated sine wave

•Cold start function

•Optional USB/RS-232 communication port and RJ-11 phone protection.

•Perfect protection for overload ,short circuit ,over-voltage ,low-voltage and over-heating etc.

•Display:  LED and LCD display selection providing status, load and battery information

•Intelligent battery management

Line Interactive UPS Guide:

Model BK450\BK650\BK850\BK1000B
Capacity 450VA/240W 650VA/360W 850VA/480W 1000VA/600W
INPUT
Voltage 110/120 VAC or 220/230/240 VAC
Voltage Range 81-145VAC or 162-290VAC
Frequency Range  60/50 Hz (Auto sensing)
OUTPUT Voltage 110/120 VAC or 220/230/240 VAC
AC Voltage Ragulation (Bat Mode)  ±10%
Frequency Range (Bat Mode) 60Hz or 50Hz ± 1Hz
Transfer time Typical 2-6ms
Waveform (Bat Mode) Simulated Sinewave
Battery
Battery Type&Number 12V/4.5(7,9,9)AH*1
Charging ability 4-6 hours recover to 90% capacity
Protection
Full protection Overload,discharge,and overcharger protection
INDICATIONS

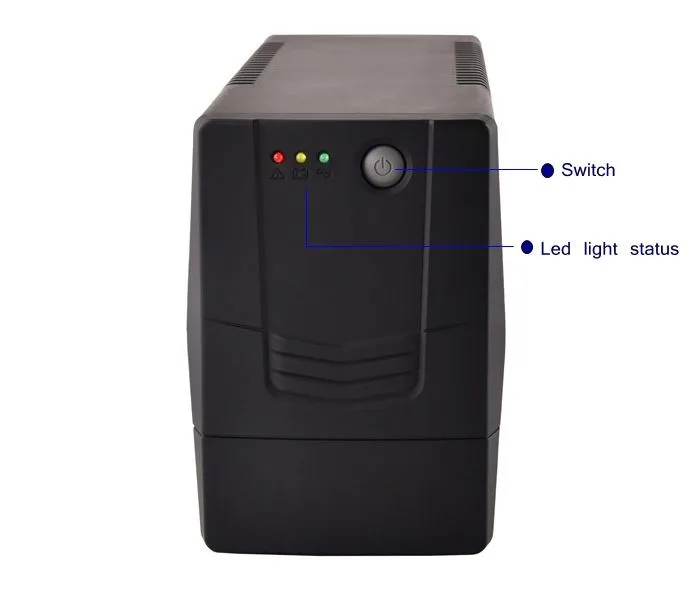

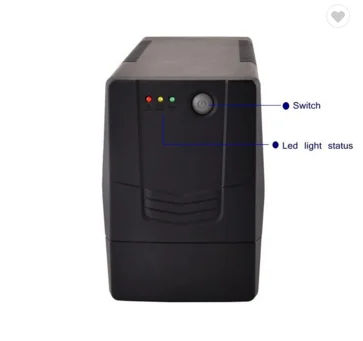

LED Display AC Mode Green lighting The right green LED lighting&the 2nd to 5th green LEDs gradually lighting indicating load level
Battery Mode Yellow flashing The right green LED flashing&the 2nd to 5th green gradually lighting indicating battery capacity
Fault Red lighting
Battery mode Sounding every 10 seconds
Low battery Sounding every second
Overload Sounding every 0.5 seconds
Battery Replacement Alarm Sounding every 2 seconds
Fault Continuously sounding
Dimension,D*W*H(mm) 297*101*142
Net Weight (kgs) 3.7/4.2/4.9/4.9
Environment
Humidity 0-90% Relative Humidity 0-40 ℃ (Non-condending)
Noisy Level Less than 40dB
Optional USB/RS232 Port Supports Windows 2000/2003/XP/Vista/2008,Windows 7/8 Linux Unix  and MAC

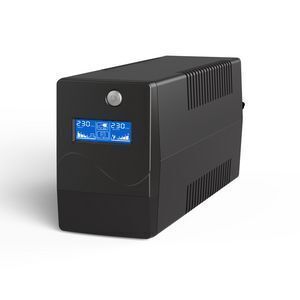

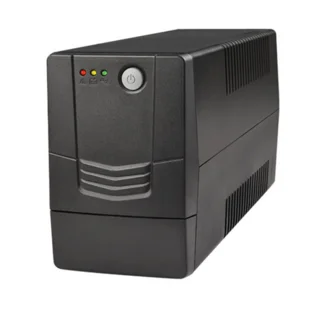

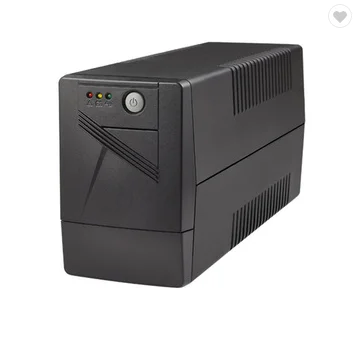

Product Images:
