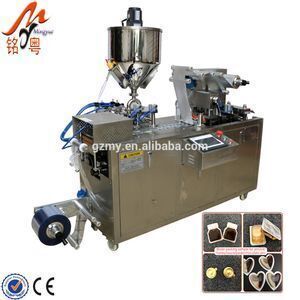

Automatic Thermoforming Bee Honey Blister Packaging Machine liquid ketchup paste chocolate jam Honey blister Packing Machine

Supplier: Guangzhou Mingyue Packaging Machinery Co., Ltd.
Region: Guangdong, China
Contact: Ms Ella Wen
Price: $8000.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Total Power:	380V/220V 50Hz 2.8kw;	Marketing Type:	Hot Product 2019;
Standard Plate(mm:	80*57 can be manufactured as user's require;	Key Selling Points:	Easy to Operate;
Single gross weight:	480.0 KG;	Machinery Test Report:	Provided;
Single package size:	182X82X130 cm;	Cutting Frequency (Times/min):	27;
Condition:	New;	Capacity (10 thousand pcs/h):	1.1-6.5;
Product Name:	bee honey blister packaging machine;	Brand Name:	Mingyue;
Selling Units:	Single item;	Application:	Food,Beverage,Commodity,MEDICAL,Chemical,APPAREL;
Certification:	CE;	Place of Origin:	Guangdong China;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Food Shop,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;	Automatic Grade:	Automatic;
Packaging Material:	PVC/Aluminum;	Showroom Location:	None;
Core Components:	PLC;	Warranty of core components:	1 Year;
Weight:	450;	Video outgoing-inspection:	Provided;
Stroke (mm):	40-110;	Warranty:	1 Year;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	PTP Aluminum Foil(mm):	0.02-0.035*90;
Packaging Detail:	one machine with one plywood case;	Type:	Blister Packaging Machine;
Local Service Location:	Viet Nam,Indonesia,Pakistan,Thailand,South Korea,South Africa,None;	Driven Type:	Electric;
Dimension(LWH):	13004001070*;	PVC Hard Pieces(mm):	0.25-0.35*90;
Voltage:	220V;	Overall Dimensions(mm):	13004001070;
After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support;

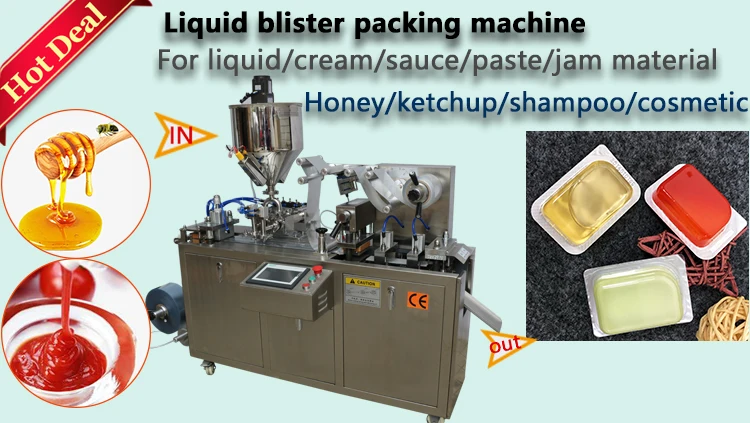

Automatic Thermoforming Bee Honey Blister Packaging Machine liquid ketchup paste chocolate jam

Honey blister Packing Machine

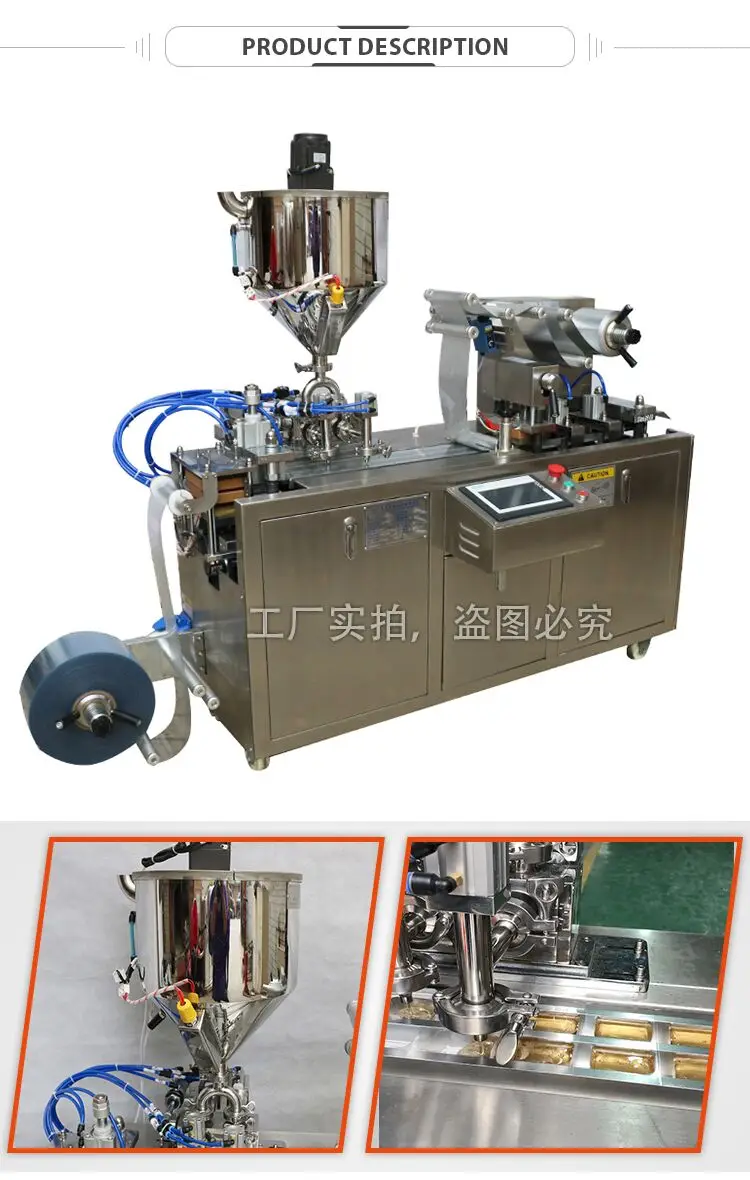

Product Description

This machine is specially designed for factory, food shop,food company,in hospital, mini-pharmaceutical factory, mini-motor test workshop, This machine is flat plate structure, positive pressure and convenient to operate. It is small and the stroke Length is adjustable. It is suitable for AL/PL ,PVC/PTP package for any shape of objects, such as cream,honey,paste,ketchup etc

Main Technical Parameters

Cutting Frequency (Times/min)	10-33
Capacity	2400 plate/h
Max. forming area and depth	70 × 100 × 15mm(Depth can be designed according to customer requirements)
Standards Board	80×57mm(Can be designed according to customer requirements)
Standard adjustable range of stroke	30-80mm ( Can be designed according to customer requirements)
Air pressure	0.6-0.8Mpa
Total Power	380V/220V 50Hz 2.8kw
PVC	0.15-0.5×80mm
PTP aluminium foil	l 0.02-0.035×80mm
PTP Aluminum Foil(mm)	0.02-0.035×90
Mould Cooling	tap water or recycling water
dialyzing paper	50-100g×80mm
Cooling Tap water or recycled water
Overall dimension	1600×560×1450mm(L×W×H)
Machine weight	500Kg
Noise indicators	≤75dBA

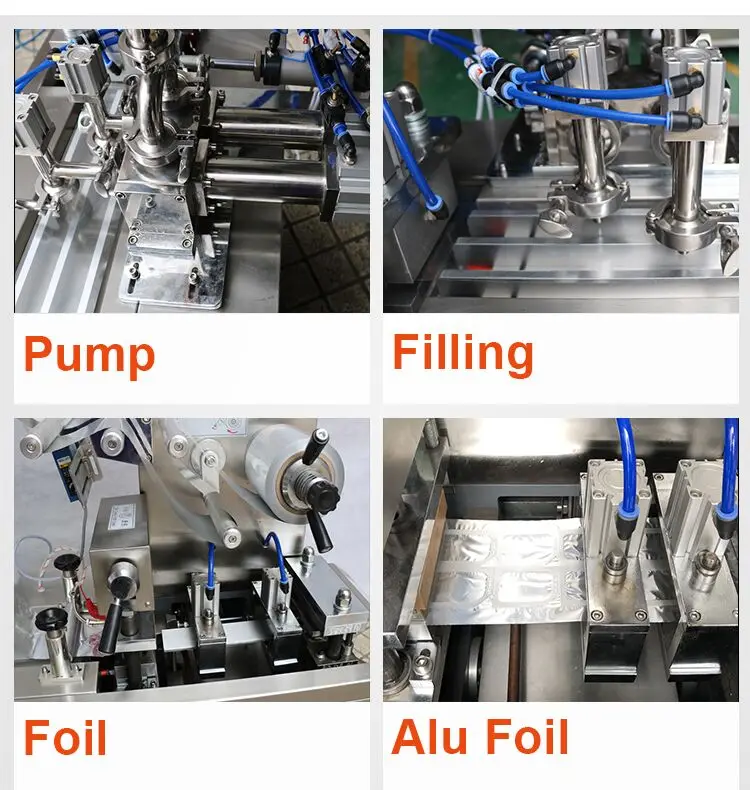

Machine Detail:

Sample Picture :

Instructions and operating videos

are prepared for you

We can provide a whole line of products for pharmaceutical machinery.

If you are interested in our packing machine

Please contact us feel free

Packaging & Shipping

Company Information

Our Services

FAQ

Q1:Do you have manual or operation video for us to know more about the machine?
Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
Q2:How can I trust you for the first time business ?
Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q3:Is engineer available to serve oversea?
Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q4:How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
Q5:Will you provides the door to door service?
Yes. Please offer us your final destination, we will check with our agent to see if it available, and most of the area is ok for us to clearing and sending in your countries.
