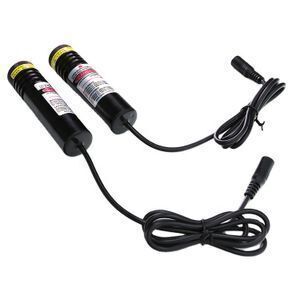

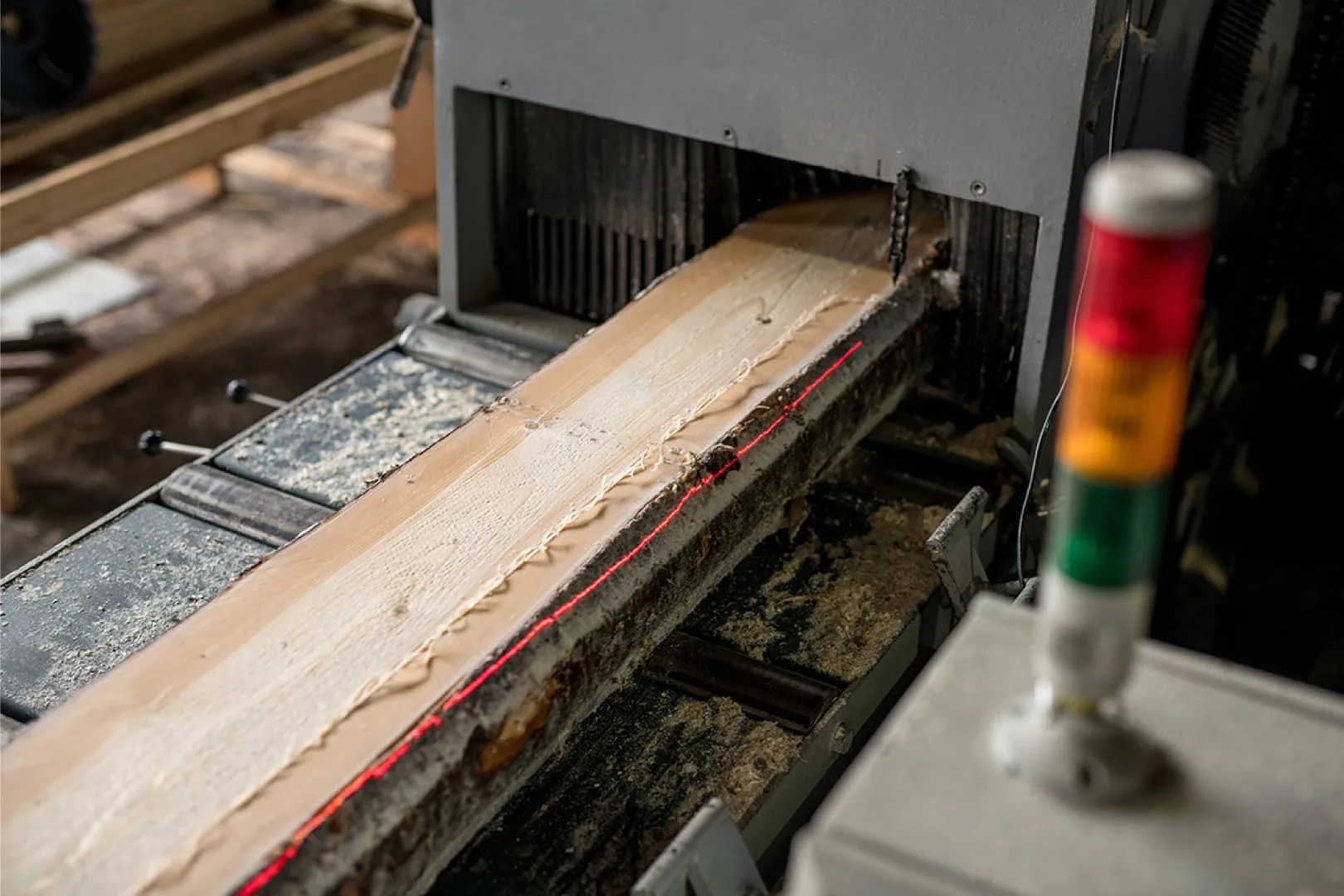

26*105mm red 660nm 130mw laser module used for Bridge saw machine
-
Supplier: Changshu Desheng Optics Electronics Co., Ltd. -
Region: Jiangsu, China -
Contact: Mr Heedom Chen -
Price: $50.00 /piece -
Min. Order: 1 piece
| Material: | BLACK AVIATION ALUMINUM BODY; | Application: | positioning, Machinery Repair Shops, wood cutting machine; |
| WORKING CURRENT: | <200mA / <100mA; | Key Selling Points: | Patented Product; |
| Warranty: | 1 Year; | Local Service Location: | None; |
| Video outgoing-inspection: | Not Available; | Brand Name: | DESHENG; |
| Showroom Location: | None; | Supply Ability: | 2500000 Piece/Pieces per Year; |
| Wavelength: | 660 NM (red); | Applicable Industries: | INDUSTRY; |
| OPERATING LIFE: | > 10000 HOURS; | Packaging Detail: | Packaging Details: ESD Plastic bag, outside with carton package; |
| Condition: | New; | Package Preview: | ; |
| After Warranty Service: | Online support; | Weight (KG): | 0.07; |
| Output power: | 130mw(CUSTOMIZED); | After-sales Service Provided: | Online support; |
| Payment Terms: | L/C,Western Union,T/T; | OUTER DIMENSION: | 26*105mm; |
| Marketing Type: | New Product 2020; | Place of Origin: | Jiangsu China; |
| Machinery Test Report: | Not Available; | POWER SUPPLY: | 5V/12-24v; |
| Spare Parts Type: | Laser Module; | WIRE: | 1M DC LINE / BALCK LINE; |
| BEAM MODE: | Line; |
| 26*105mm red 660nm 130mw laser module used for Bridge saw machine |
|
LASER MODULE |
|||
|
BRAND |
DESHENG |
MODEL |
DSL66130LH26105 |
|
WAVE LENGTH |
660 NM (RED) |
OUTPUT POWER |
130 MW (CUSTOMIZED) |
|
POWER SUPPLY |
5 V 12~24 V |
WORKING CURRENT |
<200mA / <100mA |
|
OUTER DIMENSION |
Ø26MM x 105MM |
WIRE |
1M DC LINE / BALCK LINE |
|
BEAM MODE |
LINE |
DIVERGENT ANGLE |
120° |
|
OPTICAL PART |
LINE CYLINDRICAL MIRROR |
LIGHT WEIGHT |
2 MM |
|
WORKING TEMPERATURE |
-10~50℃ |
STORAGE TEMPERATURE |
-40~80℃ |
|
OPERATING LIFE |
SEIKO LEVE > 10000 HOURS |
SAFEGARDE GRADE |
3B / IIIb |
|
MATERIAL COMPOSITION |
BLACK AVIATION ALUMINUM BODY + LASER DIODE + HIGH QUALITY LENS + PCB + WIRE |
||

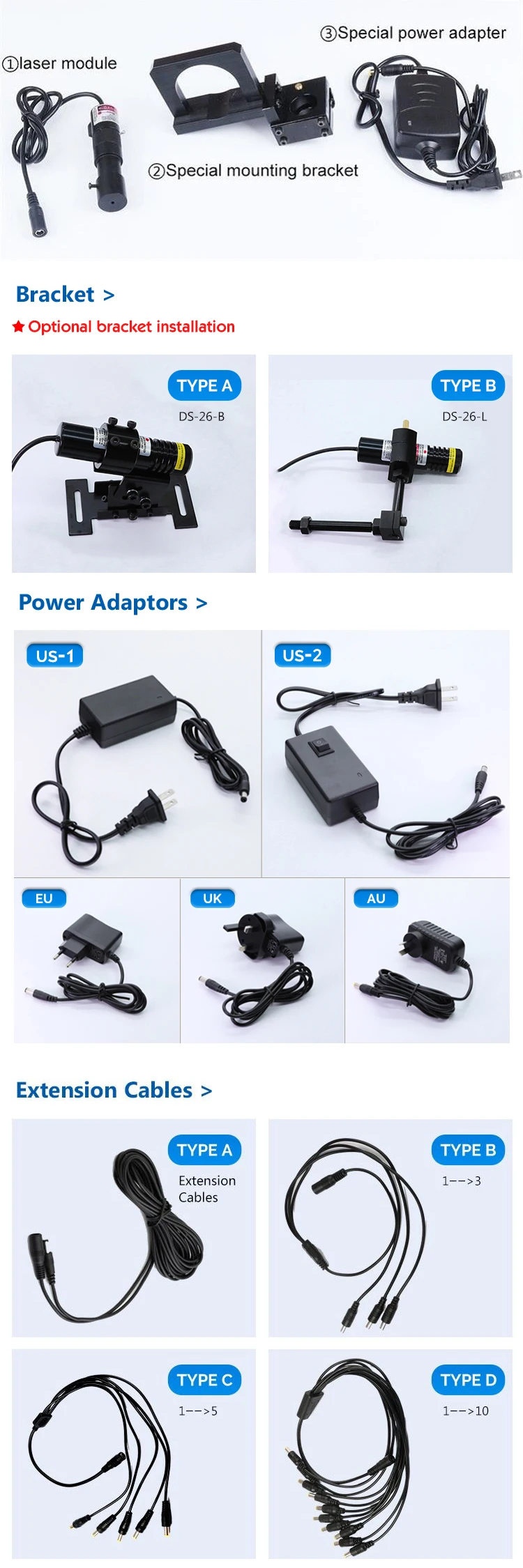

PARTS FOR LASER MODULE
1.What's the way of shipping?
Lasers can be shipped via DHL , TNT , UPS, FedEx and EMS. The shipping cost will be based on the total weight and volumes. We can make the cost collected if you have courier account.
2. How to pay?
Assurance payment on Alibaba.
3.What's your MOQ?
The MOQ can be 1 piece but not applicable to customized products.
4.What's the delivery time?
Normally 3 – 7 days for standard products but not applicable for customized products.
5.Can I customize the products based on my need?
Yes. We can design and produce lasers based on your special requirements.
6.Do you have any certifications for lasers?
Yes. All our lasers are certified with CE, RoHs.
7.How long is the warranty peroid?
12 months.
-
