MachineryOffers

High Quality Android Seat Screen (Monitor)

Product details
Resolation:1280x800;Place of Origin:Istanbul Turkey;
Brand Name:Ninova;Size:16:10 /10.1";
Material:composite;Payment Terms:T/T;
Package Preview:;Color:With the color options you want;
Model Number:NV-6840;Screen:Touch Screen;
Product name:Ninova Bus VOD System;Bus Model:All;
Operation System:Android 6.0;

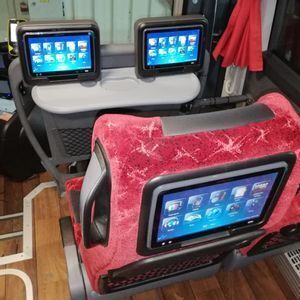

Ninova is the best for passenger!

Ninova Bus Entertainment System is the best solution for passengers with Android 6.0 operation system, popular Android games, Internet access, Movies, Musics, TV channels ..etc. Our company continues R&D for bus entertainment system to earliest days to. We design according to customer requirements.

Our systems Complete (Monitor, Switch, Server and cable included) EMC (Electromagnetic compatibility) test has been successfully passed certification and E13. Also have flammability test report for monitor cable and plastic material.

TV-entertainment system is now almost impossible to find without a bus, and this system affords all passengers and for their suggestions and complaints can be voiced. At such a time the technology of future we already offer to you. Anroid 4.2.2 operating system and popular applications and games bring to your seat. In addition to this, a lot of innovation is waiting for you. Cloud Computer's (Cloud Computing) and the bus companies can content management in their fleet. For example, one giving rise to complaints content (movies, music, pictures, etc..) you can change. can get information about many innovations and by contacting us with the most relevant content for your company could design.

Rear seat entertainment system , Bus Vod System, Bus seat System



NINOVA VOD SYSTEM ARCHITECTURE



All of our products designed for vehicles and all are industrialclass. So they all have homologation certificate. Also Ninova is the only homologation certificate



MONITOR TECHNICAL SPECIFICATION









Screen TypeMulti Touch Capacitive LCD
System:Android 6.0 Operation System
Processor:Rockchip RK3128 Quad Core CPU
Ram:1GB DDR3 Ram
Storage:8 GB eMMC Storage
Screen Definition:10.1 inches diagonal
Size:265.46 (H) x188 (V) x 32 (D, Max) [mm]
Pixel Pitch:0,1695mm x0,1695mm
Pixel Format:1280 horiz. By 800 vert. Pixel RGB stip arrangemet
Color Depth:6-bit, 262.144 colors
Luminance, White :300 cd/m2 (Typ. 5 point)
Display Operation Mode:Transmissive modernormally Black
Surface Treatment:Glare treatment of the front polarizer
Operation Voltage:9V ~ 36V

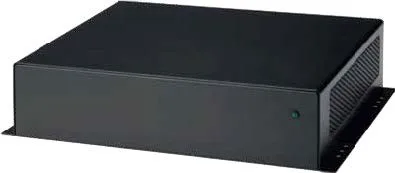

NV-2000 NINOVA SERVER SPECIFICATIONS







CPU :INTEL® J1900 (2.0 GHz) (4 Core) CPU
Chipset ::Fintek F71808EC
Memory ::4 GB 1333 MHZD DDR3 Ram
Storage ::1GB DDR3 Ram
Storage:SSD DISK 120 GB
Ethernet LAN ::Realtek® RTL8111G Chip (gigabit)
USB ::Embedded 7 * USB 2.0/1.1
Environment Specifications :AMI 16MB UEFI DIP Flash ROM
Certificate :CE, FCC, RoHS, E13

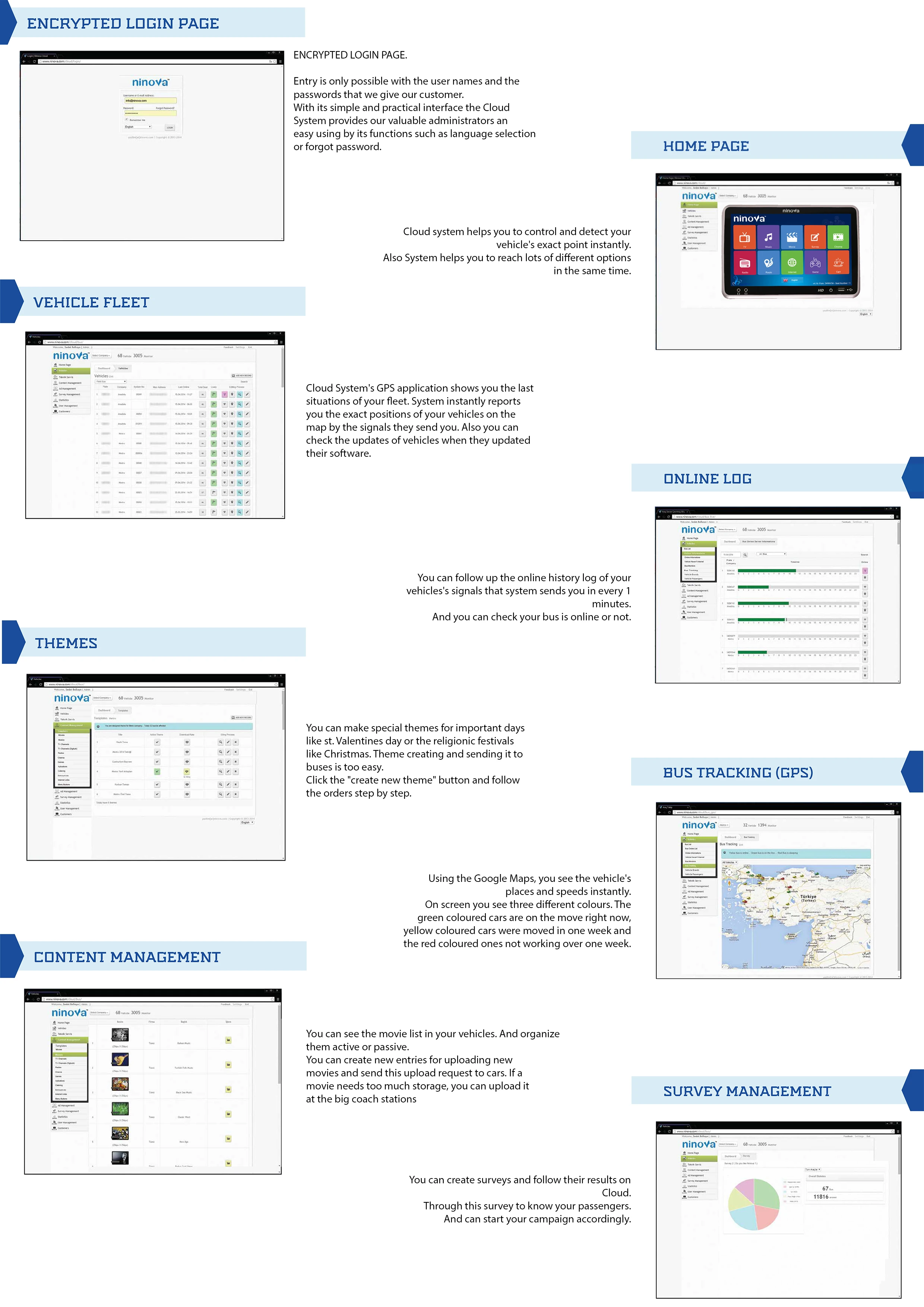

REMOTE ACCESS (CLOUD)

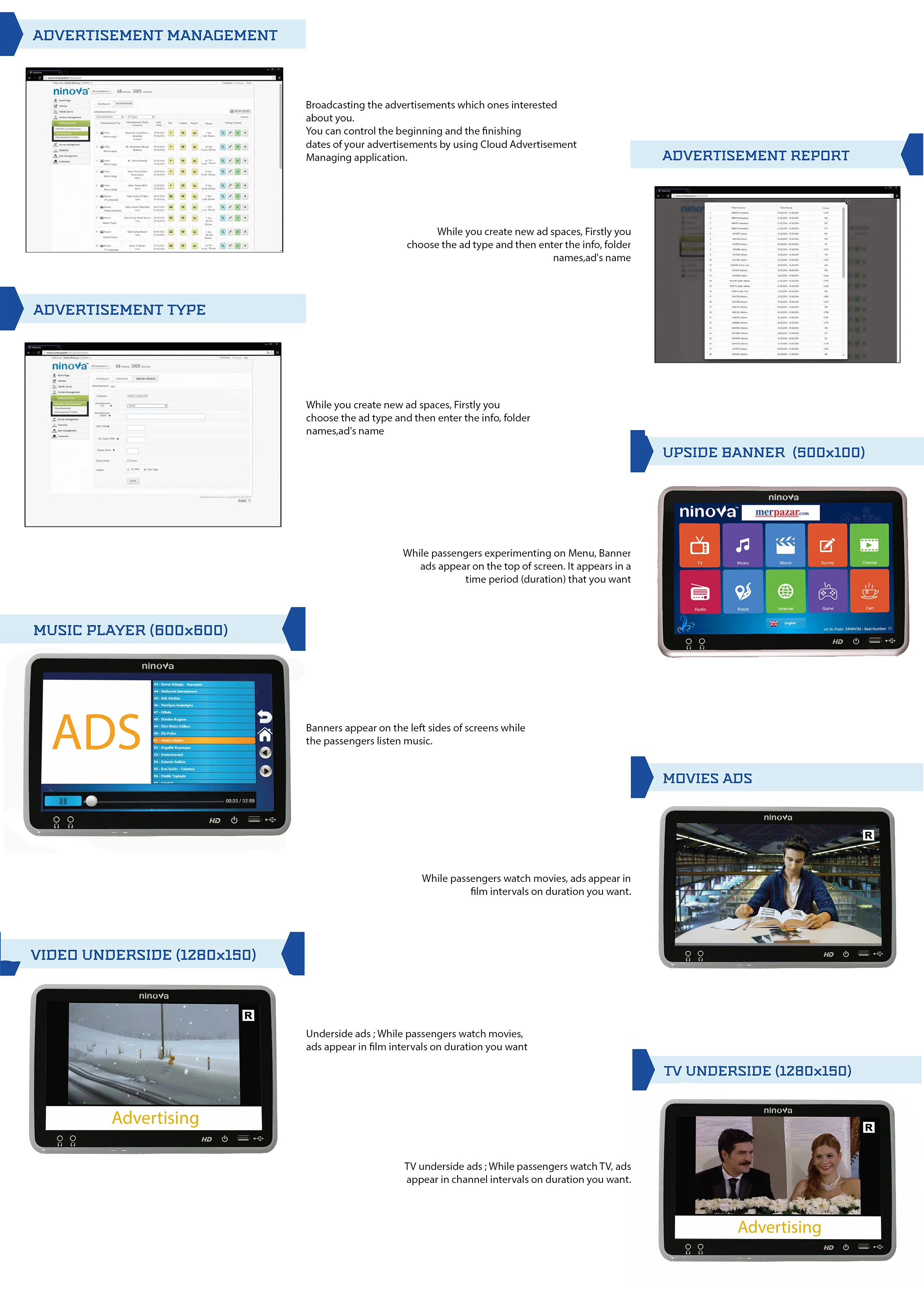

ADVERTISEMENT MANAGEMENT



Detailed Images







Packing & Delivery

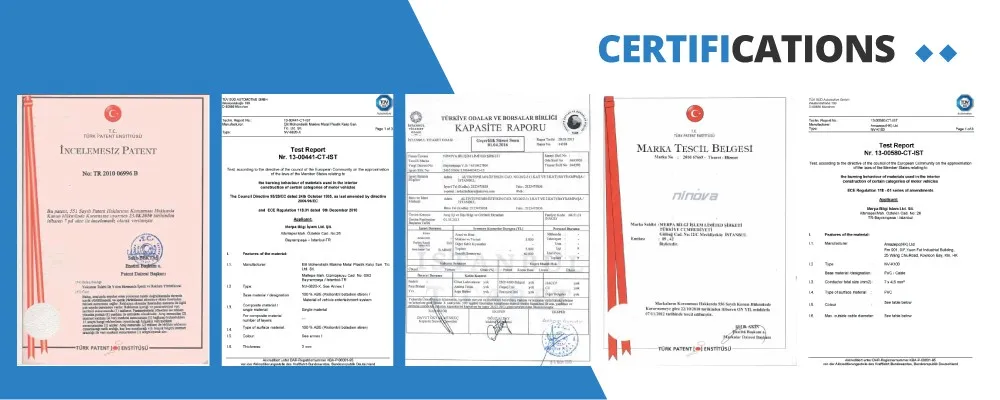

Certifications
