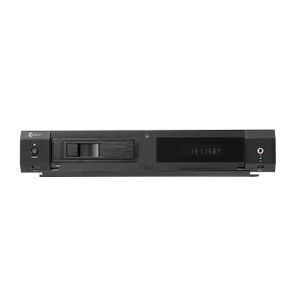

R11 3D 4K Blu-Ray UHD Audiophile Media Player+Dsd Hifi Music Player+Dac Decoder+Streaming Server+Nas Server

Supplier: Shenzhen Eweat Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Vicky Yang
Price: $540.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Type:	HIGH DEFINITION;	Connectors:	HDMI;
Support interface:	BT4.0, USB 3.0, TYPE-C,RS232,IR in+out, SATA port;	Selling Units:	Single item;
Audio Performance:	Best in class audio performance equipped with ESS9038 DACs;	Certification:	FCC,ce,RoHS;
Decode Ability:	1080p (Full-HD);	Function:	Optical, Coaxial, AES, stereo audio out, XLR balanced, L R CVBS;
LAN:	1000M Ethernet;	WIFI:	802.11 a/b/g/n,2.4G/5.8 Dual Band WIFI;
Packaging Detail:	EWEAT R11 RTD1295DD 3D 4K ultra HD Audiophile media player Packed in carton, Carton size: 525380195mm, 1 pcs per carton, 9Kg per Carton;	Single gross weight:	11.0 KG;
HDMI:	2x HDMI 2.0 IN + HDMI 2.0 OUT;	Single package size:	53X38X20 cm;
Model Number:	R11 Audiophile media player;	CPU:	RTD1295 DD, ARM CA53X4, Mali-T820 MP3 L2 Cache 1MB;
SATA HDD:	Internal 3.5'' SATA HDD rack, support hard disk up to 16TB;	Brand Name:	EWEAT;
OS:	Android 6.0.1;	Place of Origin:	Guangdong China;
Recording:	YES;	Ram/Memory:	2GB DDR4/ 16GB EMMC;

R11 3D 4K Blu-Ray UHd Audiophile Media Player+Dsd Hifi Music Player+Dac Decoder+Streaming Server+Nas Server

Product Description

Main specs:

1. Best in class audio performance: with ESS9038, DACs for Audio, Coaxial /Optical /AES inputs, Dedicated Stereo Output,Headphone Amplifier
2. Best Ultra HD Resolution
3. Best in HiFi Audio output
4. Realtek 1295 chipset, ARM CA53 x4,Maili-T820
5. 2G DDR4 +16G EMMC, powered by Android 6.0
6. H.265 4k@60fps, VP9 4KP60 for youtube 4K
7. Dual HDMI audio and video separation
8. Powerful decoding capability leading in market
9. WiFi: 2.4+5.8G 802.11Ac Dual Band, 1000M Ethernet
10. Support PVR, PIP, USB3.0, Bluetooth V4.0,Type-C, RS232, STEREO AUDIO OUT etc.
11. BD ISO playback, support Frame Packaging 3D
12. Internal 3.5" SATA HDD rack + External SATA port, hard disk up to 16TB is supported

13. Support 7.1 pass through, Support Dolby True HD, DTS-HD MA, LPCM, Dolby Digital Plus

Selling points:

1. Best in class audio performance

1). Eweat R11 is equipped with ESS9038 DACs for Audio.

The ESS9038 PRO set a new benchmark for audio excellence with its best-in class 140 dB of dynamic range in a 32-bit ,8-channel DAC. The ES9038PRO SABRE DAC features ESS’patented 32-bit HyperStreamDAC technology, which is responsible for the outstanding clarity and sound stage

2). Coaxial/Optical/AES inputs

For additional convenience and flexibility, the R11 can convert digital signals from cable and satellite boxes, televisions, video game consoles and other digital transports with coaxial and optical digital outputs and AES output to analog. By bypassing the low fidelity, poor quality DAC of traditional computer soundcards, the R11 turns any computer into a high performing multi-media source by utilizing the ES9038PRO DAC

3). Dedicated Stereo Output

The stereo output offers both XLR balanced and RCA single-ended connectors. The balanced output features a true differential signal path all the way from the DAC to the 3-pin XLR connector. By transmitting a pair of differential signals, the balanced output provides better common-mode noise rejection and improves signal quality.

4). Headphone Amplifier

For a more intimate listening experience, headphones can be connected directly to the R11’s built-in headphone amplifier. The headphone amplifier is connected directly to the ESS SABRE PRO DAC and offers a unique performance advantage over standalone headphone amplifiers.

2. Ultra HD Resolution

R11 used the Realtek1295 main chipset, powerful decoding capability and supports 4K UHD H.265/10bit and maximum with 400Mbps streams, Support HDR10 technical, and the first one developed 23.976,59.94HZ frame-rat auto switch Support all 3D formats playback(including MKV MVC 3D),clean picture, appropriate depth, adjustable depth of field and support 3D subtitle

Hardware
CPU	RTD1295 DD ,ARM CA53X4, Mali-T820 MP3 L2 Cache 1MB
RAM	2GB DDR4
Storage	16GB EMMC
Interface
AC IN	AC 110~220V IN
L/R OUT	STEREO AUDIO OUT
XLR OUT	XLR BALANCED STEREO AUDIO OUT
OPTICAL IN	Optical input
COAXIAL	Coaxial input
XLR IN	XLR Audio input
RS232	RS232
TRIGGER	Trigger in/output
USB 3.0	USB 3.0 host
USB2.0	USB 2.0 host x 2
TYPE-C	TYPE-C HOST
Wireless	802.11 a/b/g/n,2.4G/5.8 Dual Band WIFI
LAN	10/100M/1000 Ethernet
IR	IR in/output
HDMI INPUT	HDMI2.0 input with PVR function
HDMI Audio output	HDMI2.0 Audio Only output
HDMI output	HDMI2.0 output
Optical	Optical output
Coaxial	Coaxial output
Composite Audio /Video	AV output
Headphone output jack	6.5”Headphone Audio output jack
SATA	External SATA port
SATA3.0	Internal 3.5”SATA
