15kg 22kg Rail Joint Bar

Product details
Surface:Natural;Material:Q235,45#;
Sample:Available;Single volume:1 cm;
Dimensions (L x W x H) (mm):Customer's Drawing;Usage:Connect Two Pieces Steel Rails;
Standard:UIC,AS,BS,DIN,GB,ASTM,JIS;Model Number:Rail Joint Bar;
Quality Control:Machine Adjustment;Packaging Detail:On pallets for 15kg 22kg Rail Joint Bar .;
Package Preview:;Holes:4 Holes,6 Holes;
HS Code:730240;Type:Rail Fishplate;
Single gross weight:1.0 KG;Product Name:15kg 22kg Rail Joint Bar;
Place of Origin:Shanghai China;Certificate:ISO 9001:2008;
Selling Units:Single item;Brand Name:HANZI;

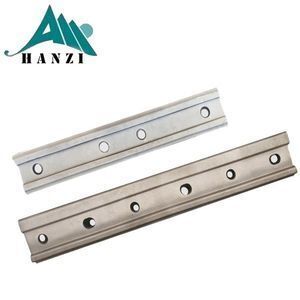

15kg 22kg Rail Joint Bar

Specifications
Fishplate for UIC Standard Steel Rail
Steel Rail TypeSteel Rail Weight (KG/M)Fishplate StandardFishplate Material
UIC5454.43UIC45#,55#
UIC6060.34
Fishplate for BS Standard Steel Rail
BS50'O'24.833  BS 47-1

55#,45#

   European Grade 700

BS60A30.618
BS75R37.041
BS80A39.761
BS90A45.099
BS100A50.182
BS113A56.398
Joint Bar for AREMA 2007 Standard Steel Rail
100RE(TR50)50.35AREMA 2007

   45#,55#,

AREMA Grade Steel

115RE 56.9
115-119RE
132RE 65.31
133RE66.1
136RE 67.41
132-136RE
Fishplate For Chinese Standard Steel Rail
GB15KG15.2YB226-63    Q235,45#
GB18KG18.06 YB225-63
GB22KG22.3YB14-63
GB24KG24.46
GB30KG30.1 YB351-63
GB38KG38.733TB/T 2345-2008    45#,55#
GB43KG44.653
GB50KG51.514
Detailed Images



HANZI Rail Joint Bar users include  railroads construction, mining companies, heavy industries,overhead crane , railroad and tunneling  industry, transit authorities, subway, passenger  railway and operators of port facilities,etc.

Production Flow



Loading



Project Usage



Related Products

Hanzi can supply a full set railway fastening including Rail Joint Bar for you:



Company Information

Hanzi Industrial Shanghai Co., Ltd specializes in manufacturing railway accessories. As an ISO certified company,we have a large selection of track accessories and tools to fit your needs:  Steel Rail, Rail Clip, Fishplate(Joint Bar), Baseplate, Rubber Pad, Rubber Crossing Plates, Screw Fasteners, Rail Clamps, Rail Anchors, Turnout,Wagons and Rail Maintenance Machines etc.





In order to ensure better quality, the Rail Joint Bar have to undergo many tests, including  chemical composition test, tensile strength test, hardness test and the drop weight test

As Alibaba Trade Assurance Member, it means you will get 100% payment refund up to Trade
Assurance Amount if we can’t meet agreed delivery and quality terms contained in the contract.
It is a free service for both of us. Thus you can place order to us with confidence.
Hanzi Certifications

ISO Certified Company

Hanzi Industrial established a comprehensive Quality Assurance (Q.A) System. It is regularly tested,approved and audited by independent Q.A auditor. This complies with internationally standards ISO 9001: 2008.
