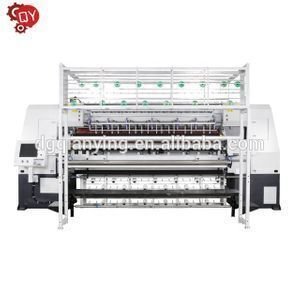

High-speed Computerized Chain Stitch Multi-needle Quilting Machine

Supplier: Dongguan Qianying Industrial Co., Ltd.
Region: Guangdong, China
Contact: Ms Anna Zhong
Price: $28500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Selling Units:	Single item;	Warranty:	1 Year;
Condition:	New;	Needle Rrows:	3;
color:	white and blue or customized;	After-sales Service Provided:	Field maintenance and repair service;
Dimension(LWH):	5300x1600x2150mm;	Package Type:	1. Film & fabric 2. Customized;
Certification:	CE Certificate;	Brand Name:	QianYing;
Max Sewing Thickness:	80mm;	Place of Origin:	Guangdong China (Mainland);
Package Preview:	https://sc01.alicdn.com/kf/HTB1wQwKatfvK1RjSszhq6AcGFXa4.jpg_640x640.jpg;	Number of Head:	Multi needle;
Single gross weight:	5,500 KG;	Speed:	60-230m/h;
Moving Style:	Head Moved;	Quilting Width:	2450 MM;
Weight:	5300kg;	Space Between Needle:	25.4mm;
Max Sewing Speed:	1200r/min;	After-sales Service Provided:	Engineers available to service machinery overseas;
X-axis movement displacement:	more than 300mm;	package:	film&paper;
Space Between Needle Rows:	3"+2"; 3"+3";	Voltage:	380V / 50HZ or 220V /60HZ;
Power(W):	8kw;	Single package size:	530X160X230 cm;
Stitch Length:	1-12mm;	Delivery Detail:	0 days after payment;

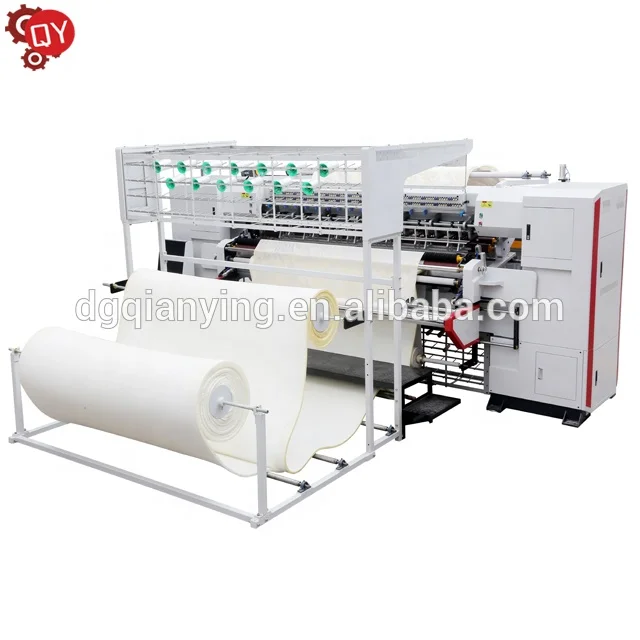

QYCS-96-3-6 Computerized Chain Stitch Multi-needle Quilting Machine

It is widely used for mattress panel, mattress pads, bedspreads, comforters, bedding, blankets, seats covers, decoration, and more.

Technical parameters:

Model	QYCS-96-3-6
Dimension(LWH)	530016002150mm
Quilting Width	2450mm
Needle Rows	3
Space between needle rows	3”+2”, 3”+3”
Space between needle	25.4mm
X-axis movement displacement	300mm(or above)
Thickness of quilting	equal or less than 80mm
Stitch length	1-12mm
Speed of operation	60-230(m/hour)
Model of needle	24/180,23/160 ,22/140, 21/130
Quilting speed	1200(r/min)
Voltage	380V/50HZ 220V/60HZ
Total Power	8KW
Gross Weight	5300KG

Main Features:

1. New aluminum alloy needle bar and press plate are controlled by a double-swinging device without cam avoiding lubrication and dirtying of material.

2. 360°Multi-span and independent patterns, automatic thread trimming function.

3. Self-developed system, also supports quilting embroidering mainstream DST format file, easy to operation.

4. Computer host adopt the most advanced embedded operating system and self-developed motion control chip, Fast response speed, long service life, good stability.

5. Spindle driven by servo motor, it is able to change speed and positive inversion, cooperate with software to complete the slice thread trimming function.

6. Adopt international advanced slice thread trimming function, effectively reduce the probability thread jump, more stable.

7. Strong function of pattern-combining and multi-span( Tack&Jump) quilting to enable you to quilt different patterns in each row in the mattresses of different sizes.

8. High rigid machine body, high running speed, balance running, high precision, lower rate jump threads, perfect pattern stitch.

9. Infrared safety protection and Auto-stop sensors detection function.

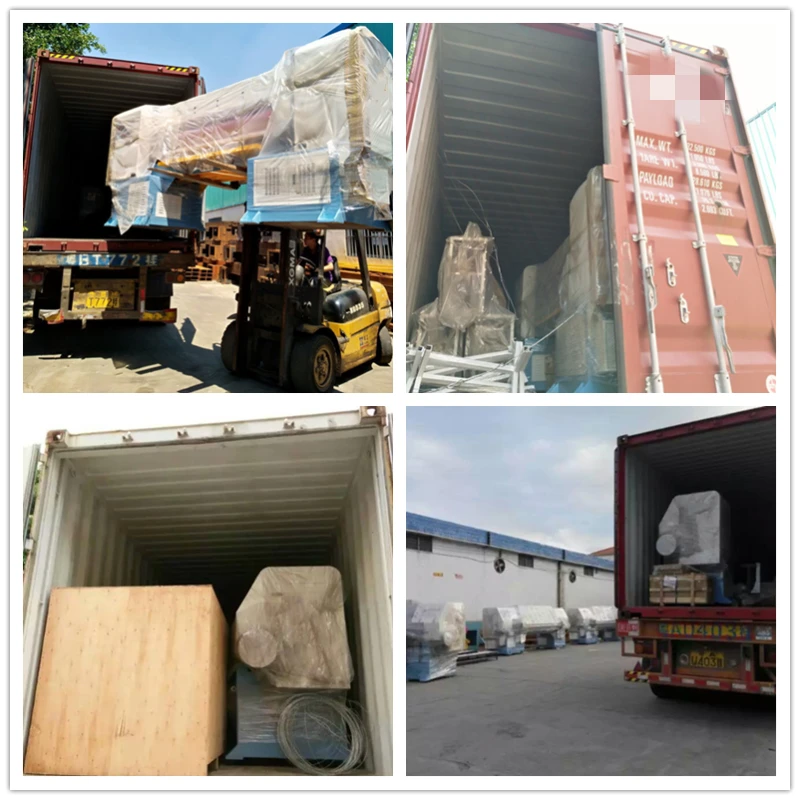

Packaging & Shipping:

Our Service:

1. Pre-sales service

A. Inquiry and consulting support.

B. Visit our Factory.

C. Further consulting.& adopt customer advice.

2. After-sales service

A.Training how to instal the machine, training how to use the machine.

B. Engineers available to service machinery overseas.

C. The machine maintain for one year, if the damages caused by machine itself, excluding the man-made accidents, the broken parts offered by seller in free of charge, but the transport cost for buyer's account.
