dry dog food pellet making machine,pet food extruder

Product details
Motor:Chinese Brand;Type:Single Screw Double Screw;
Weight:3600kgs;Raw material:Corn Powder;
After-sales Service Provided:Engineers available to service machinery overseas,Field installation, commissioning and training;Capacity:1000-1200kg/h;
Marketing Type:New Product 2020;Condition:New;
Supply Ability:50 Set/Sets per Month;Dimension(L*W*H):3050*1950*1750MM;
Warranty of core components:1 Year;Warranty:1 Year;
Machinery Test Report:Provided;Port:Qingdao Port, Tianjin Port;
Certification:CE ISO9001;Core Components:PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump;
Power:90KW;Package Preview:;
Brand Name:DGP160;Name:Pet Feed Making Machine;
Product name:Small dry dog food pellet making machine,pet food extruder;After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Packaging Detail:Plywood for LCL loading. FCL for full production line.;
Applicable Industries:Manufacturing Plant,Farms,Food Shop,pet shop;Application:cat, dog food production,Dog;
Voltage:380V/50HZ;Showroom Location:Philippines,Pakistan,Bangladesh,Nigeria,Malaysia;
Material:304 Stainless Steel;Function:Producing Animal Feeds Pellets;
Video outgoing-inspection:Provided;Local Service Location:Philippines,Pakistan,Malaysia,Bangladesh,Nigeria;
Place of Origin:Hebei China;

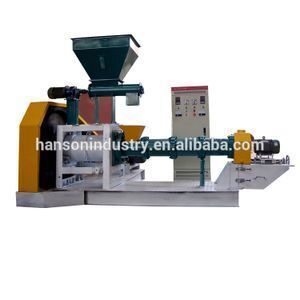

Small dry dog food pellet making machine,pet food extruder

Product Description

1.) The machine is widely used in pet food pellet production. Such as dog,cat, bird.. The pellet quality is close to the human beings food in the fine level, the health index and the nutritional ingredients, some of them request more highly  than human beings.

2.) According to customer different requirements,we have dry type and wet type fish feed extruder machine for your choice.





Feature:



1).Our this dog food machine adopt international advanced technology, the pellets size are very even.
2).We can adjust the cutter speed and the dies to get the different diameter and different shape pellet.
3).The Electric heating device system can control the temperature accurately
4).High temperature and high pressure can kill the salmonellosis andbacterial infections make them easy to digest and absorb.
5).This line can produce high-protein fish feed.

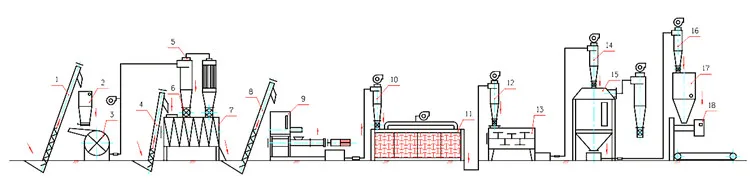

6) Flow chart: Material - Crushing - Mixing - Making pellet - Drying - Cooling - Seasoning - Packaging

Raw Material:

The raw material is: Flour,corn meal,soybean meal,maize meal ,meat meal,bone meal,fish meal etc.

Fitness: about 60-80mesh which were crushed and mixed.

Moisture content: about 20%-25%.



End Pellet Shape: 0.9-15MM



Machine Specification:

No.Item

            Power

(Main+Feeding+Cutting)   /KW

Productivity

(KG/H)

Dimension

(MM)

Weight (KG) Remarks
Dry Type: Floating fish feed Pellet Machine
01DGP406+0.4+0.430-40KG/H1600*1120*1250MM280KGFree parts
02DGP5011+0.4+0.460-80KG/H1460*1100*900MM370KGFree parts
03DGP6015+0.4+0.4120-150KG/H1460*1020*1250MM420KGFree parts
04DGP7018.5+0.4+0.4180-250KG/H1600*1400*1350MM650KGFree parts
05DGP8022+0.4+1.1300-350KG/H1800*1450*1350MM750KGFree parts
06DGP9030+0.6+1.5400-450KG/H2000*1450*1350MM1100KGFree parts
07DGP12055+1.1+2.2500-700KG/H2400*1950*1600MM1850KGFree parts
08DGP13575+1.1+2.2800-1000KG/H2550*2050*1600MM1900KGFree parts
09DGP16090+1.5+2.21200-1500KG/H2900*2650*1800MM3600KGFree parts
10DGP200132+1.5+3.01800-2000KG/H3000*2850*1900MM4300KGFree parts

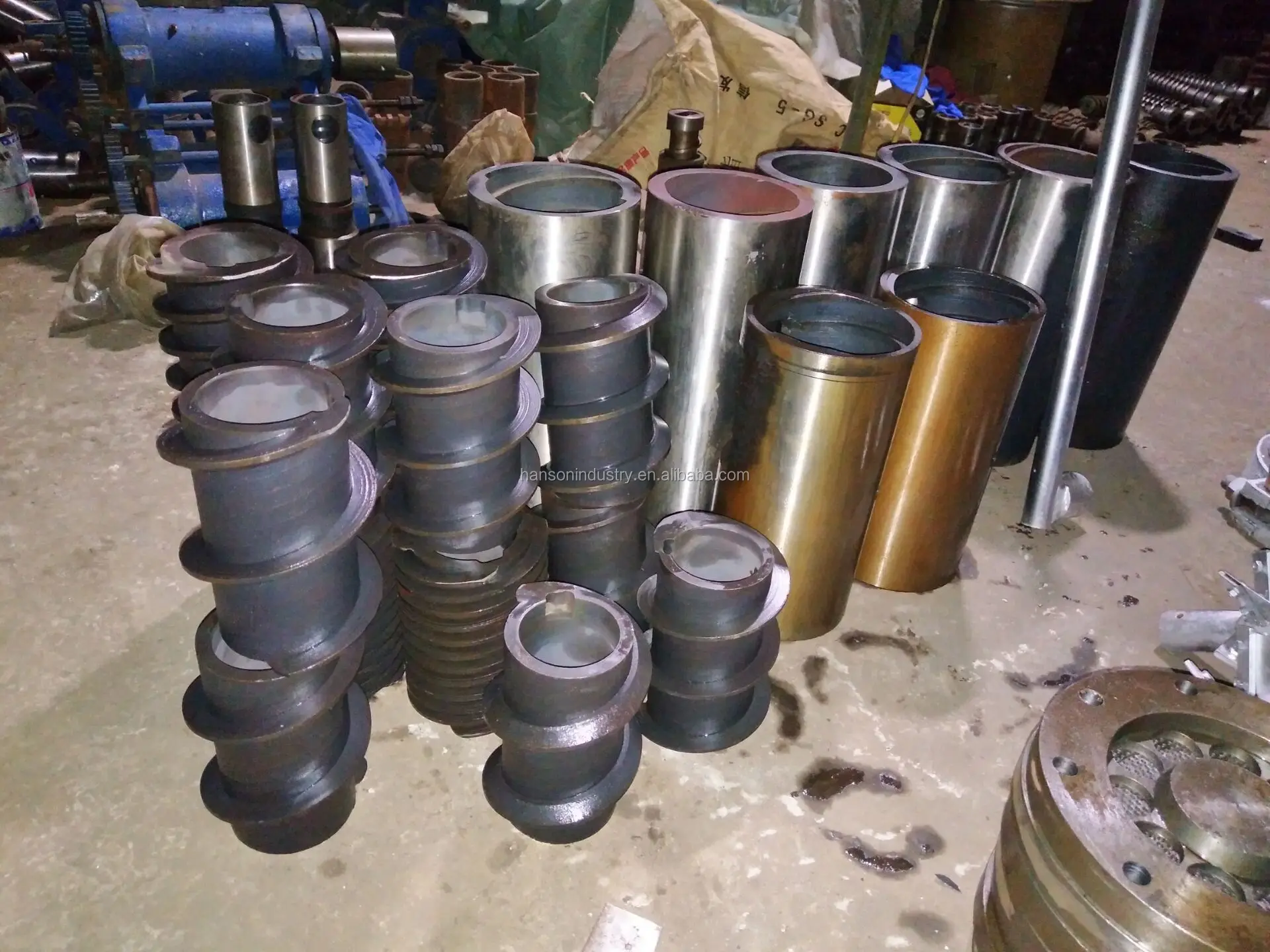

Free charge Parts:

1. For each fish feed machine, except the machine carry wear parts(screw, sleeve, mould, cutter....) we will provide another set in
FREE CHARGE for customer replacement during production.
2. They were made of high quality wear-resisting alloy steel, which are processed by special heat treatment, high hardness, long
working life.





Packaging & Shipping

Small dry dog food pellet making machine,pet food extruder

Packing: Export standard wooden case or Whole contaciner

Delivery time:Withing 10-15 working days.

Shipping:By sea

Our Services

Small dry dog food pellet making machine,pet food extruder

1. The warranty time is one year, except the easy-wear parts.

2. If any parts are found defective in quality in the first year, we shall replace it freely.
3. Engineers can go abroad to guide the installation and traing.

Company Information

Small dry dog food pellet making machine,pet food extruder

Established in 1984 in China, we are factory of fish feed extruder with 34 years of developing and manufacturing experience; Our main product covering Dry/Wet type fish/pet feed production line, diesel engine fish feed extruder, corn/soyabean extrusion line, feather meal extrusion line, poultry feed production line, home use portable feed pellet mill…..By now, we have had a lot plant well set in Russia, Bangladesh, Nigeria, Zimbabwe, South Africa, Ivory Coast….etc, Excellent quality and first-rate after sale service made us survive. Welcome your inquiries and visiting to our workshop at any time.

FAQ
Small dry dog food pellet making machine,pet food extruder
Q: What’s the difference between dry type extruder and wet type extruder?
A: The wet type extruder own a conditioner, which need a steam boiler assistance while the dry type extruder doesn’t. In this case, the dry type is cheaper than wet type.Besides, the wet type extruder max output is 4ton/hour, and dry type max output is 2ton/hour. So Wet type is more suitable for medium and large scale fish feed plant, and dry type is more suitable for small scale plant.Morover, the feed pellets made by wet type extruder is much smooth and with better quality.

Q: What kind of raw materials should I use?
A: Corn, flour, rice, bean pulp, cottonseed meal, bone power,fish meal,feather meal, meat……if you lake of some items,contact us we will give suggestion according to the available materials in your local.
