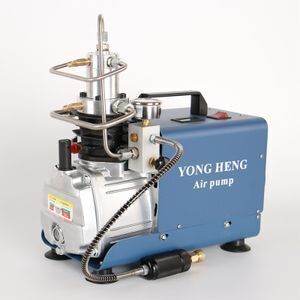

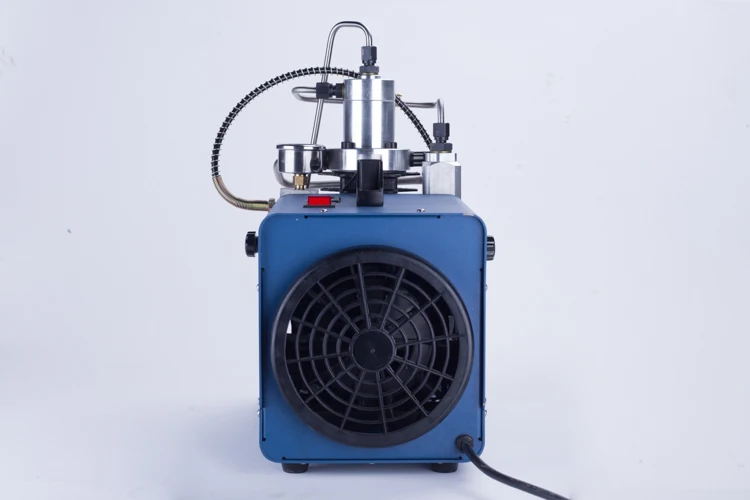

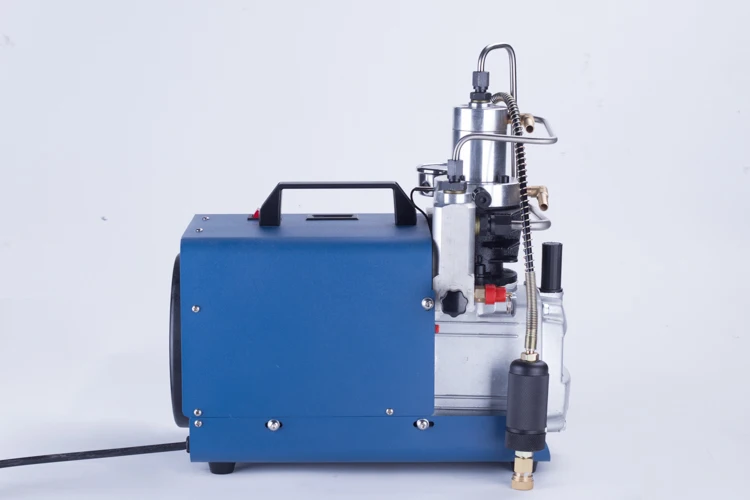

Yongheng Factory 30mpa Scuba Tank Compressor Manual Stop Version

Click here to contact

Product details

Applicable Industries:	Machinery Repair Shops,Home Use,Retail;	Local Service Location:	None;
Single package size:	38X20X38 cm;	Video outgoing-inspection:	Provided;
After-sales Service Provided:	Online support;	Warranty:	1 Year;
Power Source:	AC POWER;	Certification:	CE;
Configuration:	PORTABLE;	Core Components:	Pump;
Model Number:	YH-QB01;	Machinery Test Report:	Not Available;
Package Preview:	;	Single gross weight:	20.0 KG;
Brand Name:	YONGHENG;	Marketing Type:	Ordinary Product;
Product name:	Electric pump;	Air capacity:	50L/min;
Working Pressure:	300bar;	Power:	1800W;
Version:	Manual Stop;	Weight:	20KG;
Cooling:	Water Cooling;	Showroom Location:	None;
Selling Units:	Single item;	Condition:	New,New;
Lubrication Style:	splashing,Lubricated;	Place of Origin:	Jiangsu China;

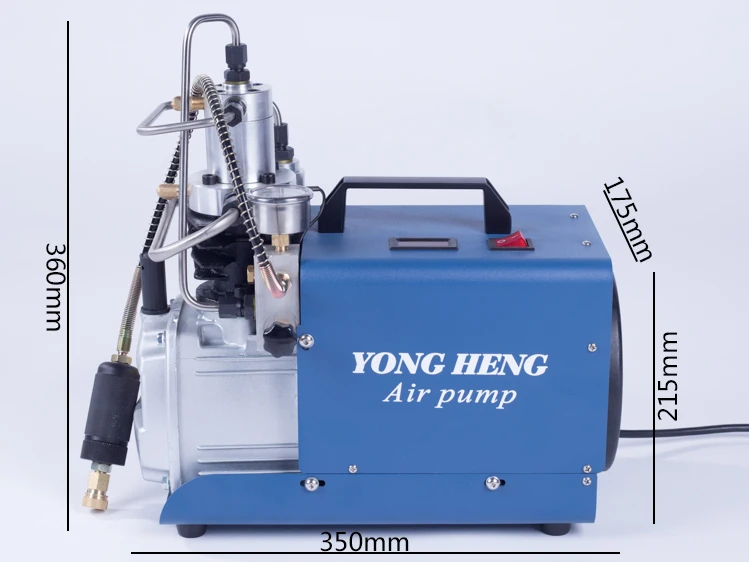

Pressure:	300bar/4500psi/30mpa;	Dimension(LWH):	350175360;
Packaging Detail:	2cm thickness honeycomb cardboard box, filling material is 3cm thickness pearl cotton. To ensure the good arrival of the goods.;	Mute:	No;

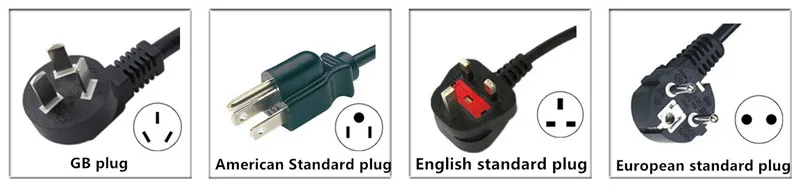

Gas Type:	Air;	Voltage:	110V/220V,220V/110V;
Brand:	Yongheng;	After Warranty Service:	Video technical support,Online support,Spare parts;
Charging rate:	50L/M;	Type:	Reciprocating;
Warranty of core components:	1 Year;

Model	YH-QB01
Volume	L36CM* W18CM *H37CM
Net Weight	16KG
Voltage	100-130V or 220V-250V 60HZ/50HZ
Power Rating	1.8KW
InflatingSpeed	2800R/Min
Noise	MAX 78DB
Air Flow Rate	50L/Min
Working Pressure	0-300BAR 0-30MPA 0-4500PSI
Cooling System	Water Cooling
Compression Stage	Two Stage
Lubrication Mode	Splash Type
Material of Cover	Cast Aluminum
Material of Motor	100% Pure Copper
Oil:	ISO VG46 Anti-Wear Hydraulic Oil (the machine is without of oil because the oil is not allowed on the plane)
Test Inflating Result	It takes 3 mins 50 seconds to fill full 0.45L tank to 30MPA
Test Inflating Result	It takes 8 mins to fill full 1L tank to 300BAR
