New Industrial Wood Steel Plant Dust Collector with 30 years

Supplier: Cangzhou Yiyoute Equipment Co., Ltd.
Region: Hebei, China
Contact: Ms lisa wang
Price: $800.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Efficiency:	99.99%;	Brand Name:	yiyoute;
Dimension(LWH):	Model;	Minimum Particle Size:	0.5 Micron;
Supply Ability:	5 Unit/Units per Day we own 6products lines for dust collector and accessory;	Condition:	New;
Packaging Detail:	The dust collector package as your request;	Structure:	Pulse Jet System;
After-sales Service Provided:	Engineers available to service machinery overseas;	Type:	New Industrial Wood Steel Plant Dust Collector;
Application:	Dust Collection system;	Name:	New Industrial Wood Steel Plant Dust Collector;
Power:	0.75-5.5kw;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,cash;
Use:	Bag Filter for Dust Collector;	Certification:	ISO9001;
Place of Origin:	Hebei China (Mainland);	Main function:	Industrial Dedusting;
Port:	Tianjin Xingang port;	Filtering area:	96 - 1728 M2;
Weight:	2300 KGS;	Warranty:	1 Year;
Delivery Detail:	within 15 days for Dust Collector;	Material:	Carbon Steel;
Item:	Pulse Jet Dust Collector;	Other Name:	dust collector;
Model Number:	dust collector;

New Industrial Wood Steel Plant Dust Collector with 30 years

Product Description

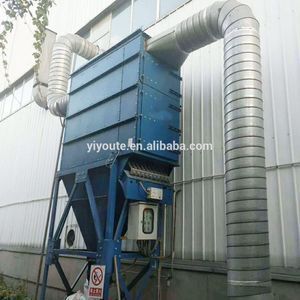

Baghouse cyclone dust collector

Offline chamber blow, three state controlled, and to get the best air blow way ash removal effect. The use of new type low resistance offline valve, with optimized design, the overall filter to keep the entire precipitator long-term reliable running low resistance state.Negative pressure inside the filter type, easy disassembly, convenient maintenance. Differential pressure or timing ash removal mode of PLC automatic control, equipment operation support system reliability.

Clink know more details !!!

Model Parameters	DMC-32	DMC-48	DMC-64	DMC-80	DMC-96	DMC-112
Air Volume(m3·h)	1500-2100	2100-3200	2900-4300	4000-6000	5200-7000	6000-9000
Filter Area(m2)	24	36	48	60	72	84
Filter Wind Speed(m/min)	1.0—1.5	1.0—1.5	1.0—1.5	1.1—1.7	1.2—1.7	1.2—1.8
No.of Filter Bag	32	48	64	80	96	112
Entrance Gas Temperature(℃)	≤120
Equipment Resistance(Pa)	≤1200
Soot Cleaning With Air Pressure(MPa)	0.4~0.6
No.of Pulse Valve	4	6	8	10	12	14
Blower Motor Power(KW)	1.5	3.0	3.0	5.5	5.5	7.5

Clink know more details !!!

Dust Collector Working Principle

The dirty or contaminated air enters the dust collector through the inlet and passes through a number of filter cartridges/Bags (before the contaminated Air passes through the Filter Bag/Cartridge; baffle plate works as a protecting layer to control/retain heavy particles, which protects filter bags/cartridges to get in touch with heavy particles and damage caused by it) which retain the dust particles on the exterior surface while allowing clean air to pass through the outlet. As the collector operates, the collected dust begins to form dust cake, which eventually diminishes the porosity of the filter cartridges. As the pressure drop increases the ventilation volume of the collector decreases.

The cleaning procedure occurs on a row-by-row basis therefore only a fraction of total dust collector filter air is interrupted for cleaning allowing continuous ventilation.

Cangzhou YiYouTe industiry equipment company is the biggest manufacture in north of China, own bag filter ,dust collector equipment ,pulse valve ,filter bag ,polyester filter bag ,PPS filter bag, nomex filter bag ,fiberglass filter bag, cement filter bag ,filter cage ,venturi,conveyors , slide damper gate valve,rotary airlock vavle,and embeded pulse valve producing lines.Our produce enjoy good market in the world,and we can supply all the technical support in using time.

Clink know more details !!!

Other Product Lines

Packaging & Shipping

Why Us

Advantage of Company:

1. Design: have our own Engineer term, each machine is designed as customer’s specific requirement, the performace is higher 20~40% than other factory with same cost.

2. Quality: Test machines and have commercial inspection before shipping, maintanence is lower 30%-50% than the same industry.

3. After-service: provide technical guidance freely during machine service life.
