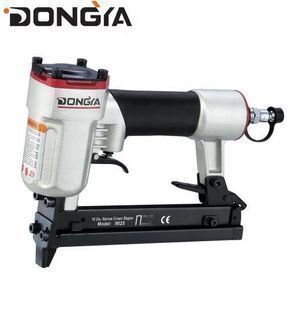

Pneumatic Narrow Crown Air Stapler for steel

Supplier: Zhejiang Dongya Facility Co., Ltd.
Region: Zhejiang, China
Contact: Ms Nicole Cai
Price: $13.50 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Material:	Aluminum Alloy;	Operating Pressure:	4~7kg/cm2(60~100Psi);
Delivery Detail:	0 days after payment;	Package Preview:	https://sc01.alicdn.com/kf/HTB1VPKun8DH8KJjy1zeq6xjepXa5.jpg_640x640.jpg;
Certificate:	CE, GS, ISO9001:2001;	Weight:	1.30Kgs(2.87 lb.);
Staple Length:	12-25mm;	Staple Width:	5.7mm;
Package:	BMC Packing;	Single package size:	26X19X7 cm;
Load Capacity:	100 Staples;	Selling Units:	Single item;
Dimension:	9.45x2.17x7.01 in.(240x55x178mm);	Package Type:	Normal Paper Box;
Place of Origin:	Zhejiang China (Mainland);	Application:	Furniture;
Single gross weight:	2 KG;

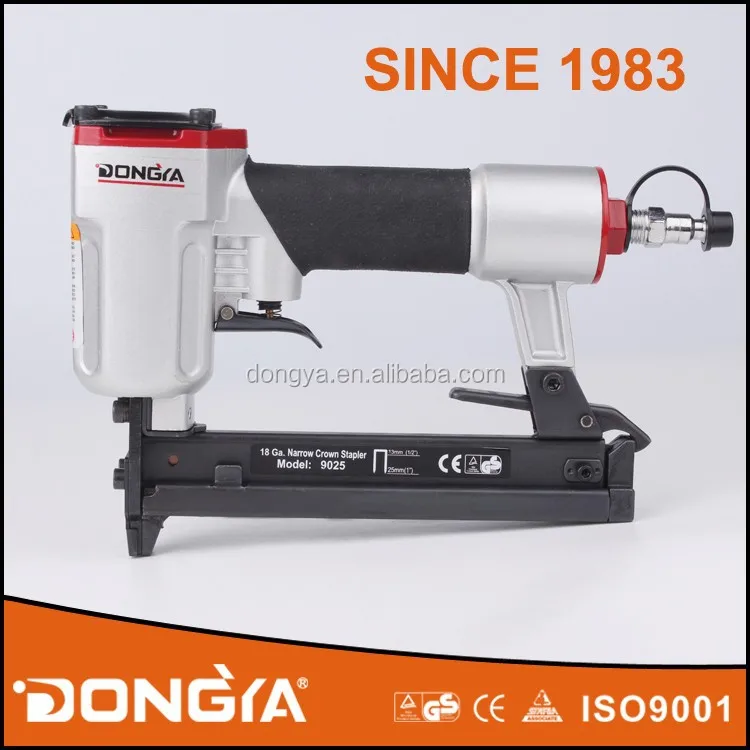

Pneumatic Narrow Crown Air Stapler for steel

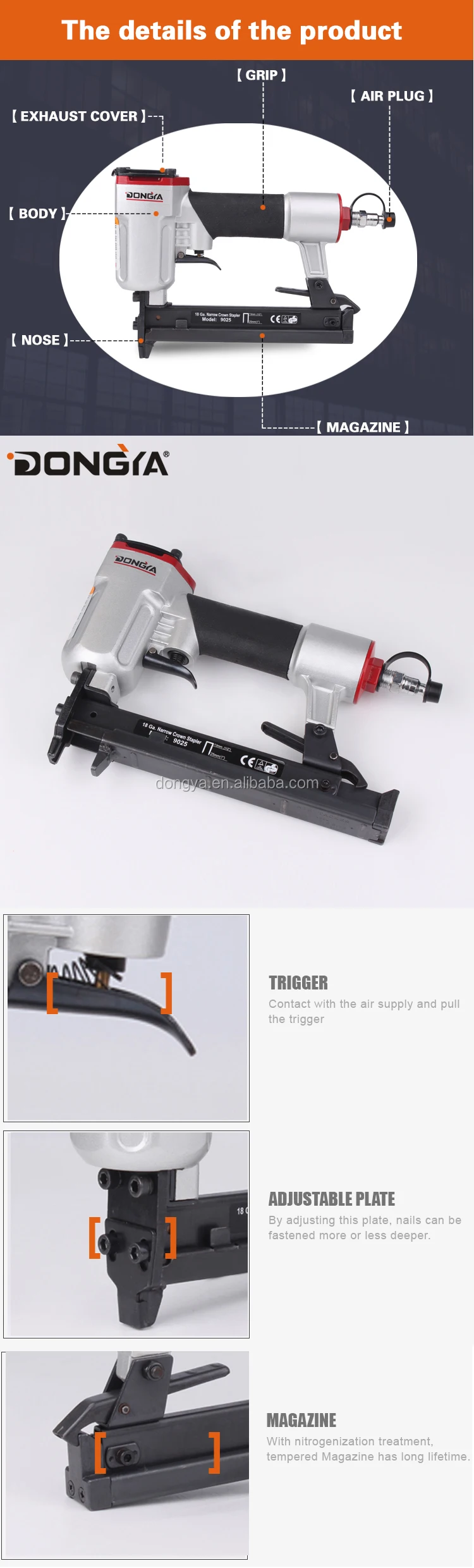

* Features of 425K
1) Light die cast body of aluminum alloy
2) Bottom loading system
3) Remain nail display available
* Operate pressure: 4~7 Kg/cm² (60~100Psi)
* Tool dimensions: 236x56x218mm
* Net tool weight: 1.34Kgs (2.95lbs)
* Load capacity: 100 staples
* Staples length:12mm(1/2'')~32mm(1-1/4'')
(Gauge: 18 Ga.)

Name	Pneumatic Narrow Crown Air Stapler Carton Box Stapler
Load Capacity	100 Staples
Net Weight	1.30Kgs(2.87 lb.)
Dimension	9.45x2.17x7.01 in.(240x55x178mm)
Staples Length	12mm-25mm
Staples Width	5.7mm
Staples Thickness	1.25mm*1.05mm

Pneumatic Narrow Crown Air Stapler for steel

Pneumatic Narrow Crown Air Stapler Carton Box Stapler

Packaging

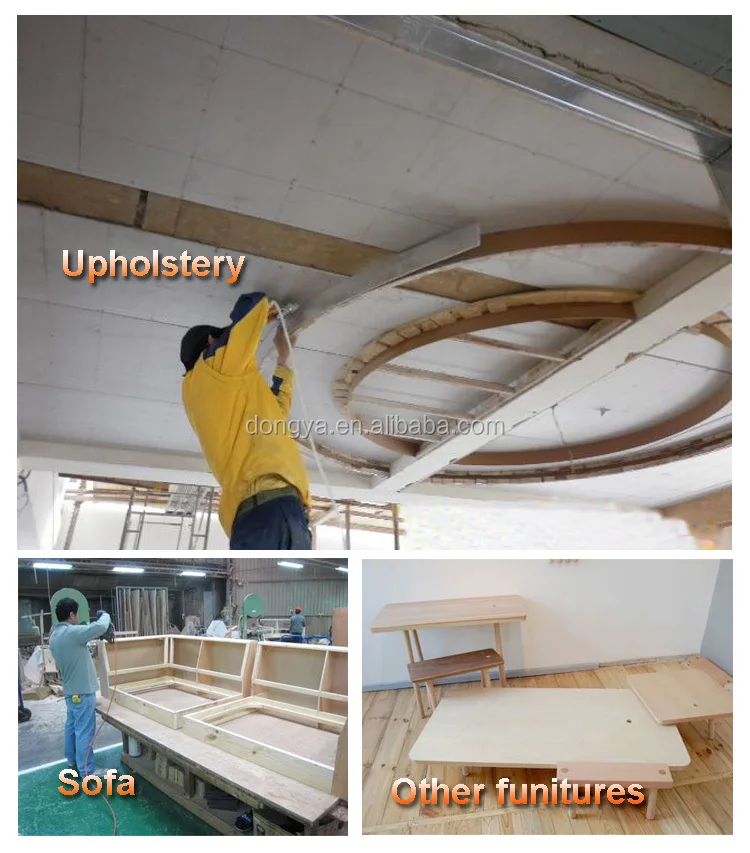

Main Application

Our Services

No.	Symptom		Problems	Solutions
1.1	Air Leak	Air leak in the cylinder cap when tools don't work	1.Loose head valve piston seal or o-rings .	Check and replace the head valve piston set
			2.Worn or damaged o-ring or cylinder cap gasket under cylinder cap	Check and replace o-ring or cylinder cap gasket under the cylinder cap
1.2		Air leak in Trigger area when tools don't work	1.Damaged o-ring in trigger valve	Check and replace o-ring
			2.Damaged o-ring in trigger valve stem	Check and replace o-ring
			3.Dirt in the trigger valve	Check and clean the trigger valve
1.3		Air leak in cylinder cap when tools are working	1.Damaged head valve piston o-rings	Check and replace o-rings
			2.Damaged seal under cylinder cap	Check and replace seal
1.4		Air leak in nose when tools are working	1.Worn or damaged bumper	Check and replace bumper
			2.Loose driver(piston unit) thread	Check and replace driver(piston unit)
1.5		Air leak in Trigger area when tools are working	1.Worn or damaged trigger valve head	Check and replace trigger valve head
			2.Damaged head valve piston o-rings	Check and replace head valve piston and o-rings
