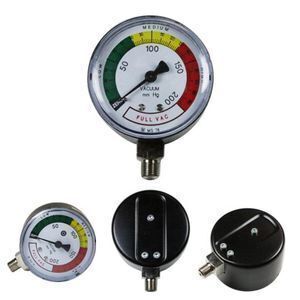

High quality black steel medical low pressure vacuum manometer pressure gauge
- 8.00 >=50 pieces
| OA payment: | Acceptable; | Item name: | High quality black steel medical manometer; |
| Quality: | 100% inspection; | Supply Ability: | 50000 Piece/Pieces per Month medical manometer; |
| Machinery: | eg:Ultra-sonic cleaning machine,laser welding machine; | Material: | black steel case; |
| Standard: | EN837-1 or DIN; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,medical manometer OA; |
| Model Number: | black steel medical manometer; | Place of Origin: | China; |
| Finishing: | mat or polish; | Mounting: | 1/4NPT; |
| Port: | Ningbo,Shanghai; | Brand Name: | GC medical manometer; |
| Certification: | ISO; | Packaging Detail: | medical manometer:packed with one polybag and one small carton,outside is 5 layer big carton ,shipped with safety pallet.; |
| Pressure range: | -20/100mmh2o; |
High quality black steel medical manometer
Highly accurate reading of low pressures
• Brass or stainless steel wetted parts
• Ranges from -600-0. 0-25 to 600mbar
Suitable for measuring gaseous media both corrosive and non-corrosive
• Used to measure natural gas pressure as well air flow indications and leak detection
• Vacuum pumps, air compressors, air filters, gas burners, vacuum ovens, suction regulators
and respirators
|
Dial: |
2.5” (63mm), 4” (100mm), and 6” (150mm) |
|
Case: |
304SS, black steel, black enameled |
|
Lens: |
Polycarbonate |
|
Measurement elements: |
Standard copper alloy double diaphragm tin welding: Stainless steel corrosion proof SUS316 double diaphragm |
|
Socket: |
316 SS |
|
Connection: |
NPT standard |
|
Movement: |
Standard brass alloy, corrosion proof 316 stainless steel |
|
Pointer: |
Aluminum |
|
Welding: |
Laser welding |
|
Working Pressure: |
75% of full scale value |
|
Over-Pressure Limit: |
30% of full scale value |
|
Ambient Temperature |
-40°F to 150°F (-40°C to 65°C) |
|
Accuracy |
±2.5 |
|
Enclosure Rating |
IP52 |
Options/notes:
Lower, back entry, or surface or panel mount
