1000kg Good Price Hydraulic Vertical Mezzanine Cargo Lift

Click here to contact

Product details

Core Components:	Motor,Pump;	Packaging Detail:	standard export package - steel pallet;
Local Service Location:	None;	Overall Dimensions:	2500*2200mm;
lift pit size:	2400*2100mm;	no. of stops:	2/3/4;
After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support;	Power:	3.00kW;
Video outgoing-inspection:	Provided;	power supply:	AC 110/220/230/380/415V;
Machinery Test Report:	Provided;	Lift Mechanism:	Lift Chain;
Marketing Type:	Ordinary Product;	Selling Units:	Single item;
usable platform size:	1800*2000mm;	Min. Lifting Height:	100mm;
Place of Origin:	Guangdong China;	Warranty:	1 Year;
Showroom Location:	Bangladesh,None;	lift motor:	3.00kW;
lifting speed:	95mm per second;	Single package size:	60X60X60 cm;
Package Preview:	;	Brand Name:	LIFPALIFT;
Condition:	New;	Single gross weight:	60.0 KG;
Applicable Industries:	Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Retail,Construction works ;	travel height:	10.0m;
Table Size:	1800*2000mm;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Warranty of core components:	1 Year;	Operate type:	AC Powered;
lowered height:	0.10m;	capacity:	1000kg;
Weight:	1950kg;	Lift Drive / Actuation:	Hydraulic;
Certification:	CE;

Product Description

1000kg Good Price Hydraulic Vertical Mezzanine Cargo Lift

LIFPALIFT's good price hydraulic vertical mezzanine cargo lift a simple, robust and versatile

mezzanine floor lift for handling loads up to 3000kg between two or three floors in warehouses,

factories, stores and workshops.

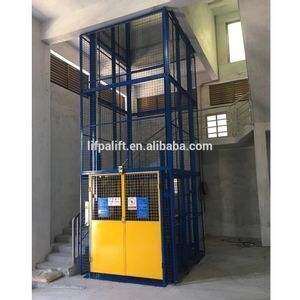

Real Pictures

Product Highlights

• LIFPALIFT's exclusive Assembled Positional-Rollers.

• Removeable design for Easy Installation.

• Up to 8 sets of Rollers to support the platform completely.

Features & Benefits

• LIFPALIFT's exclusive Assembled Positional-Rollers provides lifting and lowering stably

• Same or Through loading & unloading configuration

• Standard equipped Steel Wire Ropes provides addtional strength and safety

• Emergency stop button fitted to all control stations

• Manual Lower Valve

• Floor mounted, no pit required

• Comprehensive O&M manual in English version

• AC 110/220/380/460V, 50/60Hz power supply

• Custom size and specs available

Standard Safety Features

• Standard equipped Steel Wire Ropes for addtional safety.

• Emergency stop button fitted to all control stations.

Standard Equipment

• Push-button control station

• 2000mm high platform guardrails on non-loading sides

• Comprehensive Installation / O&M manual in English version

• Same side or Through Loading

Optional Equipment

• Bespoke platform sizes

• Hydraulic Synchronous Valve for unbalance loading

• Trolley stop barriers on platform

• Working flashing alarm beacon

• Safe gates fitted with mechanical interlocks

• 2000mm high double gates at each floor

• Safe gates with Hazard warning safety signs

• Clad enclosure

• American/UK/European standard power input

Main Parameters
