The newest SAA standard DC isolator from ZJBENY

Supplier: Zhejiang Benyi Electrical Co., Ltd.
Region: Zhejiang, China
Contact: Mr Tim Wu
Price: $29.50 / >=16 pieces
Min. Order: 16 pieces

Click here to contact

Product details

Brand Name:	ZJBENY;	Whether the smart:	No;
Single package size:	20X10X10 cm;	Package Preview:	;
Max. Current:	32A;	Certificate:	TUV/SAA/CE/ROHS/UV resistance/Flammability;
Max. Voltage:	1200V;	Single gross weight:	2.0 KG;
Strings:	1/2 strings;	Place of Origin:	Zhejiang China;
Mechanical Life:	15000;	Selling Units:	Single item;
Certification:	SAA TUV CB CE ROHS;	Model Number:	BYT-32M1;
Poles:	2/4 poles;	Standard:	AS 60947.3:2018 , AS/NZS IEC 60947.1:2015;
Packaging Detail:	Qty/box: 1piece Qty/carton: 10pieces;

Product Description

The first DC isolator to AS 60947.3:2018 DC-PV2

DC isolating switches must now have a valid Certificate of Conformity confirming the product complies with AS 60947.3:2018. The brand and all relevant models must be registered to the responsible supplier in the EESS national database and be marked with the Regulatory Compliance Mark (RCM).

ZJBENY DC isolator switch BYT-32M is developed for Australia solar market and popular in worldwide, It’s the first DC isolator complies with the newest AS 60947.3:2018 standard, has been classified as Level 3 equipment on the ERAC website, and with Regulatory Compliance Mark.

1200V True DC for solar PV application

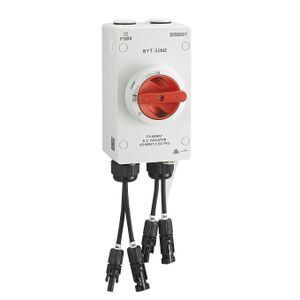

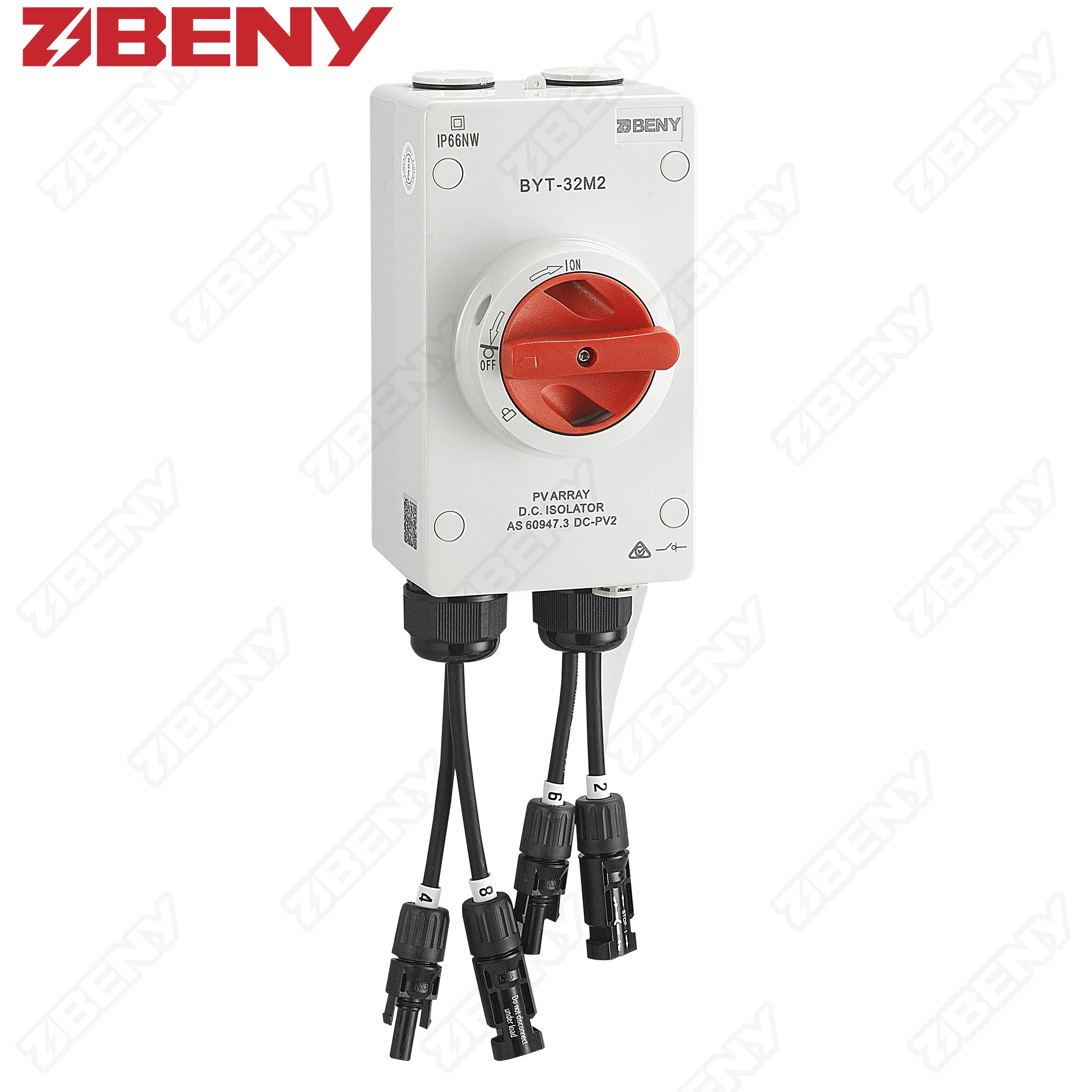

BYT-32M is the 1200V 32A max true DC isolator switch with IP66/67 enclosure for 1 string PV system, the pre-wired MC4 connectors make the installation between the solar arrays and solar inverter faster, no need to open the isolator cover for wiring. The switch must be rated for system voltage (1.15 x string open circuit voltage Voc) and current (1.25 x string short circuit current Isc)

Thanks to the UV resistance enclosure at IP66 protection degree and flame retardant material, the isolator BYT-32M is reliable and long working life, keeps the solar system safety.

Highlight:

* The first DC isolator to DC-PV2

* True IP66/67 DC isolator for solar PV application

* UV resistance and flame retardant technology

* AS 60947.3:2018 standard , IEC 60947.1:2015

* Breathing valve

* With anti-counterfeit label for original ZJBENY

* With MC4 connectors

* 5 years warranty and product insurance

Model	BYT-32M1/BYT-32M2
Poles	4P
Standard	IEC60947.3,AS60947.3
Utilization Category	DC-PV2 / DC-21B
Rated Operational Voltage (Ue)	500V,600V,800V,1000V,1200V
Mechanical Cycle	15000
Electrical Cycle	1000
Ingress Protection	IP66 enclosure/IP20 switch body
Polarity	No Polarity
Certificate	SAA / TUV / CB

In Projects

On each solar PV installation including ZJBENY, we design and supply DC string level protection for solar PV safety.Thousands of solar PV installations with 0 failure.

DC components/Solar combiner box, DC safety solutions for all kinds of photovoltaic systems.
