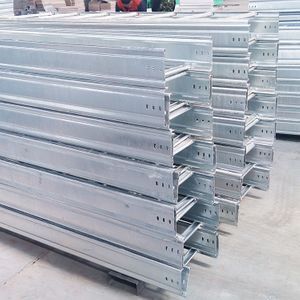

China Professional factory high quality cable tray cable ladder

Supplier: Shandong Jinheng Electric Co., Ltd.
Region: Shandong, China
Contact: Ms Vinnie Wong
Price: $0.10 /meter
Min. Order: 1 meter

Click here to contact

Product details

Material:	Steel;	Width:	200mm-800mm;
Certificates:	ISO9001;	Guarantee:	Direct factory cable tray prices;
Max. Working Load:	500kg;	Packaging Detail:	Steel pallet or according to the customer's specifications;
Supply Ability:	200 Ton/Tons per Month cable tray cable ladder;	Services:	24hours Online;
Customized:	According to the customer's specifications;	Length:	360mm-8000mm;
Type:	Ladder Tray;	Model Number:	XQJ - cable ladder;
Port:	Qingdao or customer's specifications;	Side Rail Height:	60mm/100mm/150mm;
Product type:	Cable ladder or ladder cable tray;	Place of Origin:	Shandong China (Mainland);
Surface Finish:	Electro or hot dipped galvanized or powder coating;	Export Range:	stainless steel, pvc, frp, aluminum, galvanized cable tray;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Thickness:	2mm / 2.5mm / 3mm / customer's specifications;
Brand Name:	Jinheng - cable tray ladder;	OEM:	Available 10years for cable tray;
Raw material:	Steel, aluminum, stainless steel, pvc, frp;

China Professional factory high quality cable tray cable ladder

cable tray cable ladder

Cable tray system is made up of cable tray, cable tray bend, bracket, corbel, accessories etc. It used to support the cable in the process of installation and laying. Cable tray is divided into solid trough & cable trunking, cable ladder, ventilated & perforated trough, large span type etc.

cable ladder tray price

cable bracket

Thanks for browsing our cable tray website. Our company mainly manufacture all kinds of cable tray and cable trunking ,for example ,trough cable tray ,ladder cable tray,large span cable tray etc.

And We can produce galvanized ,hot dip gaivanized,aluminum alloy,stainless steel,PVC,FRP,etc.

I will give you the best price,because we own manufactory ourselves .

If you require to purchase cable tray and cable trunking,please contact me at any time of your convenience.

Why choose us

1.Professional

We have our factory and designers, over 200 workers, and working in manufacture of cable tray with trough type,, ladder type , perforated type, larger span type and combined type etc , with well-equipped testing facilities and strong technical force.

2. Team
Design department and customer can make various types and sizes and surface treatment based on special environments.
With a wide range, good quality, reasonable prices and stylish designs , our products are extensively used in cable and other industries.

3. Service
Our company regards quality as life, and develops by reputation. It is our purpose to offer the best service to you.

Jinheng--Cable tray Specification(Galvanized)
NO	TYPE	Trough 2m/3m/4m	Trough 6m	Ladder 2m/3m/4m	Ladder 6m
NO	TYPE	Thickness	Thickness	Thickness	Thickness
1	100*50	1.0mm	1.5mm	1.5mm	1.5mm
2	100*100	1.0mm	1.5mm	1.5mm	1.5mm
3	150*100	1.0mm	1.5mm	1.5mm	1.5mm
4	200*100	1.2mm	1.5mm	1.5mm	1.5mm
5	200*150	1.2mm	1.5mm	1.5mm	1.5mm
6	300*100	1.2mm	1.5mm	1.5mm	2.0mm
7	300*150	1.2mm	1.5mm	1.5mm	2.0mm
8	300*200	1.2mm	1.5mm	1.5mm	2.0mm
9	400*100	1.5mm	1.5mm	1.5mm	2.0mm
10	400*150	1.5mm	1.5mm	1.5mm	2.0mm
11	400*200	1.5mm	1.5mm	1.5mm	2.0mm
12	500*100	1.5mm	2.0mm	1.5mm	2.0mm
13	500*150	1.5mm	2.0mm	1.5mm	2.0mm
14	500*200	1.5mm	2.0mm	1.5mm	2.0mm
15	600*100	2.0mm	2.0mm	2.0mm	2.0mm
16	600*150	2.0mm	2.0mm	2.0mm	2.0mm
17	600*200	2.0mm	2.0mm	2.0mm	2.0mm
18	800*100	2.2mm	2.5mm	2.2mm	2.5mm
19	800*150	2.2mm	2.5mm	2.2mm	2.5mm
20	800*200	2.2mm	2.5mm	2.2mm	2.5mm
21	1000*150	2.5mm	2.5mm	2.5mm	3.0mm
22	1000*200	2.5mm	2.5mm	2.5mm	3.0mm
