Automatic Tool Change CNC Router CNC Cutting Machine for Cabinet and Door Making

Supplier: Zhongshan Yidian Machinery Co., Ltd.
Region: Guangdong, China
Contact: Ms Ella Shen
Price: $23000.00 /set
Min. Order: 1 set

Click here to contact

Product details

CNC or Not:	CNC;	Place of Origin:	Guangdong China (Mainland);
Brand Name:	YIDIAN;	Packaging Detail:	Packed by foam film/shrink film or plywood case;
Delivery Detail:	20-30 days after receiving 30% deposit;	Application:	Panel cabinet/door making;
After-sales Service Provided:	Engineers available to service machinery overseas;	Condition:	New;
Dimension(LWH):	380026002400mm;	Drive system:	Servo Drive;
Supply Ability:	20 Set/Sets per Month;	Voltage:	380V/50HZ or Customized;
Processing speed:	8-12m/min;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Vacuum pump:	7.5kw, stainless steel;	Control system:	Taiwan Syntec;
Power(W):	18kw;	Certification:	CE/ISO9001;
Model Number:	YD-S9;	Warranty:	1 Year;
Spindle:	6kw Italy HSD Air Cooling Spindle;	Processing size:	2460*1240mm;
Weight:	2400KG;	Product name:	CNC Router;
Port:	Foshan, Guangzhou, Shenzhen;	Spindle speed:	18000r/min;

Product Description

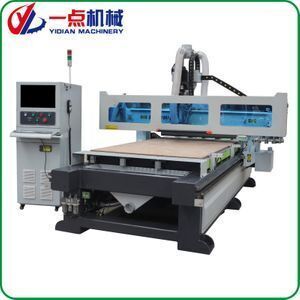

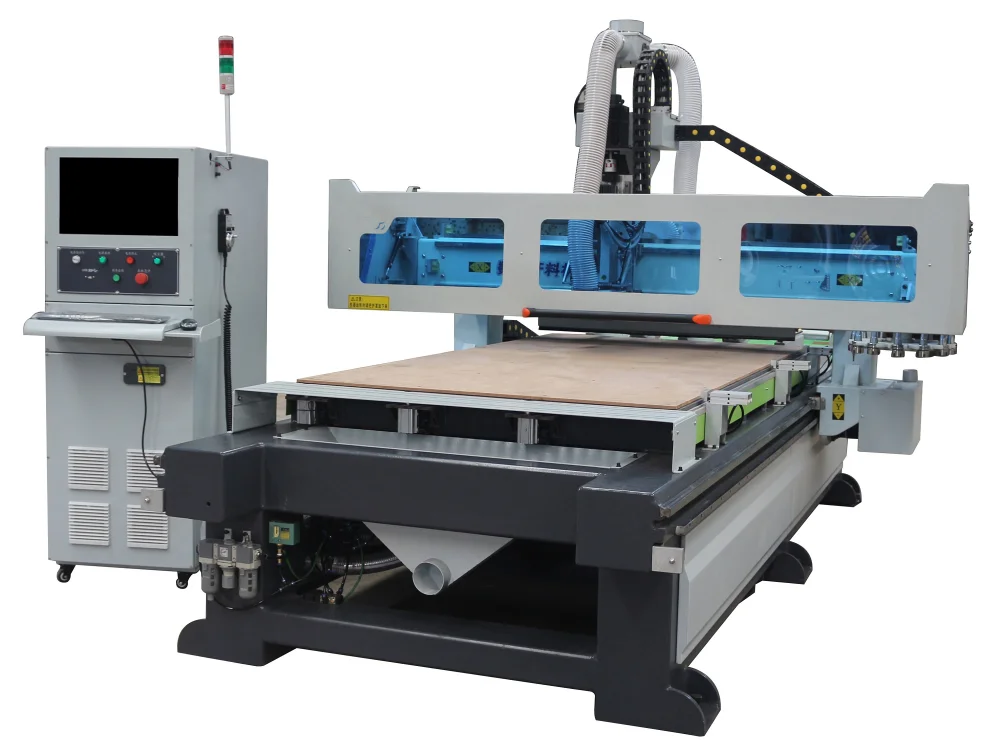

YD-TS910H CNC Cutting Machine / CNC Router

Characteristics:

YD-TS910H CNC Router/CNC Cutting Machine, single spindle with Automatic Tool Change, is designed for customized panel furniture production, such cabinet, wardrobe, office furniture etc. It has one Italy HSD spindle and 12pcs of auto tool changer.

1. Moving gantry structure, economical multiple function, high speed, efficient CAD/CAM Software interfacing.

2. Simple operation: The machine is installed with automatic typesetting software, so it can optimize the layout automatically as long as the operator input the sheet sizes. It's very easy to operate this machine.

3. Saving material: This machine can improve the panel utilization rate even up to 10%.

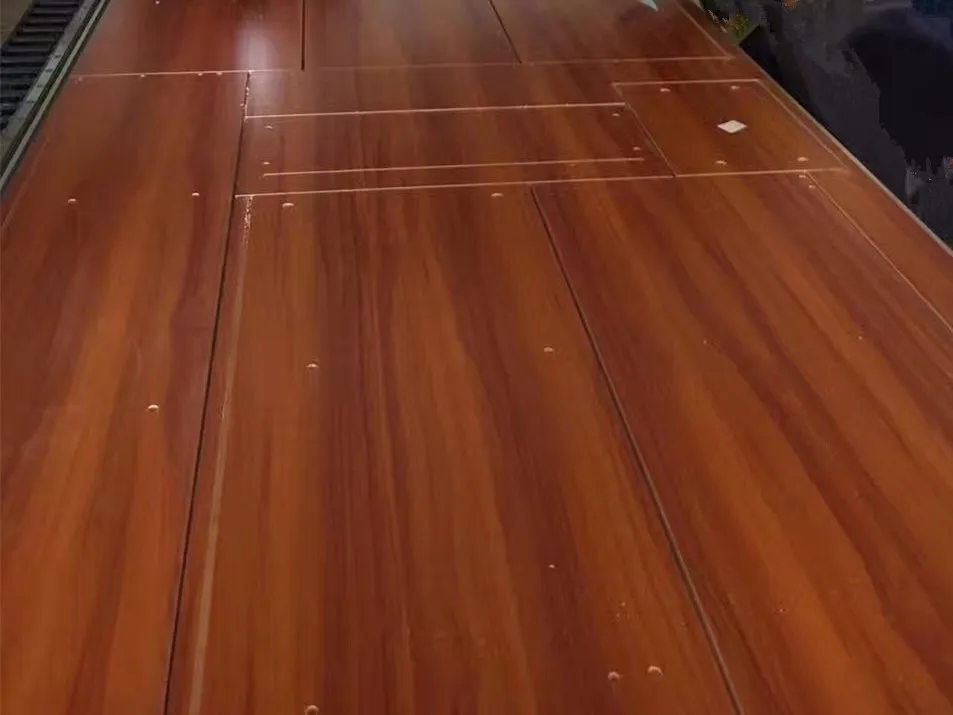

4. Special shape cutting: This machine can cut the MDF/Plywood/chipboard to any shapes, faster and more accurate.

Technical Specification:

Model	YD-TS910H
Voltage	3Phase/380V/50HZ or customized
Processing size	2460X1240mm
Working Area (XYZmm)	1300mm2500mm250mm
Spindle	1*6kw Italy HSD air cooling spindle with auto tool changer
Spindle speed	18000r/min
Traveling speed	＞25m/min
Processing speed	8-12m/min
Vacuum pump water tank	Stainless steel
Vacuum pump power	7.5kw
Total Power	~18kw
Machine Weight	~2400kg
Overall Dimension (L×W×H)	3800×2600×2400mm
Control System	Taiwan SYNTEC Control System

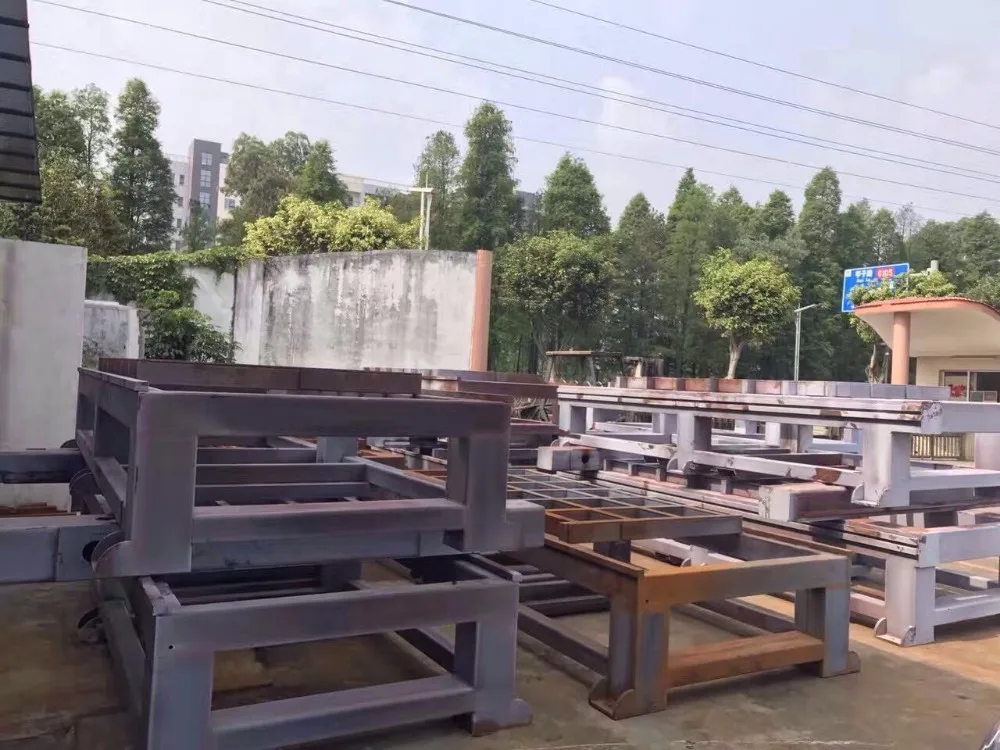

Body Structure	Heavy duty welding gantry structure
Working Table	T-slot vacuum table, six separate area absorption
Drive System	All servo motor drive
X/Y/Z Structure	Taiwan Hiwi square rail, Rack and pinion drive

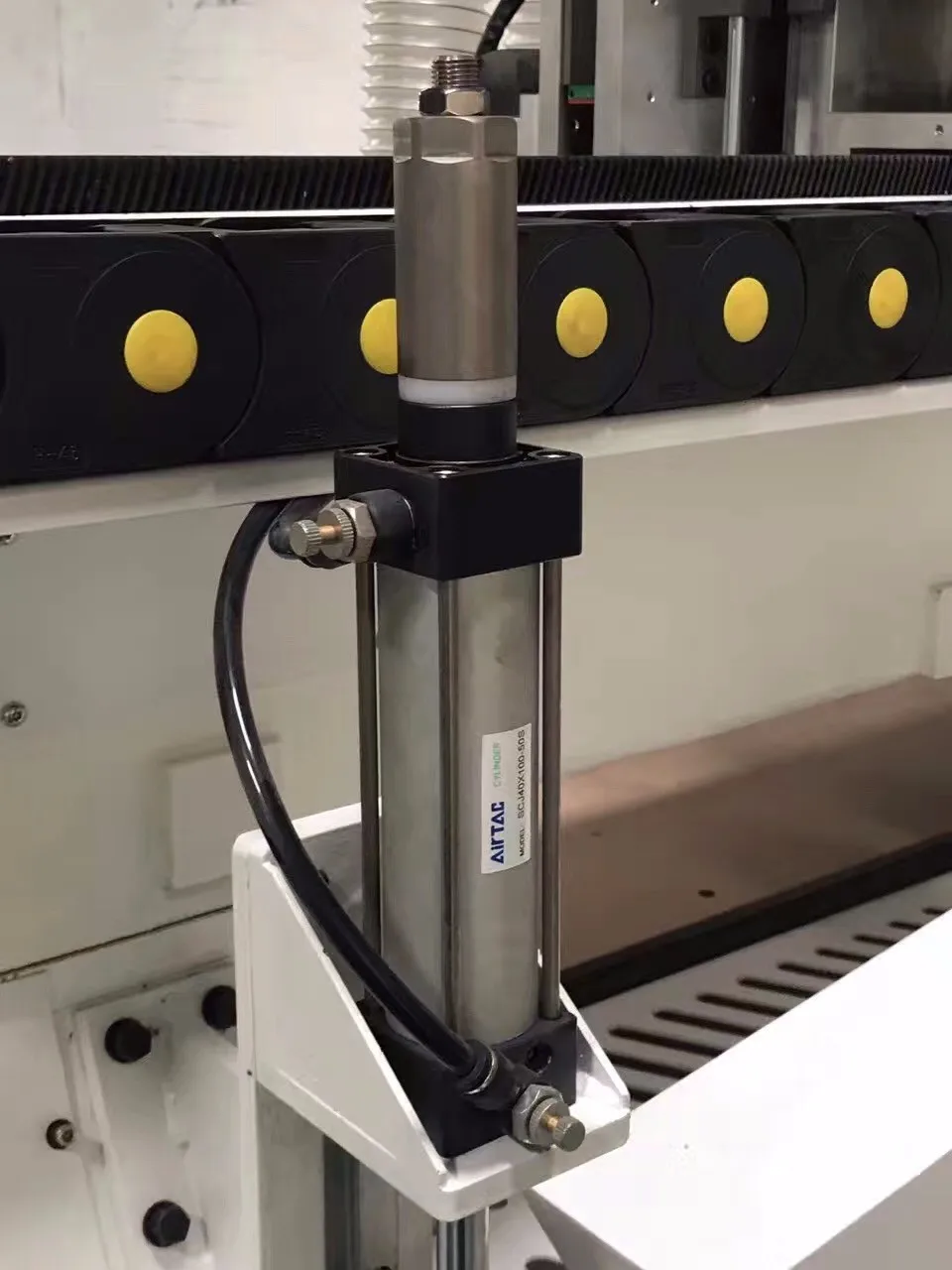

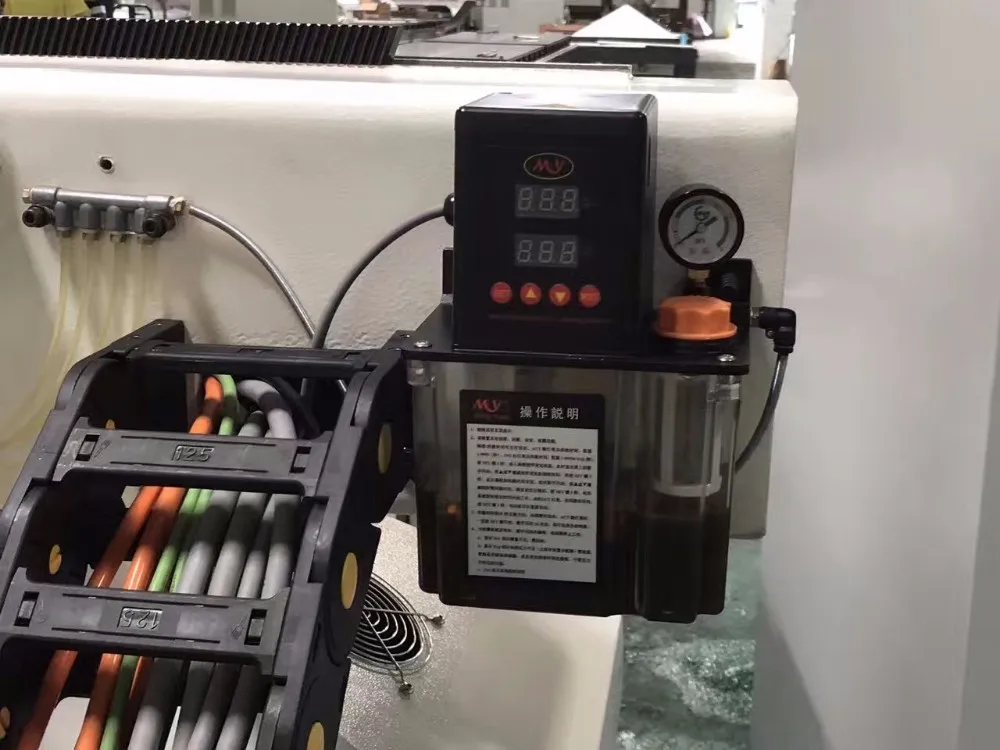

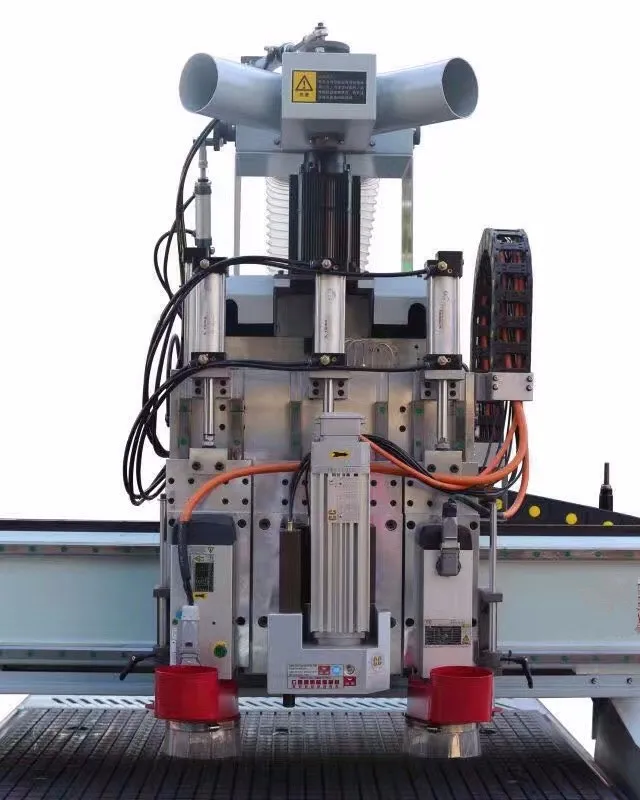

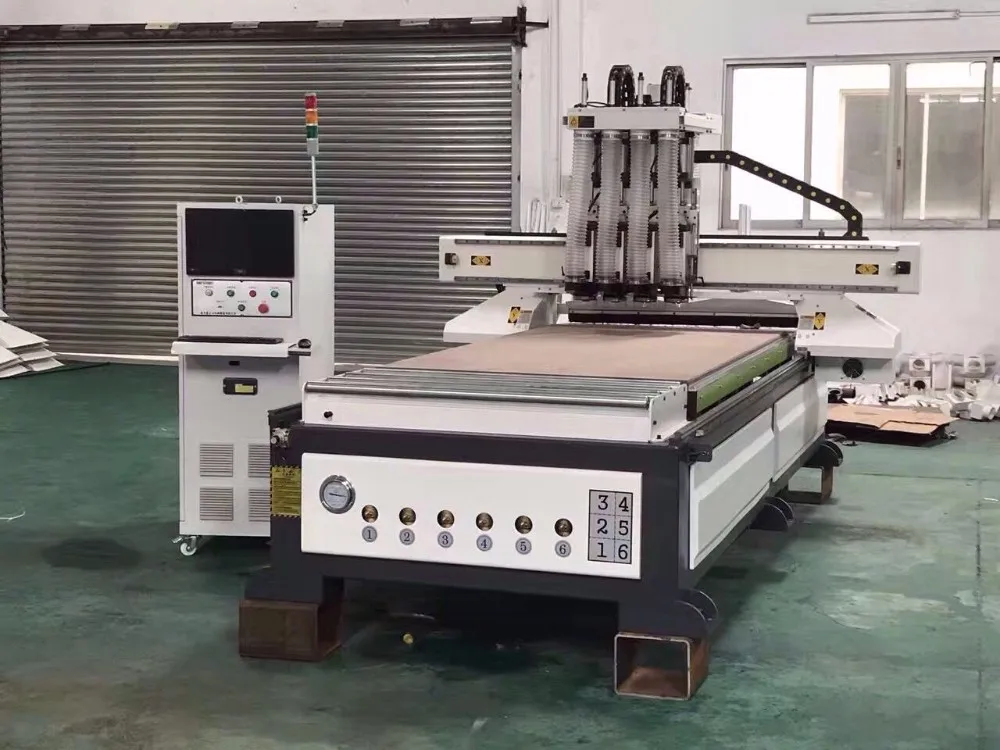

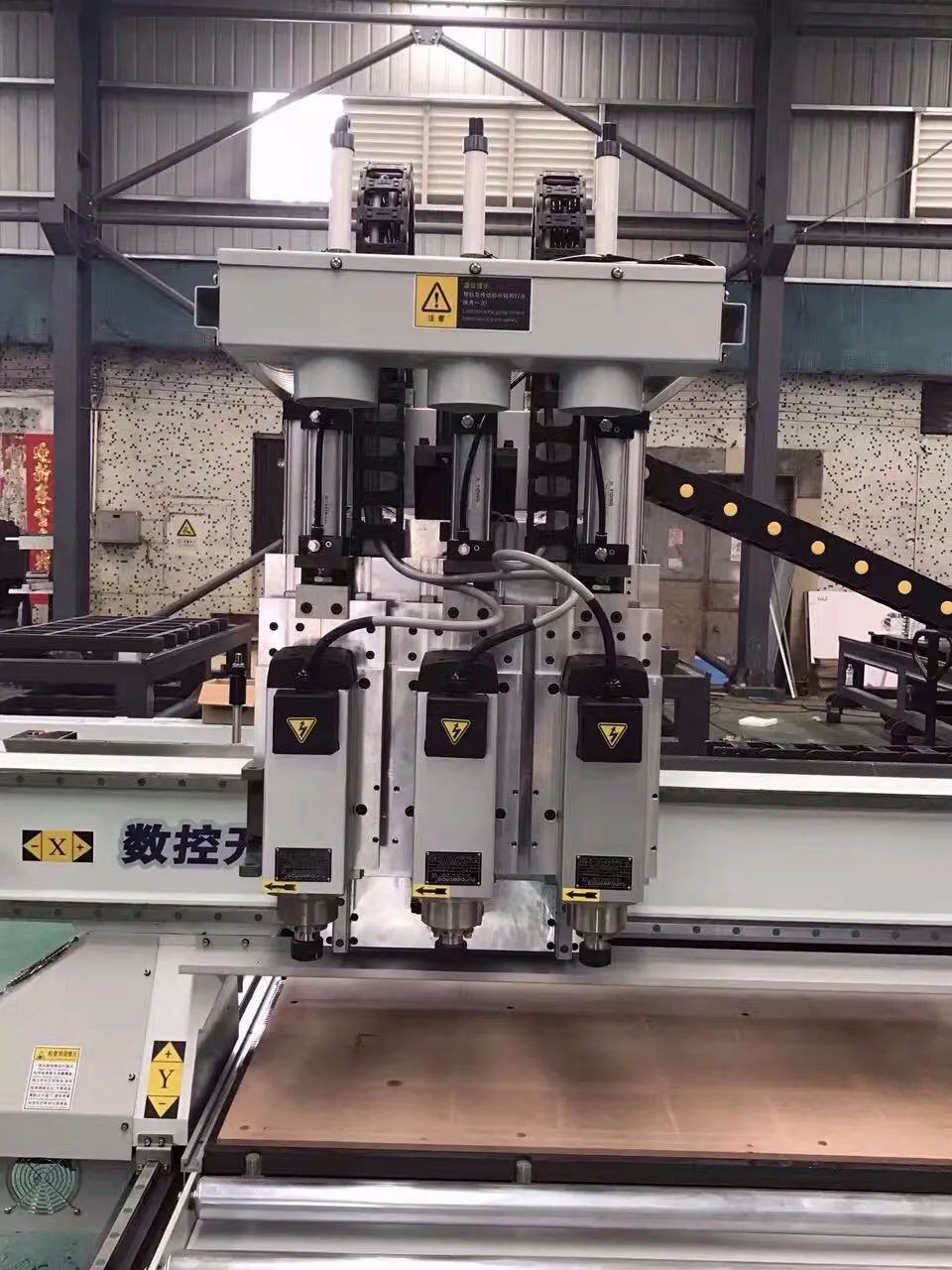

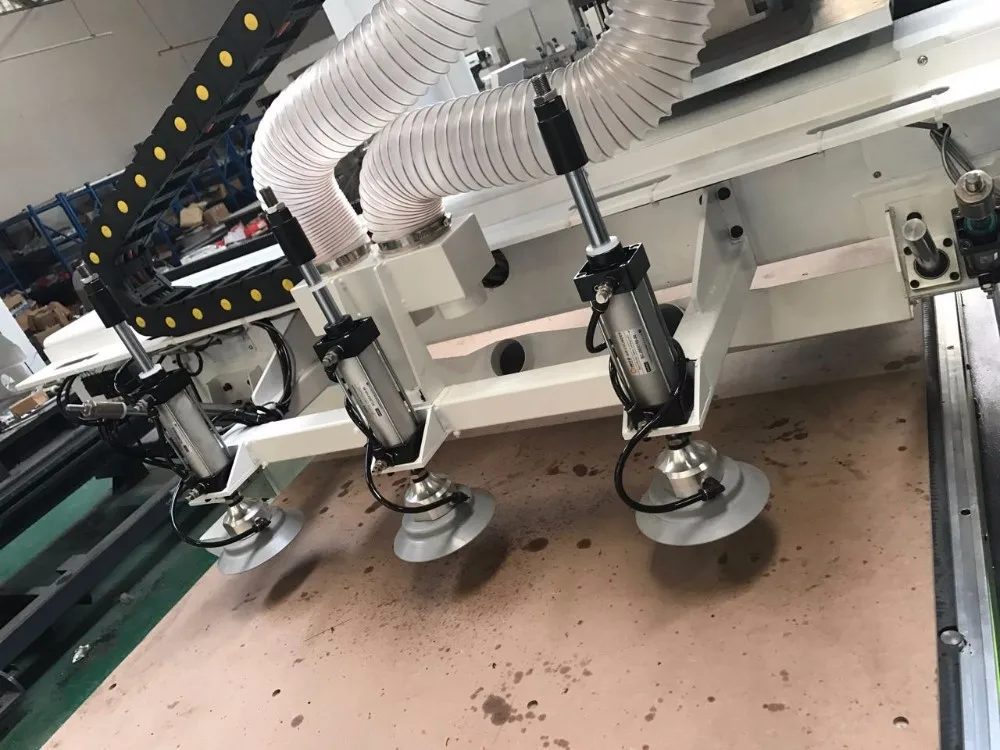

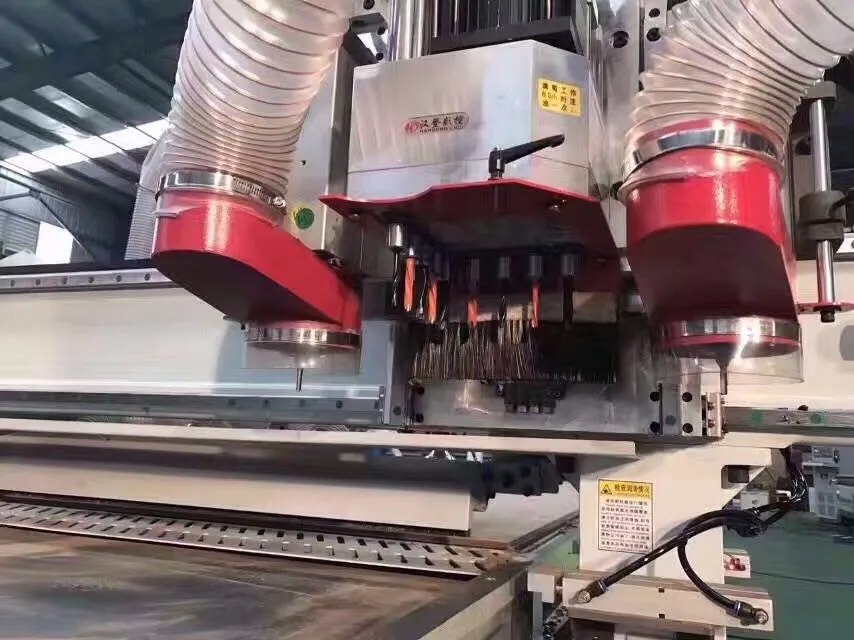

Machine Details Show

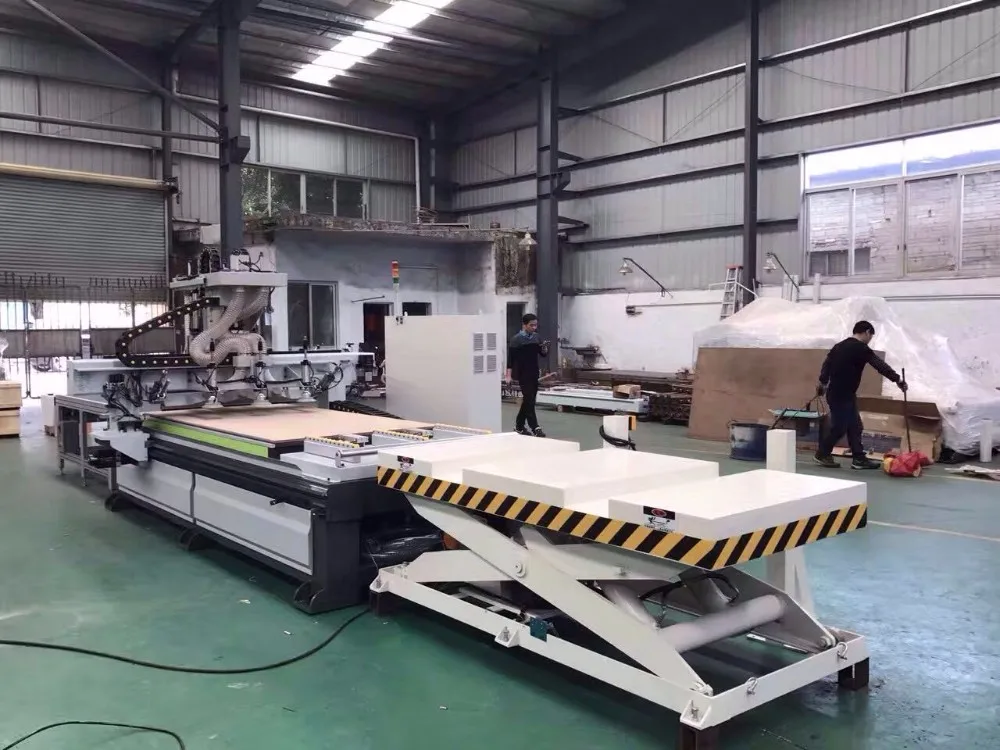

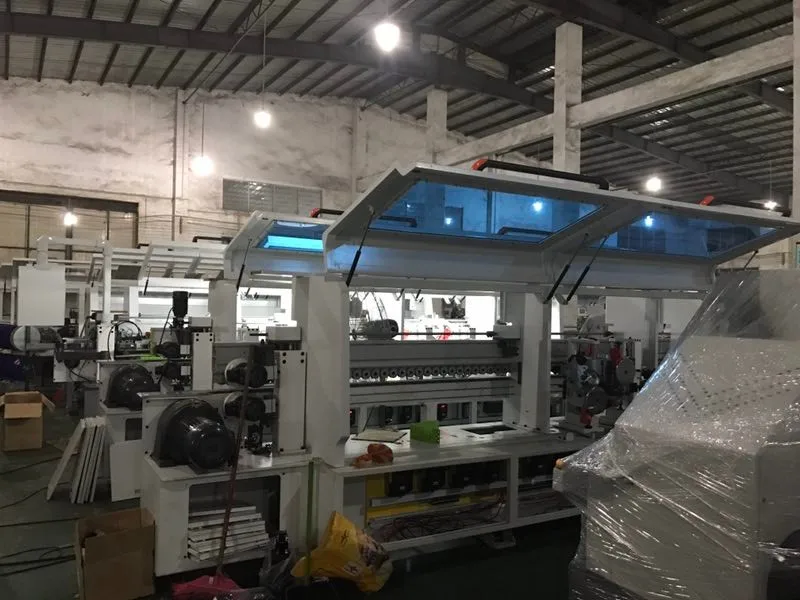

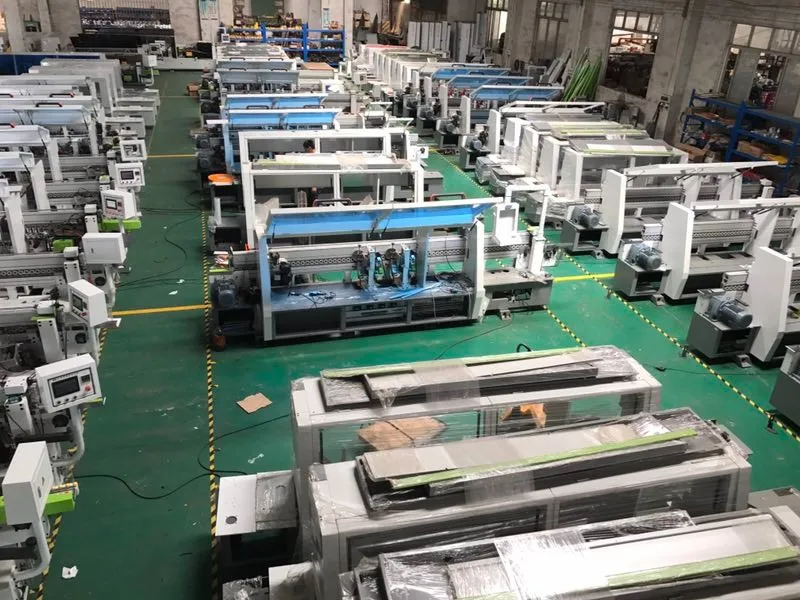

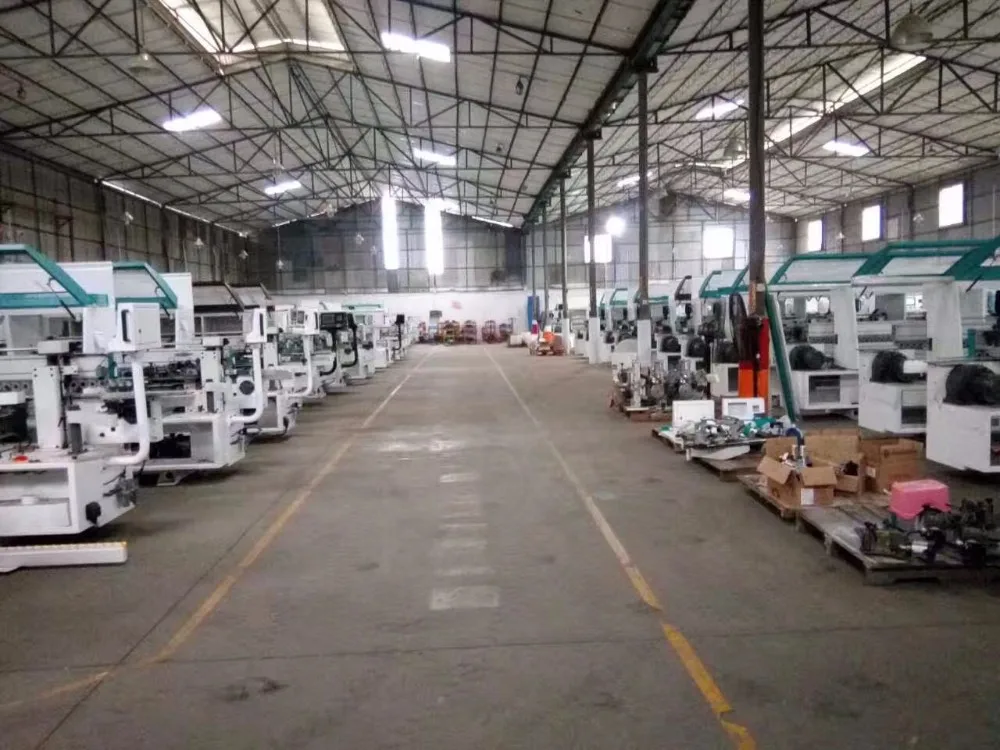

☆☆Workshop Show☆☆

Packaging & Shipping

About Packaging

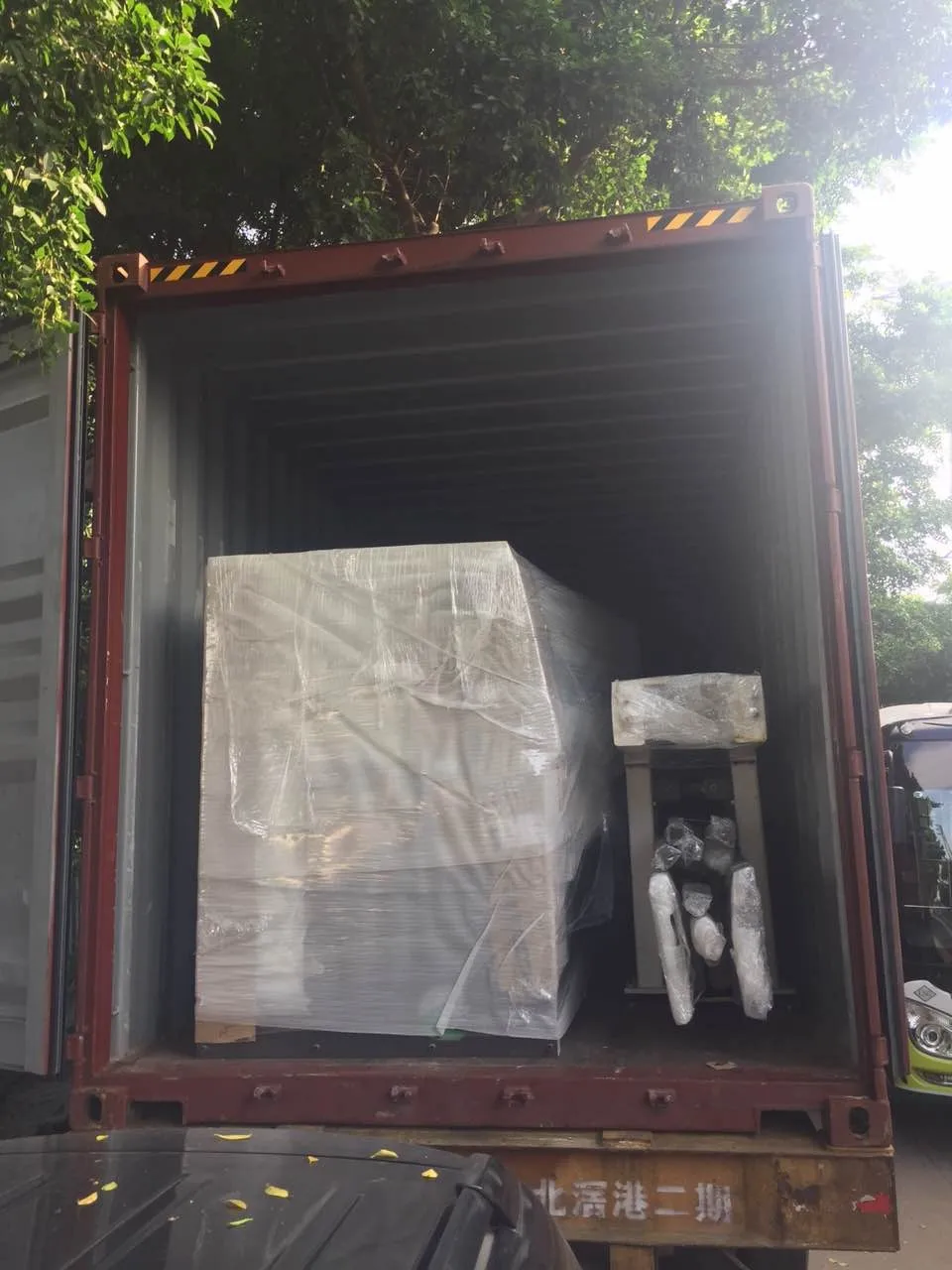

Choice 1: STANDARD EXPORT PACKAGING

If machines is shipped by FLC, we will pack it with foam film and shrink film outside, then fix it inside the container. It won't move while loading, shipping and unloading. It's also strong enough to protect the machine very well during long transportation.

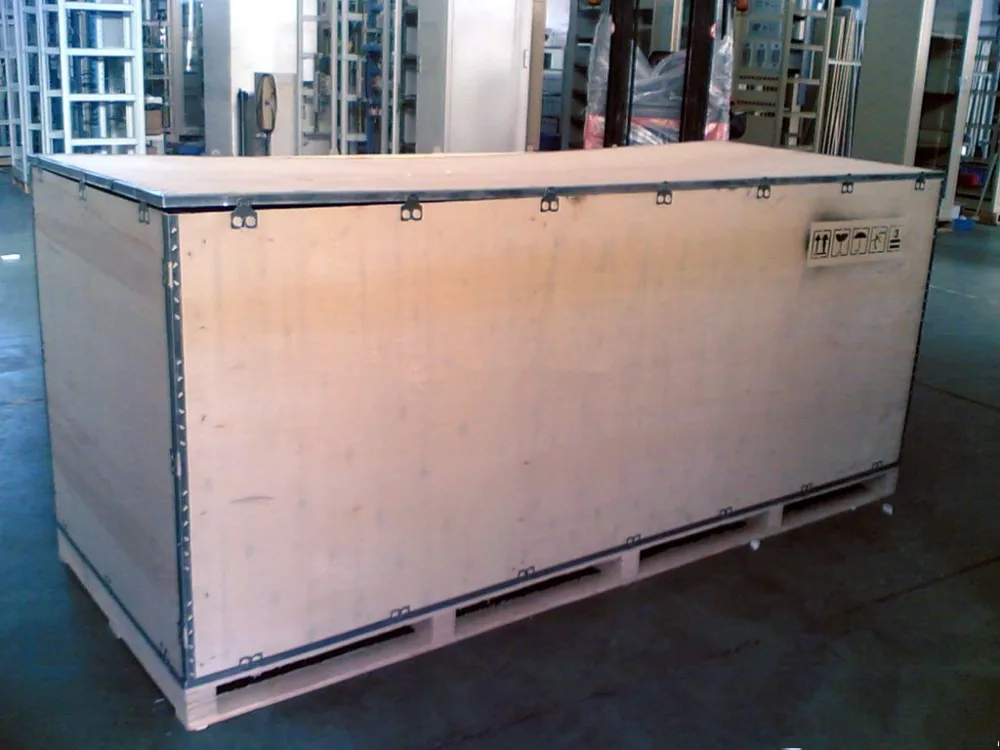

Choice 2: PLYWOOD CASE PACKAGING

We use standard export plywood case to pack the machine if customer requires. It's strong enough to protect the machine inside very well during long transportation. It's also convenient for loading and unloading.

Machines will be fixed inside the box, won't move.

About Shipment

BY SEA

Loading Port: Foshan, Guangzhou, Shenzhen.

We can offer EXW/FOB/CFR/CIF/DDU services. We will update the sea freight cost once we know the destination port.
